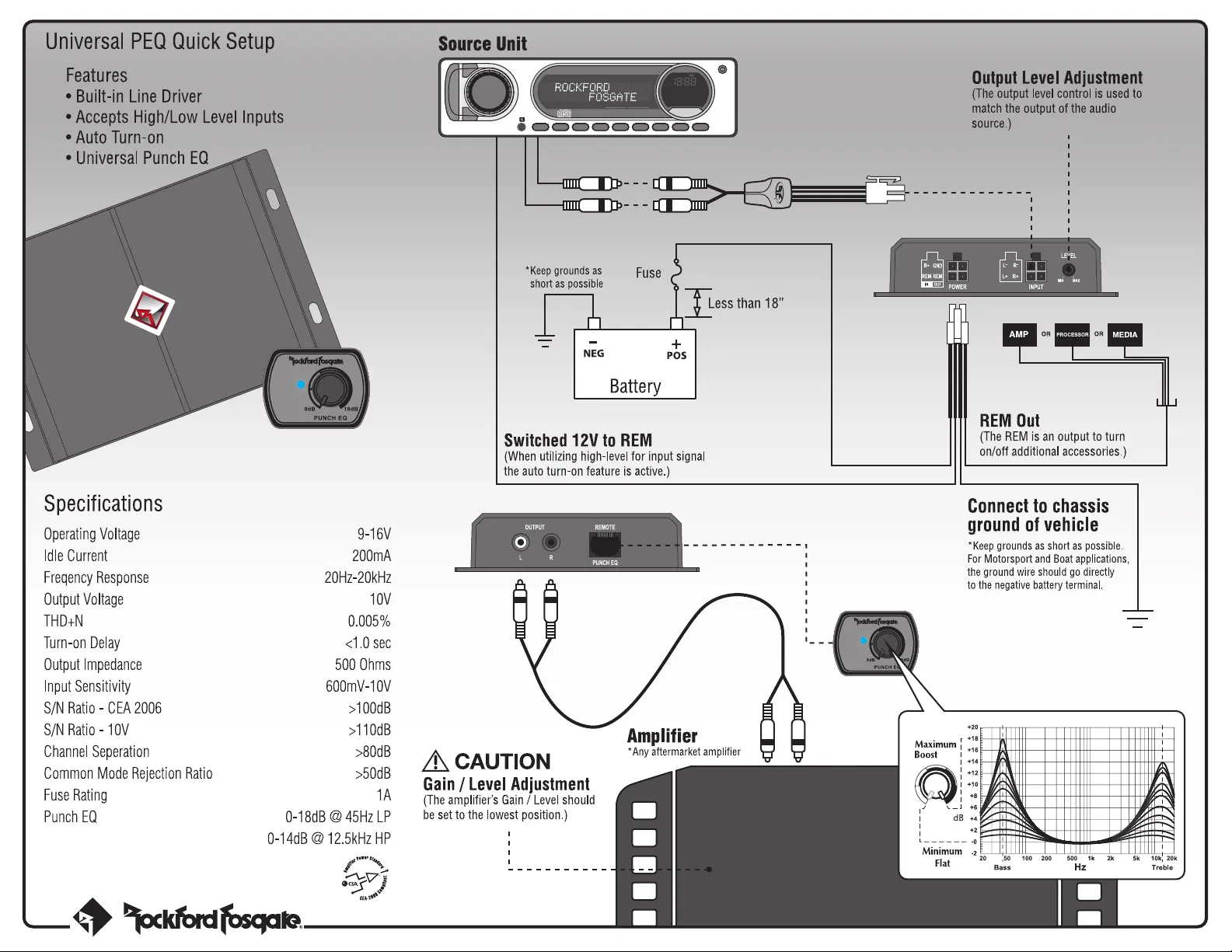

Seite 1/2
5. Connect the cable to the back of the remote.
Panel Install-Disassembly
NOTE: The maximum panel thickness is 3/16” (0.1875” or 4.75mm) for this type of installation.
Disassemble the remote as shown in Figure 2 as follows;
1. Use a small flat-blade screwdriver in the slot at the top of the remote and pry the remote assembly from the
housing.
2. Pull the control knob straight off to remove.
3. Use a paper clip or the flat side of a small drill bit from the back side through the hole to push the cover plate
off the housing cover.
NOTE: If the clear plastic LED extender is attached to the cover plate, remove it.
4. Remove the nut and washer and remove the remote assembly from the housing cover.
Panel Install-Standard
Ensure there is enough room within the panel area for connection and placement.
1. Use the plate with the LED hole as a template for hole positions.
2. Drill a 9/32” hole (0.281” or 7.14mm) for the knob shaft and a 3/32” hole (0.094” or 2.39mm)
for the LED through hole.
3. Install the remote from the back side of the panel, aligning the knob shaft and LED with the
drilled holes.
4. Install the cover plate washer and nut. Do not over-tighten the nut, just tighten until firm and secure.
5. Turn the knob shaft counter-clockwise to it’s lowest setting. Position and install the knob.
6. Connect the cable to the back of the remote.
Panel Install-Separated LED Placement
CAUTION: We suggest the following be done only by an experienced installer. Use of a
grommet and/or double-sided tape (both not included) may be needed for a proper fit of the
LED. Rockford Fosgate will in no way be held responsible for damage incurred by improper
or novice installation.
Ensure there is enough room within the panel area for connection and placement.
1. Remove the LED from the remote assembly by pulling straight up, Figure 3
2. Connect the supplied cord to the LED.
3. Connect the cord from the LED into the 2-pin connector behind the knob shaft housing.
4. Drill a 9/32” hole (0.281” or 7.14mm) for the knob shaft.
5. Install the remote from the back side of the panel, aligning the knob shaft with the drilled hole.
6. Install the cover plate without LED hole, washer and nut. Do not over-tighten the nut, just tighten until
firm and secure.
7. Turn the knob shaft counter-clockwise to it’s lowest setting. Position and install the knob.
8. Locate the position of the LED hole where the cord is not being over-extended.
9. Depending on the method of mounting, either a grommet and/or double-sided tape, drill the hole for a
snug fit. Install the LED.
10. Connect the cable to the back of the remote. CAUTION: Over excursion and subsequent damage
may occur at high levels of boost.
1
2
3
1
2
34
1230-58703-01
Figure 1
Figure 2
Figure 3
