Installation & Operation
AMPLIFIERS
P300X1 P300X2 P400X1
P400X2 P400X4 P500X1BD
P500X2 P600X4 P1000X1BD
P1000X2 P1000X5
32
Dear Customer,
Congratulations on your purchase of the worldā€™s ļ¬nest brand of car audio
products. At Rockford Fosgate we are fanatics about musical reproduc-
tion at its best, and we are pleased you chose our product. Through
years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created a wide range of products that reproduce
music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer,
as we provide specialized training through Rockford Technical Training
Institute (RTTI). Please read your warranty and retain your receipt and
original carton for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using
100% authentic installation accessories from Rockford Fosgate in your
installation. Rockford Fosgate has everything from RCA cables and
speaker wire to power wire and battery connectors. Insist on it! After all,
your new system deserves nothing but the best.
To add the ļ¬nishing touch to your new Rockford Fosgate image order
your Rockford accessories, which include everything from T-shirts to
jackets.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other
countries, call +001-480-967-3565 or FAX +001-480-966-3983.
Table of Content
If, after reading your manual, you still have questions regarding this prod-
uct, we recommend that you see your Rockford Fosgate dealer. If you need
further assistance, you can call us direct at 1-800-669-9899. Be sure to
have your serial number, model number and date of purchase available
when you call.
Safety
This symbol with ā€œWARNINGā€ is intended
to alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with ā€œCAUTIONā€ is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
ā€¢ī€€To prevent injury and damage to the unit, please read and follow the
instructions in this manual. We want you to enjoy this system, not get
a headache.
ā€¢ī€€If you feel unsure about installing this system yourself, have it installed
by a qualiļ¬ed Rockford Fosgate technician.
ā€¢ī€€Before installation, disconnect the battery negative (-) terminal to
prevent damage to the unit, ļ¬re and/or possible injury.
Introduction
Ā©2013 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE, PUNCH, and associated logos where applicable are registered trademarks of Rockford
Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Speciļ¬cations subject to change without notice.
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing loss. High powered auto sound systems may
produce sound pressure levels well over 130dB. Use common sense
and practice safe sound.
2 Introduction
3 Speciļ¬cations
4-5 Design Features
6-17 Installation
Installation Considerations
Mounting Locations
Battery and Charging

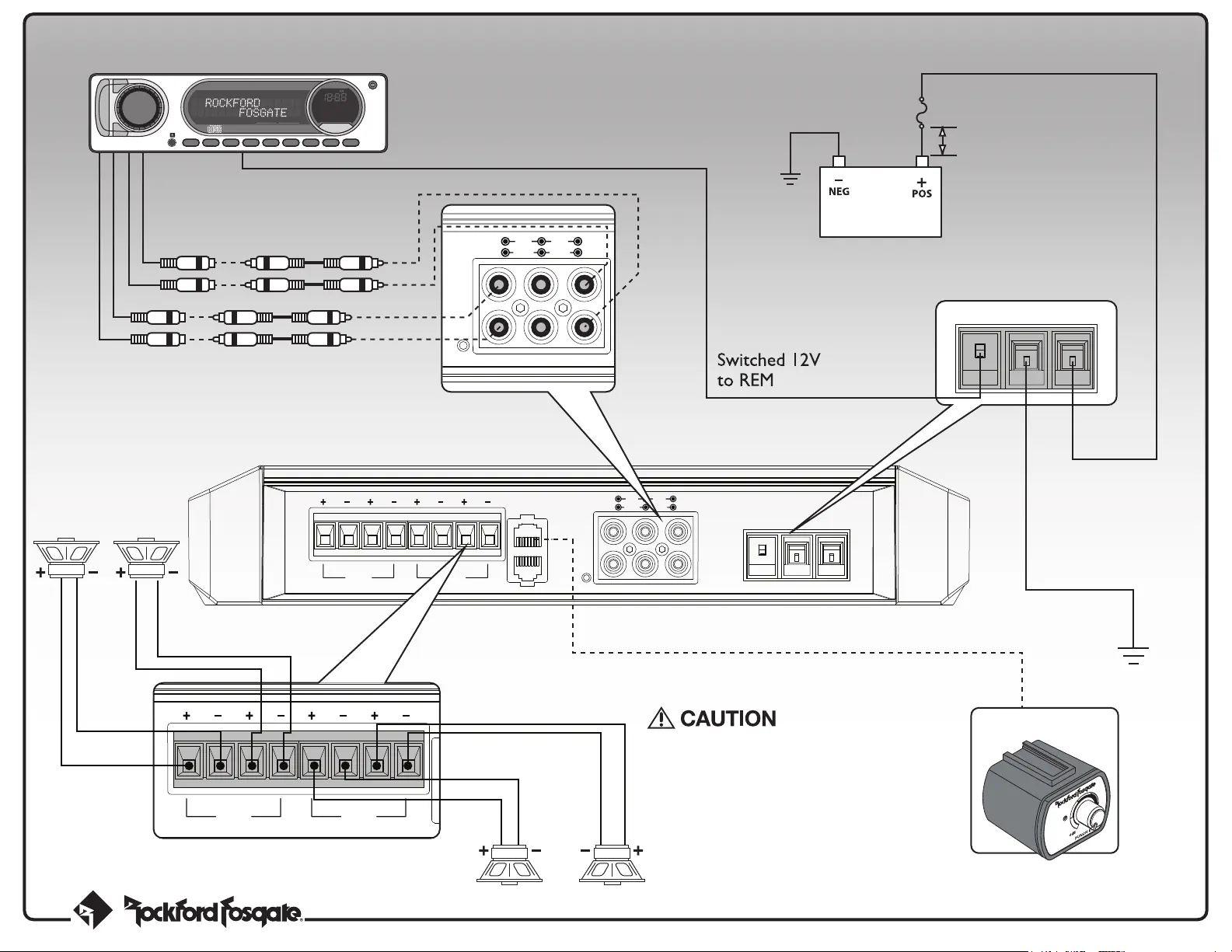

Wiring the System
18-19 Operation
Clip Indicator Setup
Adjusting Crossover Frequency
2/4 Channel Switch
Subwoofer Input Switch
Infrasonic Filter
Punch EQ
20 Troubleshooting
21 Limited Warranty Information
Speciīƒ„cations
CEA 2006
Power ratings on Rockford Fosgate ampliļ¬ers conform to CEA-2006 industry standards. These guidelines
mean your ampliļ¬erā€™s output power ratings are REAL POWER numbers, not inļ¬‚ated marketing ratings.
Mode P300X2 P400X2 P500X2 P1000X2 P400X4 P600X4 P1000X5 P300X1 P400X1 P500X1BD P1000X1BD
Rated Power -
Continuous
Power Rating
(RMS) Measured
@ 14.4V
100x2 @ 4 ohms
150x2 @ 2 ohms
300x1 @ 4 ohms*
125x2 @ 4 ohms
200x2 @ 2 ohms
400x1 @ 4 ohms*
150x2 @ 4 ohms
250x2 @ 2 ohms
500x1 @ 4 ohms*
300x2 @ 4 ohms
500x2 @ 2 ohms
1000x1 @ 4 ohms*
50x4 @ 4 ohms
100x4 @ 2 ohms
200x2 @ 4 ohms*
75x4 @ 4 ohms
150x4 @ 2 ohms
300x2 @ 4 ohms*
75x4 @ 4 ohms
125x4 @ 2 ohms
250x2 @ 4 ohms*
Sub:
150x1 @ 4 ohms
300x1 @ 2 ohms
500x1 @ 1 ohm
200x1 @ 4 ohms
300x1 @ 2 ohms
250x1 @ 4 ohms
400x1 @ 2 ohms
150x1 @ 4 ohms
300x1 @ 2 ohms
500x1 @ 1 ohms
300x1 @ 4 ohms
600x1 @ 2 ohms
1000x1 @ 1 ohms
Crossover
Slope
12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct 12 dB/Oct
Crossover
Frequency
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Sub: 28Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz
Variable 50Hz-
250Hz, Sub: 28Hz
Variable 50Hz-
250Hz, Sub: 28Hz
Punch EQ Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0 -+14dB
@ 12.5kHz and
0-+18dB @ 45Hz
Variable 0-+18dB
@ 45Hz
Variable 0-+18dB
@ 45Hz
Operating
Voltage
9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC 9-16VDC
Frequency
Response
20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-250Hz 20Hz-250Hz
Battery Fuse
Rating (not
supplied)
50A 60A 80A 140A 60A 100A 150A 50A 60A 80A 140A
THD+N @
Rated Power
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
F/R:
<1.0% @ 4 ohms
<1.0% @ 2 ohms
Sub:
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 1 ohm
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 1 ohm
<1.0% @ 4 ohms
<1.0% @ 2 ohms
<1.0% @ 1 ohm
Input Sensitivity 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V 150mV-12V
Input Imped-
ance
20k 20k 20k 20k 20k 20k 20k 20k 20k 20k 20k
S/N Ratio CEA
2006
>85dB >85dB >85dB >85dB >85dB >85dB F/R: > 85dB
Sub: >80dB
>85dB >85dB >80dB >80dB
S/N Ratio @
Rated Power
>105dB >105dB >105dB >105dB >105dB >105dB F/R: >105dB
Sub: >100dB
>105dB >105dB >100dB >100dB
Channel
Separation
>50dB >50dB >50dB >50dB >50dB >50dB >50dB N/A N/A N/A N/A
Common Mode
Rejection Ratio
>55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB
Damping Factor >500 >500 >500 >500 >500 >500 F/R: >500
Sub: >300
>500 >500 >300 >300
Dimensions
(LxWxH)
9.9ā€ x 7.8ā€ x 2.4ā€
(25cm x 19.7cm x 6.1 cm)
11ā€ x 7.8ā€ x 2.4ā€
(28cm x 19.7cm x 6.1 cm)
13.3ā€ x 7.8ā€ x 2.4ā€
(33.7cm x 19.7cm x 6.1 cm)
15ā€ x 7.8ā€ x 2.4ā€
(38.2cm x 19.7cm x 6.1 cm)
11ā€ x 7.8ā€ x 2.4ā€
(28cm x 19.7cm x 6.1 cm)
13.3ā€ x 7.8ā€ x 2.4ā€
(33.7cm x 19.7cm x 6.1 cm)
15ā€ x 7.8ā€ x 2.4ā€
(38.2cm x 19.7cm x 6.1 cm)
9.9ā€ x 7.8ā€ x 2.4ā€
(25cm x 19.7cm x 6.1 cm)
9.9ā€ x 7.8ā€ x 2.4ā€
(25cm x 19.7cm x 6.1 cm)
11ā€ x 7.8ā€ x 2.4ā€
(28cm x 19.7cm x 6.1 cm)
13.3ā€ x 7.8ā€ x 2.4ā€
(33.7cm x 19.7cm x 6.1 cm)
* Rated power when ampliļ¬er is wired in a bridged conļ¬guration.
54
Design Features
Power/Protect LED
Power LED illuminates blue when the unit is turned on. Protect
LED illuminates yellow if a short circuit or to low of an impedance
is detected at the speaker connections. Thermal LED illuminates
red when ampliļ¬er overheats. The ampliļ¬er will automatically shut
down if this occurs.
Output Clip Indicator Chart
Reference chart for the output clip in-
dicator LED illumination color during
input level setup.
Speaker Terminals
The Speaker Terminals are nickel-plated
captive c-clamp wire connectors (+ and -)
will accommodate 8 AWG.
RCA Input/Pass-Thru
The RCA inputs are capable of accepting signal from either high-level(speaker) to low-
level(RCA). When utilizing high-level for input signal the auto turn-on feature is active.
The pass-thru RCAā€™s are passive, including full input signal range and auto turn-on
functionality when active.
Subwoofer Input
Setting this switch to the ā€œOnā€ position, utilizes the
ā€œSubā€ inputs. (P1000X5)
Centering Indicators
Indicators are located on the bottom side of the
ampliļ¬er.
Output Clip Indicator
The output clip indicator works in conjunction with
the input level knob, illuminating to appropriate
color depending on the audio content used for the
setup.
Intput Clip Indicator
The input clip indicator works in con-
junction with the audio source volume
knob, illuminating red when audio
source reaches itā€™s clipping point.
Input Level Knob
The input level control is used to match
the output of the audio source.
Design Features
Punch EQ
A Gyrator based Punch EQ that eliminates frequency
shift with boost. This works along with the crossover
switch on the ampliļ¬er.
Power/REM Terminals
The power and ground will accommodate 4 AWG,
while the remote will accommodate 12 AWG.(The
REM terminal is used to remotely turn-on and
turn-off the ampliļ¬er when +12V DC is applied.)
2/4 Channel Switch
Setting this switch to the 2CH. position, switches the
inputs to a 2-channel mode, allowing connection to
only the front inputs with a 4-channel output. (P400X4,
P600X4, P1000X5)
Crossover Switch
Selectable switch for High-Pass (HP) or
All Pass (AP) or Low-Pass (LP)
Variable Crossover
Is a built-in 12dB/octave Butterworth ļ¬lter with
a crossover point variable from 50Hz to 250Hz.
illus.-1.1
Remote Punch Level Control - In/Out
Remotely control the output level of the ampliļ¬er. The
PLC-OUT is used to daisy-chain additional ampliļ¬ers
controlled by a single remote.
Infrasonic Filter
A ļ¬xed 28Hz 12dB/octave ļ¬lter designed to prevent
frequencies below the audio range from being applied
to the subwoofer from the ampliļ¬er. Consequently
improving subwoofer performance and power han-
dling, particularly in vented enclosures. (P500X1BD,
P10001BD, P1000X5)
Remote Punch Level Switch
When activated, this allows the use of a optional re-
mote Punch Level Controller. (P500X1BD, P10001BD,
P1000X5)
INPUT CLIP REAR SUBFRONT
RIGHT
LEFT
RIGHT
LEFT
B+
REM GND
REMOTE
PUNCH LEVEL
PLC-OUTPLC-IN
FRONT REAR
RIGHTLEFT
BRIDGED
RIGHTLEFT
BRIDGED
SUB
BA
SPEAKERS
INPUT
2CH. - 4CH.
