<KFWZ19D> <15060-0QU00000> EU

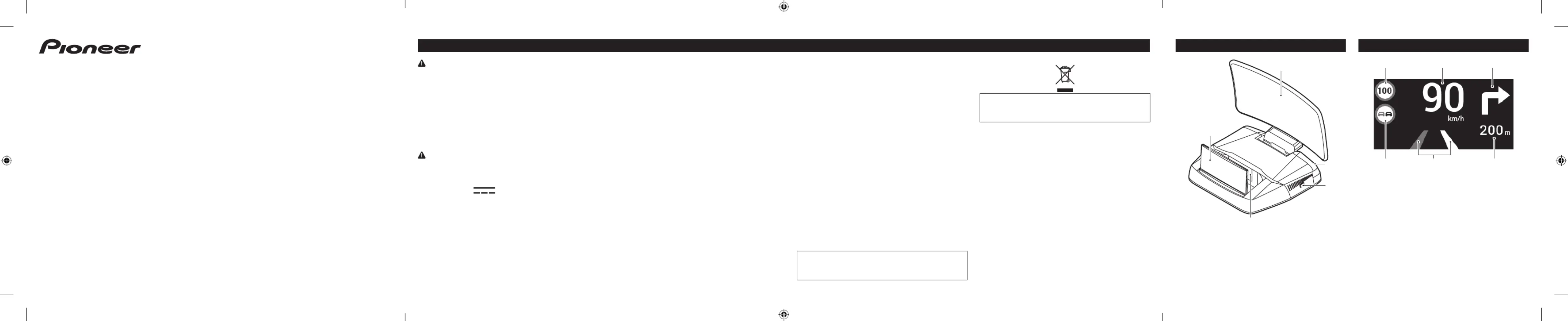

Quick start guide
SDA-HU100
HEAD-UP DISPLAY
For countries not mentioned above, please contact your local authorities for
the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the
necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health.
EU Representative’s:
Pioneer Europe NV
Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
WARNING
• Slots and openings in the cabinet are provided for ventilation to ensure
reliable operation of the product, and to protect it from overheating. To
prevent fire hazard, the openings should never be blocked or covered
with items (such as papers, floor mat, cloths).
• This equipment is not waterproof. To prevent a fire or shock hazard, do
not place any container filled with liquid near this equipment (such as a
vase or flower pot) or expose it to dripping, splashing, rain or moisture.
• To prevent a fire hazard, do not place any naked flame sources (such as a
lighted candle) on the equipment.
CAUTION
• Do not look into the lens while the device is operating.
Safety Precautions
Read these safety instructions before using your device and store them for
possible future reference.
• The graphical symbol placed on the product means direct
current.
•
If the cord is damaged, have it repaired by the manufacturer, its service or a
similarly qualified person in order to avoid any hazard.
• The device is not intended for use by persons (including children) with
reduced physical, sensory or mental capacity. Persons who have not
read the manual, unless they have received explanations by a person
responsible for their safety and supervision should not use this unit.
•
Children should be monitored to ensure that they do not play with the device.
• The device should always be readily accessible.
• The device should not be exposed to dripping or splashing water.
• No objects filled with liquids such as vases shall be placedo n the device.
•
Open flame sources, such as candles, should not be placed on top of the device.
• The device is intended for use only in a temperate climate.
Switch o in restricted areas
Switch the mobile device off where the use of mobile devices is not allowed
or where there is a risk of causing interference or danger, for example on
board an aircraft, near medical equipment, fuel, chemicals or blasting sites.
Road safety comes rst
Check the current laws and regulations regarding the use of mobile devices
in the areas where you drive.
Do not handle the mobile device when driving. Concentrate fully on the
driving.
Use a hands-free kit whenever possible.
Radio signals could affect some of the car’s electronic systems such as the
audio stereo and alarm systems.
If the car is equipped with an airbag, do not hinder its deployment with
fixed or wireless equipment. This could result in serious injury due to
inadequate performance.
Screen information is intended to assist the driver’s vision and does
not detect all dangers or obstacles. Be sure to perform a visual check of
conditions around the vehicle.
The Display features of this product are intended solely as an aid to you in
the operation of your vehicle. It is not a substitute for your attentiveness,
judgement, and care when driving. Do not operate this product, if doing so
will divert your attention in any way from the safe operation of your vehicle.
Always observe safe driving rules and follow all existing traffic regulations.
If you experience difficulty in operating this product or reading the display,
park your vehicle in a safe location and apply the handbrake before making
the necessary adjustments
Interference
All wireless devices are susceptible to interference which may affect their
performance.
Authorized personnel
Only qualified people are authorized to install or repair this product.
Accessories
Only use accessories which are compatible with this equipment. Do not
connect incompatible products.
Keep the equipment dry
This equipment is not water proof. Keep it dry.
Children
Keep your mobile device in a safe place, out of the reach of young children.
The mobile device contains small parts that may present a choking hazard.
Notes on using the product at high temperatures or low
temperatures
• In order to protect the parts of the product at high temperatures or low
temperatures, the brightness may decrease or the image output may stop,
but this is normal. Please wait until the temperature inside a car becomes
normal.
• The performance decreases at high temperatures or low temperatures.
Please observe the operating temperature range (Refer to Specifications)
described in this manual.
• If used outside of the operating temperature range, parts may be
degraded.
Certain country and government laws may prohibit or restrict the
placement and use of this product in your vehicle. Please comply with
all applicable laws and regulations regarding the use, installation and
operation of this product.
If you want to dispose this product, do not mix it with general household
waste. There is a separate collection system for used electronic products in
accordance with legislation that requires proper treatment, recovery and
recycling.
Private households in the member states of the EU, in Switzerland and
Norway may return their used electronic products free of charge to
designated collection facilities or to a retailer (if you purchase a similar new
one).
Precaution What's what
1
3
2
4
5
1 Fold Mirror
2 Optical Combiner
3 Light Sensor
4 Setting Button
5 PGU (Light Engine)
1 2 3
456
1 Speed limit
2 Current speed
3 Turn indicators
4 Distance to next turn
5 Lane departure info
6 No Overtaking
Screen information
Press
Three levels of automatic brightness
adjustment on each press
HOLDHOLD
Press and Hold
Restore to default level of automatic
brightness adjustment
Press and Hold time must over 10 seconds
Brightness Adjustment Specications
General Power supply voltage 12 V (9 V to 16 V)
Maximum current
consumption
Average 0.18 A @ 12 V input at the
highest brightness
Ground system Negative
Operating
temperature
–10 °C to +85 °C
*In order to protect the parts of
the product at high temperatures
the brightness may decrease or the
image output may stop.
Dimensions (W*H*D) This product : 167 mm × 131.06 mm
× 130.6 mm
Combiner : 167 mm × 91 mm ×
5 mm
Weight 350 g
HUD type Combiner type
Display Panel size 1.24 inches (diagonal)
Resolution 336 pixels (H) × 168 pixels (V)
Optical method LCD type
Light source White LED backlight
Viewing distance 2.3 m
Virtual image size 10.5 inch
Brightness 15,000 nits
LCD panel brightness is 30,000 nits.
Contrast ratio 500
Accessories Quick Start Guide 1
Warranty card 1
Please refer the warranty conditions on our website.:
https://www.pioneer-car.eu/eur/support/warranty
Warranty conditions
