Seite 1/4

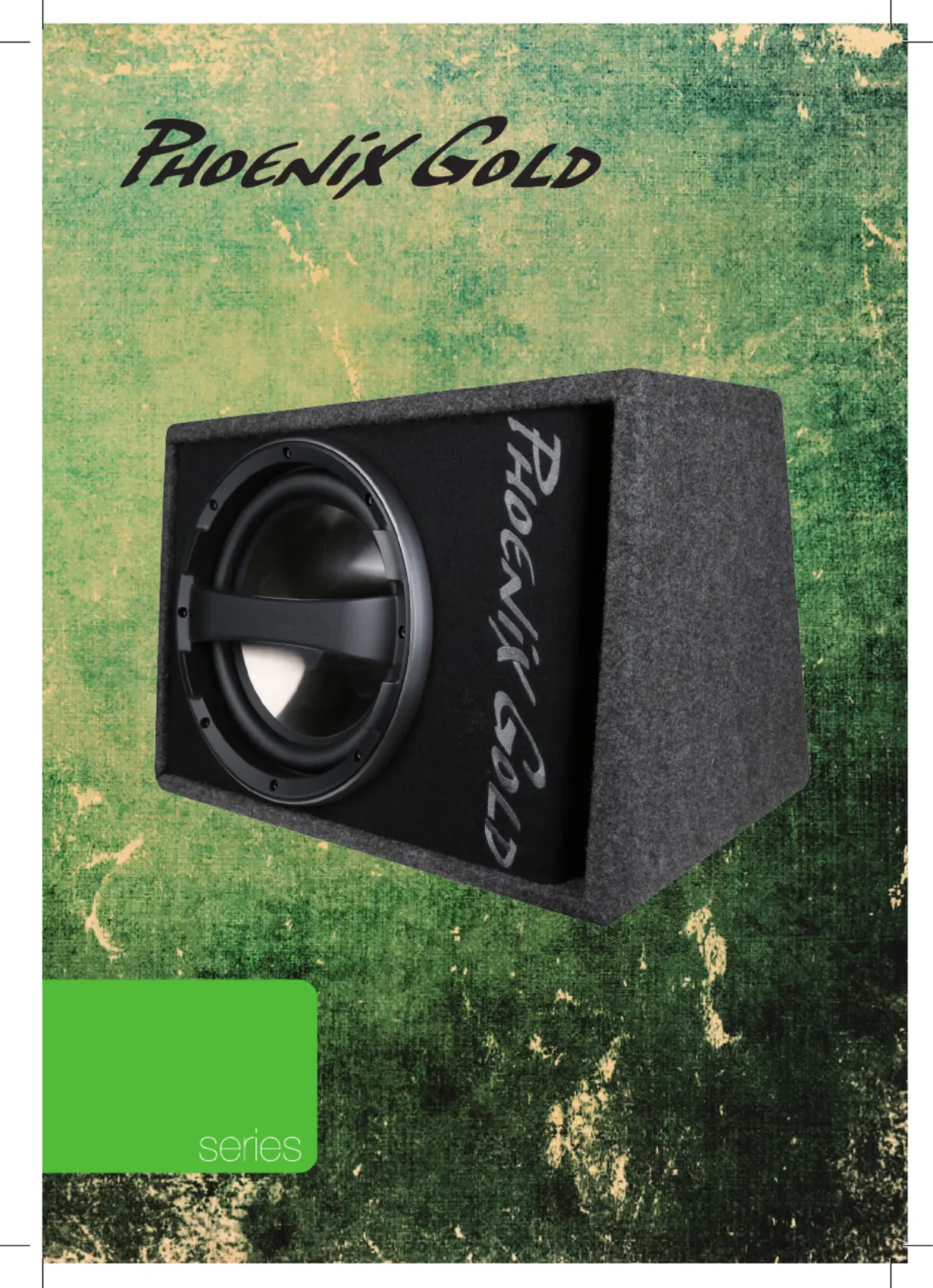

Z110AB-V2
Z112AB-V2
Active Subwoofer Enclosures
Z
ACTIVE SUBWOOFER ENCLOSURES
Z110AB-V2 Z112AB-V2 10” Active Enclosure 12” Active Enclosure
SPECIFICATION Z110AB-V2 Z112AB-V2
Peak Power (Watts) 320 Watts 320 Watts
Max Power (Watts) 160 Watts 160 Watts
RMS Power (Watts) 80 Watts 80 Watts
Amplier Type Class-AB Class-AB
Frequency Response 10Hz-200Hz 10Hz-200Hz
Signal to noise ratio >60dB >60dB
Crossover Slope 6dB per octave 6dB per octave
Crossover Range 50Hz - 200Hz 50Hz-200Hz
Tuning Bass Reî›…ex Bass Reî›…ex
Woofer Size 10” 12”
Fuse 15A 15A
Dimensions (mm) 476(w) x 343(h) x 331(d) 560(w) x 384(h) x 394(d)
Disclaimer
Always ensure the Active Enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no
responsibility for damage or injury in relation to inappropriate securing of this product.
Control Descriptions
LEVEL
This allows the adjustment of the amplier level of the sub-
woofer. Turn clockwise to increase the level. If the sound
becomes distorted reduce the level.
LOW PASS FILTER (LPF)
This allows the adjustment of the highest frequency the
Active Enclosure will produce. This should be adjusted to
blend with your main speakers. Typically, this will be set
to around 100Hz (approximately the central position of the
control knob)
BASS REMOTE CONTROLLER
This control can be mounted in the front of the vehicle to
give you control of your subwoofers output level.
Installation
Make sure the Active Enclosure is rmly xed in your ve-
hicle. Check before drilling or cutting holes. DO NOT work
near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount the Active Enclosure in such a way as to
pinch or damage the wires.
Make sure everything is rmly connected before attaching
a +12V wire. Ensure the +12V wire is fused as close as
possible to the battery. Always use a fuse with the
recommended rating.
Wiring
• Connect the ground wire to the vehicle rst (clean
dirt and paint to bare metal)
• Connect the remote on (blue wire)
• Connect the RCA cables if applicable OR
• Connect the speaker level wire by splicing into the
headunits speaker wires. See Note1 on
adjacent page.
• Connect the remote level controller with the
supplied lead
• Please ensure power wire is fused within 12”
of battery
• Connect the 12 volt (red wire) to the positive battery
terminal.
• Check all connections.
WARNING:
Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB
may cause permanent hearing loss. Please watch for emergency vehicles as warning signals may not be heard.
