Installation & Operation Manual
Commercial Back Bar
• Remote & Self-Contained Standard height and low height Models BBR, BBS,
BBRLP & BBSLP Series
• Remote & Self-Contained Narrow Door Models BBRN & BBRSN Series
• Remote & Self-Contained Pass Thru Models PTR & PTS Series
• Remote & Self-Contained Sliding Door Models SDB & SDP Series
• Self-Contained Dual-Zone DZS Series Concessionaire
• Direct Draw DDC & DDS Series
Form No. Z2604
Rev A 11.24.2020

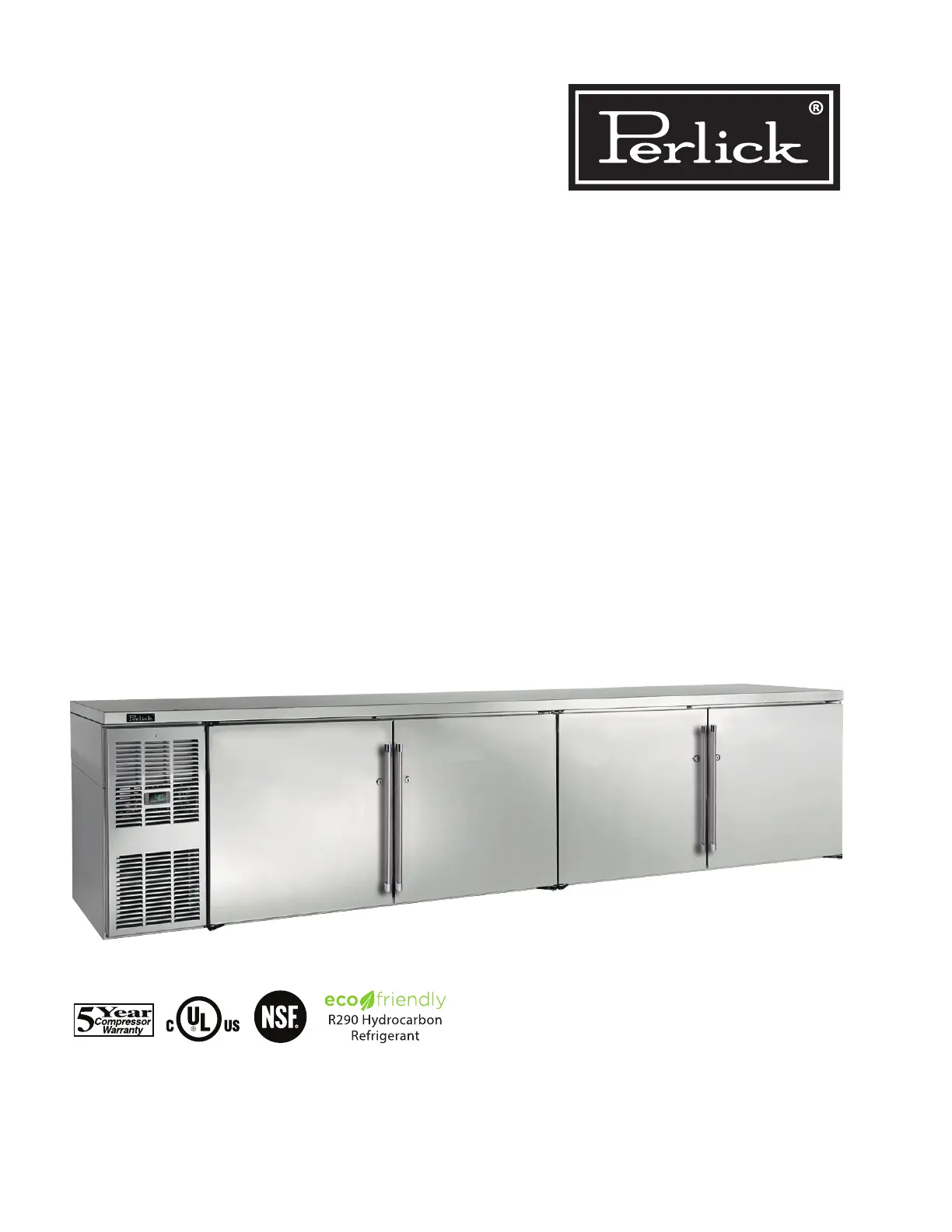

Model BBSLP108 Shown
Commercial Back Bar Installation & Operation Manual
2
TABLE OF CONTENTS
IMPORTANT!
Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualied technician and
conform to all applicable state and local codes.
GENERAL INFORMATION
Warranty
To register your product, visit our web site at
www.perlick.com. Click on “Commercial”, then
“Service”. Click on the link “Warranty Registration
Form”. You must complete and submit this form
or the installation date will revert back to the ship
date.
Please record the purchase date and the dealer’s
name, address and telephone number below.
Model Number: ________________________
Serial Number: _________________________
Purchase Date: _______________________
Dealer Name & Address
______________________________________
______________________________________
______________________________________
Phone Number__________________________
SAFETY
PLEASE READ all instructions completely
before attempting to install or operate the unit.
Take particular note of the DANGER, WARNING
and CAUTION information in the manual. The
information is important for the safe and e󰀩cient
installation, operation and care of your Perlick unit.
DANGER
Indicates a hazard that WILL
result in serious injury or
death if precautions are not followed.
W GARNIN
Indicates a hazard MAY
cause serious injury or
death if precautions are not followed.
CAU NTIO
Indicates a hazard where
minor or moderate injury
may occur if precautions are not followed.
N EOTIC
Indicates that property
damage may occur if
warnings or instructions are not followed.
Introduction
Congratulations on your purchase of a Perlick
commercial back bar product. This manual has
been prepared to assist you in the installation of
your cabinet and to acquaint you with its operation
and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer
can provide you with a list of qualied service
agents. For your own protection, never return
merchandise for credit without our approval.
We thank you for selecting a Perlick product
and assure you of our continuing interest in your
satisfaction.
General Information 2 .................................................................................................................................
Safety 2 ......................................................................................................................................................
Prior To Installation .................................................................................................................................. 3
Installation 4 ...............................................................................................................................................
Operation 5 .................................................................................................................................................
Adjustments 7 .............................................................................................................................................
Maintenance .......................................................................................................................................... 11
Troubleshooting 14 .....................................................................................................................................
Dimensions 16 ............................................................................................................................................
Wiring Diagrams 34 ....................................................................................................................................
Warranty 48 ................................................................................................................................................
Commercial Back B Installation & Operation Manualar
Form No. Z2604
Rev A 11.24.2020
PRIOR TO INSTALLATION
Uncrating and Inspection
Remove all crating material. Carefully inspect
cabinet for hidden damage. If damage is
discovered, le your claim immediately with the
transport company. Perlick is not responsible for
damage in transit.
W GARNIN
Ta k e c a u t i o n w h e n
handling, moving and
using the product to avoid damaging the
refrigerant tubing or increasing the risk of a
leak.
DANGER
All service work shall be
p erfo rmed b y fact o ry
authorized service personnel and all
component parts shall be replaced with like
components to minimize the risk of possible
ignition due to incorrect parts or improper
service.
CAU NTIO
If service is necessary,
repai r work must b e
performed by a Perlick authorized servicer.
Work done by unqualied individuals could
potentially be dangerous and will void the
warranty.
CAU NTIO
Do not cut cardboard
sleeve covering the unit.
Cutting may result in damage to the exterior
of the cabinet. Failure to follow this procedure
may damage the compressor and void
warranty.
1. Uncrate the unit on at, level surface. Remove
the cardboard sleeve by removing the banding
securing the sleeve to the shipping base.
Carefully lift the cardboard sleeve up over the
top of the unit.
2. Carefully lift unit o󰀨 the base and onto a hand
truck or dolly. Make sure unit is balanced
on transporting device using soft, exible
strapping. Protect unit surfaces with cloth
material where strapping contacts unit.
CAU NTIO
Do not lift unit by drawer,
shelving or door handles
or damage to the unit could occur.
W GARNIN
To prevent personal injury,
two peopl e mi nimum
required to lift the unit. Larger units may
require additional personnel.
3. Before moving unit, secure door(s) to unit with
tape to prevent from opening.
4. Carefully move unit to installation site and
place in front of opening.
CAU NTIO
Finished ooring should
b e p r o t e c t e d w i t h
appropriate material to avoid damage from
moving the unit.
Plumbing
CAU NTIO
Do not over-tighten drain
tting or damage to the
threads could occur.
Plumbing
Self-Contained
Condensate from the cooling coil is automatically
evaporated from the condensate pan located in
the condensing unit housing on self-contained
models.
Self-Contained & Remote
Each unit is equipped with a oor drain located
in the right rear corner of the cabinet. The drain
can be plumbed to an external oor drain by
connecting to the 3/4” NPT thread connection on
the side, or the 1” NPS thread connection out the
bottom, of the unit. Both drain ports come plugged
from the factory and can be removed if needed.
Remotes
Dispensing head drainers should be plumbed to
a dump tank or oor drain. Always rinse drainer
with su󰀩cient amounts of water daily to prevent
drain from clogging.
Remote evaporator condensate plumbing should
be routed out on of the cabinet side access holes
or to one of the oor drains and should always
be sloped to the drain with no rise to prevent
drainage. A trap should be used, however, trap
peak must be below condensate drain pan nipple.
Electrical
The cabinet must be connected to a separately
fused power source (see Electrical Specication
Plate a󰀩xed to unit) in accordance with National
and Local electrical codes.
Self-contained Perlick units come equipped with
a NEMA 5-15P 90° plug with an 8’ cord extending
beyond the rear of the cabinet. The electrical
outlet must be ush with, or recessed into, the
wall surface.
NOTE: Never use an extension cord to extend the
power cord to the electrical receptacle.
