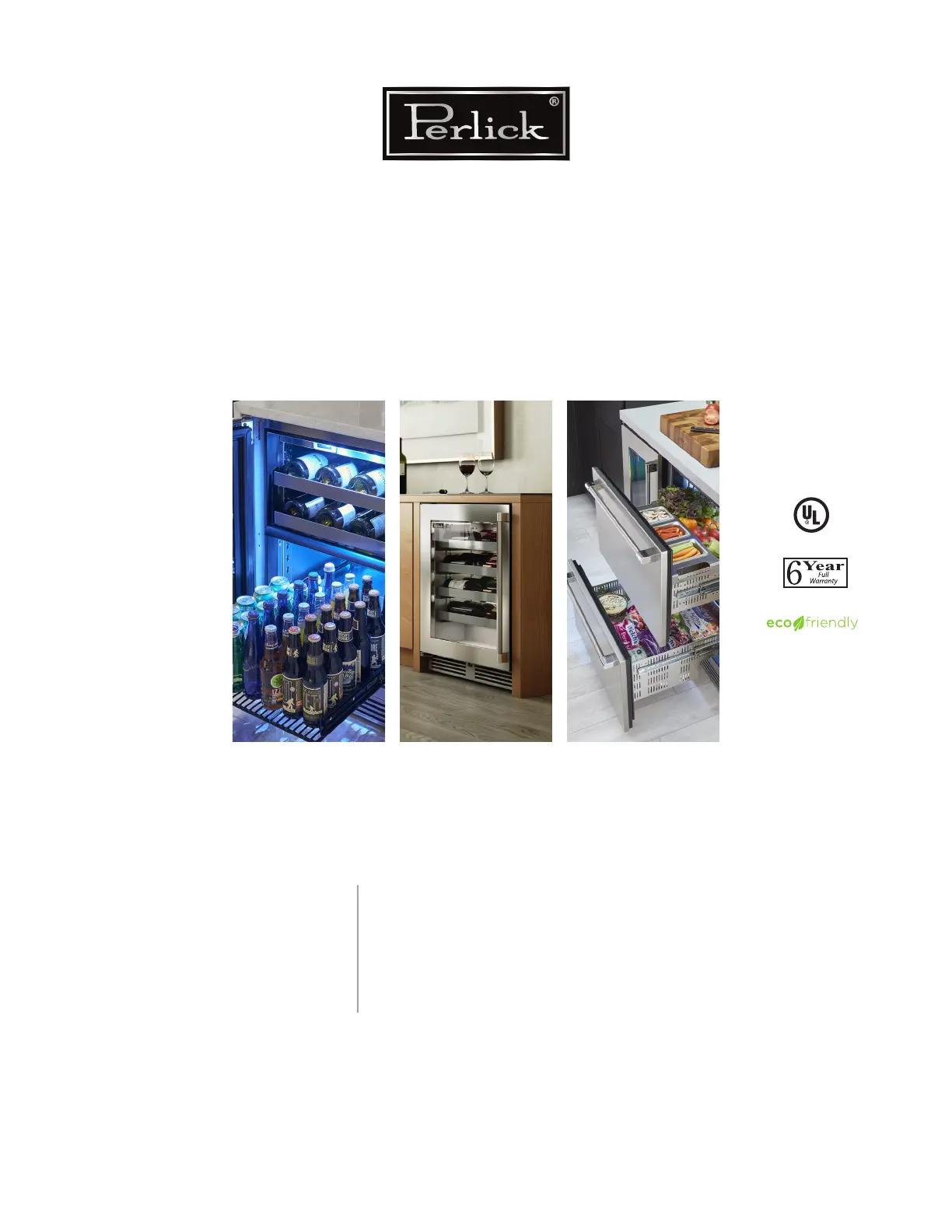

PERLICK RESIDENTIAL UNDERCOUNTER REFRIGERATION
To prevent appliance damage or injury, read these instructions
thoroughly prior to installation.
UNDERCOUNTER
INSTALLATION
INSTRUCTIONS
HP15 15” SIGNATURE SERIES
HP24 24” SIGNATURE SERIES
HH24 SIGNATURE SERIES SHALLOW DEPTH
HC24 C-SERIES
HA24 ADA-COMPLIANT SERIES
C
US
R600a Refrigerant
Form No. Z2667-A
Rev. 12.15.2020
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
2 | perlick.com/residential
Warranty
To register your product, visit our web site at www.perlick.
com. Click on “Residential”, then “Resources”. Click on the
link “Warranty Registration Form”. You must complete and
submit this form or the installation date will revert back to
the ship date.
Please record the purchase date and the dealer’s name,
address and telephone number below.
Model Number: ________________________________
Serial Number: _________________________________
Purchase Date: _________________________________
Dealer Name & Address __________________________
______________________________________________
______________________________________________
______________________________________________
Phone Number _________________________________
Introduction
Congratulations on your purchase of a Perlick Residential
undercounter product. This manual has been prepared
to assist you in the installation of your cabinet and to
acquaint you with its operation and maintenance.
This manual has been prepared to assist you in the
installation of your under counter refrigerator and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products
provide the highest level of customer satisfaction. If
service is required, your dealer can provide you with a list
of qualied service agents. For your own protection, never
return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction.
GENERAL INFORMATION
TABLE OF CONTENTS
General Information 2 ................................................................................................................................................................................
Safety 3 ............................................................................................................................................................................................................
Refrigerant 3 ..................................................................................................................................................................................................
Prior To Installation ..................................................................................................................................................................................3
Preparing the Cabinet for Use
Uncrating and Inspection 4 ..............................................................................................................................................................
Electrical ...............................................................................................................................................................................................4
Use and Operation 4 ...................................................................................................................................................................................
Repair & Maintenance 5 ............................................................................................................................................................................
Installing Casters or Legs 5 .......................................................................................................................................................................
Installation 5 ..................................................................................................................................................................................................
Preparing the Space 6 ................................................................................................................................................................................
Placing the Cabinet 6 ..........................................................................................................................................................................
Installing the Unit 6 .....................................................................................................................................................................................
Toe Plate Installation........................................................................................................................................................................7
Adjusting Full Extension Shelving 8 ..............................................................................................................................................
Door Options/Adjustment.............................................................................................................................................................8
Handle/Lock Installation 11 .............................................................................................................................................................
Overlay Installation 12 .......................................................................................................................................................................
Touch-Screen Control Operation 15 .....................................................................................................................................................
Checking Product Temperature ................................................................................................................................................15
Digital Temperature Control ......................................................................................................................................................15
Programming Button Denitions 15 ............................................................................................................................................
LED Functions 15 .................................................................................................................................................................................
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 3
IMPORTANT!
Read and understand all information in this manual before attempting the installation. All plumbing
and electrical work must be performed by a qualied technician and conform to all applicable state
and local codes.
SAFETY
PLEASE READ all instructions completely before
attempting to install or operate the unit. Take particular
note of the DANGER, WARNING and CAUTION information
in the manual. The information is important for the safe
and ecient installation, operation and care of your Perlick
unit.
DANGER
Indicates a hazard that WILL result
in serious injury or death if
precautions are not followed.
W GARNIN
Indicates a hazard MAY cause
serious injury or death if
precautions are not followed.
CAU NTIO
Indicates a hazard where minor
or moderate injury may occur if
precautions are not followed.
N EOTIC
Indicates that property damage
may occur if warnings or
instructions are not followed.
Refrigerant
DANGER
Take caution when handling,
moving and using the product to
avoid damaging the refrigerant tubing or increasing
the risk of a leak
W GARNIN All service work shall be
performed by factory authorized
service personnel and all component parts shall be
replaced with like components to minimize the risk of
possible ignition due to incorrect parts or improper
service.
CAU NTIO If service is necessary, repair work
must be performed by a Perlick
authorized servicer. Work done by unqualied
individuals could potentially be dangerous and will
void the warranty.
N EOTIC
This product contains blown foam
insulation using blowing agent
R-611 (Methyl Formate). The foam in this product
does not contain HFC’s, CFC’s, or HCFC’s.
All models covered in this user manual are manufactured
using refrigerant R600a (Isobutane). R600a is a hydrocarbon.
This refrigerant is ammable and is only allowed for use in
appliances with fulll the requirements of UL/IEC 60335-1
and UL/IEC 60335-2-24. (To cover potential risk originated
from the use of ammable refrigerants). Consequently,
R600a is only allowed to be used in refrigerating appliances
with are designed for this refrigerant and fulll the above-
mentioned standard.
• R600a is heavier than air. The concentration will always
be highest at the oor level.
• The explosion limits are as follows:
o Lower Limit: 1.8% by volume
o Upper Limit: 8.4% by volume
o Ignition Temperature: 460°C
Prior To Installation
Carefully inspect cabinet for hidden damage. If damage is
discovered, le your claim immediately with the transport
company. Perlick is not responsible for damage in transit.
CAU NTIO
When moving the unit, be sure to
protect nished ooring with
appropriate material to avoid damage from moving the
unit.
CAU NTIO
Do not lift unit by drawer, shelving
or door handles, as damage to the
unit could occur if not moved as instructed.
W GARNIN
To prevent personal injury, a
minimum of two people are
required to lift the unit. Larger units may require
additional personnel.
Before moving the unit, secure the door shut with tape
to prevent door from swinging open while being moved.
Carefully move unit to installation site and place in front
of opening.
CAU NTIO
If unit has been laid on its back or
sides, place unit upright and allow
minimum of 24 hours before connecting power.
