Installation

& Operation Manual

Flat Top Bottle Cooler

BC Series

Form No. Z2295

Rev. 04.05.2018

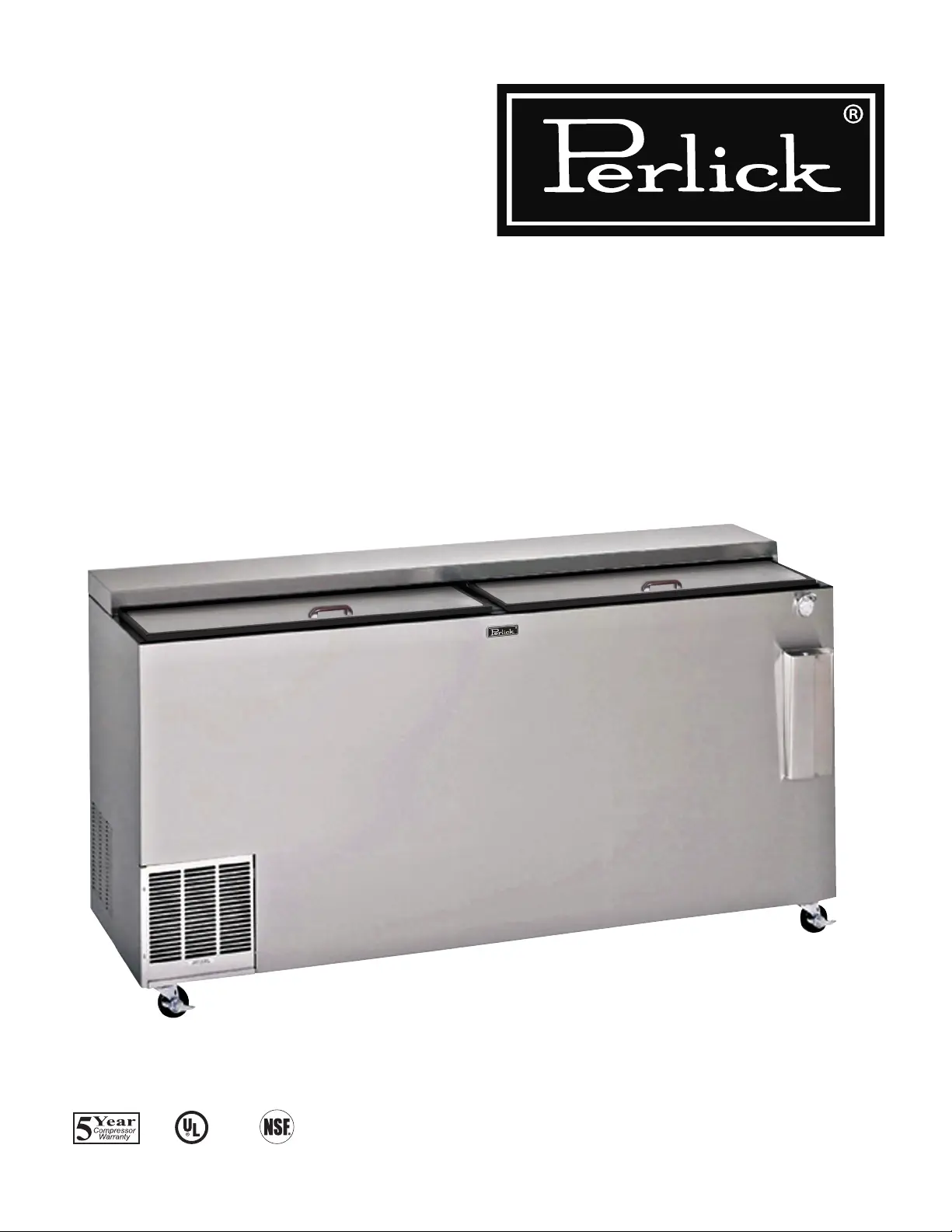

BC72 shown

Flat Top Bottle Coolers Installation & Operation Manual

Printed in USA 2

MODEL NUMBERS BC24 BC36 BC48/BC48LT BC60/BC60LT BC72/BC72LT BC96

LENGTH (mm) 24” (610) 36” (915) 48” (1219) 60” (1524) 72” (1828) 96” (2438)

INTERIOR CU. FT. (m

3) 3.75 (0.10) 7.83 (0.22) 11.68 (0.33) 15.53 (0.44) 19.38 (0.55) 27.08 (0.77)

CASE CAPACITY (12 bottles) 5.5 9.75 17.2 21 28.3 41

CASE CAPACITY (12 cans) 7.0 16 25 30 36 58

CONDENSING UNIT H.P. 1/5 1/5 1/4 1/4 1/3 1/3

AMPS 3.2 3.0 5.2 7.0 6.9 7.6

SHIPPING WEIGHT Lbs. (kg.) 190 (86) 245 (111) 300 (136) 353 (160) 405 (184) 515 (235)

INTERIOR All models have stainless steel walls and oor.

EXTERIOR

Choice of black, stainless steel and all stainless.

Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized.

Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized.

All Stainless Option: Front, ends, back and bottom are all stainless steel.

TEMPERATURE

(Approx. factory settings) 38ºF/Standard Model. 30ºF Low-Temp Model

DOORS (Siding) Stainless steel top and bottom pans. Die cast handle. Option locks.

ELECTRICAL 115V, 60Hz, 1 Phase. Furnished with 6 foot rubber plug-in cord (115V model only). Also available in 230V, 50Hz, 1 phase AC.

PLUMBING No drain required. Condensate evaporates automatically.

INSULATION 2 inch foamed-in-place polyurethane insulation.

REFRIGERATION R134a capillary tube/type with hermetric condensing unit. Pulls out for service and cleaning.

VENTILATION 2’ model is front vented, all other models require 2” clearance from wall on either left end or back of cabinet for proper air ow.

OPTIONAL ACCESSORIES

• Floor racks • Casters • Bottle opener and receiver • Interior light

• Bin dividers • Speed rails • Wine temperature (specify red or white)

• Interior light kits • Adjustable legs • Roller basket shelving • Door locks

JOB

AREA

ITEM NO.

MODEL NO.

BC24 SERIES

BC36 SERIES

BC48 SERIES

BC48LT SERIES

BC60 SERIES

BC60LT SERIES

BC72 SERIES

BC72LT SERIES

BC96 SERIES

BC72 shown

* BC36 Model Only

* Shown with optional opener and receiver.

BC24 shown

Flat Top Bottle Coolers Installation & Operation Manual

Printed in USA 3

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.

TABLE OF CONTENTS

IMPORTANT!

Read and understand all information in this manual before attempting the installation.

All plumbing and electrical work must be performed by a qualied technician and

conform to all applicable state and local codes.

GENERAL INFORMATION

Warranty

To register your product, visit our web site at

www.perlick.com. Click on “Commercial”, then

“Service”. Click on the link “Warranty Registration

Form”. You must complete and submit this form

or the installation date will revert back to the ship

date.

Please record the purchase date and the dealer’s

name, address and telephone number below.

Model Number: ________________________

Serial Number: _________________________

Purchase Date: _______________________

Dealer Name & Address __________________

______________________________________

Phone Number__________________________

SAFETY

PLEASE READ all instructions completely

before attempting to install or operate the unit.

Take particular note of the DANGER, WARNING

an CAUTION information in the manual. The

information is important for the safe and e󰀩cient

installation, operation and care of your Perlick unit.

DANGER

Indicates a hazard that WILL

result in serious injury or

death if precautions are not followed.

W GARNIN

Indicates a hazard MAY

cause serious injury or

death if precautions are not followed.

CAU NTIO

Indicates a hazard where

minor injury or product

damage may occur if precautions are not

followed.

Introduction

This manual has been prepared to assist you

in the installation of your Bottle Cooler and to

acquaint you with its operation and maintenance.

We dedicate considerable time to ensure that our

products provide the highest level of customer

satisfaction. If service is required, call Perlick at

1-800-777-7267 or your dealer who can provide

you with a list of qualied service agents. For

your own protection, never return merchandise

for credit without our approval.

We thank you for selecting a Perlick product

and assure you of our continuing interest in your

satisfaction.

Cabinet Specications ............................................................................................................................. 2

Installing

- Uncrating and Inspection...................................................................................................................... 4

- Plumbing 4 ..............................................................................................................................................

- Electrical ............................................................................................................................................... 4

- Adjusting Partitions 4 ...............................................................................................................................

- Installing Casters and Legs 4 ..................................................................................................................

- Placing the Cabinet 4 ..............................................................................................................................

- Sealing to the Floor 4 ..............................................................................................................................

Temperature Control 5 ................................................................................................................................

Cleaning the Cabinet 5 ...............................................................................................................................

Wiring Diagrams 7/8 ...................................................................................................................................

Replacement Parts 8/9 ...............................................................................................................................
