Installation
& Operation Manual
Commercial Back Bar
Remote & Self-Contained, Standard height and low height
Models BBR, BBS, BBRLP & BBSLP Series
Form No. 2222013
04.5.2018

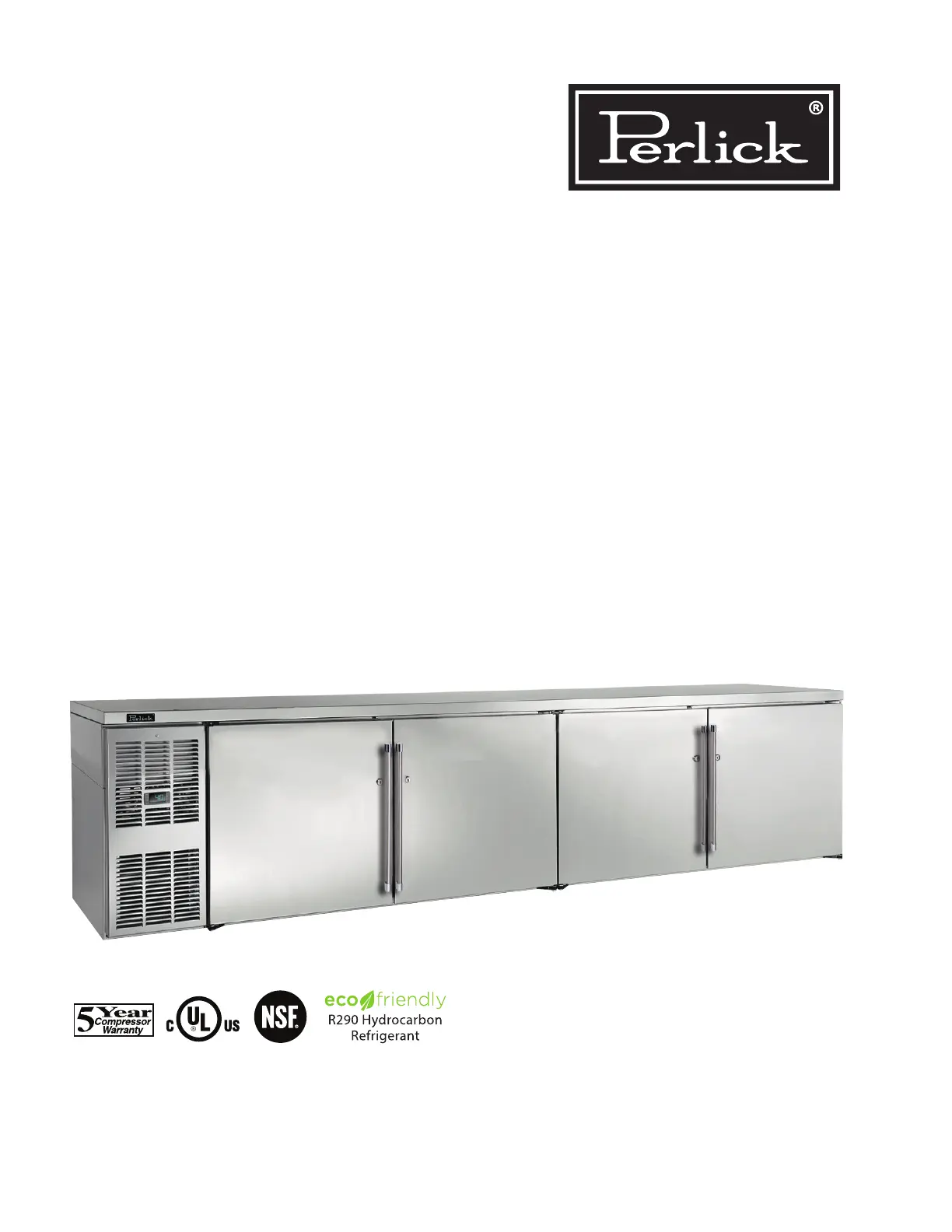

Model BBSLP108 Shown
Models BBR/BBS & BBRLP/BBSLP Installation & Operation Manual
Printed in USA 2 Form No. 2222013
04.05.2018
TABLE OF CONTENTS
IMPORTANT!
Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualied technician and
conform to all applicable state and local codes.
GENERAL INFORMATION
Warranty
To register your product, visit our web site at
www.perlick.com. Click on “Commercial”, then
“Service”. Click on the link “Warranty Registration
Form”. You must complete and submit this form
or the installation date will revert back to the ship
date.
Please record the purchase date and the dealer’s
name, address and telephone number below.
Model Number: ________________________
Serial Number: _________________________
Purchase Date: _______________________
Dealer Name & Address
______________________________________
______________________________________
______________________________________
Phone Number__________________________
SAFETY
PLEASE READ all instructions completely
before attempting to install or operate the unit.
Take particular note of the DANGER, WARNING
an CAUTION information in the manual. The
information is important for the safe and e󰀩cient
installation, operation and care of your Perlick unit.
DANGER
Indicates a hazard that WILL
result in serious injury or
death if precautions are not followed.
W GARNIN
Indicates a hazard MAY
cause serious injury or
death if precautions are not followed.
CAU NTIO
Indicates a hazard where
minor injury or product
damage may occur if precautions are not
followed.
Introduction
Congratulations on your purchase of a Perlick
commercial back bar product. This manual has
been prepared to assist you in the installation of
your cabinet and to acquaint you with its operation
and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer
can provide you with a list of qualied service
agents. For your own protection, never return
merchandise for credit without our approval.
We thank you for selecting a Perlick product
and assure you of our continuing interest in your
satisfaction.
General Information 2 .................................................................................................................................
Safety 2 ......................................................................................................................................................
Prior To Installation .................................................................................................................................. 3
Installation 4 ...............................................................................................................................................
Operation 5 .................................................................................................................................................
Adjustments 6 .............................................................................................................................................
Maintenance 9 ............................................................................................................................................
Troubleshooting 12 .....................................................................................................................................
Dimensions 14 ............................................................................................................................................
Wiring Diagrams 19 ....................................................................................................................................
Warranty 31 ................................................................................................................................................
Models BBR/BBS & BBRLP/BBSLP Installation & Operation Manual
Printed in USA 3 Form No. 2222013
04.05.2018
PRIOR TO INSTALLATION
Uncrating and Inspection
Remove all crating material. Carefully inspect
cabinet for hidden damage. If damage is
discovered, le your claim immediately with the
transport company. Perlick is not responsible for
damage in transit.
CAU NTIO
Do not cut cardboard
sleeve covering the unit.
Cutting may result in damage to the exterior
of the cabinet. Failure to follow this procedure
may damage the compressor and void
warranty.
1. Uncrate the unit on at, level surface. Remove
the cardboard sleeve by removing the banding
securing the sleeve to the shipping base.
Carefully lift the cardboard sleeve up over the
top of the unit.
2. Carefully lift unit o󰀨 the base and onto a hand
truck or dolly. Make sure unit is balanced
on transporting device using soft, exible
strapping. Protect unit surfaces with cloth
material where strapping contacts unit.
CAU NTIO
Do not lift unit by drawer,
shelving or door handles
or damage to the unit could occur.
W GARNIN
To prevent person al
i n j u r y, t w o p e o p l e
minimum required to lift the unit. Larger units
may require additional personnel.
3. Before moving unit, secure door(s) to unit with
tape to prevent from opening.
4. Carefully move unit to installation site and
place in front of opening.
CAU NTIO
Finished ooring should
b e p r o t e c t e d w i t h
appropriate material to avoid damage from
moving the unit.
Plumbing
CAU NTIO
Do not over-tighten drain
fitting or damage to the
threads could occur.
Condensate from the cooling coil is automatically
evaporated from the condensate pan located in
the condensing unit housing on self-contained
models.
Each unit is equipped with a oor drain located
in the right rear corner of the cabinet. The drain
can be plumbed to an external oor drain by
connecting to the 3/4” NPT thread connection on
the side, or the 1” NPS thread connection out the
bottom, of the unit. Both drain ports come plugged
from the factory and can be removed if needed.
NOTE: Remote units require evaporator
condensate to be plumbed to an external drain.
Electrical
The cabinet must be connected to a separately
fused power source (see Electrical Specication
Plate a󰀩xed to unit) in accordance with National
and Local electrical codes.
Self-contained Perlick units come equipped with
a NEMA 5-15P 90° plug with an 8’ cord extending
beyond the rear of the cabinet. The electrical
outlet must be ush with, or recessed into, the
wall surface.
NOTE: Never use an extension cord to extend the
power cord to the electrical receptacle.
CAU NTIO
If unit has been laid on its
back or sides, place unit
upright and allow minimum of 24 hours before
connecting power. Failure to follow this
procedure may damage the compressor and
void the warranty.
CAU NTIO
Do not attempt to operate
the equipment on any
other power source than that listed on the
Electrical Specication Plate attached to the
unit.
DANGER
ELECTROCUTION HAZARD!
Electrical grounding is
required. Appliances furnished with a 3-prong
(grounding) polarized plug are equipped for
your protection against possible shock
hazards.
• Never remove the round grounding prong
from the plug.
• Never use a 2-prong adapter.
• Never use extension cord to connect
power to the unit.
• If a 2-prong receptacle is encountered, or
a longer power cord is required, contact
a qualied electrician to have it replaced
in accordance with applicable electrical
codes.
DANGER
Failure to comply with these
electrical guidelines may
result in possible death or serious injury, re,
or loss of property.
