Seite 1/13

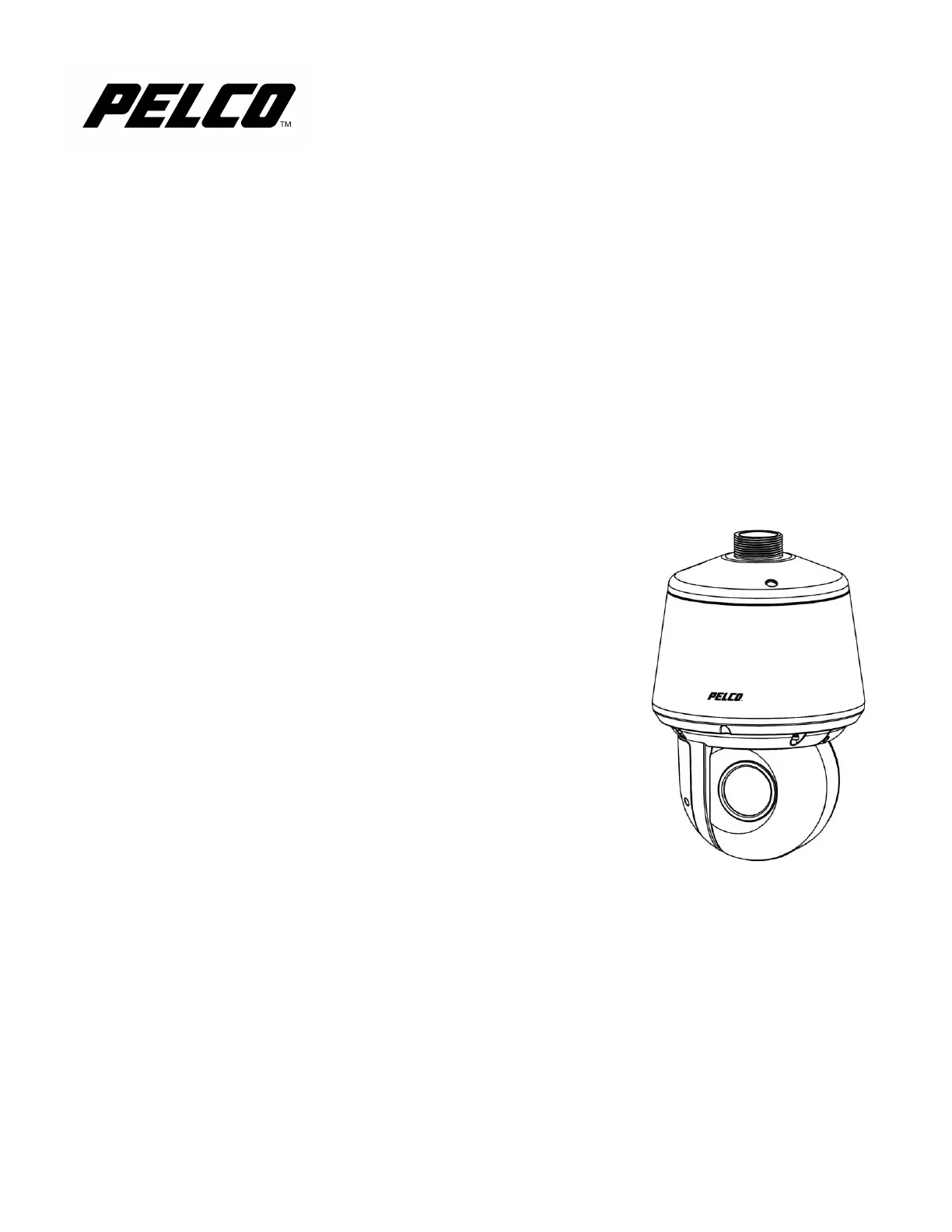

Spectra® Professional IR
and 4K Series IP PTZ
Outdoor Camera
Installation Manual
C2313M-A (01/19)
P2230- ESR
P2820- ESR
P2 ESR2320L-
2
Contents
Important Safety Instructions ........................................................................................................................................................ 3
Important Notices ......................................................................................................................................................................... 4
Regulatory Notices [FCC Class A] ................................................................................................................................. 4
Radio and Television Interference . 4................................................................................................................................
Legal Notice [Audio Notice] ............................................................................................................................................ 4
Video Quality Caution .................................................................................................................................................... 4
Frame Rate Notice Regarding User Selected Options ................................................................................................... 4
Open Source Software ................................................................................................................................................... 5
Korean Class A EMC ..................................................................................................................................................... 5
ESD Warning ................................................................................................................................................................. 5
Warranty ........................................................................................................................................................................ 5
Network Topology Statement ......................................................................................................................................... 5
Getting Started ............................................................................................................................................................................. 6
Wall/Pendant/Parapet Models ...................................................................................................................................................... 6
Product Overview ......................................................................................................................................................................... 7
Installation .................................................................................................................................................................................... 8
Pelco Mounts ................................................................................................................................................................. 8
Pelco Troubleshooting Contact Information ............................................................................................................................... 12
Note for Dimension Drawings ..................................................................................................................................................... 12
3
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
9. Installation should be done only by qualified personnel and conform to all local codes.
10. Use only installation methods and materials capable of supporting four times the maximum specified load.
11. Use stainless steel hardware to fasten the mount to outdoor surfaces.
12. To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant around the
bolt holes between the mount and mounting surface.
13. The mounting height above ground level shall be more than 3 meter for wall mount height.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do
not perform any servicing other that contained in the operating instructions unless you are qualified to do so.
Only use replacement parts recommended by Pelco.
The product and/or manual may bear the following marks:
This symbol indicates that dangerous voltage constituting a risk of electric shock is presen within this unit.t
CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying
this unit
WARNING: HAZARDOUS MOVING PARTS. KEEP FINGERS AND OTHER BODY PARTS AWAY.
Denotes Class II double insulated device.
WARNING: This product is sensitive to Electrostatic Discharge (ESD). To avoid ESD damage to this product, use ESD
safe practices during installation. Before touching, adjusting or handling this product, correctly attach an ESD wrist
strap to your wrist and appropriately discharge your body and tools. For more information about ESD control and safe
handling practices of electronics, please refer to ANSI/ESD S20.20-1999 or contact the Electrostatic Discharge
Association (www.esda.org).
