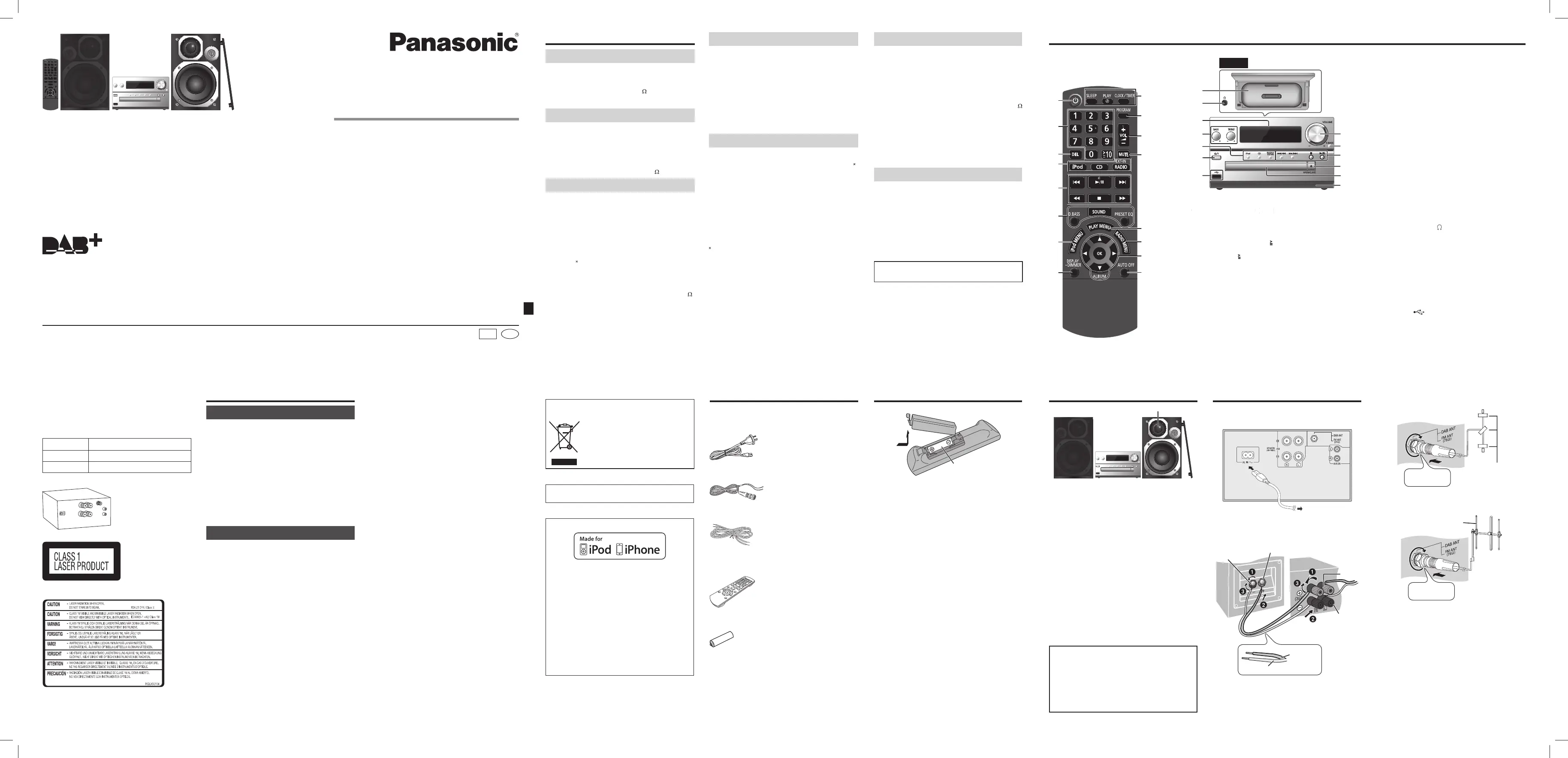

Panasonic Corporation
Web Site: http://panasonic.net
Operating Instructions
CD Stereo System
Model No. SC-PMX5DB
GN
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Please keep this manual for future reference.
RQT9674-B
L0312LL0
En
Do the procedures with the remote control. You can
also use the buttons on the main unit if they are the
same.
Your system and the illustrations can look differently.
These operating instructions are applicable to the following
system.
System SC-PMX5DB
Main unit SA-PMX5DB
Speakers SB-PMX5
Safety precautions
WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
–Do not expose this unit to rain, moisture, dripping or
splashing.
–Do not place objects filled with liquids, such as vases,
on this unit.
–Use only the recommended accessories.
–Do not remove covers.
–Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
–Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit
is well ventilated.
–Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
–Do not place sources of naked flames, such as lighted
candles, on this unit.
• This unit is intended for use in moderate climates.
• Install this unit so that the AC mains lead can be
unplugged from the socket outlet immediately if any
problem occurs.
• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
• This unit utilizes a laser. Use of controls or adjustments
or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Inside of product
Battery
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
• Remove the battery if you do not use the remote control
for a long period of time. Keep in a cool, dark area.
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
– If you see this symbol –
Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
“Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and
has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, or
iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S. and
other countries.
Placement of speakers
Tweeter
Place the speakers so that the tweeter is on the inner side.
To prevent damage to the speakers, do not touch the
speaker cones if you remove the nets.
Use only the supplied speakers.
The combination of the main unit and speakers give the
best sound. You can cause damage to the system and
decrease the sound quality if you use other speakers.
Note:
• Keep your speakers more than 10 mm from the main
unit for ventilation.
• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do
not put them near TVs, PCs or other equipment easily
influenced by magnetism.
• When you play at high levels for a long period, it can
cause damage to the system and decrease the life of
the system.
• Decrease the volume in these conditions to prevent
damage:
–When you play distorted sound.
–When you adjust the sound quality.
CAUTION!
• Use the speakers only with the recommended
system. If not, you can cause damage to the
amplifier and speakers and can cause a fire.
Consult an approved service personnel if damage
occurs or if there is a sudden apparent change in
performance.
• Do the procedures included in these instructions
when you attach the speakers.
Specifications
Amplifier section
RMS output power stereo mode
Front Ch (both ch driven)
60 W per channel (3 ), 1 kHz, 10% THD
Total RMS stereo mode power 120 W
Tuner section
Preset station FM 30 stations
Frequency modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals 75 (unbalanced)
DAB section
DAB memories 20 channels
Frequency band (wavelength)
Band III (AUSTRALIA)
9A to 9C (202.928 MHz to 206.352 MHz)
Band III (XXXXX)
5A to 13F (174.928 MHz to 239.200 MHz)
Sensitivity BER 4x10
-4
Min requirement –98 dBm
DAB external antenna
Terminal F - Connector (75 )
Terminals section
USB port
USB standard USB 2.0 full speed
Media file format support MP3 ( .mp3)*
USB device file system FAT12, FAT16, FAT32
USB port power 500 mA (max)
Headphones jack
Terminal Stereo, 3.5 mm jack
AUX input (rear) Pin jack
Disc section
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3 )
Pick up
Wavelength 790 nm (CD)
Laser power CLASS 1
Audio output (Disc)
Number of channels 2 ch (FL, FR)
FL = Front left channel,
FR = Front right channel
MPEG-1 Layer 3, MPEG-2 Layer 3
Making the connections
Connect the AC mains lead only after all the
other connections have been made.
To household mains socket
2
1
3
1 Connect the speakers (rear).
Red ( )q
Black ( )r
Red
( )q
Black ( )r
Copper ( )q
Silver ( )r
Rear panel of
this main unit
Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so may
damage the speakers.
2 Connect the DAB antenna.
Place the antenna where reception is best.
Tapes
Be sure to fully
tighten the nut.
Use DAB outdoor antenna for better reception.
DAB outdoor antenna
(not supplied)
Be sure to fully
tighten the nut.
3 Connect the AC mains lead.
Do not use an AC mains lead from other equipment.
Conserving power
The system consumes approximately 0.4 W when it is
in standby mode. Disconnect the power supply if you
do not use the system.
Some settings will be lost after you disconnect the
system. You have to set them again.
A
B
C
D
E
G
F
H
J
I
K
L
N
M
O
P
I Clock and timer operation
J Set the program function
K Adjust the volume of the system
L Mute the sound of the system
Press the button again to cancel.
“MUTE” is also cancelled when you adjust the volume
or when you switch off the system.
M Set the play menu item
N Set the radio menu item
O Select the option
P Automatically switch off the system
This function switches off the system (except in radio
source) if you do not use the system for approximately
30 minutes.
To cancel, press the button again.
Q Dock for iPod/iPhone
R Headphones jack ( )
• Plug type: Ø 3.5 mm stereo (not supplied)
• Avoid listening for prolonged periods of time to
prevent hearing damage.
• Excessive sound pressure from earphones and
headphones can cause hearing loss.
• Listening at full volume for long periods may damage
the user’s ears.
• Be sure to use the supplied or recommended
headphones or earphones.
S Display panel
T USB port ( )
U Remote control sensor
V Disc tray
W Open or close the disc tray
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still consuming
a small amount of power.
B Numeric buttons [1 to 9, 0, 10]
To select a 2-digit number
Example: 16: [ 10] [1] [6]→ →
C Delete a programmed track
D Select audio source
E Basic playback control
F Select the sound effects
G View the iPod menu
H View content information
Decrease the brightness of the display panel
Press and hold the button to use this function.
To cancel, press and hold the button again.
A
Standb
y/o
n switch
[
`
],
[
]
W
U
V
Q
D
T
A
F
K
R
S
F
E
Top view
Overview of controls
Back of product
Preparing the remote control
R6/LR6, AA
Use alkaline or manganese battery.
Install the battery so that the poles (+ and –) align with
those in the remote control.
Point the remote control at the remote control sensor,
away from obstacles, at a maximum range of 7 m directly
in front of the main unit.
Supplied accessories
Check and identify the supplied accessories.
1 x AC mains lead
1 x DAB antenna
2 x Speaker cables
1 x Remote control
(N2QAYB000640)
1 x Remote control battery
Speaker section
Type 3 way, 3 speaker system (bass reflex)
Speaker unit(s)
Woofer 14 cm cone type
Tweeter 1.9 cm soft dome type
Super tweeter 1.5 cm piezo type
Impedance 3
Output sound pressure 81 dB/W (1 m)
Frequency range 41 Hz to 43 kHz (–16 dB)
48 Hz to 36 kHz (–10 dB)
Dimensions (W x H x D) 161 mm x 238 mm x 262 mm
Mass 2.6 kg
General
Power supply AC 220 to 240 V, 50 Hz
Power consumption 40 W
Dimensions (W x H x D) 210 mm x 120 mm x 266 mm
Mass 3 kg
Operating temperature range 0°C to +40°C
Operating humidity range
35% to 80% RH (no condensation)
Power consumption in standby mode
0.4 W (approximate)
Note:
• Specifications are subject to change without notice.
Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital
spectrum analyzer.
SC-PMX5DBGN_RQT9674-B_gb.indd 1
SC-PMX5DBGN_RQT9674-B_gb.indd 1
SC-PMX5DBGN_RQT9674-B_gb.indd 1
SC-PMX5DBGN_RQT9674-B_gb.indd 1SC-PMX5DBGN_RQT9674-B_gb.indd 1 2/9/2012 7:34:02 PM
2/9/2012 7:34:02 PM
2/9/2012 7:34:02 PM
2/9/2012 7:34:02 PM2/9/2012 7:34:02 PM
Draft
2/12/2012
Confidential
Until:
PLAYMODE
OFF
PLAYMODE
Play all tracks.
1-TRACK
1TR
Play one selected track on the disc.
Press the numeric buttons to select the
track.
1-ALBUM
1ALBUM
Play one selected album on the disc.
Press [ , ] to select the album.R T
RANDOM
RND
Play a disc randomly.
1- ALBUM
RANDOM
1ALBUM RND
Play all tracks in one selected album
randomly.
Press [ , ] to select the album.R T
REPEAT
ON REPEAT Repeat playback.
OFF REPEAT Cancel repeat playback.
Note:
• During random playback, you cannot skip to tracks
which have been played or press the numeric buttons.
• Playmode function does not work with “Program
playback”.
• The setting returns to the default “OFF PLAYMODE”
when you open the disc tray.
Program playback
This function allows you to program up to 24 tracks.
1 Press [PROGRAM] in the stop mode.
“PGM” is shown.
2 Press the numeric buttons to select the desired
track.
Do this step again to program other tracks.
3 Press [ / ] to start playback.4 9
Disc
Playing disc
1 Press [ , OPEN/CLOSE] on the main unit to open x
the disc tray.
Put in a disc with the label facing up.
Press [ , OPEN/CLOSE] again to close the disc tray.x
2 Press [CD] and then press [ / ] to start playback.4 9
Stop playback Press [ ].8
Pause playback Press [ / ].4 9
Press again to continue playback.
Skip album Press [ , ].R T
Skip track Press [ ] or [ ] 2 6
(main unit: [ / ] or [ / ]).2 3 5 6
Search through
track
Press and hold [ ] or [ ] 3 5
(main unit: [ / ] or [ / ]).2 3 5 6
Viewing available information
You can view the available information on the display
panel.
Press [DISPLAY].
: Track
: Album
TAG : ID3 tags
Note:
• Maximum characters that can be shown:
approximately 32
• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
• Text data that the system does not support can show
differently.
Play menu
1 Press [PLAY MENU] to select “PLAYMODE” or
“REPEAT”.
2 Press [ , ] and then press [OK] to select the Y U
desired mode.
Note:
• A station previously stored is overwritten when another
station is stored in the same preset number.
• You cannot preset a station when the station is not
broadcasting or when you have selected a secondary
service.
• Previous station memory is cleared during auto scan.
Selecting a preset station
Press the numeric buttons, [ ] or [ ] (main unit: 2 6
[ / ] or [ / ]) to select the preset station.2 3 5 6
Viewing available information
Press [DISPLAY] to view available information.
You can view information about the DAB broadcast,
program type, ensemble label, frequency and time.
DAB settings
1 Press [RADIO MENU] to select an option.
2 Press [ , ] to select the desired setting and then Y U
press [OK].
DAB SECONDARY
PRIMARY To listen to primary service.
SECONDARY To listen to secondary services.
“ ” is shown.
AUTO CLOCK ADJ
ON ADJUST Start auto clock adjustment.
OFF ADJUST Cancel auto clock adjustment.
Using an iPod/iPhone
Connector
1 Press to open the cover and insert a compatible
dock adapter.
iPod/iPhone
(not supplied)
Dock adapter
(not supplied)
2 Connect the iPod/iPhone firmly.
Make sure to remove the iPod/iPhone from its case.
Make sure to align your iPod/iPhone with the
connector when inserting.
Use a compatible dock adapter.
If a dock adapter is not available, insert and remove
the iPod/iPhone with care.
3 Press [iPod] and then press [ / ] to start 4 9
playback.
Pause playback Press [ / ] or [ ].4 9 8
Skip track Press [ ] or [ ] 2 6
(main unit: [ / ] or [ / ]).2 3 5 6
Search the
current track
Press and hold [ ] or [ ] 3 5
(main unit: [ / ] or [ / ]).2 3 5 6
View iPod menu Press [iPod MENU].
Select an item Press [ , ] and then press [OK].R T
Note:
• Depending on the model, it may be necessary to remove
the iPod/iPhone and select the album, artist, etc. on the
iPod/iPhone.
• Operation results may vary depending on the iPod/iPhone
models.
• Read the User Guide of the iPod/iPhone for the
operating instructions.
Compatible iPod/iPhone
As of January 2012
Update your iPod/iPhone with the latest software before
using this system.
iPod touch
1st, 2nd, 3rd and 4th generation
iPod nano
2nd, 3rd, 4th, 5th and 6th generation
iPod classic
iPhone 4S / iPhone 4 / iPhone 3GS / iPhone 3G /
iPhone
Charging an iPod/iPhone
An iPod/iPhone is charged automatically when connected
to the system (even when the system is in standby mode).
• See the iPod/iPhone display for its battery charging
status.
• Disconnect the iPod/iPhone if it is not used for an
extended period of time after charging is complete.
• Charging stops when the battery is fully charged. The
battery will deplete naturally.
Radio
30 FM stations can be preset.
Preparation
Press [RADIO] to select “FM”.
Automatic presetting
1 Press [RADIO MENU] to select “A.PRESET”.
2 Press [ , ] to select “LOWEST” or “CURRENT” Y U
frequency.
3 Press [OK] to start presetting.
To cancel, press [ ].8
Manual tuning and presetting
1 Press [ ] or [ ] to tune in to the station.3 5
To tune automatically, press and hold the button until
the frequency starts changing quickly.
2 Press [PROGRAM].
3 Press the numeric buttons to select a preset
number.
Do steps 1 through 3 again to preset more stations.
The new station replaces any station that occupies the
same preset number.
Selecting a preset station
Press the numeric buttons, [ ] or [ ] (main unit: 2 6
[ / ] or [ / ]) to select the preset station.2 3 5 6
Improving the sound quality
When “FM” is selected
1 Press [RADIO MENU] to select “FM MODE”.
2 Press [ , ] to select “MONO” and then press Y U
[OK].
To cancel, select “STEREO”.
“MONO” is also cancelled when you change the
frequency.
To memorise the setting
Continue with steps 2 and 3 of “Manual tuning and
presetting”.
DAB+
This system support DAB in “BAND ” bands.III
Preparation
Press [RADIO] to select “DAB+”.
If you select “DAB+” for the first time, the system will start
the “DAB AUTO SCAN” procedure.
Note:
If no station is detected, “SCAN FAILED” is shown. Adjust
the antenna and try again.
DAB auto scan
1 Press [RADIO MENU] to select “AUTOSCAN” and
then press [OK].
“START?” is shown.
2 Press [OK].
“DAB AUTO SCAN” is shown.
DAB manual tuning
To find the best antenna position, use manual tuning to
search selected DAB frequency block.
Preparation
Select the desired “SCANMODE” ( “DAB settings”).Z
1 Press [RADIO MENU] to select “MANUAL TUNE”.
2 Press [ , ] to select a frequency block to scan Y U
and then press [OK].
Memory presetting
20 channels can be preset.
1 Press [ ] or [ ] to select a station.3 5
2 Press [PROGRAM].
3 Press the numeric buttons to select a preset
number.
Do steps 1 through 3 again to preset more stations.
Clock and timers
Setting the clock
This is a 24-hour clock.
1 Press [CLOCK/TIMER] to select “CLOCK”.
2 Within 10 seconds, press [ , ] to set the time.R T
3 Press [OK].
Press [CLOCK/TIMER] to show the clock for a few
seconds.
Note:
Reset the clock regularly to maintain accuracy.
Sleep timer
The sleep timer switches off the system after the set time.
Press [SLEEP] to select the setting (in minutes).
To cancel, select “OFF”.
30MIN 60MIN 90MIN 120MIN OFF→ → → →
To show the remaining time
Press [SLEEP].
Note:
• The sleep timer can be used together with the play timer.
• The sleep timer always comes first. Be sure not to set an
overlap of timers.
Play timer
You can set the timer to come on at a certain time to wake
you up.
Preparation
Set the clock.
1 Press [CLOCK/TIMER] to select “#PLAY”.
2 Within 8 seconds, press [ , ] to set the start R T
time.
3 Press [OK].
4 Do steps 2 and 3 again to set the end time.
To start the timer
1 Prepare the audio source you want to listen to
and set the volume.
2 Press [ , PLAY].#
“ PLAY” is shown.#
To cancel, press [ , PLAY] again.#
The system must be switched off for the timer to
operate.
To check the settings
Press [CLOCK/TIMER] to select “ PLAY”.#
Note:
• The timer starts at a low volume and increases gradually
to the preset level.
• The timer comes on at the set time every day if the timer
is on.
• If you switch off the system and switch on again while
a timer is in operation, the timer will not stop at the end
time.
Using the auxiliary input
You can connect a VCR, DVD player etc. and listen to the
audio through this system.
Preparation
• Disconnect the AC mains lead.
• Switch off all equipment and read the appropriate
operating instructions.
DVD player (not supplied)
Rear panel of
this main unit
Audio cable (not supplied)
1 Connect the external equipment.
2 Press [EXT-IN] to select “AUX”.
3 Play the external equipment.
Note:
• Components and cables are sold separately.
• If you want to connect equipment other than those
described, refer to the audio dealer.
• Sound distortion can occur when you use an adaptor.
Maintenance
To clean this system, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
External equipment
USB
You can connect and play MP3 tracks from your USB
device.
Do not use a USB extension cable. The system cannot
recognise USB device connected through a cable.
1 Connect the USB device to the USB port.
2 Press [EXT-IN] to select “USB” and then press
[ / ] to start playback.4 9
Stop
playback
Press [ ].8
“RESUME” is shown.
Press [ / ] to continue playback from the 4 9
start of the track.
OR
Press [ ] two times to stop the playback fully.8
For other operations, refer to “Disc”.
Compatible USB devices which are defined as mass
storage class:
• USB devices that support bulk-only transfer.
• USB devices that support USB 2.0 full speed.
Note:
• Files are defined as tracks and folders are defined as
albums.
• Track must have the extension “.mp3” or “.MP3”.
• This system can access up to:
–255 albums (including root folder)
–2500 tracks
–999 tracks in one album
• CBI (Control/Bulk/Interrupt) is not supported.
• NTFS file system is not supported (only FAT 12/16/32
file system is supported).
• Some files can fail to work because of the sector size.
Sound effects
Changing the sound quality
1 Press [SOUND] to select a sound effect.
2 Press [ , ] to select the desired setting.Y U
BASS -4 to +4
TREBLE
SURROUND “ON SURROUND” or
“OFF SURROUND”
By main unit only
Turn [BASS] or [TREBLE] to adjust the level.
Preset EQ
Press [PRESET EQ] to select a setting.
HEAVY Adds punch to rock
SOFT For background music
CLEAR Clarifies higher frequencies
VOCAL Adds gloss to vocal
FLAT Cancels the sound effect
D.BASS
This function lets you enjoy a powerful bass effect.
Press [D.BASS] to select “ON D.BASS” or
“OFF D.BASS”.
1 Press [PROGRAM] in the stop mode.
“PGM” is shown.
2 Press [ , ] to select the desired album.R T
3 Press [ ] and then press the numeric buttons to 6
select the desired track.
4 Press [OK].
Do steps 2 through 4 again to program other tracks.
5 Press [ / ] to start playback.4 9
Cancel program
mode
Press [PROGRAM] in the stop mode.
Check program
contents
Press [ ] or [ ] when “PGM” is 2 6
shown in the stop mode.
Clear the last
track
Press [DEL] in the stop mode.
Clear all
programmed
tracks
Press [ ] in the stop mode. “CLR ALL” 8
is shown. Within 5 seconds, press [ ] 8
again.
Note:
The program memory is cleared when you open the disc
tray.
Note on disc
• This system can play CD-R/RW with CD-DA or MP3
format content.
• Some CD-R/RW cannot be played because of the
condition of the recording.
• MP3 files are defined as tracks and folders are defined
as albums.
• This system can access up to:
–CD-DA: 99 tracks
–MP3: 999 tracks, 255 albums (including root folder)
and 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).
• Recordings will not necessarily be played in the order
you recorded them.
SCANMODE
AUSTRALIA Scan stations on frequencies used
in Australia.
ALL BAND III Scan stations on other frequencies.
Auto scan begins automatically after you make the
changes.
DAB signal quality
When adjusting the antenna, you can check the reception
quality.
1 Press [RADIO MENU] to select “SIGNAL
QUALITY”.
2 Press [ , ] to select frequency.Y U
Frequency
block Frequency
Reception quality
0 (poor) to 8 (excellent)
Troubleshooting
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated do not solve the problem, consult your
dealer for instructions.
Common problems
No operations can be done with the remote control.
• Examine that the battery is installed correctly.
Sound is distorted or no sound.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause,
then switch the system on again. It can be caused by
straining of the speakers through excessive volume or
power, and when using the system in a hot environment.
A “humming” sound can be heard during playback.
• An AC mains lead or fluorescent light is near the cables.
Keep other appliances and cords away from the cables
of this system.
Disc
Display not shown correctly.
Playback does not start.
• You have not put in the disc correctly. Put it in correctly.
• Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or
non-standard.
• There is condensation. Let the system dry for 1 to
2 hours.
Radio, DAB+
Reception is poor or a beat sound is heard.
• Keep the antenna away from computers, TVs, other
cables and cords.
• Use an outdoor antenna.
• Switch off the TV or move it away from the system.
iPod/iPhone
You cannot switch on the iPod/iPhone.
• Examine that the battery of the iPod/iPhone is not
depleted.
• Switch off the iPod/iPhone and the system before you
connect the iPod/iPhone. Connect the iPod/iPhone and
try again.
No sound.
• Switch off the iPod/iPhone and remove from the system.
Connect the iPod/iPhone to the system and switch it on
and play it again.
iPod/iPhone does not charge.
• Examine the connection.
USB
The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it is/are
not compatible with the system.
• USB devices with storage capacity of more than 32 GB
cannot work in some conditions.
Slow operation of the USB device.
• Large content size or large memory USB device takes
longer time to read.
The elapsed time shown is different from the actual
play time.
• Transfer the data to another USB device or backup the
data and reformat the USB device.
Main unit displays
“--:--”
• You connected the AC mains lead for the first time or
there was a power failure recently. Set the clock.
“ADJUST CLOCK”
• Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
• Play timer is not set. Adjust the play timer accordingly.
“AUTO OFF”
• The unit has been left unused for about 30 minutes and
will shut down in a minute. Press any button to cancel it.
“CHECKING CONNECTION”
• The unit is checking the connected iPod/iPhone. If this
display keeps appearing, make sure that the
iPod/iPhone is inserted correctly and try again.
“DATA”
• Data broadcast being received over the DAB broadcast
signal, cannot be used on this system.
“ERROR”
• An incorrect operation was done. Read the instructions
and try again.
“F61” or “F76”
• There is a power supply problem.
“IPOD OVER CURRENT ERROR” or
“USB OVER CURRENT ERROR”
• The iPod/iPhone or USB device is drawing too much
power. Remove the iPod/iPhone or USB device. Switch
the system off and on again.
“NODEVICE”
• The iPod/iPhone or USB device is not connected.
Examine the connection.
“NO DISC”
• You have not put in a disc or put in a disc that the
system cannot play.
“NO PLAY”
• Examine the content. You can only play supported format.
• If there are more than 255 albums or folders (audio
and non-audio), some of the MP3 files in these albums
cannot be read and played. Transfer these music albums
to another USB device. Alternatively, reformat the USB
device and save these music albums prior to saving the
other non-audio folders.
“NO SERVICE”
• The station is currently not broadcasting.
“NO SIGNAL”
• This station cannot be received. Check your antenna.
“NOT MP3/ERROR”
• An unsupported MP3 format. The system will skip that
track and play the next one.
“NOT SUPPORTED”
• You have inserted an iPod/iPhone that cannot be played.
• Switch off the iPod/iPhone and the system before you
connect the iPod/iPhone. Connect the iPod/iPhone and
try again.
“PGM FULL”
• The number of programmed tracks is more than 24.
“READING”
• The unit is checking the disc and USB device
information. After this display has disappeared, start
operating.
“SCAN FAILED”
• Stations are not receivable. Check your antenna and try
DAB manual tuning.
“SCRAMBLED”
• The broadcast station being received cannot be
accessed.
“–VBR–”
• The system cannot show the remaining play time for
variable bit rate (VBR) tracks.
Memory reset (initialisation)
Reset the memory when the following situations occur:
• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.
1 Disconnect the AC mains lead.
Wait 3 minutes before you continue with step 2.
2 While you press and hold [ ] on the main unit, 1
connect the AC mains lead again.
“– – – – – – – –” is shown.
3 Release [ ].1
All the settings are set back to the factory preset.
It is necessary to set the memory items again.
Remote control code
When other Panasonic equipment responds to the remote
control of this system, change the remote control code for
this system.
To set the code to “REMOTE 2”
1 Press and hold [CD] on the main unit and [2] on
the remote control until “REMOTE 2” is shown.
2 Press and hold [OK] and [2] for a minimum of
4 seconds.
To set the code to “REMOTE 1”
1 Press and hold [CD] on the main unit and [1] on
the remote control until “REMOTE 1” is shown.
2 Press and hold [OK] and [1] for a minimum of
4 seconds.
SC-PMX5DBGN_RQT9674-B_gb.indd 2
SC-PMX5DBGN_RQT9674-B_gb.indd 2
SC-PMX5DBGN_RQT9674-B_gb.indd 2
SC-PMX5DBGN_RQT9674-B_gb.indd 2SC-PMX5DBGN_RQT9674-B_gb.indd 2 2/9/2012 7:34:05 PM
2/9/2012 7:34:05 PM
2/9/2012 7:34:05 PM
2/9/2012 7:34:05 PM2/9/2012 7:34:05 PM

Produktspezifikationen

Marke: Panasonic
Kategorie: Hi-Fi-Anlage
Modell: SC-PMX5DB

Brauchst du Hilfe?

Wenn Sie Hilfe mit Panasonic SC-PMX5DB benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Hi-Fi-Anlage Panasonic

Panasonic

Panasonic RB-HX220B Bedienungsanleitung

2 Oktober 2024
Panasonic

Panasonic SC-PM18P Bedienungsanleitung

29 September 2024
Panasonic

Panasonic SH-E75 Bedienungsanleitung

21 September 2024
Panasonic

Panasonic SC-PM4DB Bedienungsanleitung

6 September 2024
Panasonic

Panasonic SC-PM270 Bedienungsanleitung

3 September 2024
Panasonic

Panasonic SC-PM704 Bedienungsanleitung

3 September 2024
Panasonic

Panasonic SC-HC397 Bedienungsanleitung

3 September 2024
Panasonic

Panasonic SC-AK630 Bedienungsanleitung

2 September 2024
Panasonic

Panasonic RX-D15 Bedienungsanleitung

2 September 2024
Panasonic

Panasonic SC-VKX25 Bedienungsanleitung

28 August 2024

Bedienungsanleitung Hi-Fi-Anlage

Neueste Bedienungsanleitung für -Kategorien-

Lenco

Lenco MC-129 MP3 Bedienungsanleitung

16 Oktober 2024
Akai

Akai EIE Pro Bedienungsanleitung

14 Oktober 2024
Sennheiser

Sennheiser SZI 1029 Bedienungsanleitung

7 Oktober 2024
Yamaha

Yamaha MusicCast SRT-1500 Bedienungsanleitung

7 Oktober 2024
Kicker

Kicker 46HDTPH Bedienungsanleitung

7 Oktober 2024
Vtech

Vtech V-Kids Bedienungsanleitung

5 Oktober 2024
Hitachi

Hitachi AX-M10E Bedienungsanleitung

5 Oktober 2024
IDance

IDance XD8N Bedienungsanleitung

5 Oktober 2024
LD Systems

LD Systems DAVE 18 G3 Bedienungsanleitung

4 Oktober 2024
Pyle Pro

Pyle Pro PWMA1216BM Bedienungsanleitung

4 Oktober 2024
