DH940A3PL1PA

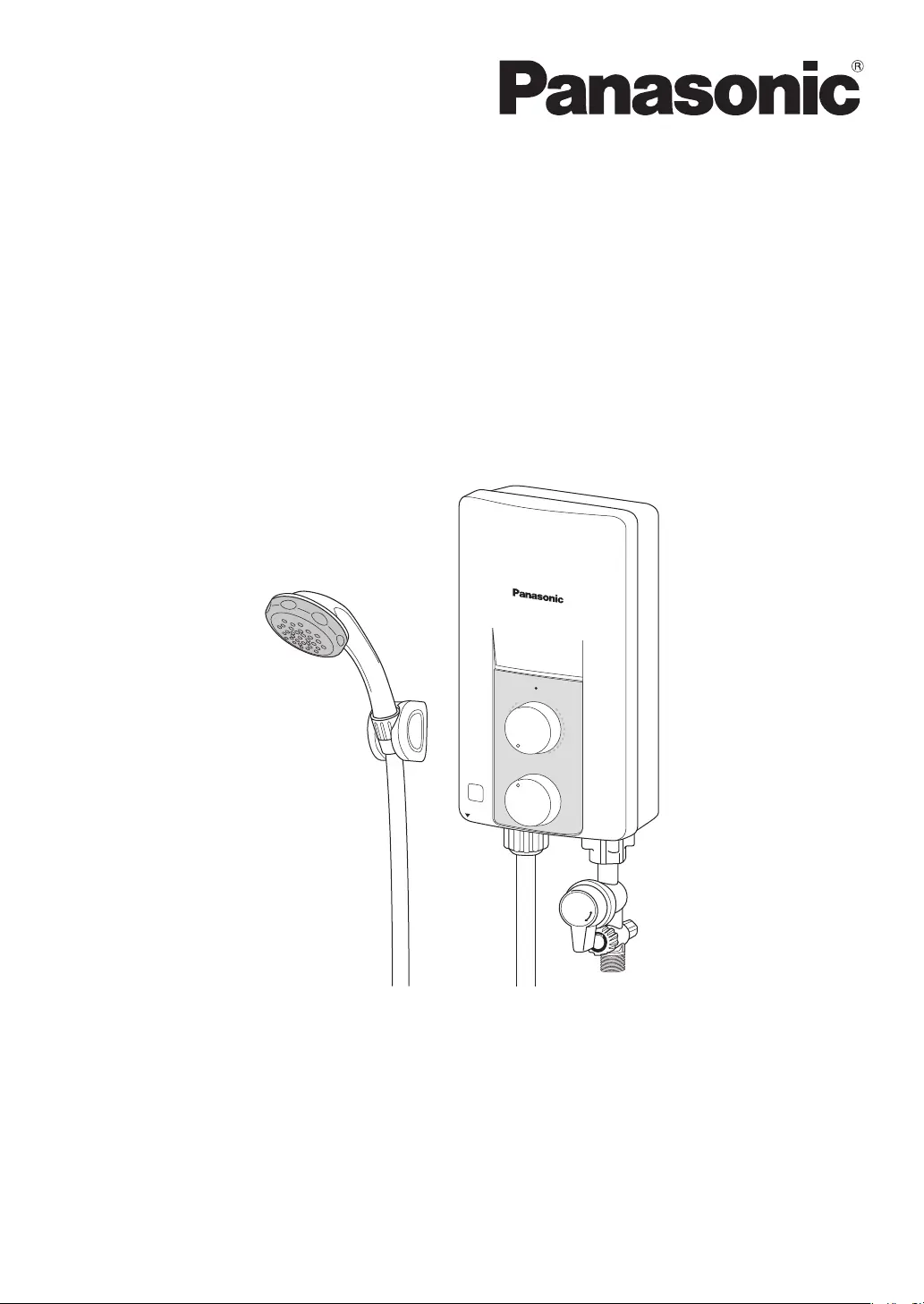

Operating and Installation Instructions
Electric Home Shower (Household Use)
Thank you for purchasing the Panasonic Electric Home Shower. This appliance is intended for household use only.
For optimum performance and safety, please carefully read this Operating Instructions and keep this documentation
in a safe place for future reference.
DH-3PL1
Model No.
C
L
O
S
E
ILTER
LEANING
ELBTest
ELBReset
PushUp
OFF
MAX
P
o
w
e
r
C
o
n
t
r
o
l
M
a
i
n
S
w
i
t
c
h
ELB
Off
Off High
On
- 2 -
The instructions to be followed are classified by the following symbols:
This sign warns of death or serious injury.
This sign warns of injury to users or damage to property.
This symbol (with a white background) denotes an action that is PROHIBITED.
This symbol (with a black background) denote action that is COMPULSORY.
WARNING
CAUTION
BEFORE USING ELECTRIC HOME SHOWER
1. SAFETY INSTRUCTIONS
Before operating, please read the following "Safety Instructions" carefully.
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
Incorrect operation caused by failure to follow instructions will cause harm or damage, the seriousness of which is classified as
follow:
SAFETY INSTRUCTIONS To be followed absolutely
CONTENTS
Page No.
BEFORE USING ELECTRIC HOME SHOWER
1. SAFETY INSTRUCTIONS
2. PARTS IDENTIFICATION
3. ACCESSORIES
HOW TO USE ELECTRIC HOME SHOWER
1. HOW TO USE
2. WATER FLOW RATE ADJUSTMENT
3. MAINTENANCE
4. TROUBLESHOOTING
5. SPECIFICATIONS
HOW TO INSTALL ELECTRIC HOME SHOWER
1. BEFORE INSTALLATION
2. HOW TO INSTALL
3. TEST OPERATION
2
2
4
4
5
5
5
6
7
7
8
8
8
11
C
L
O
S
E
LTER
EANING
ELBRese
PushUp
OFF
MAX
P
o
w
e
r
C
o
n
t
r
o
l
M
a
i
n
S
w
i
t
c
h
ELB
f
Off High
On
C
L
O
S
E
LTER
EANING
ELBTest
ELBReset
PushUp
OFF
MAX
P
o
w
e
r
C
o
n
t
r
o
l
M
a
i
n
S
w
i
t
c
h
ELB
Off
Off High
On
- 3 -
Stop using the Unit when any abnormality/failure occurs and turn "OFF" the
Miniature Circuit Breaker (MCB). (Risk of smoke/fire/electric shock/scalding)
• The ELB Reset Lever cannot be reset. Please refer to item no. 3. TEST OPERATION at page 11.
• Burnt odor or smoke is detected during operation.
• The Front Plate/Back Plate is deformed or abnormally hot.
• The outlet water temperature become extremely hot and cannot be controlled using the Power Control Knob.
Contact your authorized dealer immediately for maintenance/repair.
Example of
abnormality/
failure
WARNING
CAUTION
BEFORE USING
• Do not spray water to the Unit, nor
put wet towels on it to avoid from
coming into contact with any live
parts and such, in order to prevent
smoke emission,
ignition, fire and
electric shock hazards.
• Switch off the Miniature Circuit Breaker (MCB) before
any service to avoid electric shock hazards.
• Pay attention to the shower temperature when
reducing the volume of water.
The shower temperature will become very hot if the
water flow rate is too low.
• When the shower is used by someone such as child, old
person, sick person and physically handicapped person,
the person responsible for their safety
is kindly requested to pay attention
and check the shower temperature by
using hand from time to time.
•
In time of lightning / thunder, switch “OFF” the
Miniature
Circuit Breaker (MCB) in advance to protect
the shower Unit against possible damage.
• Inspect on the built-in ELB (once a month) to avoid a
hazard to users such as damage to property, serious
injury or death. Please refer to item no. 3. TEST
OPERATION at page 11.
• The Unit must be earthed.
Improper grounding could cause electric shock.
• Do not insert finger or other objects into the electric
home shower Unit to avoid physical and electric
shock hazards.
•
If the ELB Reset Lever cannot be reset even if you push it
up or if it soon slides down during operation, please do
not use the Unit and contact the authorized dealer
immediately to avoid a hazard to users such as damage
to property, serious injury or death. Never fix the ELB
Reset Lever forcibly with tape and such.
•
Do not replace the Shower Head, Shower Hose or any
other parts of the Unit with spare parts other than
genuine parts.
Parts for other models will not
fit to this model and may cause
hazardous condition to user.
Shower Hose
Shower Head
THINNER
• Never use benzene, thinner, bleaching
agent and such for cleaning purpose to
avoid smoke emission, ignition, fire and
electric shock hazards.
• Please make sure the O Ring is
not removed and shall be free
from foreign particle to avoid
water leaking.
• Avoid using dirty water as it may affect heater
performance and other components.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• In order to avoid a hazard due to inadvertent resetting
of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as
a timer, or connected to a circuit that is regularly
switched on and off by the utility.
Filter Unit
O
P
E
N
C
L
O
S
E
FILTER
CLEANING
O Ring • Do not block the Shower Head with
hand, towel or bend the Shower
Hose. The water flow rate will drop
and water temperature may become
very hot.
• Take care not to damage the
holes of the Shower Plate during
the cleaning. The Rubber Packing
shall be set on the Shower Head
before fixing back the Shower
Plate to Shower Head. Do not
remove part other than Shower
Plate and Rubber Packing. Rubber
Packing
Shower
Head
Shower
Plate
• Each time shower water is turned ‘ON’, check the water
temperature by hand before showering.
