Dear customer,
Congratulations on choosing the Noctua NH-L9a-AM4
chromax.black.
This small cooler packs all essential technologies of our
award-winning high-end models into a highly compact
package in order to give you the best possible quiet cool-
ing experience for HTPCs and small form factor builds. I’m
condent that you will be able to sense some of the research,
attention and care we’ve put into making this product.
Enjoy your NH-L9a-AM4 chromax.black!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process
of the SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
list on our website (www.noctua.at/compatibility) and verify
that the cooler is fully compatible with your motherboard.
In particular, if your motherboard does not come with a
pre-installed stock backplate, double check that there are
no components on the rear side that would prevent the
installation of the NM-ABP4 backplate.
Noctua cannot be held responsible for any damage or
losses caused by compatibility issues.
Should you encounter any difculties, please check the FAQs
on our website (www.noctua.at/faqs) and don’t hesitate to
contact our support team at support@noctua.at.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals

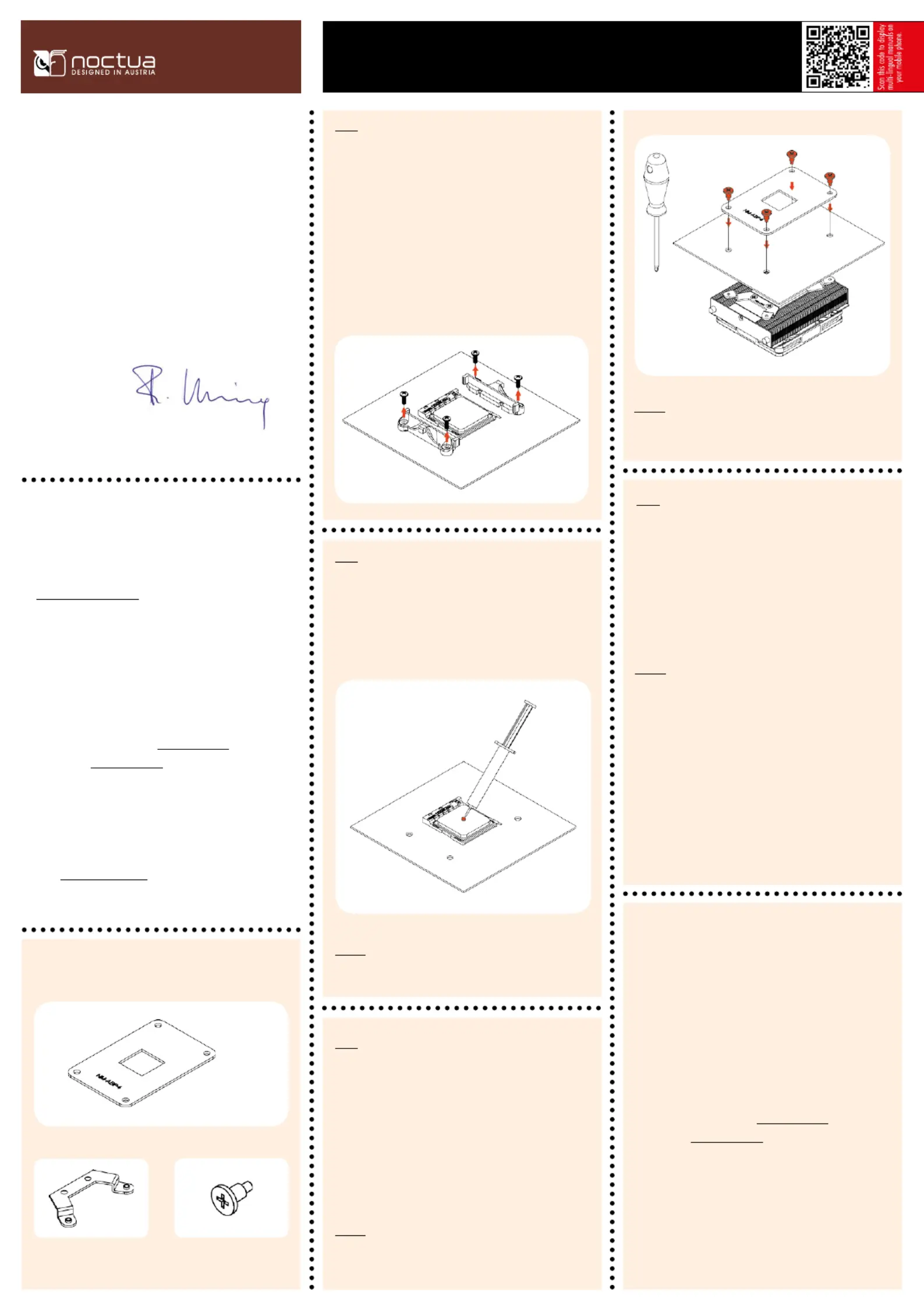

NOCTUA NH-L9a-AM4 chromax.black
INSTALLATION MANUAL
AMD
Scan this code to display
multilingual manuals on
your phone.
Required mounting parts:
Removing the stock retention module & backplate1
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely. Therefore,
we aim at providing the highest possible level of reliability and
convenience by offering a warranty period of 6 years and
direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-L9a-AM4
chromax.black, please don’t hesitate to contact our support
team (support@noctua.at).
Please also consult the FAQ section on our website:
www.noctua.at/faqs
Warranty, support and FAQs!
Connect the fan to the motherboard.
Depending on your CPU and the temperature inside the
case, you may interconnect the supplied NA-RC7 Low-Noise
Adaptor (L.N.A.) in order to further reduce the fan’s operating
noise.
Caution: When using the L.N.A., check the temperature of
your CPU using appropriate software (e.g. the respective
applications of your motherboard manufacturer), in order to
evade automatic throttling of the CPU due to the increased
temperature. If the cooling performance is insufcient, please
increase case ventilation or remove the L.N.A.
In case you would like to use a 92x25mm fan for further
improved performance, please rst unscrew the preinstalled
NF-A9x14 fan and use the supplied longer screws to install
the 92x25mm fan.
Fan setup4
Caution: Gently tighten the screws until they stop, but don’t
use excessive force (max. torque 0.6 Nm).
Put the heatsink onto the CPU and the supplied NM-ABP4
backplate to the rear side of the motherboard. Now stick the
mounting screws through the holes of the backplate and x the
cooler. Perform 3 turns on each screw, then repeat until all are
fully tightened.
Fastening the heatsink to the CPU3
2x NM-AFB6
fastening brackets
4x NM-ABT1
mounting screws
NM-ABP4 backplate
If your motherboard comes with a pre-installed CPU cooler
retention module, please rst remove it by unscrewing it from
the backplate. Then remove the backplate.
If your motherboard does not come with a pre-installed CPU
cooler retention module and backplate, please proceed with
step 2.
If there are residual traces of thermal paste or thermal pads on
your CPU, please clean them off rst. Then press a small drop
(4-5mm diameter) of the supplied NT-H1 thermal compound
onto the centre of the heatspreader.
Applying the thermal paste2
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
Caution: Please make sure that the insulated side of the back-
plate is facing the motherboard.
