Marshall Electronics
Professional Audio Division
Phone: 310-333-0606 800-800-6608 Fax: 310-333-0688
www.mxlmics.com sales@mxlmics.com

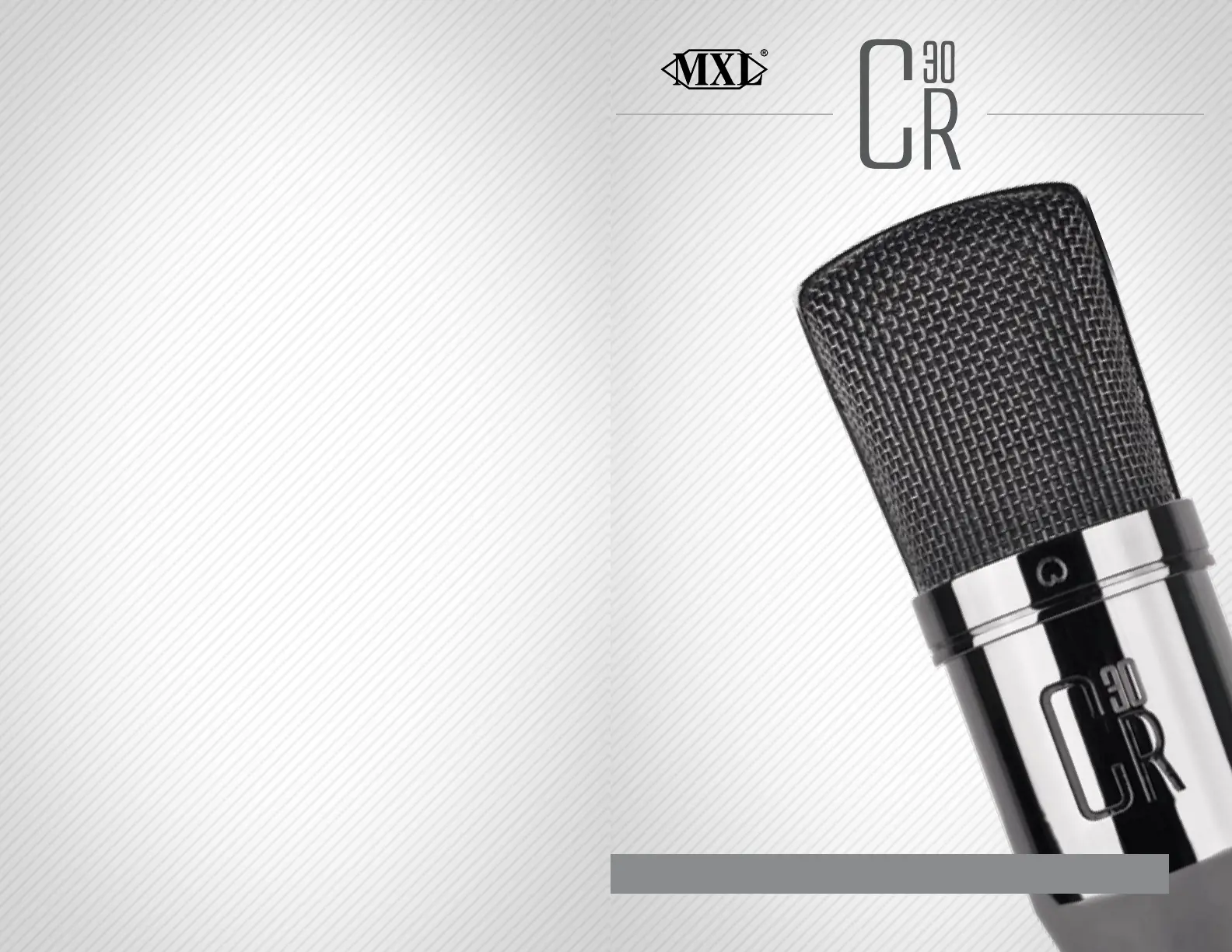

Large Diaphragm Condenser Microphone
Thank you for purchasing the MXL Cr30 large diaphragm condenser
microphone. With proper care, this mic will provide many years of satisfaction.
For best results, please take a few moments to review this literature.
Enjoy your microphone!
The MXL Team
General Characteristics
The MXL Cr30 has a small profile body with a sleek black chrome finish.
It features a 32mm large diaphragm capsule with a fixed cardioid pattern,
and a low noise FET preamp with fully balanced transformerless output.
In addition it has a 3 position pad (pre attenuation) switch with settings of
0dB, -10dB and -20 dB. The addition of the pad switch enables the use of
the microphone with sound sources producing very high sound pressure
levels, without overloading the microphones internal circuitry. The MXL
Cr30 delivers power and depth to vocals, as well as capturing the clarity
and smoothness of instrumental performances. Wired with Mogami cable,
the MXL Cr30’s fidelity and versatility will ensure it is a favorite in your
studio.
Shockmount
The high isolation shockmount may shift during shipping. Simply shift
the elastic bands to center the microphone in the assembly. Be sure that
the wire clamp does not rest on the chassis of the mount, as this impairs
mechanical isolation. Slide the shockmount up the body of the microphone
and stop just below the pad switch for the most secure hold.
Contents
Unpack your MXL Cr30 microphone carefully and verify that all of the
following items are included:
•MXL Cr30 microphone
•Shockmount
•Flight case
If any of these items are missing or damaged, contact the company from
which you purchased the microphone.
Power Requirement
IMPORTANT - This unit requires phantom power at 48 volts, ± 4 volts.
Each unit has been thoroughly checked before shipping, so if you do not
hear sound, check that the phantom power on your mixer or separate
power supply is switched on.
Microphone Cable
This microphone connects to a mixer or preamp via XLR cable (not
included). The microphone cable can have a profound effect on the sound
of any microphone. Even the finest microphones will sound poor if the
interconnect cable allows noise to enter, or causes distortion and loss of
Specifications
Warranty
Marshall microphones are guaranteed against defects in material and workmanship
for three years from the date of purchase. Should you encounter any problem with
this unit, promptly contact the company you purchased it from for assistance. The
original dated sales receipt will be necessary for any warranty claim. Do not send
any unit directly to us without prior authorization from our service department.
Warranty coverage is limited to repair or replacement (at our option) of the
microphone, and does not cover incidental damages due to use of this unit, nor
damage caused by accidental misuse of this product.
Frequency Chart Polar Pattern
information. Use only the best microphone cable your budget will allow. We
recommend Mogami cable for the best results.
Care
Dust and foreign material can degrade the performance of a microphone
over time so always store the unit in its case. For vocals closer than 3", use a
pop filter or a foam windscreen to avoid getting moisture on the diaphragm
as this can substantially degrade the microphone’s performance. Store the
microphone in its original packaging in a cool, dry place along with the
included packet of silica gel. These steps will help keep the mic in proper
working order and sounding its best for many years to come.
0
90270
180
Type Condenser pressure gradient mic with large 32mm capsule
Diaphragm Gold-sputtered, 6 micron diaphragm
Frequency Response 20 Hz—20kHz
Polar Pattern Cardoid
Sensetivity 25mV/Pa
Impedance 150 ohms
Attenuation Switch (Pad/Pre attenuation) -10 dB, -20 dB
Max SPL for .5% THD 158 dB (with pad set to -20 dB)
S/N Ratio 80 dB (Ref. 1 Pa A-weighted)
Power Requirements Phantom Power 48V ± 4V
Weight 1 lb /498.95g
Size 47mm x 145mm/1.8 in. x 5.7 in.
Metal Finish Black Chrome plated
