Seite 1/66
If you have any problems or questions, visit us at www.maytag.com
Pour tout problème ou toute question, consulter le www.maytag.ca
Use & Care Guide
Guide d’utilisation et d’entretien
Para obtener acceso
al Manual de uso y cuidado
en español, o para obtener
información adicional acerca
de su producto, visite:
www.maytag.com

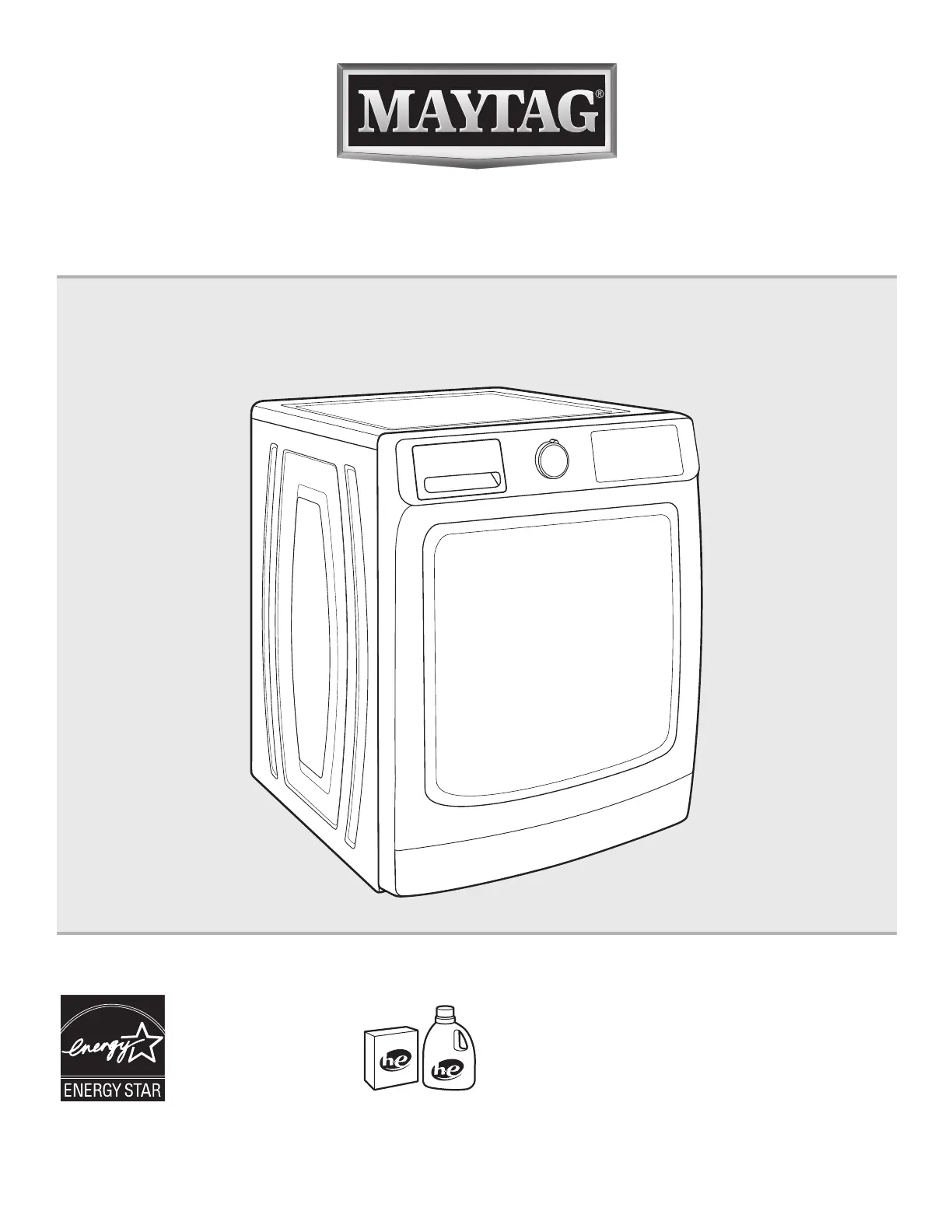

FRONT-LOADING AUTOMATIC WASHER
LAVEUSE AUTOMATIQUE À CHARGEMENT FRONTAL
W11156983B
W11156984A – SP
Designed to use only HE
High Efficiency detergents.
Conçue uniquement pour
une utilisation avec des
détergents HE Haute
efficacité.
Protocole NSF P351
Performance de réduction des allergènes pour les laveuses
de format familial à usage résidentiel ou commercial
Seuls les modèles comportant le programme de lavage
anti-allergie répondent aux critères de la certication NSF.
2
TABLE OF CONTENTS TABLE DES MATIÈRES /
WASHER SAFETY 3 ......................................................................................................
ACCESSORIES 4 ...........................................................................................................
CONTROL PANEL AND FEATURES 5 .......................................................................
CYCLE GUIDE 8 ..............................................................................................................
CHOOSING THE RIGHT DETERGENT 10 .................................................................
USING THE OPTIMAL DISPENSE DRAWER (on some models) 10 .................
USING YOUR WASHER 11 ..........................................................................................
WASHER MAINTENANCE 16 ......................................................................................
TROUBLESHOOTING 20 ..............................................................................................
WARRANTY 29 ...............................................................................................................
ASSISTANCE OR SERVICE BACK COVER ............................................................
SÉCURITÉ DE LA LAVEUSE 30 ..................................................................................
ACCESSOIRES 31 .........................................................................................................
TABLEAU DE COMMANDE ET CARACTÉRISTIQUES 32 ....................................
GUIDE DE PROGRAMMES 36 ....................................................................................
CHOIX DU DÉTERGENT APPROPRIÉ 40 ................................................................
UTILISATION DU TIROIR DISTRIBUTEUR DE DOSAGE OPTIMAL
(sur certains modèles) 40 ............................................................................................
UTILISATION DE LA LAVEUSE .............................................................................41
ENTRETIEN DE LA LAVEUSE 46 ................................................................................
DÉPANNAGE 51 .............................................................................................................
GARANTIE 63 ..................................................................................................................
ASSISTANCE OU DÉPANNAGE .................................COUVERTURE ARRIÈRE
3
WASHER SAFETY
4
Customize your new washer and dryer with the following
genuine Whirlpool accessories. For more information on
options and ordering, call or visit us at: 1-800-344-1274
www.maytag.com/accessories. In Canada, call
1-800-688-2002 www.maytag.ca or visit us at .
INSTALLATION & MAINTENANCE
ACCESSORIES
FACTORY CERTIFIED PARTS – these three
words represent quality parts and accessories
designed specically for your appliance.
Time tested engineering that meets
our strict quality specications.
Accessories designed for your appliance:
ACCESSORIES
15" Pedestal
Color-matched pedestals raise
the washer and dryer to a more
comfortable working height.
The large drawer provides
convenient storage.
Stack Kit
If space is at a premium,
the stack kit allows the dryer
to be installed on top of the
washer.
5
CONTROL PANEL AND FEATURES
Not all features and cycles are available on all models.
NOTES:
■The control panel features a sensitive surface that responds to a light touch of your nger. To ensure your selections are registered,
touch the control panel with your ngertip, not your ngernail. When selecting a setting or option, simply touch its name.
■At cycle completion, your setting and option choices will be remembered for your next use of that cycle. However, if power is lost
to the washer, the settings and options will go back to the factory defaults.
3
6
6
A
B
I
D
F
E
21
5
4
A
CB
D
F
E
A
C
D
H
GB
3
6
21
5
4
636
2 1
5
4
6
I
I
6
POWER
Touch to turn the washer on and off. Touch to stop/cancel
a cycle at any time.
NOTE: Turning the Wash Cycle knob will also turn the
washer on.
WASH CYCLE KNOB
Turn the knob to select a cycle for your laundry load. Press
the Wash Cycle knob to enable the Extra Power option.
NOTE: The Clean Washer with affresh® LED will ash when
the washer has run 30 wash cycles as a reminder to run the
Clean Washer with affresh® cycle.
See “Cycle Guide” for detailed descriptions of cycles.
NOTE: For best results when using the Overnight Wash &
Dry cycle, use for loads weighing 2 lbs or less, such as a
soccer uniform or a running tank and shorts. Allow the cycle
to run the full duration of 12 hours.
EXTRA POWER
Extra Power option can be used for increased cleaning
power. Press the Wash Cycle Knob to activate the Extra
Power option, which runs a cold pre-wash cycle before
the main cycle. When Extra Power is activated, the Cycle
Control Knob will illuminate and the estimated time
remaining on the display will increase. On single load
dispenser models, add an extra dose of detergent to the
Bleach/Detergent for Extra Power compartment when using
Extra Power, for best results.
START
Touch and hold for 3 seconds until the light above START
comes on to start a cycle or touch once while a cycle is in
process to pause it. If you want to add a garment, you can
touch START when the “Add Garment” LED is on.
LED DISPLAY AND SETTINGS
When you select a cycle, its default settings will light up and
the Estimated Time Remaining will be displayed. Factors
such as load size, wash temperature, and water pressure
may affect the time shown in the display. Tightly packing,
unbalanced loads, or excessive suds may cause the washer
to lengthen the cycle time as well.
Touch the desired setting on the display to adjust. See
“Cycle Guide” for available settings on each cycle. Not all
settings are available with all cycles.
Temp
The recommended wash temperature is preset for each
cycle. You may also select a wash temperature based
on the type of fabric and soils being washed. For best
results, use the warmest wash water safe for your
fabric, following the garment label instructions. All wash
temperatures feature a cold rinse.
Spin
This washer automatically selects the spin speed
based on the cycle selected. Some preset speeds
can be changed.
■Faster spin speeds mean shorter dry times but may
increase wrinkling in your load.
■Slower spin speeds reduce wrinkling but will leave
your load more damp.
Soil
Soil Level (wash time) is preset for each wash cycle.
When you change the soil setting, the cycle time will
increase or decrease in the Estimated Cycle Time
display.
1
2
3
4
For most loads, use the soil level that is preset with the
cycle you have chosen. For heavily soiled and sturdy
fabrics, use the Soil Level setting to select a higher soil
level. For lightly soiled and delicate fabrics, use the Soil
Level setting to select a lower soil level. Lower soil level
settings will help reduce tangling and wrinkling.
CYCLE STATUS LIGHTS
NOTE: Not all Cycle Status Lights are available on all
models.
The Cycle Status Lights show the progress of a cycle.
At each stage of the process, you may notice sounds
or pauses that are different from traditional washers.
Sensing
When START is touched and held, the washer will rst
perform a self-test on the door lock mechanism and the
sensing light will come on. You will hear a click, the drum will
make a partial turn, and the door will click again as it unlocks
briey. The door will click one more time when it locks again.
Once the door has locked the second time, the washer will
begin spinning to sense the load size. This sensing process
will continue throughout the cycle. You may also hear water
owing through the dispenser, adding detergent to the load.
After the load size is sensed, the estimated time based on
load size will be displayed. The actual cycle time may be
lengthened; however, the display will continue to show the
estimated time.
The sensing light will blink once a second at various times
during the cycle, such as when the washer is reducing
extra suds.
Washing
During the wash cycle, this will display to let you know the
cycle is in progress.
Add Garment
When “Add Garment” is lit, you may pause the washer, open
the door, and add items. Touch and hold START to start the
washer again.
Detergent Low
When detergent in the dispenser is running low, the display
will show the detergent level (Low).
OPTIONS
Touch to activate additional wash options or additional
features on the washer. Not all options are available on
all models.
Delay Start
Touch this option to delay the start of the wash cycle
by up to 12 hours.
6
A
5
7
Fresh Hold®/Fresh SpinTM
The Fresh Hold®/Fresh SpinTM option will periodically
tumble the load after the end of the cycle for up to 24
hours while the integrated fan circulates air through the
washer to reduce humidity. Fresh Spin™ also periodically
tumbles the load after the end of the cycle but does not
use an integrated fan. To turn on the Fresh Hold
®/Fresh
Spin™ option, touch FRESH HOLD. If, however, the
Fresh Hold®/Fresh Spin™ option is turned on, it will stay
on for all future cycles until turned back off – the washer
remembers the last on/off status set. To turn off the Fresh
Hold®/Fresh Spin™ option, touch FRESH HOLD.
To turn off the Fresh Hold®/Fresh Spin™ option when it is
running, touch POWER.
NOTE: The door will lock while the Fresh Hold®/Fresh
Spin™ option is active. To cancel the option and unlock
the door, touch POWER.
Steam
The Steam option adds additional soak and wash time
to many cycles to help remove tough stains as well as
a steam boost for added cleaning power. An integrated
heater helps to maintain optimal wash temperatures.
Extra Rinse
Activate this option to add an extra rinse to most cycles.
Cycle Signal
Touch and hold CYCLE SIGNAL for about 3 seconds the
display will count down you will see “3,” then “2,” then
“1.” The display will start displaying the sound levels you
will see “1,” then “2,” then “3,” then “OFF.” When the
CYCLE SIGNAL is released the last value shown will be
the current selection.
B
C
D
E
G
H
I
Control Lock
Touch and hold for 3 seconds to lock the controls to avoid
unwanted changes or operation. Touch and hold 3 seconds
again to unlock. For each second CONTROL LOCK is held
down, the display will count down 1 second; you will see
“3,” then “2,” then “1.” You may still touch START to pause
the cycle or touch POWER to turn off the washer.
WiFi Connect
Download the Maytag™ app and follow the instructions to
connect your washer/dryer to your home Wi-Fi network. You
may also visit www.maytag.com/connect. In Canada, visit
www.maytag.ca.
Remote Enable
Touch this button to be able to use the Maytag® app to
control the washer. Press this button each time after Power
On and when the door is opened and closed.
Extra Power
The Extra Power option boosts stain ghting performance
on any wash cycle with a dual temperature wash, combining
cold and hot temperature during different phases of the
wash time. To use this function press the knob to activate
the Extra Power option. For single dose dispensers and an
additional 1/2 the manufacturer’s recommended amount
into the dispenser marked for Extra Power. For the Optimal
Dispenser it will automatically dispense the detergent at the
optimal time.
F
Automatically dilutes and dispenses liquid chlorine
bleach at the optimum time during the rst rinse after
the wash cycle. This compartment cannot dilute
powdered bleach. On single load dispenser models,
use this compartment to add an extra dose of detergent
when using the Extra Power option.
Liquid High Efficiency “HE” detergent compartment
This compartment holds liquid or powdered HE
detergent for your main wash cycle.
Optimal Dispense Liquid High Efficiency “HE”
detergent compartment
This compartment holds up to 14.3 oz (424 ml) of liquid
HE detergent allowing you to avoid having to rell
detergent for each load. Also, this will use just the right
amount of detergent required for a particular load/cycle.
Liquid fabric softener compartment
Automatically dilutes and dispenses liquid fabric
softener at the optimum time in the cycle.
■Use only liquid fabric softener in this dispenser.
Liquid chlorine bleach compartment
D
B
C
A
7DISPENSERS
C
B
A
C
B
Optimal Dispense Drawer (on some models)
The Optimal Dispense drawer gives you the convenience of
automatically adding HE detergent, liquid chlorine bleach, and
liquid fabric softener to the wash load at the proper time. See
“Using the Optimal Dispense Drawer” for information on using
the dispenser drawer.
Single Load Dispenser Drawer (on some
models)
The dispenser drawer gives you the convenience
of adding HE detergent, liquid chlorine bleach,
and liquid fabric softener to the wash load at the
proper time. See “Using the Dispenser Drawer”
for information on using the dispenser drawer.
D

Produktspezifikationen

Marke: Maytag
Kategorie: Waschmaschine
Modell: MHW5630HW

Brauchst du Hilfe?

Wenn Sie Hilfe mit Maytag MHW5630HW benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Waschmaschine Maytag

Maytag

Maytag MVWP585GW Bedienungsanleitung

4 September 2024
Maytag

Maytag Performance MHWE251YL Bedienungsanleitung

24 August 2024
Maytag

Maytag MHW8200FC Bedienungsanleitung

24 August 2024
Maytag

Maytag MED8200F Bedienungsanleitung

24 August 2024
Maytag

Maytag MVWB755DW Bedienungsanleitung

24 August 2024
Maytag

Maytag MHN33PD Bedienungsanleitung

24 August 2024
Maytag

Maytag MAH2400AWW Bedienungsanleitung

24 August 2024
Maytag

Maytag MEDB765F Bedienungsanleitung

24 August 2024
Maytag

Maytag MED6230HW Bedienungsanleitung

24 August 2024
Maytag

Maytag MVW6200KW Bedienungsanleitung

24 August 2024

Bedienungsanleitung Waschmaschine

Neueste Bedienungsanleitung für -Kategorien-

BEKO

BEKO BWT584BF Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO WTE1014XW Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO BM3WFU39412CW Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO BM3WFU37412CW Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO WTIK74122 Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO BM1WT3921W Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO B5D510645UW Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO BM1WT3821W Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO LWI284410 Bedienungsanleitung

4 Dezember 2024
BEKO

BEKO BM1WT3721W Bedienungsanleitung

4 Dezember 2024
