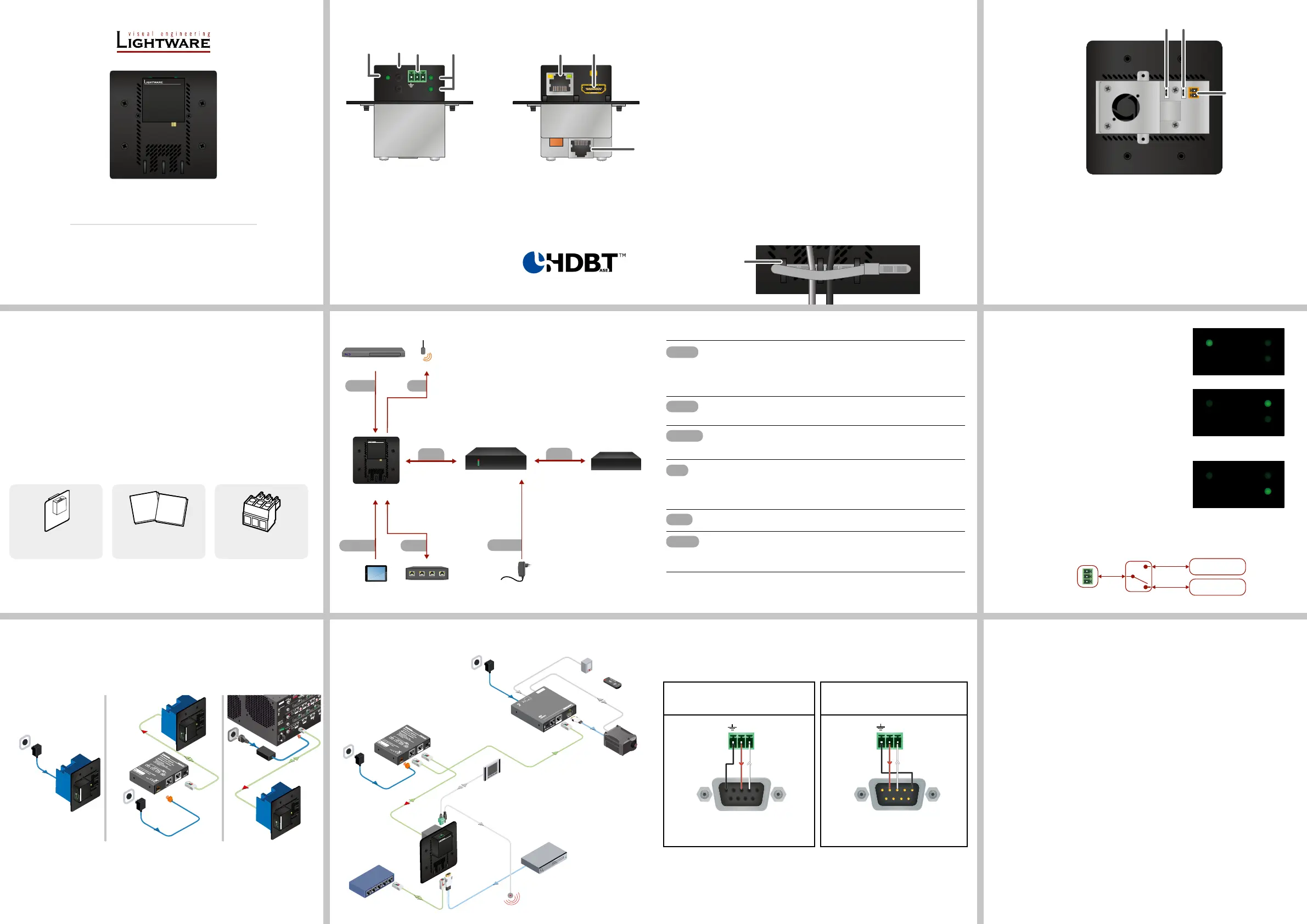

Quick Start Guide
WP-HDMI-TPS-TX97-EU, -EUROMOD, -UK, -US
FP-HDMI-TPS-TX97-GB3, -LEGRAND, -CRFB
Further Information
The product brief and further information of this appliance is available at www.lightware.com.
See the section on the dedicated product page. Downloads
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: v1.2
19200108
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
WP/FP-HDMI-TPS-TX97 series twisted pair HDBaseT
TM
extenders provide
extension of uncompressed 4K/UHD video with embedded audio (up to eight
channel PCM or HBR audio) for long distances over a single CATx cable.
The thoroughly redesigned form factor of the wall and oor panels allows for easier
connecting and removing cables in narrow spaces (behind TV sets, under oor panel lids)
and reduces cable bending and breaking. The built-in cable tie-down points further ensure
stable connection and reduce cable stress.
Box Contents
Transmitter unit Safety and Warranty info,
Quick Start Guide
Phoenix combicon
3-pole connector
1
Status LEDs The LEDs give feedback about the state of the unit and the
video signals. See Status LEDs for details.
2
IR input/output 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter).
3
RS-232 connector 3-pole Phoenix connector for RS-232 serial port. Firmware
upgrade can also be performed over this interface.
4
Ethernet Locking RJ45 connector for Ethernet communication.
5
HDMI input Input for a digital video source. Applied cable shall not be
more, than 20 m (at 1080p) and 5 m (at 4K).
6
TPS output port Locking RJ45 connector for HDBaseT
TM
signal transmission.
Connect a twisted pair cable between the transmitter and the
receiver.
7
Tie-down point The built-in tie-down points are designed to clamp the
HDMI and the CATx cable and ensure stable connection.
Please see the enlarged picture below.
Front and Rear View (WP-HDMI-TPS-TX97-US) Bottom View (WP-HDMI-TPS-TX97-US)
RS-232 Switch Modes
Please note that the 48V power adaptor is an optional accessory which can be purchased
separately.
1
RS-232 switch Normal: serial data is passed through the device.
Prog: RS-232 pass-through function is disabled, the device
is ready for the rmware upgrade (see RS-232 switch
modes section for details).
2
TPS mode switch LR: Longreach TPS mode; lower resolution (max 1080p),
longer distances.
Auto: TPS mode is determined automatically.
3
DC Input Connect the output to the 3-pole Phoenix connector on the
bottom of the wall plate.
WP-HDMI-TPS-TX97 series have the same connectors but the dimensions are different.
Connecting Steps
CATx
Connect the TPS output port of the transmitter to the TPS+PoE port of the
TPS-PI-1P1 by a CATx cable.
Connect the receiver (or the Matrix input board) to the power injector by a
CATx cable via the TPS port.
HDMI
Connect the source (e.g. Blu-ray player) to the HDMI input port by HDMI cable.
RS-232
Optionally for RS-232 extension: connect a controller/controlled device
(e.g. Touch panel) to the RS-232 port.
IR
Optionally for Infrared extension:
Connect the IR emitter to the IR OUT port of the transmitter, and/or
Connect the IR detector to the IR IN port of the transmitter.
LAN
Optionally connect the transmitter to a LAN.
Power
Powering on the devices is recommended to do as the nal step during
the installation. Please check the Power Supply Options section for the
details.
Power Supply Options
TPS-97 extenders are compatible with IEEE 802.3af standard - Power over Ethernet (PoE) -
and can receive power over the TPS line.
The extender can be powered by any of the following ways:
1. Local adaptor 2. Remote power injector 3. Matrix board
TPS-TX/RX90 and TPS-TX/RX95 are not PoE-compatible, thus not able to remote power
the WP-HDMI-TPS-TX/97 series and vica versa. WP-UMX-TPS-TX97 series contains PoE-
compatible remote power function (PD, Powered Device), RX95 and TX95 extenders can be
remote powered only by each other.
Warranty void if damage occurs due to the usage of a different power source.
The product is compatible with any HDBaseT
TM
third party devices.
HDBaseTTM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Compatible Devices
TPS-97 extenders are compatible with all Lightware devices with TPS port except the TPS-90
series.
Status LEDs
SIGNAL
OFF: no video signal transmission is present.
ON: video signal transmission is present.
LINK
OFF: TPS connection failed between the devices.
BLINKING: TPS connection is detected and Low
Power Partial Functionality (LPPF) link mode is
active.
ON: TPS connection is detected and HDBaseT
TM
(HDBT) or Long reach (LR) link mode is active.
LIVE
OFF: no power supply or out of order.
BLINKING: device is powered and ready to use.
Typical Application
12
3
IR OUT
IR IN
LINK
TX RX
LIVE
SIGNAL
2 3 11 54
6
LINKLIVE
SIGNAL
LINKLIVE
SIGNAL
LINKLIVE
SIGNAL
48V DC
Power
adaptor
TPS-PI-1P1 CATx
(TPS)
Power
send
48V DC
Power
adaptor
MX-TPS2-IB-P
DC IN
8 CH TPS INPUT BOARD WITH POE
48V 5A
- +
Ethernet
TPS IN 1 TPS IN 2 TPS IN 3 TPS IN 4
8CH INPUT BOARD FO R HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-IB-A
IN 1 IN 2 IN 3 IN 4
MX-TPS2-OB-S
48V 5A
DC IN
8 CH TPS OUTPUT BOARD WIT H DIGITAL AUDIO
12V power on TPS c
12V power on TPS c
TPS OU T 1 TPS OUT 2 TPS OUT 3 TPS OUT 4
8CH OUTPUT BOARD FO R HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-OB-A
OUT 1 OUT 2
CATx
(TPS)
External
power supply
Power send
T
ypical: 0.5A
Max: 1.25A
- +
Max:2.5A
mm2 :NIP
IR OUT
IR IN
LINK
TX RX
LIVE
SIGNAL
WP-HDM I- TP S-T X 97-US
HD MI INEthern et
LINK
TX RX
LIVE
SIGNAL
WP-HDM I- TP S-T X 97-US
HD MI INEthern et
LINK
TX RX
LIVE
SIGNAL
WP-HDM I- TP S-T X 97-US
HD MI INEthern et
IR OUT
IR IN
IR OUT
IR IN
WP-HDMI-TPS-TX97
Power adaptorEthernet
IR emitter
Touch panel
IR
RS-232 LAN Power
HDMI
Compatible
Receiver or
Output Board
TPS-PI-1P1
Power injector
WP-HDM I-TPS-TX97-US
HDMI INEther net
CATx
CATx
7
IR cable
Serial cable
TPS connection
CATx up to 170m
HDMI-TPS-RX97
IR detector
HD Projector
Sn:
Made in EU, Hungary
RoHS
Ethernet 10/100
Bid irectional IR
Bid irectional RS-232
HDM I, 3D, 4K supp orted
HH DDMMII--TT PPSS--RRXX9977
Sn:
TTPPSS LLoonngg DDii ssttaannccee RReecceeiivveerr
PIN: 2mm
12V 1A DC
For best performance use AWG23 CAT6 or CAT7 SFTP cable
Device can be remote powered over TPS link with PoE
(IEEE 802.3af)
TPS I N
PoE( )
TPS-PI-1P1
48V DC
Power adaptor
Blu-Ray or
DVD Player
Touch panel
Ethernet switch
Serial
cable
HDMI
IR cable
LAN
WP-HDMI-
TPS-TX97-US
CATx
Power
send
Ty pical: 0.5A
Max: 1.25A
- +
Max:2.5 A
mm2 :NIP
HDMI
IR emitter
IR IN
IR OUT
LINK
TX RX
LIVE
SIG NAL
WP-HDMI-TPS-TX97-US
HDMI INEthernet
48V DC
Power
adaptor
Wiring Guide for RS-232 Data Transmission
WP/FP-HDMI-TPS-RX97 series are built with 3-pole Phoenix connector. See the below
examples of connecting to a DCE (Data Circuit-terminating Equipment) or a DTE (Data
Terminal Equipment) type device:
Lightware device and a DCE
D-SUB 9 - Phoenix
Lightware device and a DTE
D-SUB 9 - Phoenix
TX RX
1
6
9
5
2: TX data transmit
3: RX data receive
5: Ground
TX RX
1
69
5
2: TX data receive
3: RX data transmit
5: Ground
For more information about the cable wiring see the users manual of the device or
Cable Wiring Guide on our website www.lightware.com/support/guides-and-white-papers.
Safety and
Warranty
Info
Quick
Start
Guide
IR IN
SIGNAL
HDMI OUT
Dimensions
Bidirectional Pass-through Data Lines
The direction of the video extension is xed from TX towards RX but the pass-through data
lines are bidirectional*. It means the RS-232, IR, Ethernet source and sink devices can be
connected either to the TX or to the RX and the signal is transmitted to the other extender.
* In fact IR transmission is uni-directional but the extender has two IR channels with different
directions.
RS-232
Third party devices with standard RS-232 port are supported as the extenders work in „pass-
through” mode. TX and RX provide 3-pole Phoenix connector. The RS-232 options the baud
rate and the parity bits are set on the third party devices and it can be anything. The extenders
support any kind of serial settings.
Please nd the RS-232 device type in its user guide; the extenders work as DCE devices.
Ethernet
The Ethernet port on the RX or on TX can be connected to a LAN hub, switch or router with a
LAN cable. The other side behaves as an Ethernet uplink port. The extenders support 10/100
Mbps data transfer rate. The Ethernet port has auto crossover function. It is able to recognize
and handle both cable types: patch and cross TP cables.
Infrared (IR)
One emitter and one detector is enough for remote controlling one IR sink device. If there
is an IR sink device to be controlled next to the TX and the other one is next to the RX, two
emitter-detector pairs are needed. The IR emitter and the detector have standard 3.5 mm TRS
(jack) connectors. The emitter’s plug has two poles (mono) and the detector’s plug has three
poles (stereo).
The emitter and detector pair is not supplied with the product, it can be ordered from
Lightware separately.
Types of IR connectors (1/8” TS / TRS )
1 2 3
1 2-3
Detector – 3-pole-TRS Emitter – 2-pole-TS
1 Tip 1 TipSignal (active low) +5V
2 Ring 2 RingGND Signal (active low)
3 Sleeve 3 Sleeve+5V
TPS Link Modes
The TPS working mode between the transmitter and the receiver parties is determined by
the mode set in them. Both parties inuence on the setting which determines the nal TPS
transmission mode. The following TPS modes are dened:
Long reach (LR): Longer CATx cable length, less bandwidth (limited resolution). The
LPPF mode is not available in LR TPS link mode.
HDBaseT
TM
(HDBT): more bandwidth (higher resolutions), shorter CATx cable length. If
no video present, the units change to LPPF mode automatically.
Low Power Partial Functionality (LPPF): Only Ethernet, RS-232 and IR are extended.
Toggling between TPS link modes
The toggle switch on the extenders can
be used to toggle between the LR and
Auto TPS modes. If both units have Auto
state and there is valid video signal on
the transmitter the common mode will
be HDBT. If the video signal disappears
devices go into LPPF mode.
TPS mode between an extender and a
port of a matrix board
If an extender and a TPS matrix board are paired the board forces the extender to use the
settings of the matrix. The extender’s TPS mode switch has no effect.
Always use the Auto mode with third-party devices!
The negotiated
TPS working mode
Selected mode (RX)
LR Auto
Selected
mode
(TX)
LR LR LR
Auto LR HDBT
Maximum Extension Distances
Below values are valid when the transmitter is powered by a local adaptor; distances may
decrease depending on the powering mode (local or remote) and cable quality.
Resolution Pixel
clock rate
Cable lengths
(Auto / Long reach TPS mode)
CAT5e
AWG24
CAT7
AWG26
CAT7
AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73.8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz (24bpp) 148.5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152.9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz (36bpp) 70 m / NA 70 m / NA 120 m / NA222.75 MHz
3840x2160@30Hz UHD ** 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K ** 297 MHz 70 m / NA 70 m / NA 100 m / NA
* Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.
CAT7 SFTP AWG23 cable is always recommended.
Mounting Options - FP-HDMI-TPS-TX97-GB3
This example shows how to mount the FP-HDMI-TPS-TX97-GB3 transmitter
easily into an industrial standard box (GB3 mounting box is not supplied with
the product, it can be purchased separately).
1
Release and remove the xing screws of the rear frames
from the extender.
2
Insert the extender into the GB3 P3 frame.
3
Put back the rear frame on the extender and position it to get
the holes aligned.
4
Fasten the rear frame on the extender by the tting all screws.
12-3
4
Mounting Options - WP-HDMI-TPS-TX97-US
Thanks to the design of Lightware devices, WP-HDMI-TPS-TX97-US transmitter can
be mounted easily into an industrial standard box as the gures show below. B225R
switch/outlet box is not supplied with the product, it can be purchased separately.
1
Release and remove the xing screws from the front side of the extender.
2
Insert the extender into the B225R outlet box and position it to get the holes aligned.
3
Fasten the front side of the extender to the B225R outlet box by tting all
the screws.
Mounting Options - FP-HDMI-TPS-RX97-CRFB
CRFB Floorbox is not supplied with the product.
Variant Dimensions (mm) Recommended outlet box type
for mountinga b c1c2
WP-HDMI-TPS-TX97-EU 80 150 24.38 33.72 European two gang panel
Part no.: 77190-D3
WP-HDMI-TPS-TX97-UK 80 140 24.38 33.72 Appleby galvanised steel
knockout boxes 2g 47mm
Faceplate (for EUROMOD):
CE Double Gang Flat Faceplate
Part no.: QFP-QTM
WP-HDMI-TPS-TX97-EUROMOD 49.6 99.6 28.76 29.4
WP-HDMI-TPS-TX97-US 114.3 115.9 24.46 33.64 B225R
FP-HDMI-TPS-TX97-GB3 44.8 134.5 31.5 26.63
OBO Bettermann: UT4
Part no.: 7408727
Cover plate: OBO Bettermann
UT4 P3 Part no.: 7408 76 1
FP-HDMI-TPS-TX97-LEGRAND 44.8 134.5 31.5 26.63 Legrand 896_10
FP-HDMI-TPS-TX97-CRFB 69.8 113.2 39.6 21.53 Legrand CRFB
Specications
General
Compliance CE ...............................................................................................................
EMI / EMC EN 55035 / EN 55032 .................................................................................
Cooling ................................................................................................. by a cooling fan
Weight ........................................................................................................approx. 370g
Power
Power supply external power adaptor / PoE (IEEE 802.3af) via TPS ..........................
Power adaptor Input 100-240 V AC 50/60 Hz, Output 48V DC, 0.5 A .........................
Power consumption 5W (typ) / 5.4W (max) ...................................................................
Connectors
TX input HDMI connector .................................................................................................
TX output RJ45 (TPS interface) ......................................................................................
Ethernet RJ45 .................................................................................................................
IR input, output 3.5 mm (1.8”) jack connector ................................................................
Serial port 3-pole Phoenix ................................................................................................
Power ......................................................................................................2-pole Phoenix
TPS port (HDBaseTTM-compatible)
Ethernet / RS-232 /
IR
pass-through ....................................................................... yes
Digital video signal
Supported signals DVI 1.0, HDMI 1.4 ...........................................................................
Signal standard DVI and HDMI standard which supports embedded audio ................
Supported resolutions up to 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) ..............
............................................................................................1920x1080@120 Hz, 24 bit
3D support yes ...............................................................................................................
HDCP compliant yes ......................................................................................................
Control over CEC yes, only in the HDMI signal ..............................................................
EDID support transparent ..............................................................................................
Cable length (HDMI input port at full HD res.) max. 20 m .............................................
Cable length (HDMI input port at 4K 30Hz res.) max. 5 m ...........................................
Equalization .................................................................................... adaptive, automatic
Mounting of FP-HDMI-TPS-RX97-Legrand variant is really similar to this method.
12
3
Mounting of FP-HDMI-TPS-RX97-Legrand variant is really similar to this method.
Ventilation
To ensure the correct ventilation and avoid overheating
mount the extender into an industrial standard switch/outlet
box. Let enough free space in front of the appliance and
keep the ventilation holes free.
The picture on the right side shows the direction of the airow.
OUT
IN
OUT
1
2
3
4
5
c1
c2
a
b


Produktspezifikationen

Marke: Lightware
Kategorie: AV extender
Modell: WP-HDMI-TPS-TX97-UK

Brauchst du Hilfe?

Wenn Sie Hilfe mit Lightware WP-HDMI-TPS-TX97-UK benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung AV extender Lightware

Bedienungsanleitung AV extender

Neueste Bedienungsanleitung für -Kategorien-
