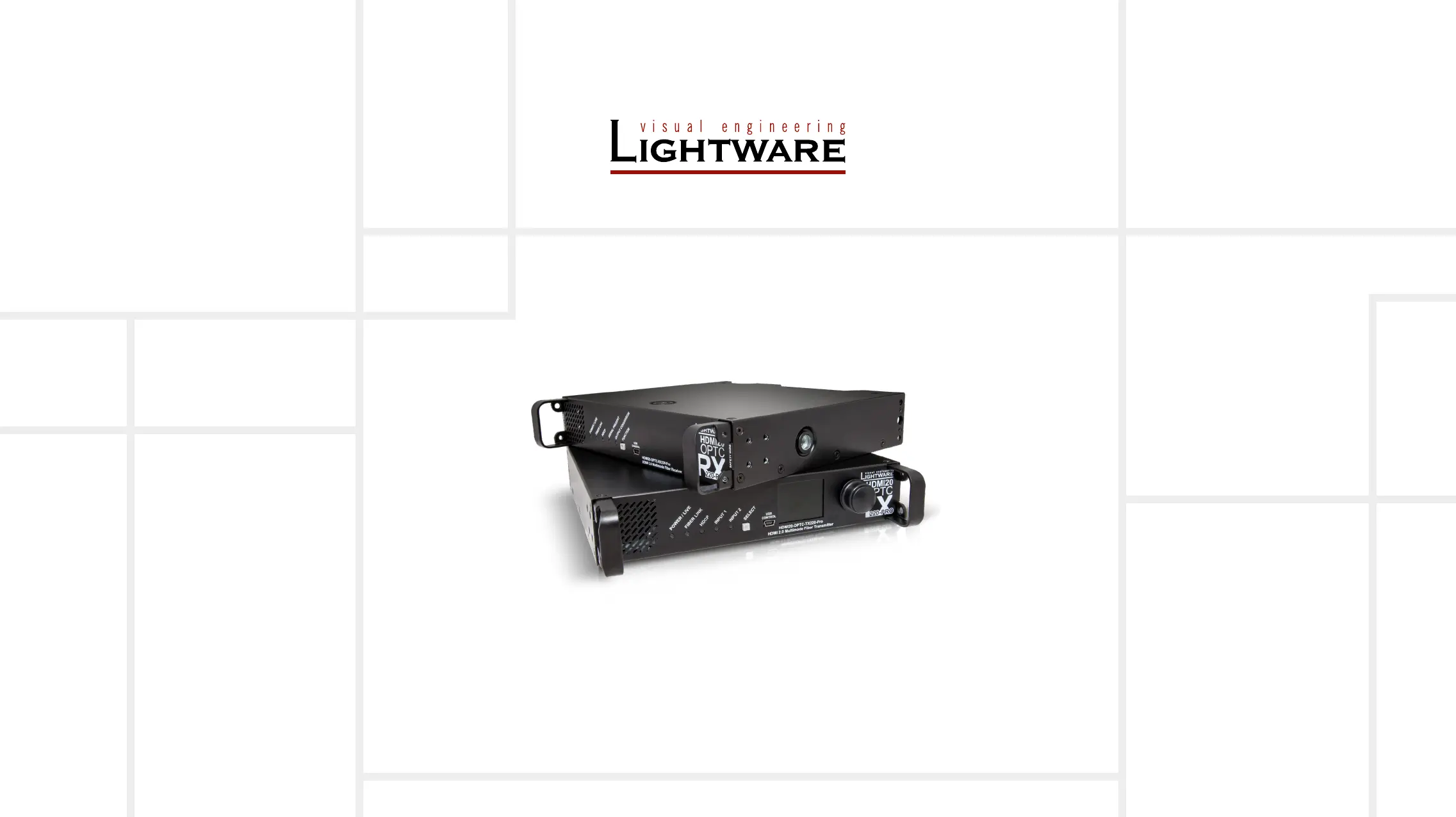

HDMI20-OPTC-TX220-Pro
HDMI20-OPTC-RX220-Pro
User’s Manual
Multimode Single Fiber Optical Extender
HDMI20-OPTC series – User's Manual 2
Important Safety Instructions
Class I apparatus construction
This equipment must be used with a mains power system with a
protective earth connection. The third (earth) pin is a safety feature,
do not bypass or disable it. The equipment should be operated only
from the power source indicated on the product.
To disconnect the equipment safely from power, remove the power
cord from the rear of the equipment, or from the power source. The
MAINS plug is used as the disconnect device, the disconnect device
shall remain readily operable.
There are no user-serviceable parts inside of the unit. Removal of the
cover will expose dangerous voltages. To avoid personal injury, do not
remove the cover. Do not operate the unit without the cover installed.
The appliance must be safely connected to multimedia systems.
Follow instructions described in this manual.
Ventilation
For the correct ventilation and to avoid overheating ensure enough
free space around the appliance. Do not cover the appliance, let the
ventilation holes free and never block or bypass the ventilators (if any).
WARNING
To prevent injury, the apparatus is recommended to securely attach to
the oor/wall or mount in accordance with the installation instructions.
The apparatus shall not be exposed to dripping or splashing and that
no objects lled with liquids, such as vases, shall be placed on the
apparatus. No naked ame sources, such as lighted candles, should
be placed on the apparatus.
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
Waste Electrical & Electronic Equipment
WEEE
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material
resources. Household users should contact either the
retailer where they purchased this product, or their local government
ofce, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their
supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.
Caution: Laser product
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Radiated wavelengths:
778 nm, 801 nm, 824 nm, 850 nm, 911 nm
Output power <= 1 mW
Classified by EN 60825-1:2008
Common Safety Symbols
Symbol Description
Alternating current
Protective conductor terminal
Caution, possibility of eletric shock
Caution
Laser radiation
HDMI20-OPTC series – User's Manual 3
Symbol Legend
The following symbols and markings are used in the document:
WARNING! Safety-related information which is highly
recommended to read and keep in every case!
ATTENTION! Useful information to perform a successful procedure;
it is recommended to read.
INFO: A notice which contains additional information. Procedure
can be successful without reading it.
DEFINITION: The short description of a feature or a function.
TIPS AND TRICKS: Ideas which you may have not known yet but can
be useful.
Navigation Buttons
Go back to the previous page. If you clicked on a link previously,
you can go back to the source page by clicking the button.
Navigate to the Table of Contents.
Step back one page.
Step forward to the next page.
Document Information
All presented functions refer to the indicated products. The descriptions
have been made during testing these functions in accordance with the
indicated Hardware/Firmware/Software environment:
Item Version
Lightware Device Controller (LDC) software 1.21.0
Lightware Device Updater Software 1.5.2
Controller rmware 1.1.0
Hardware 1.2
Document revision: 1.1
Release date: 28-02-2018
Editor: Judit Barsony
