Seite 1/36

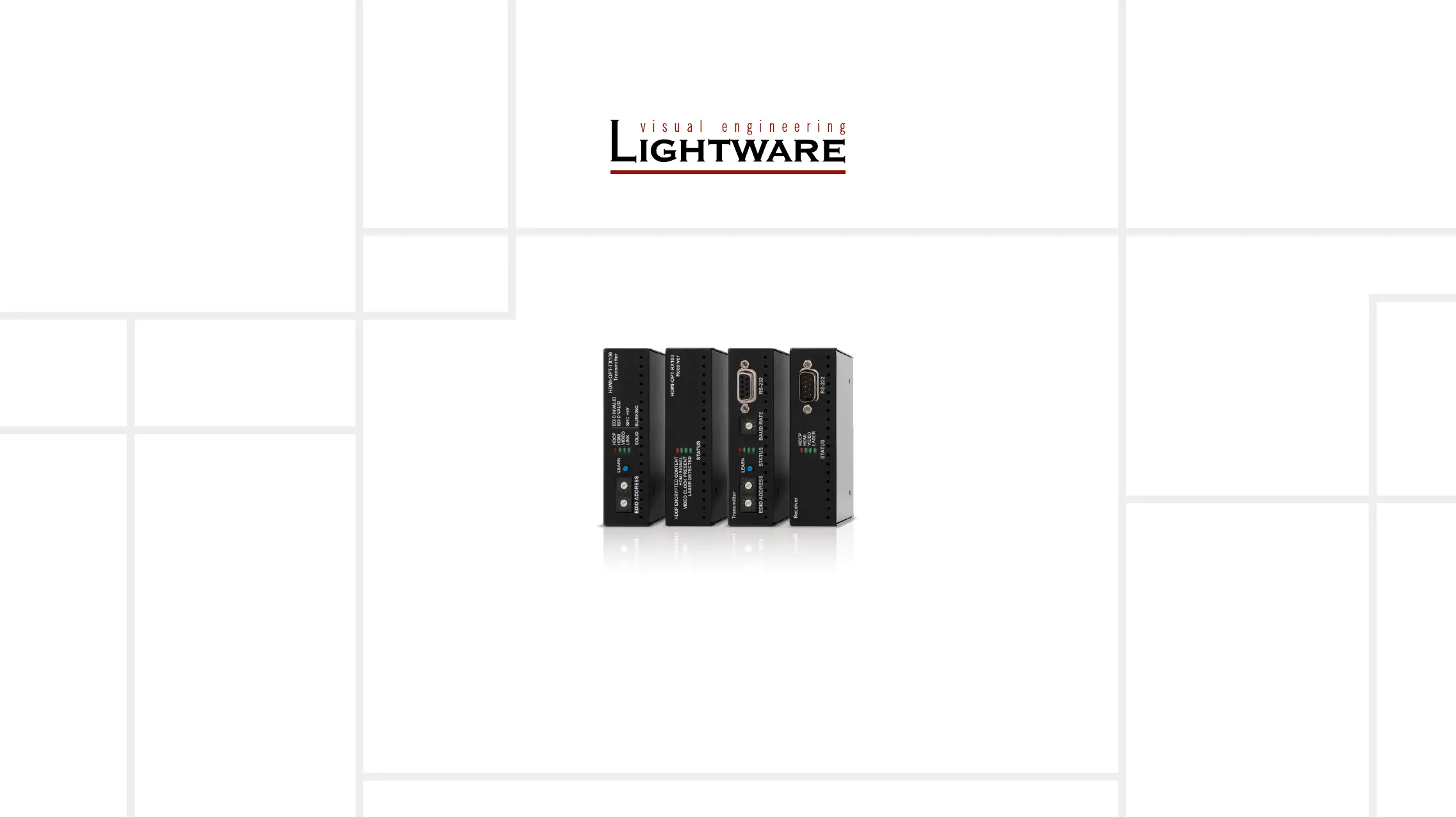

HDMI-OPT-TX100, HDMI-OPT-RX100
HDMI-OPT-TX100R, HDMI-OPT-RX100R
HDMI-OPT-TX200R, HDMI-OPT-RX200R
User’s Manual
Fiber Optical Multimedia Extender
HDMI-OPT series – User's Manual 2
Important Safety Instructions
Class II apparatus construction.
The equipment should be operated only from the power source
indicated on the product.
To disconnect the equipment safely from power, remove the power
cord from the rear of the equipment, or from the power source. The
MAINS plug is used as the disconnect device, the disconnect device
shall remain readily operable.
There are no user-serviceable parts inside of the unit. Removal of the
cover will expose dangerous voltages. To avoid personal injury, do not
remove the cover. Do not operate the unit without the cover installed.
The appliance must be safely connected to multimedia systems.
Follow instructions described in this manual.
Ventilation
For the correct ventilation and to avoid overheating ensure enough
free space around the appliance. Do not cover the appliance, let the
ventilation holes free and never block or bypass the ventilators (if any).
WARNING
To prevent injury, the apparatus is recommended to securely attach to
the oor/wall or mount in accordance with the installation instructions.
The apparatus shall not be exposed to dripping or splashing and that
no objects lled with liquids, such as vases, shall be placed on the
apparatus. No naked ame sources, such as lighted candles, should
be placed on the apparatus.
Waste Electrical & Electronic Equipment
WEEE
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material
resources. Household users should contact either the
retailer where they purchased this product, or their local government
ofce, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their
supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.
Caution: Laser product
Common Safety Symbols
Symbol Description
Direct current
Alternating current
Double insulation
Caution, possibility of eletric shock
Caution
Laser radiation
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Radiated wavelenght:
778 nm, 800 nm, 825 nm, 850 nm, 911 nm, 980 nm
Output power <= 1 mW
Classified by EN 60825-1:2007
HDMI-OPT series – User's Manual 3
Symbol Legend
The following symbols and markings are used in the document:
WARNING! Safety-related information which is highly
recommended to read and keep in every case!
ATTENTION! Useful information to perform a successful procedure;
it is recommended to read.
INFO: A notice which may contain additional information. Procedure
can be successful without reading it.
DEFINITION: The short description of a feature or a function.
TIPS AND TRICKS: Ideas which you may have not known yet but can
be useful.
Navigation Buttons
Go back to the previous page. If you clicked on a link previously,
you can go back to the source page by clicking the button.
Navigate to the Table of Contents.
Step back one page.
Step forward to the next page.
Document Information
All presented functions refer to the indicated products. The descriptions
have been made during testing these functions in accordance with the
indicated Hardware/Firmware/Software environment:
Item Version
Lightware Device Controller (LDC) software 1.23.2b1
Lightware Bootloader Software 3.3.3
Controller rmware - HDMI-OPT-TX series 1.9.7.b1
Controller rmware - HDMI-OPT-RX series 1.9.7.b1
Hardware 2.0
Document revision: 3.0
Release date: 13-08-2018
Editor: Judit Barsony
About Printing
Lightware Visual Engineering supports green technologies and
eco-friend mentality. Thus, this document is made for digital usage
primarily. If you need to print out few pages for any reason, follow the
recommended printing settings:
▪Page size: A4
▪Output size: Fit to page or Match page size
▪Orientation: Landscape
TIPS AND TRICKS: Thanks to the size of the original page, the
border around the content (grey on the second picture below)
makes possible to organize the pages better. After punching the
printed pages, they can be placed easily into a ring folder.
12 3
