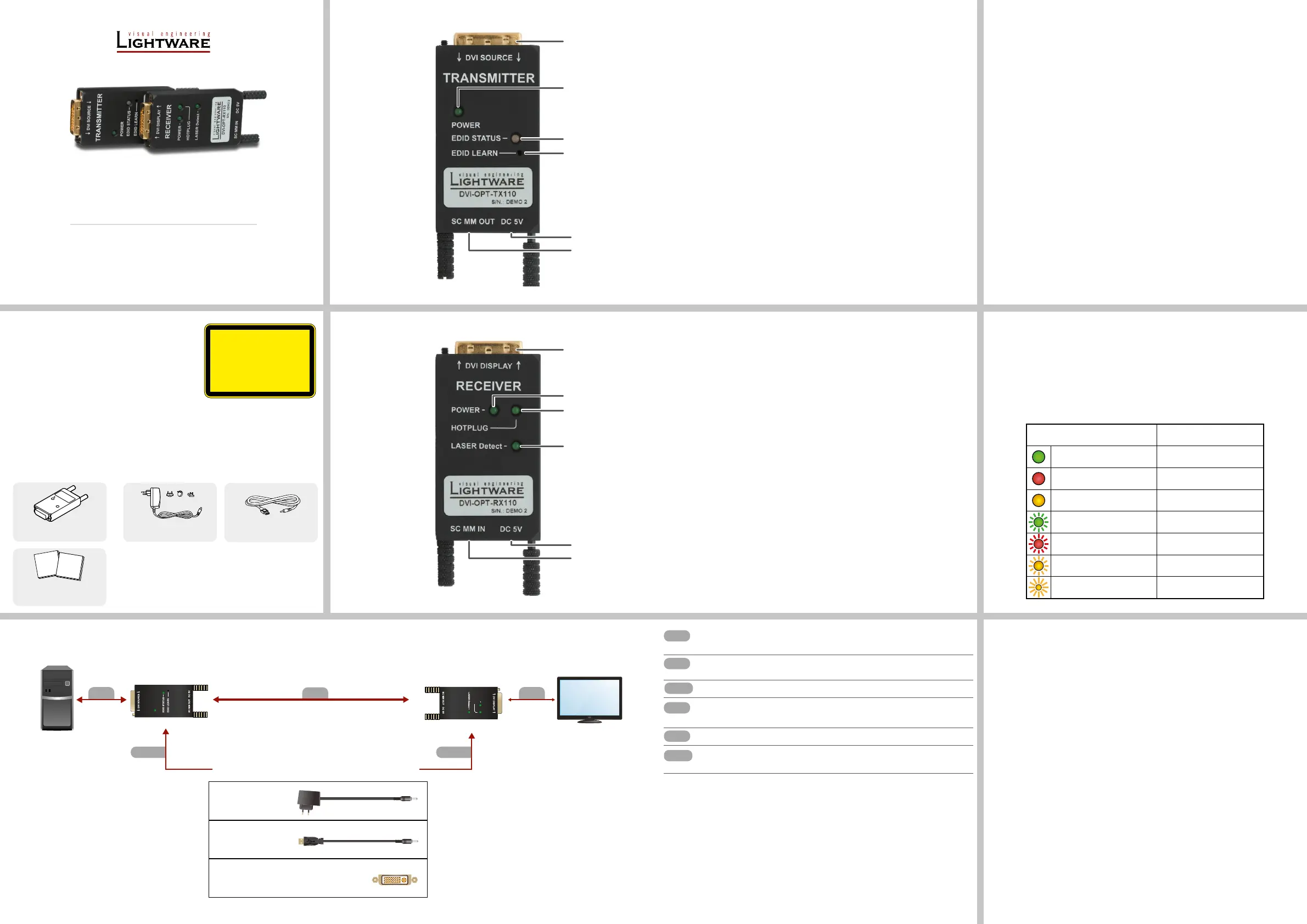

Quick Start Guide
DVI-OPT-RX110
DVI-OPT-TX110
Further Information
The document is valid with the following rmware version: 1.1.6
The Product brief and further information of this appliance is available on www.lightware.com.
See the Downloads section on the website of the product.
Contact us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.1
19200072
Important Safety Instructions
Please read and keep the information in the attached
safety instructions supplied with the product before start
using the device.
The extenders are Class 3R laser products.
Introduction
DVI-OPT-TX110 and DVI-OPT-RX110 pair is a DVI to ber transmitter / receiver set for
up to 2500 m distance transmission. Using Single Fiber Technology the DVI-D signal is
transmitted over only one multimode 50/125 ber core. Sources and display devices are
galvanically isolated against ground loops and hum effects, and no delay occurs in the
signal, the video image is transported without any frame latency.
Box Contents
Legend - Transmitter
Legend - Receiver
1
DVI input Connect to a DVI source for transmitting a DVI signal or
connect to a sink device for learning the EDID; see the
Learning an EDID section.
2
Power LED The LED lights green if the power supply is sufcient (DVI
or external adaptor supply).
3
EDID LED Three-colored LED displays EDID status. See legend for
indications.
4
Learn button Press the button for 2 seconds to activate mode. Learn
Press for 10 seconds to restore factory default EDID.
5
Power connector Barrel plug receptacle for external power adaptor.
6
Fiber connector SC type receptacle for multimode ber output.
Using the LEARN button (Transmitter)
When the button is pressed the EDID state LED turns off to indicate the button press.
If the button is released sooner than 2 seconds, the press will be ignored.
If the button is pressed for more than 2 seconds, the EDID learn mode gets activated
for a period of 10 seconds.
If the button is pressed for more than 10 seconds and the unit is not connected to a
display device, the factory default EDID will be restored.
EDID status LED legend (Transmitter)
Learning an EDID (Transmitter)
1. Plug in the power adaptor to an electrical outlet, or plug in the enclosed USB power
cable to an USB connector, and then connect the DC cable to the transmitter.
2. The power and the EDID state LEDs light up.
3. Press and hold down the LEARN button for two seconds. The EDID state LED goes
dark, and then lights up orange to indicate that learn mode is activated.
4. Connect the transmitter to a display device; the learn mode is active for 10 seconds.
5. The transmitter reads the EDID from the display device. Do not disconnect the device
while it lights orange (approximately 10 seconds).
6. Check if the learning succeeded:
a. If the learning process was successful, the EDID state LED blinks slowly green for
8 seconds. The stored EDID is changed.
b. If the learning process failed, the EDID state LED blinks slowly red for 8 seconds.
The previously stored EDID remains in memory.
c. The EDID state LED changes continuous green or red depending on the validity
of the stored EDID.
7. Disconnect the transmitter (if still connected) and the power supply. The stored EDID
remains in memory until it is overwritten. The unit is ready to be used for DVI signal
extension.
Top View - Transmitter
Top View - Receiver
Extender unit USB cable with
1.35/3.5 mm plug
5V DC power adaptor
with interchangeable plugs
Safety and warranty info,
Quick Start Guide
Safety and
Warranty
Info
Quick
Start
Guide
1
DVI output Connect to DVI display.
2
Power LED Lights green if the unit is powered on.
3
Hotplug LED Indicates that the display device is connected correctly.
4
Laser LED Green light indicates that the laser is properly detected on
the optical input.
5
Power connector Barrel plug receptacle for external power adaptor.
6
Fiber connector SC type receptacle for multimode ber input.
OPT
Connect a multimode SC ber cable to the SC MM IN connector on the RX110
unit.
DVI
Connect the receiver to the DVI sink (e.g. monitor).
Power
Power on the DVI sink (monitor).
OPT
Connect the other end of the multimode SC ber cable to the SC MM OUT
connector on the transmitter (TX110) unit.
DVI
Connect the transmitter to a DVI source (e.g. computer).
Power
Power on the DVI source (computer). It reads the EDID from the transmitter,
and outputs the video signal according to the set resolution.
Check the LEDs on the transmitter:
a. If both the power LED and the EDID status LEDs are green, the
transmitter is ready to use.
b. If the power LED does not light up, the DVI source does not send
enough power through the DVI connector, so the external power
adaptor or the special USB power cable needs to be connected to
the transmitter.
c. If the EDID state LED lights red, an EDID has to be learned.
After powering on the TX110 unit shows its three digit rmware version with red, green and
orange blinks (FW 1.1.6 is: 1x red, 1x green, 6x orange).
LED light Meaning
GREEN continuous EDID valid
RED continuous EDID invalid
ORANGE continuous EDID learn mode active
GREEN blinking EDID learn success
RED blinking EDID learn failed
ORANGE fast blinking Reloading factory EDID
ORANGE slow blinking Laser module failure
Power
Powering options: DVI-OPT-RX110/DVI-OPT-TX110
Power adaptor
USB cable
DVI connector (via +5V pin)
1
2
3
PC
Monitor
DVI-OPT-RX110
DVI-OPT-TX110
Power
DVI OPT
POWER
TRANSMITTER
DVI
POWER
HOTPLUG
RECEIVER
1
2
3
4
5
6
1
2
3
4
5
6
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Radiated wavelengths:
778 nm, 800 nm, 825 nm, 850 nm
Output power <= 1mW
Classified by EN 60825-1:2008
Connecting Steps
Restoring the Factory Default EDID (Transmitter)
1. Power up the transmitter by
a. using one of the external power supply
b. connecting it to a DVI source.
2. Press and keep the LEARN button pressed. The EDID state LED goes dark for two
seconds, and then turns continuous orange to indicate that learn mode is activated.
(Do not connect the unit to a display device.)
3. Keep the button pressed until the LED starts to blink orange (after approximately
10 seconds). Five blinks indicate the EDID restore process.
4. After the restore process is nished, the LED blinks slowly green for 8 seconds. The
stored EDID is changed back to factory default (
1920x1200 @ 59.55Hz
).
5. The unit is ready to be used for DVI signal extension.
Troubleshooting
Some DVI sources may not supply enough power to the transmitter. Use one of the
external power supply methods in this case.
If the image is noisy make sure that the ber cable plugs are clean.
Typical Standalone Application
Maximum Extension Distances
OM1
(62,5/125)
OM2
(50/125)
OM3
(50/125)
OM4
(50/125)
1080p@60Hz 24 bpp 250 m 600 m 1200 m 2500 m
Video Signal
Supported video signal ......................................................................................... DVI-D
Maximum resolution .................................................1920 x 1200 or 2048 x 1080 pixel
Data rate ..............................................................................................1.65 Gbps/ color
Video delay .............................................................................................none (0 frame)
EDID emulation........................................................................Yes, with LEARN button
EDID memory ................................................................1 pc user programmable EDID
Factory EDID .............................................................................. 1920x1200 @ 59.55Hz
Optical
Optical cable .....................................................................................multimode, 50/125
Optical connector .......................................................................................................SC
Laser class specication..................................................................................Class 3R
Laser wavelengths .................................................. 4 channel: 778; 800; 825; 850 nm
DVI-OPT-TX100 output OMA* ...........................................................-6.25 dBm (max.)
DVI-OPT-RX100 OMA* sensitivity ...................................................-14.25 dBm (max.)
Maximum transmission distance ...................... 2500m (using OM4 type optical cable)
*Optical Modulation Amplitude
Specication
General
Compliance ................................................................................................................CE
EMI / EMC ................................................................................. EN 55024 / EN 55032
Cooling. ...............................................................................................................passive
Weight (DVI-OPT-TX110 / DVI-OPT-RX110) ..............................................200g / 205g
Size. .............................................................................. 100.4 mm x 67.6 mm x 26 mm
Material ................................................................................................................... steel
Warranty .............................................................................................................3 years
Power
Power supply ........................................................................... external power adaptor
Power adaptor .............................................. (100 - 240 V AC, 50/60 Hz)(5V DC, 1 A)
Power connector ............................................................................ 1.35 / 3.5 mm barrel
Power consumption (DVI-OPT-TX110 / DVI-OPT-RX110) ..................... 1.4 W / 0.8 W
Connectors
DVI-OPT-TX110 input ................................................................................24-pole DVI-I
DVI-OPT-TX110 output................................................................................SC simplex
DVI-OPT-RX110 input .................................................................................SC simplex
DVI-OPT-RX110 output .............................................................................24-pole DVI-I
MX-DVI-OPT-IB-LC
8CH OPTICAL INPUT BOARD
LASER DETECT
RECEIVE R ACTIVE
SIGNAL PRESENT
L. D.
R. A.
SIGNAL
IN1 IN2 IN7 IN8
IN5 IN6
IN3 IN4
SC 50/12 5 MULTIMO DE
8CH OPTICAL INPUT BOARD
SC 50/12 5 MULTIMO DE
8CH OPTICAL INPUT BOARD
IN1 IN2 IN7 IN8
IN5 IN6
IN3 IN4
LASER DETECT
RECEIVE R ACTIVE
SIGNAL PRESENT
MX-DVI-OPT-IB-ST
4 CH DUAL L INK DVI INPUT BOARD
MX-DVIDL -IB
LC 50/1 25 MUL TIMODE
LASER DETECT
RECEIVE R ACTIVE
SIGNAL PRESENT
L. D.
R. A.
SIGNAL
IN1 IN2
IN7 IN8
IN5 IN6
IN3 IN4
IN1 IN2 IN7 IN8
IN5 IN6
IN3 IN4
LASER DETECT
RECEIVE R ACTIVE
SIGNAL PRESENT
MX-DVI-OPT-IB-SC
OUT1 OUT2 OUT7 OUT8
OUT5 OUT6
OUT3 OUT4
8CH OPTICAL OUTPUT BOARD
8CH OPTICAL OUTPUT BOARD
SC 50/12 5 MULTIMO DE
SC 50/12 5 MULTIMO DE
MX-DVI-OPT-OB-ST
LASER DETECT
SIGNAL PRESENT
L. D.
SIGNAL
MX-DVI-TP-OB
8CH OPTICAL R ECLOC KING
OUTPU T BOA RD
MX-DVI-OPT-OB-NT
LASER DETECT
SIGNAL PRESENT
L. D.
SIGNAL
OUT1 OUT2
OUT7 OUT8
OUT5 OUT6
OUT3 OUT4
MX-DVI-OPT-OB-LC
8CH OPTICAL OUTPUT BOARD
LASER DETECT L. D.
L. D.
OUT1 OUT2 OUT7 OUT8
OUT5 OUT6
OUT3 OUT4
LASER DETECT
MX-DVI-OPT-OB-SC
OUT1 OUT2 OUT7 OUT8
OUT5 OUT6
OUT3 OUT4
RS-232
LOCAL CONTRO L
RoHS
Made in EU, HU
Service LAN
SC MM OUT DC 5V
Integrated System Application
