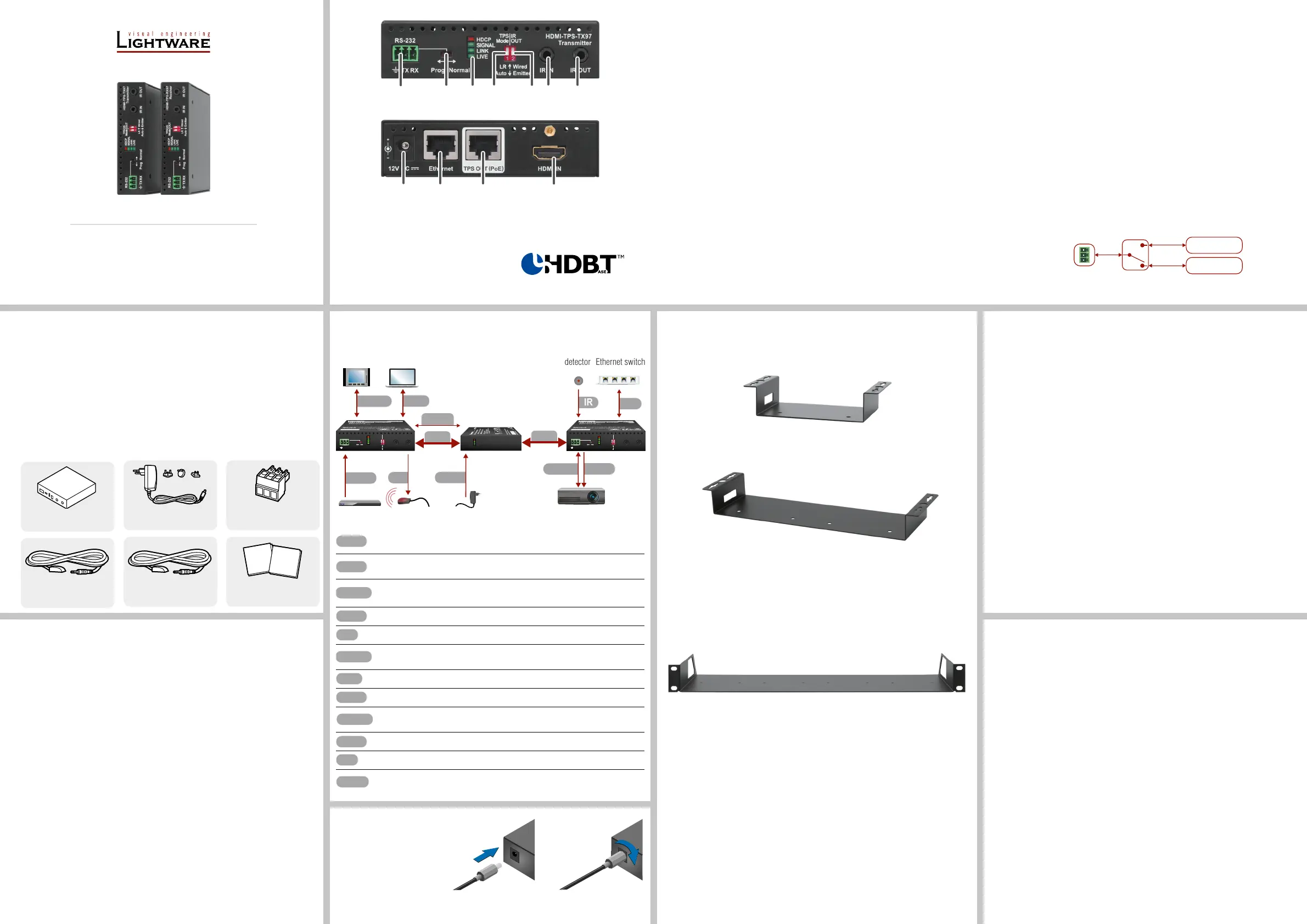

Quick Start Guide
HDMI-TPS-TX97
HDMI-TPS-RX97
DVI-HDCP-TPS-TX97
DVI-HDCP-TPS-RX97
Further Information
The product brief and further information of this appliance is available at www.lightware.com.
See the section on the website of the product.Downloads
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 1.1
19200099
RS-232
Touch panel
Blu-ray player IR emitter
Ethernet switch
IR detector
Power adaptor
Laptop
Projector
HDMI-TPS-RX97
Receiver
IR OUTIR IN
HDCP
SIGNAL
LIV E
LINK
TX RX
RS-232 Mode
LR Wired
OUT
Auto Em itter
TPS I R
NormalProg
12V DC OUT ACTIVE
REMOTE POWER O UT ACTIVE
48V DC IN PRE SENT
REQUI RED POWER OVE R 20W
IR OUTIR IN
HDCP
SIGNAL
LIV E
LINK
TX RX
RS-232 Mode
LR Wired
OUT
Auto Em itter
TPS I R
NormalProg
HDMI-TPS-TX97
Transmitter
CATx CATx
IR
HDMI Power
RS-232 LAN
HDMI
IR LAN
DC-DC
Connecting Steps
Below layout means the transmitter is powered locally by the power injector and they are
placed close to each other. The receiver is powered remotely via the TPS cable (PoE).
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
TPS-TX97 and RX97 twisted pair HDBaseT
TM
extenders provide extension of uncompressed
4K/UHD video with embedded audio for long distances over a single CATx cable. The extender
offers uni-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that
carries the video signal. The TPS extenders support full HDCP and EDID compliance and
work on all standard AV resolutions and also 120 Hz 3D signals. PoE 48V remote powering is
available through the single CATx cable, but a local power supply can also be used.
Box Contents
Compatible Devices
TPS-97 extenders are compatible with all Lightware devices with TPS port except the TPS-90
series.
Power Supply Options
TPS-97 extenders are compatible with IEEE 802.3af standard - Power over Ethernet (PoE) -
and can receive power over the TPS line.
The extenders are not compatible with TPS-95 extenders from remote power point
of view. TPS-95 extenders have different remote power feature which is not PoE-
compatible. Please check the devices always before connecting them to each other. If
the remote power feature is disabled on the TPS-95 extender, it can be connected to a
TPS-97 device.
The extenders can be powered:
Locally with the supplied 12V DC adaptor or Lightware’s rack mountable PSU,
Remotely by a PoE-compatible Power Sourcing Equipment (PSE) device, like Lightware’s
power injector (TPS-PI-1P1) or a PoE-compatible matrix or matrix board.
If both supplying modes are available (local and remote) the remote power supply will be used.
Do not connect any device to the TPS connector unless you are sure they are
compatible! Connecting incompatible devices with similar connectors may cause harm
to the devices.
AWG 26 cables are not recommended with remote powering (reduce cable distances).
Front View
Rear View
The transmitter and the receiver have the same construction and connectors.
DVI-HDCP-TPS-TX97 and RX97 have exactly the same capabilities and features, the only
difference is the video port connector.
The product is compatible with any HDBaseT
TM
third party devices.
HDBaseTTM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Status LEDs
HDCP
OFF: video output signal is not encrypted with HDCP.
ON: video output signal is encrypted with HDCP.
SIGNAL
OFF: no video signal transmission.
ON: video signal transmission.
LINK
OFF: TPS connection failed between the devices.
BLINKING: TPS connection is detected and LPPF link mode is active.
ON: TPS connection is detected and HDBT or LR link mode is active.
LIVE
OFF: no power supply or out of order.
BLINKING: device is powered and ready to use.
1
RS-232 port Local RS-232 port for bidirectional serial data connection and
performing rmware upgrade (programming).
2
RS-232 switch Normal: serial data is passed through the device.
Prog: RS-232 pass-through function is disabled, the device is
ready for the rmware upgrade (see the gure below).
3
Status LEDs See the next section.
4
TPS mode
switch
LR: Longreach TPS mode; lower resolution (max 1080p), lon-
ger distances; : TPS mode is determined automatically.Auto
5
IR mode
switch
IR output signal modulation switch; the 38 kHz modulation can
be switched On ( position) or Off (Emitter Wired position).
6
IR input IR signal input connector (for 3.5 mm Jack, 3-pole, TRS plug).
7
IR output IR signal output connector (for 3.5 mm Jack, 2-pole, TS plug).
8
DC input 12V DC input for local power supply.
9
Ethernet port The Ethernet data is passed through the device.
q
TPS port TPS port to the other compatible device (extender / matrix /
board).
w
HDMI port Video port for DVI or HDMI signal.
Front And Rear View – Legend
CATx
Connect the TPS output port of the TX to the TPS port of the power injector by
a CATx cable.
CATx
Connect the TPS input port of the RX to the TPS+PoE port of the power injector
by a CATx cable.
DC-DC
Connect a DC-DC cable between the transmitter and the power injector.
HDMI
Connect a source to the HDMI (DVI-D) input port of the transmitter.
IR
Connect an IR emitter unit to the IR output port of the transmitter.
RS-232
Connect a controller device to the local RS-232 port of the transmitter.
Make sure the RS-232 switch is in position.Normal
LAN
Optionally connect a laptop to the Ethernet port of the transmitter
HDMI
Connect a sink device to the HDMI (DVI-D) output port of the receiver.
RS-232
Connect a serial cable between the sink device and the RS-232 port of the
receiver.
CATx
Connect the receiver to Ethernet by a CATx cable.
IR
Connect an IR detector unit to the IR input port of the receiver.
Power
Firstly connect the power adaptor to the DC input of the power injector, then
secondly to the AC power socket.
Mounting Options
Lightware offers three types of mounting accessory to x the extenders:
Under Desk Mounting Kit (UD-kit)
The UD-kit makes easy to mount one extender under any at surface (e.g. furniture).
UD Mounting Kit Double (UD-kit double)
The UD-kit double makes easy to mount two extenders under any at surface (e.g. furniture).
Installation of the Extender With a Matrix
1. Power off all devices (installing with powered devices may harm them).
2. Check the RS-232 switch(es) on the extender(s); they must be in Normal position for
RS-232 pass-through function.
3. The state of the TPS link mode switch makes no difference on the extender because the
connected board forces the extender to use the settings of the matrix.
4. Check the PoE settings of the matrix or the matrix board (with the LDC software); each
port can be set for remote powering separately.
5. Pair the extender(s) and the matrix board(s) with CATx cable(s). The transmitters’ TPS
OUT with the input boards’ TPS IN and the receivers’ TPS IN with the output boards’
TPS OUT.
6. Connect the video source(s), sink(s) and the desired accessory device(s) to the matrix
(MX-TPS boards don’t support the IR pass-through).
7. Connect the video source(s), sink(s) and the desired accessory device(s) to the extenders.
8. To supply the extender(s) with remote power supply connect the necessary power
adaptor to the given matrix board.
9. To supply the extenders locally connect the supplied adaptor (12V 2A DC).
10. Connect the power cord of the matrix into the outlet and switch on the matrix.
11. Supply the other connected units.
Locking DC Plug
The device has a locking DC
connector to establish robust
and safe power connection when
local PSU is used.
Twist 90° clockwise to lock.
Rack Shelf
1U high rack shelf provides mounting holes for fastening up to four extenders.
Mounting Steps
Always use the xing screws which are supplied with the mounting accessory. If
you insert screws longer than 6 mm, the device can be damaged.
1. Unplug all the cables connected to the device(s).
2. Turn the device(s) upside down.
3. Put the shelf upside down on the device(s). Position it to get the mounting holes aligned.
4. Fasten the device on the shelf with the provided screws.
5. Fix the shelf to the desired place (screws are not supplied).
RS-232 Switch Modes
Extender unit 12V DC power adaptor
with interchangeable plugs
Infrared detector unit
(for RX97)
Infrared emitter unit
(for TX97)
Safety and Warranty info,
Quick Start Guide
Phoenix combicon
3-pole connector
Safety and
Warranty
Info
Quick
Start
Guide
1 2 4 53 6 7
q98 w
RS-232
HDMI HDMI
HDMI
Audio
Audio
MX-TPS2-IB-P
DC IN
8 CH TPS INPUT BOARD WI TH POE 12V power on TPS connector. Only use with compatible devices!
48V 5A
- +
Ethernet
TPS IN 1 TPS IN 2 TPS IN 3 TPS IN 4 TPS IN 5 TPS IN 6 TPS IN 7 TPS IN 8
AV Receiver
HDMI-TPS-RX97
Local monitor
Projector
Ethernet
switch
MX-FR17
8CH INPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-IB-A
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8
MX-TPS2-OB-S
48V 5A
DC IN
8 CH TPS OUTPUT BOARD WITH DIGITAL AUDIO 12V power on TPS connector. Only use with compatible devices!
TPS OUT 1 TPS OUT 2 TPS OUT 3 TPS OUT 4 TPS OUT 5 TPS OUT 6 TPS OUT 7 TPS OUT 8
S/PDIF I/O 1 S/PDIF I/O 2 S/PDIF I/O 3 S/PDIF I/O 4 S/PDIF I/O 5 S/PDIF I/O 6 S/PDIF I/O 7 S/PDIF I/O 8
8CH OUTPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-OB-A
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
HDMI-TPS-TX97
HDMI
TPS connection
CATx up to 170m
TPS connection
CATx up to 170m
LAN
LAN
Ethernet
LAN
PC
External power
supply
Laptop
Power send
Power send
5.1 speakers
Sn:
Made in EU, Hungary
RoHS
Ethernet 10/1 00
Bidirectional IR
Bidirectional RS-23 2
HDMI, 3D, 4K supported
HHDDMMII--TTPPSS--RRXX 9977
Sn:
TTPPSS LLoonngg DDiissttaannccee RReecceeiivveerr
PIN: 2mm
12V 1A DC
For best performance use AWG23 CAT6 or CAT7 SFTP cable
Device can be remote powered over TPS link with PoE
(IEEE 802.3af)
TPS IN PoE( )
Sn:
Made in EU, Hungary
RoHS
Ethern et 10/100
Bidirect ional IR
Bidirect ional R S-232
TTPPSS LLoonngg DDiissttaannccee TTrraannssmmiitttteerr
HDMI, 3D , 4K sup ported
For best performance use AWG23 CAT6 or CAT7 SFTP cable
PIN: 2mm
12V 1A DC
H
DM
I-- TP
S-- TX9
7
Device can be remote powered over TPS link with PoE
(IEEE 802.3af )
TPS OUT
PoE( )
IR cable
IR cable
Serial
cable
Serial cable
IR emitter
Internet
HDMI-HDMI cable
Blu-Ray or DVD Player
Projection screen
TPS connection
CATx up to 170m
LAN
LAN HDMI-TPS-RX97
IR detector
Ethernet switch
HD Projector
Touch panel
Sn:
Made in E U, Hungary
RoHS
Ether net 10 /100
Bidire ctional IR
Bidire ctional RS-232
HDMI, 3 D, 4K s upported
HHDDMMII--TT PP SS --RRXX9977
Sn:
TTPPSS LLoonngg DDiissttaannccee RReecceeiivveerr
PIN: 2mm
12V 1 A DC
For best perf ormance use AWG23 CAT6 or C AT7 SFT P cable
Device can be remote powered over TPS link with PoE
(IEEE 802.3af)
TPS IN PoE( )
Sn:
Made in EU, H ungary
RoHS
Ethernet 10/100
Bidir ectional IR
Bidir ectional RS-232
TTPPSS LLoonngg DDii ssttaannccee TTrraannssmmiitttteerr
HDMI, 3D, 4K suppor ted
For best performance use AW G23 CAT6 o r CAT7 SFTP cable
PIN: 2 mm
12V 1A DC
H
DMI --T
PS --T
X9
7
Device can be remote po wered over TPS link with PoE
(IEEE 802.3af)
TPS OU T
PoE( )
TPS-PI-1P1
48 DC IN
Typical: 0.7A
Max: 1.5A
- +
Max:2.5A
PIN: 2mm
CATx
LAN
Power send
HDMI-
TPS-TX97
48V DC
Power
adaptor
HDMI-
HDMI cable
Wiring Guide for RS-232 Data Transmission
TPS-97 extenders are built with 3-pole Phoenix connector. See the below examples
of connecting to a DCE (Data Circuit-terminating Equipment) or a DTE (Data Terminal
Equipment) type device:
Lightware device and a DCE
D-SUB 9 - Phoenix
Lightware device and a DTE
D-SUB 9 - Phoenix
TX RX
1
69
5
2: TX data transmit
3: RX data receive
5: Ground
TX RX
1
6 9
5
2: TX data receive
3: RX data transmit
5: Ground
For more information about the cable wiring see the on our website Cable Wiring Guide
www.lightware.com/support/guides-and-white-papers.
Standalone Application Maximum Extension Distances
Resolution Pixel
clock rate
Cable lengths
(Auto / Long reach TPS mode)
CAT5e
AWG24
CAT7
AWG26 **
CAT7
AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73.8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz (24bpp) 148.5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152.9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz (36bpp) 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
* Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.
** AWG 26 cables are not recommended with remote powering.
Above values are valid when the extender is powered by a local adaptor; distances may de-
crease depending on the powering mode (local or remote) and cable quality.
CAT7 SFTP AWG23 cable is always recommended.
Bi-directional Pass-through Data Lines
The direction of the video extension is xed
from TX towards RX but the pass-through data
lines are bi-directional*. It means the RS-232,
IR, Ethernet source and sink devices can be
connected either to the TX or to the RX and the
signal is transmitted to the other extender.
* In fact IR transmission is uni-directional but
the extender has two IR channels with different
directions.
RS-232
Third party devices with standard RS-232 port are supported as the extenders work in „pass-
through” mode. TX and RX provide 3-pole Phoenix connector. The RS-232 options – the baud
rate and the parity bits are set on the third party devices and it can be anything. The extenders
support any kind of serial settings.
Please nd the RS-232 device type in its user guide; the extenders work as DCE devices.
Ethernet
The Ethernet port on the RX or on TX can be connected to a LAN hub, switch or router with a
LAN cable. The other side behaves as an Ethernet uplink port. The extenders support 10/100
Mbps data transfer rate. The Ethernet port has auto crossover function. It is able to recognize
and handle both cable types: patch and cross TP cables.
Infrared (IR)
One emitter and one detector is enough for remote controlling one IR sink device. If there is an IR
sink device to be controlled next to the TX and the other one is next to the RX, two emitter- detec-
tor pairs are needed. The IR emitter and the detector have standard 3.5 mm TRS (jack) connec-
tors. The emitter’s plug has two poles (mono) and the detector’s plug has three poles (stereo).
The second emitter and detector pair can be ordered from Lightware separately.
IR Output Mode Switch
The IR output signal modulation can be selected by the front panel switch as follows:
Emitter: the 38 kHz modulation is switched on. In this case an IR emitter can be
connected to the IR output port.
Wired: the 38 kHz modulation is switched off. This option allows to connect a cable
between the IR output of the extender and the IR input port of the device desired to
remote control.
TPS Link Modes
The TPS working mode between the transmitter and the receiver parties is determined by
the mode set in them. Both parties inuence on the setting which determines the nal TPS
transmission mode. The following TPS modes are dened:
Long reach (LR): Longer CATx cable length, less bandwidth (limited resolution). The
LPPF mode is not available in LR TPS link mode.
HDBaseT
TM
(HDBT): more bandwidth (higher resolutions), shorter CATx cable length. If
no video present, the units change to LPPF mode automatically.
Low Power Partial Functionality (LPPF): Only Ethernet, RS-232 and IR are extended.
Toggling Between TPS Link Modes
The toggle switch on the extenders can
be used to toggle between the LR and
Auto TPS modes. If both units have Auto
state and there is valid video signal on
the transmitter the common mode will
be HDBT. If the video signal disappears
devices go into LPPF mode.
TPS mode between an extender and a port of a matrix board
If an extender and a TPS matrix board are paired the board forces the extender to use the
settings of the matrix. The extender’s TPS mode switch has no effect.
Always use the Auto mode with third-party devices!
The negotiated
TPS working mode
Selected mode (RX)
LR Auto
Selected
mode
(TX)
LR LR LR
Auto LR Auto
Specication
General
Compliance CE ...............................................................................................................
EMI / EMC EN 55035:2017 / EN 55032:2015 ...............................................................
Cooling .............................................................................................................. passive
Enclosure ...................................................................................................... 1 mm steel
Dimensions ................................................................... 100.4 W x 100x4 D x 26 H mm
Weight (TX) 300 g (HDMI) / 310 g (DVI-HDCP) .............................................................
Weight (RX) 320 g (HDMI) / 330 g (DVI-HDCP) ............................................................
Digital Video Signal
Supported signals DVI 1.0, HDMI 1.4 ...........................................................................
Signal standard DVI and HDMI standard which supports embedded audio ................
Supported resolutions 1920x1080@120 Hz, 24 bit .........................................................
................................................. up to 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0)
3D support yes ...............................................................................................................
HDCP compliant yes ......................................................................................................
Control over CEC yes*, transparent ...............................................................................
*Only in HDMI-TPS-TX97, HDMI-TPS-RX97 models.
EDID support transparent ..............................................................................................
Cable length (HDMI/DVI input port) max. 20 m .............................................................
Equalization .................................................................................... adaptive, automatic
Power
Power supply external power adaptor / PoE (IEEE 802.3af) via TPS ..........................
Power adaptor Input 100-240 V AC 50/60 Hz, Output 12V DC, 2.5 A .........................
Power consumption (TX) 3.6W (typ) / 4.5W (max) .......................................................
Power consumption (RX) 5.5W (typ) / 6.5W (max) ......................................................
Connectors
TX input, RX output HDMI / DVI-I connector ..................................................................
TX output, RX input RJ45 (TPS interface) ......................................................................
Ethernet RJ45 .................................................................................................................
IR input, output 3.5 mm (1.8”) jack connector ................................................................
Serial port 3-pole Phoenix ................................................................................................
Power ................................................................... locking DC connector (2.1 / 5.5 mm)
TPS port (HDBaseT
TM
-compatible)
Ethernet pass-through yes .............................................................................................
RS-232 pass-through ............................................................................................... yes
IR pass-through ................................................................................................................ yes
Port Diagram
Application Diagram
1 2 3
1 2-3
Detector – 3-pole-TRS Emitter – 2-pole-TS
1 Tip 1 TipSignal (active low) +5V
2 Ring 2 RingGND Signal (active low)
3 Sleeve 3 Sleeve+5V
Produktspezifikationen
| Marke: | Lightware |
| Kategorie: | AV extender |
| Modell: | DVI-HDCP-TPS-TX97 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Lightware DVI-HDCP-TPS-TX97 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung AV extender Lightware
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
Bedienungsanleitung AV extender
- AV extender Approx
- AV extender Gigabyte
- AV extender Hama
- AV extender Manhattan
- AV extender Nedis
- AV extender Philips
- AV extender Roland
- AV extender Allnet
- AV extender Eminent
- AV extender König
- AV extender KEF
- AV extender Teufel
- AV extender Abus
- AV extender Lindy
- AV extender Tripp Lite
- AV extender Audio Pro
- AV extender Marmitek
- AV extender Marshall Electronics
- AV extender Black Box
- AV extender Techly
- AV extender Ebode
- AV extender Vision
- AV extender InFocus
- AV extender Kindermann
- AV extender Monoprice
- AV extender Ecler
- AV extender AG Neovo
- AV extender Genexis
- AV extender Digitus
- AV extender DataVideo
- AV extender LevelOne
- AV extender UTEPO
- AV extender Kramer
- AV extender Intellinet
- AV extender AJA
- AV extender Planet
- AV extender Peerless
- AV extender Steren
- AV extender AMX
- AV extender Vivotek
- AV extender Adder
- AV extender Epcom
- AV extender Siig
- AV extender TV One
- AV extender Rose
- AV extender Iogear
- AV extender StarTech.com
- AV extender Smart-AVI
- AV extender Aitech
- AV extender Gefen
- AV extender Avocent
- AV extender IMG Stage Line
- AV extender CYP
- AV extender ASSMANN Electronic
- AV extender ATen
- AV extender KanexPro
- AV extender SmartAVI
- AV extender Oehlbach
- AV extender Wentronic
- AV extender Crestron
- AV extender Accell
- AV extender Dynaudio
- AV extender Extron
- AV extender Atlona
- AV extender Rocstor
- AV extender WyreStorm
- AV extender SWIT
- AV extender Hall Research
- AV extender Matrox
- AV extender Blustream
- AV extender Rose Electronics
- AV extender MuxLab
- AV extender Seco-Larm
- AV extender Kanex
- AV extender C2G
- AV extender ConnectPro
- AV extender TechLogix Networx
- AV extender Micro Connect
- AV extender Intelix
- AV extender HELGI
- AV extender Liberty
- AV extender Comprehensive
- AV extender PureLink
Neueste Bedienungsanleitung für -Kategorien-
7 Oktober 2024
2 Oktober 2024
1 Oktober 2024
30 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
