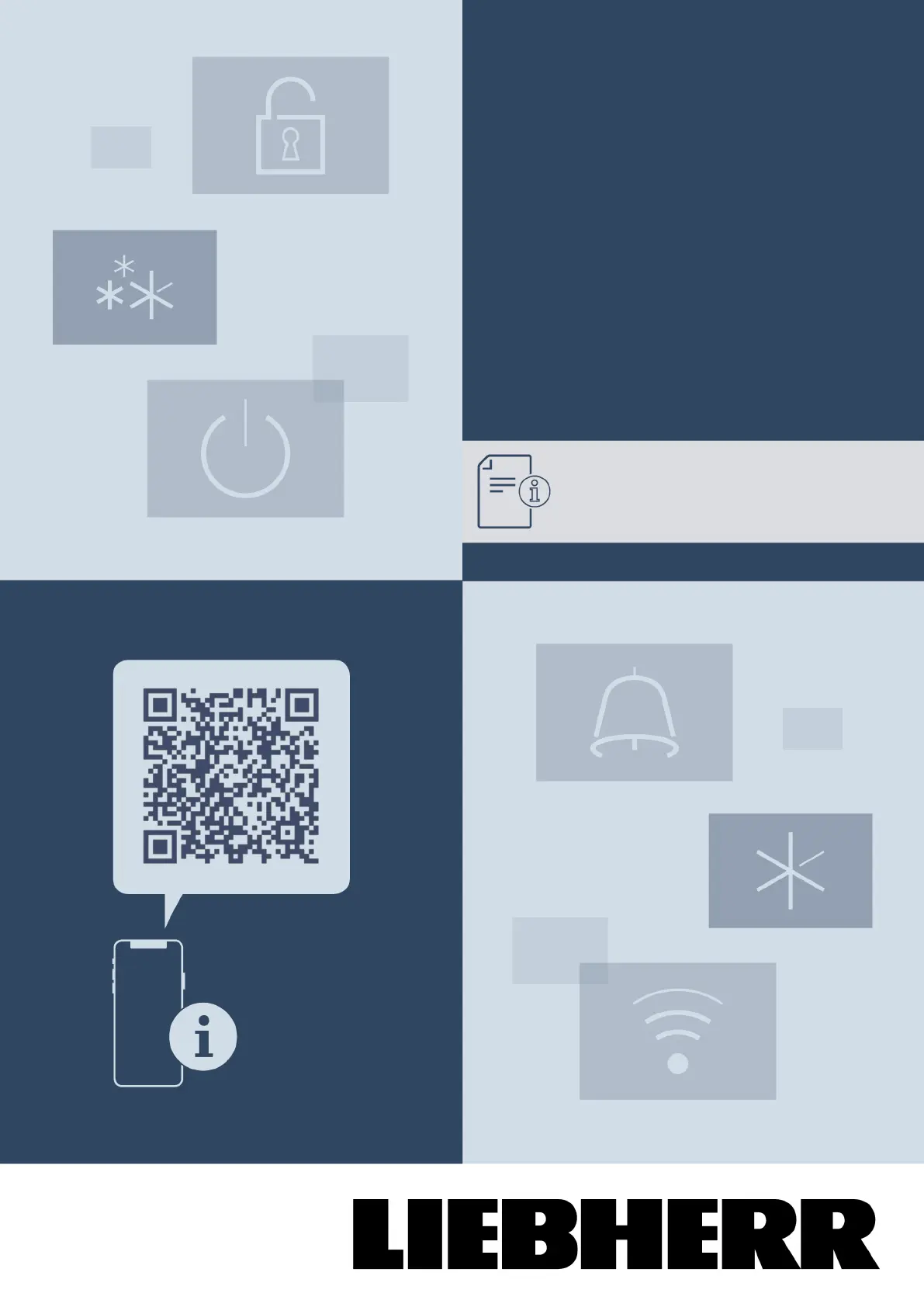

Installation Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 2
2 Installation conditions.......................................... 3
2.1 Location......................................................................... 3
2.2 Installing multiple appliances.................................... 3
2.3 Mains connection......................................................... 4
3 Appliance dimensions........................................... 4
4 Recess dimensions................................................ 5
4.1 Internal dimensions..................................................... 5
5 Ventilation requirements...................................... 6
6 Custom panel weights.......................................... 6
7 Water connection*................................................ 6
7.1 Dimensions for the water connection...................... 7
7.2 Water pressure............................................................. 7
8 Transporting appliance......................................... 7
9 Unpacking the appliance...................................... 7
10 Setting up the appliance....................................... 7
10.1 After installation.......................................................... 7
11 Disposing of packaging......................................... 8
12 What the symbols mean....................................... 8
13 **** freezer compartment door*.......................... 9
13.1 Moving the door hinge................................................ 9
14 Reversing the door................................................ 9
15 Connecting the appliance to the water supply*.. 11
15.1 Connecting the hose................................................... 11
15.2 Checking the water system........................................ 11
16 Installing the appliance in the recess.................. 12
17 Cabinet fronts....................................................... 18
17.1 Dimensions.................................................................... 18
17.2 Mounting the cabinet front(s).................................... 19
17.3 Setting the clearance to avoid collision................... 19
18 Water tank*........................................................... 20
18.1 Inserting the water tank............................................. 20
19 Water filter*.......................................................... 20
19.1 Inserting the water filter............................................. 20
20 Connecting the appliance to the power supply.... 20
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equipâ
ment and technology.
Symbol Explanation
Read instructions
Please read the information in these instrucâ
tions carefully to understand all of the benefits
of your new appliance.
Symbol Explanation
Additional information on the Internet
The digital manual with additional informaâ
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.îîExample illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
1î General safety instructions
-Please keep this assembly manual in a safe
place so you can refer back to it at any
time.
-If you pass the appliance on, please hand
this assembly manual to the next user.
-Read this assembly manual carefully before
installation and use to ensure safe and
correct use of the appliance. Follow
the instructions, safety instructions and
warning messages included at all times.
They are important for ensuring you can
operate and install the appliance safely and
without any problems.
-First read the general safety instructions in
the âGeneral safety instructionsâ section of
the operating instructions, which accomâ
pany these installation instructions, and
follow them. If you cannot find the
operating instructions, you can downâ
load the operating instructions from the
internet by entering the service number
at home.liebherr.com/fridge-manuals. The
General safety instructions
2 * Depending on model and options
service number can be found on the serial
tag:
-Observe the warning messages and other
detailed information in the other sections
when installing the appliance:
DANGER identifies a situation involving
direct danger which, if not obviâ
ated, may result in death or severe
bodily injury.
WARNING identifies a dangerous situation
which, if not obviated, may result
in death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result
in minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result
in damage to property.
Noteî identifies useful instructions and
tips.
2î Installation conditions
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
uThe appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
Intended use
-Install and use the appliance in indoor spaces only.
-Use the appliance only once installed.
2.1î Location
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
uDo not damage the pipelines of the coolant circuit and
the compressor.
-If the appliance is installed in a very humid environment,
condensation can build up on the outside of the unit.
Always ensure good airlow and ventilation in the installaâ
tion location.
-The more refrigerant there is in the appliance, the larger
the space that it is installed in must be. If the space is
too small, any leak may create a flammable mixture of
gas and air. For every 8 g of refrigerant, the installation
space must be at least 1 m3 . Information regarding the
coolant can be found on the serial tag inside the appliâ
ance.
2.1.1î Supporting floor
-The floor of the installation site must be horizontal and
even.
-If you are installing the unit in a cabinet standing on an
uneven floor: level the cabinet.
2.1.2î Positioning
-Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-You can install the appliance directly next to an oven.
-If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-Only fit the appliance into solid kitchen units.
Note
Please contact Customer Services to acquire a kit to limit
the door opening angle to 90° for appliances with soft close
mechanisms.*
2.2î Installing multiple appliances
NOTICE
Risk of damage due to condensate!
uDo not install the appliance directly alongside a further
refrigerator/freezer.
NOTICE
Risk of damage due to condensation!
uDo not install the appliance directly above another refrigâ
erator or freezer.
These appliances are designed for a variety of installation
options. Combine appliances only if the appliance is suitâ
able. The following table shows the installation options by
model:
Installation
option
Model
Single All models
Side-by-side
(SBS)
Model names starting with .S...
Stacked Models up to a maximum recess height of
880 mm and with a heated cover can be
âstackedâ.
Upper appliance: up to a maximum recess
height of 140îmm
Installation conditions
* Depending on model and options 3
