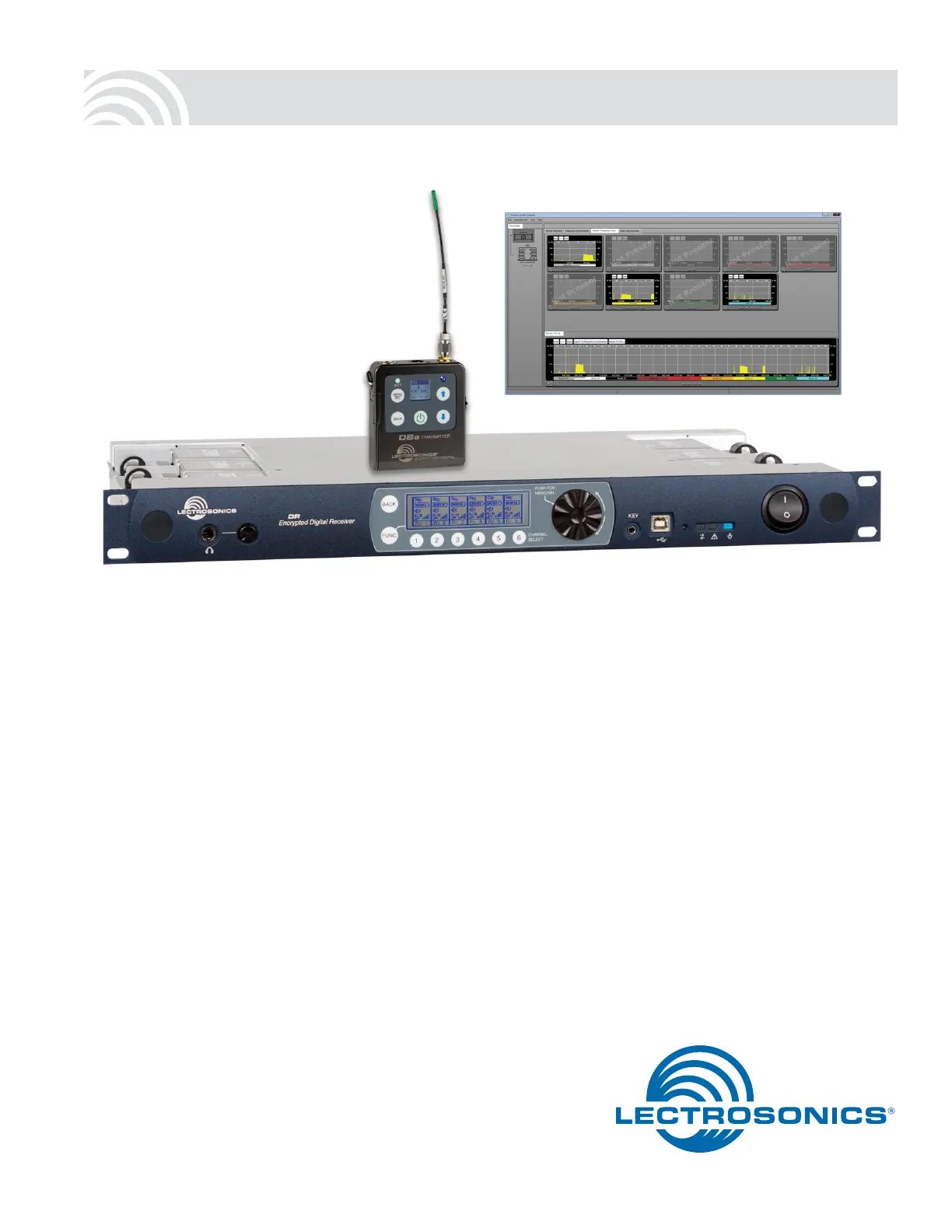

DSW System
Encrypted Digital Wireless System
TECHNICAL DATA
Rio Rancho, NM, USA
www.lectrosonics.com
• Six-channel modular design
• Built-in wideband antenna multicoupler with
loop-thru for additional receivers
• 256-bit encryption - AES 256-CTR
• Transmitter tunes entire frequency range
• Extended operating range
• Analog and AES-EBU audio outputs
• Ethernet interface
• USB interface
• RS-232 serial interface
• Includes PC software for Windows/Mac
A completely new digital architecture was developed for
the DSW wireless system. Extended operating range
rivals the best analog and Digital Hybrid Wireless® sys-
tems, with remarkable audio quality and only 2.5 ms of
latency. The system operates on standard UHF FCC Part
74 frequencies (TV channel band).
The DR receiver is a modular, six-channel design with
a host mainframe that contains the DSP, microproces-
sor, antenna multicoupler and control interface. Receiver
modules are installed on either side of the mainframe.
Antenna ports on the rear panel accept input from
remote antennas, with a “loop-thru” output to another
mainframe using the internal multicoupler. A kit is also
available to mount antenna inputs (BNC connectors) on
the front panel, with a coaxial cable routed inside the
mainframe chassis to a rear panel location.
The DBa belt pack transmitter is encased in a solid ma-
chined aluminum housing with a membrane switch panel
and backlit LCD interface. The servo bias input circuitry
will work with a wide variety of microphones and line
level sources, Input gain is adjustable over a wide range
in 1 dB steps to optimize the signal to noise ratio and
dynamics of the audio.
DR Receiver Rear Panel
DR Receiver Front Panel
Modular Versatility
Individual receiver modules are nested on both sides
of the mainframe assembly. The modules tune across a
25.6 MHz range and can be positioned in any of the six
pockets in the chassis. Delrin retaining clips keep the
modules securely in place.
Front Panel Antenna Mounts
Convenient when the receiver is installed in a rack mount
transit case.
Headphone Monitor
Monitor individual or a mix of any number of channels.
Volume knob recesses into from panel.
LCD and Control Panel
Easy navigation of numerous setup parameters is pro-
vided by a backlit LCD, membrane pushbuttons and a
rotary control wheel.
Encryption Key Interface
Encryption key transfer and complete transmitter setup is
accessed through a TRS mini-jack connection.
Front Panel USB Port
A standard USB interface is provided on the front panel
for the PC interface.
LED Indicators
Operational and power status is indicated by three LEDs.
Antenna Ports
Antenna inputs and outputs to an additional mainframe
allow “stacking” of up to three mainframes with a single
pair of antennas.
Audio Outputs
Six XLR jacks provide analog and AES-EBU outputs in
various configurations as labeled on the rear panel.
Ethernet Port
Network connection is provided through a standard RJ-
45 jack.
AES Word Clock
The mainframe can provide the master clock sync signal,
or sync to an external clock.
RS-232 Port
Control with third party devices is enabled through an
RS-232 serial port.
Power Supply
The mainframe is powered by 10 to 18 VDC from an
external 4 amp source.
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
The modules are fan
cooled for reliable op-
eration when installed
in racks with limited
ventilation. Unused
modules installed in
the mainframe can be
powered on and off
with the software or
front panel controls.
Wireless Designer Software
The software GUI provides an overall view of the system,
including all mainframes connected. The display is scal-
able to fit and screen size and several color themes are
provided.
DBa Belt Pack Transmitter
The belt pack transmitter is
constructed of solid machined
aluminum for lasting rugged-
ness. The exterior is finished
with an ultra hard, black
electroless nickel finish called
ebENi.
Setup and adjustment is en-
abled through a backlit LCD,
membrane switches and an
intuitive menu structure. Input
gain is adjustable over a wide
range in 1 dB steps to opti-
mize modulation and limiting.
The servo bias input preamp
adapts to any microphone or
line level input with simple con-
nector wiring.
A separate switch is provided
on the top panel that can be
configured as a mute or power
switch, or be bypassed.
Firmware updates are made
through a side panel mini-USB
port.
Frequency coordination is fast and thorough. Scan data
may be imported and used in the coordination. When
individual carriers are moved manually, compatibility is
instantly recalculated and displayed.
Overview before frequency coordination
Overview after frequency coordination
System overview with scan results
Frame view with popup for individual receiver setup
Top panel input jack, mute/power switch and
antenna connection.
Battery compartment uses two AA batteries
connected in series. Aluminum door latches
securely.
