USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO

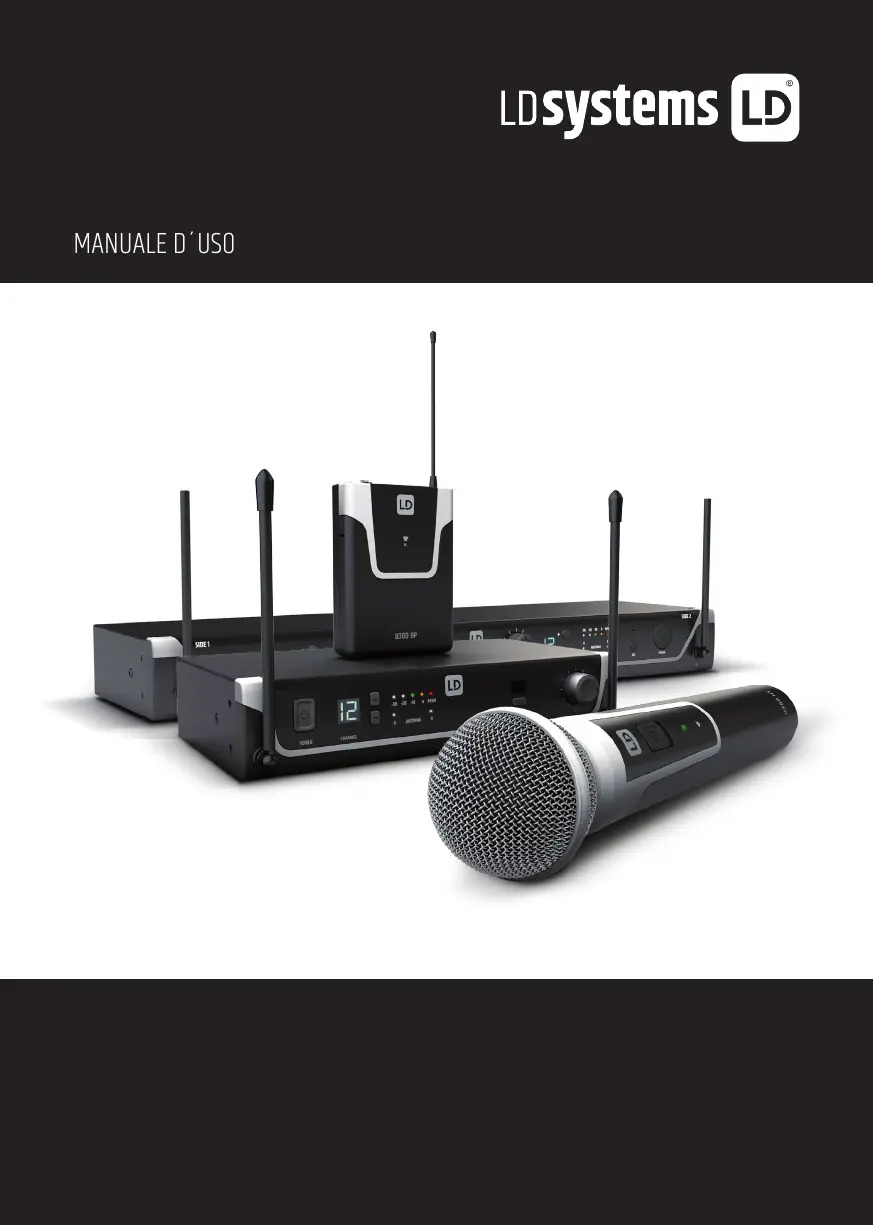

U300® SERIES
DIVERSITY WIRELESS SYSTEMS
12
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Signal-to-noise ratio
(system):
>104dB >104dB >104dB >104dB >104dB
Balanced output: XLR XLR XLR XLR XLR
Unbalanced output: 6.3 mm jack 6.3 mm jack 6.3 mm jack 6.3 mm jack 6.3 mm jack
Audio output level
(balanced):
+10dBu +10dBu +10dBu +10dBu +10dBu
Audio output level
(unbalanced):
+7dBV/+2.5dBV
(switchable line/
instrument)
+7dBV/+2.5dBV
(switchable line/
instrument)
+7dBV/+2.5dBV
(switchable line/
instrument)
+7dBV/+2.5dBV
(switchable line/
instrument)
+7dBV/+2.5dBV
(switchable line/
instrument)
Controls: POWER, + / - channel
select, ASC, VOL vol-
ume control, switch
INSTRUMENT/LINE
POWER, + / - channel
select, ASC, VOL vol-
ume control, switch
INSTRUMENT/LINE
POWER, + / - channel
select, ASC, VOL vol-
ume control, switch
INSTRUMENT/LINE
POWER, + / - channel
select, ASC, VOL vol-
ume control, switch
INSTRUMENT/LINE
POWER, + / - channel
select, ASC, VOL vol-
ume control, switch
INSTRUMENT/LINE
Indicators: 2 digit LC display,
5-segment LED level
meter, antenna A/B
LEDs
2 digit LC display,
5-segment LED level
meter, antenna A/B
LEDs
2 digit LC display,
5-segment LED level
meter, antenna A/B
LEDs
2 digit LC display,
5-segment LED level
meter, antenna A/B
LEDs
2 digit LC display,
5-segment LED level
meter, antenna A/B
LEDs
Operating voltage: 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA
Ambient temperature
(in operation):
5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C
Relative humidity: 20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
Dimensions
(W x H x D):
211 x 43 x 120 mm 211 x 43 x 120 mm 211 x 43 x 120 mm 211 x 43 x 120 mm 211 x 43 x 120 mm
Weight: 0.7 kg 0.7 kg 0.7 kg 0.7 kg 0.7 kg
Accessories included: power adapter power adapter power adapter power adapter power adapter
Features: infra-red frequency
synchronisation,
pilot tone
infra-red frequency
synchronisation,
pilot tone
infra-red frequency
synchronisation,
pilot tone
infra-red frequency
synchronisation,
pilot tone
infra-red frequency
synchronisation,
pilot tone
HAND-HELD TRANSMITTER
Item number: LDU3047MD LDU3051MD LDU305MD LDU306MD LDU308MD
Modulation: FM FM FM FM FM
Frequency range: 470 - 490 MHz 514 - 542 MHz 584–608 MHz 655–679 MHz 823–832 MHz &
863–865 MHz
Channels: 12 12 12 12 12
Microphone type: Dynamic Dynamic Dynamic Dynamic Dynamic
Polar pattern: Cardioid Cardioid Cardioid Cardioid Cardioid
Frequency response: 55–16000 Hz 55–16000 Hz 55–16000 Hz 55–16000 Hz 55–16000 Hz
RF output power: 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP
Antenna gain: 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi
Controls: Power on/off Power on/off Power on/off Power on/off Power on/off
13
DEUTSCHFRANCAISESPAÑOL ENGLISHITALIANO POLSKI
Indicators: Status LED Status LED Status LED Status LED Status LED
Power supply: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries
Operating time: up to 10 h
(depending on
batteries)
up to 10 h
(depending on
batteries)
up to 10 h
(depending on
batteries)
up to 10 h
(depending on
batteries)
up to 10 h
(depending on
batteries)
Ambient temperature
(in operation):
5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C
Relative humidity: 20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
Dimensions (L x Ø): 257 x 50 mm 257 x 50 mm 257 x 50 mm 257 x 50 mm 257 x 50 mm
Weight
(without batteries):
0.235 kg 0.235 kg 0.235 kg 0.235 kg 0.235 kg
Accessories included: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries
Features: infra-red frequency
synchronisation,
pilot tone,
microphone head
interchangeable
infra-red frequency
synchronisation,
pilot tone,
microphone head
interchangeable
infra-red frequency
synchronisation,
pilot tone,
microphone head
interchangeable
infra-red frequency
synchronisation,
pilot tone,
microphone head
interchangeable
infra-red frequency
synchronisation,
pilot tone,
microphone head
interchangeable
BODY PACK TRANSMITTER
Item number: LDU3047BP LDU3051BP LDU305BP LDU306BP LDU308BP
Modulation: FM FM FM FM FM
Frequency range: 470 - 490 MHz 514 - 542 MHz 584–608 MHz 655–679 MHz 823–832 MHz &
863–865 MHz
Channels: 12 12 12 12 12
Input: 3-pin mini-XLR
(low-Z + phantom
power/high-Z)
3-pin mini-XLR
(low-Z + phantom
power/high-Z)
3-pin mini-XLR
(low-Z + phantom
power/high-Z)
3-pin mini-XLR
(low-Z + phantom
power/high-Z)
3-pin mini-XLR
(low-Z + phantom
power/high-Z)
Frequency response: 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz
RF output power: 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP
Antenna gain: 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi
Controls: ON/STANDBY/OFF,
MIC/0/-10
ON/STANDBY/OFF,
MIC/0/-10
ON/STANDBY/OFF,
MIC/0/-10
ON/STANDBY/OFF,
MIC/0/-10
ON/STANDBY/OFF,
MIC/0/-10
Indicators: Status LED Status LED Status LED Status LED Status LED
Power supply: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries
Operating time: Up to 10 h
(depending on
batteries)
Up to 10 h
(depending on
batteries)
Up to 10 h
(depending on
batteries)
Up to 10 h
(depending on
batteries)
Up to 10 h
(depending on
batteries)
Ambient temperature
(in operation):
5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C
Relative humidity: 20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
20% to 80%
(non-condensing)
Dimensions
(W x H x D):
65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm
