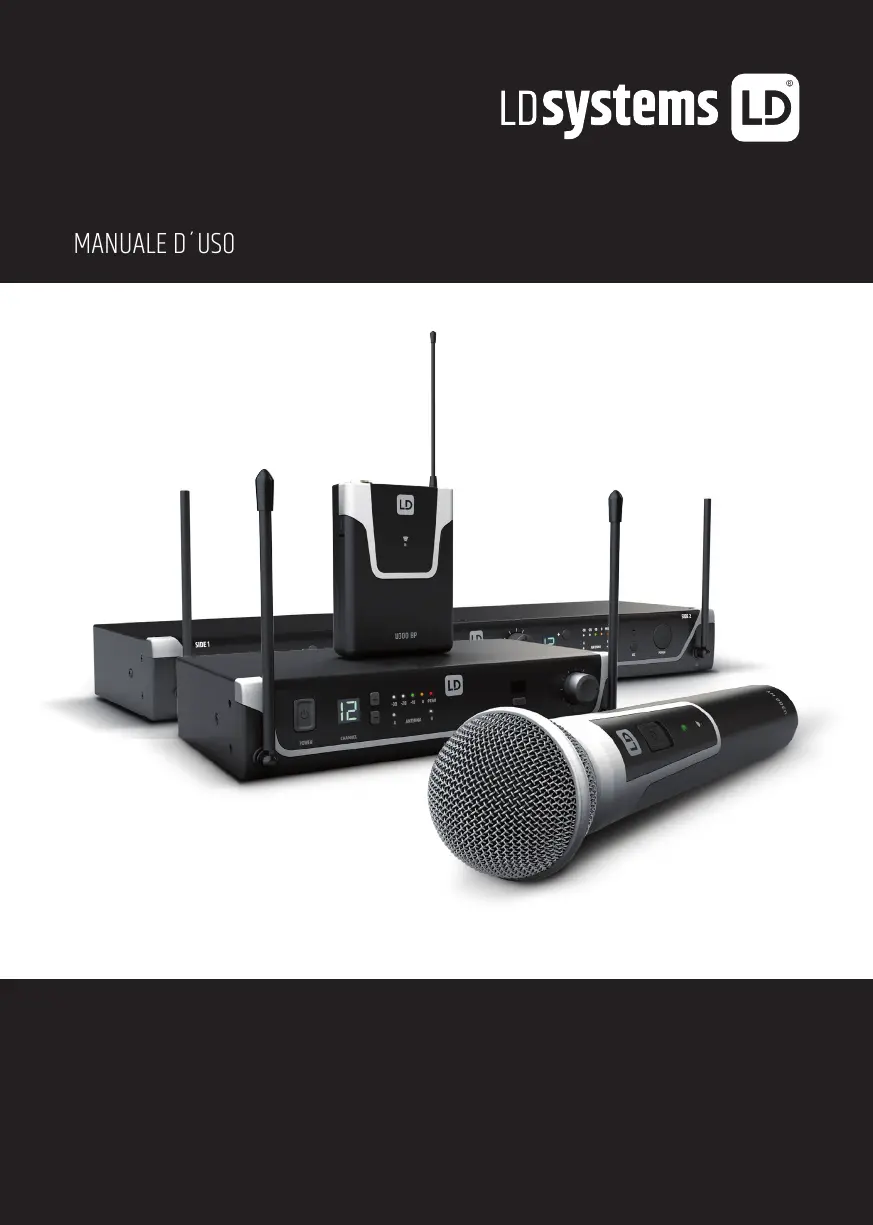

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
U300® SERIES
DIVERSITY WIRELESS SYSTEMS
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/ld-systems/u3051-bph-2/html/bg2.png)
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO
ENGLISH
PREVENTIVE MEASURES 3
INTRODUCTION 4
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 5
PIN ALLOCATION FOR MINI XLR CONNECTOR
(POCKET TRANSMITTER) 9
TROUBLESHOOTING 10
OPTIONAL ACCESSORIES 10
TECHNICAL DATA 11
MANUFACTURER’S DECLARATIONS 14
DEUTSCH
SICHERHEITSHINWEISE 16
EINFÜHRUNG 17
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 18
BELEGUNG MINI-XLR-ANSCHLUSS (TASCHENSENDER) 22
FEHLERSUCHE 23
OPTIONALES ZUBEHÖR 23
TECHNISCHE DATEN 24
HERSTELLERERKLÄRUNGEN 28
FRANCAIS
MESURES PRÉVENTIVES 29
INTRODUCTION 30
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET
D’AFFICHAGE 31
AFFECTATION DU CONNECTEUR MINI-XLR
(ÉMETTEUR DE POCHE) 35
DIAGNOSTIC DES PANNES 36
ACCESSOIRES DISPONIBLES EN OPTION 36
CARACTÉRISTIQUES TECHNIQUES 37
DÉCLARATIONS DU FABRICANT 41
ESPAÑOL
MEDIDAS DE SEGURIDAD 42
INTRODUCCIÓN 43
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS
DE VISUALIZACIÓN 44
ASIGNACIÓN DE PINES PARA CONEXIÓN MINI XLR
(TRANSMISOR DE PETACA) 48
BÚSQUEDA DE ERRORES 49
ACCESORIOS OPCIONALES 49
DATOS TÉCNICOS 50
DECLARACIONES DEL FABRICANTE 54
POLSKI
ŚRODKI OSTROŻNOŚCI 55
WPROWADZENIE 56
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 57
SCHEMAT ZŁĄCZA MINI XLR (NADAJNIK KIESZONKOWY) 61
ZNAJDOWANIE BŁĘDU 62
AKCESORIA OPCJONALNE 62
DANE TECHNICZNE 63
OŚWIADCZENIA PRODUCENTA 67
ITALIANO
MISURE PRECAUZIONALI 68
INTRODUZIONE 69
RACCORDI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE 70
CONFIGURAZIONE DEL COLLEGAMENTO MINI XLR
(TRASMETTITORE TASCABILE) 74
RICERCA ERRORI 75
ACCESSORI OPZIONALI 75
DATI TECNICI 76
DICHIARAZIONI DEL PRODUTTORE 77
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/ld-systems/u3051-bph-2/html/bg3.png)
3
DEUTSCHFRANCAISESPAÑOL ENGLISHITALIANO POLSKI
ENGLISH
YOU‘VE MADE THE RIGHT CHOICE!
We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a
manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD
Systems product quickly. You can nd more information about LD-SYSTEMS LD-SYSTEMS at our Internet site WWW. .COM
PREVENTIVE MEASURES
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufciently stable and compatible stands and/or mounts (for xed installations). Make certain that wall mounts are properly installed and
secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed
so that is cooled sufciently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Keep a minimum distance of 20 cm around and above the device.
12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special
instructions noted below. Do not expose this equipment to ammable materials, uids or gases. Avoid direct sunlight!
13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers lled with liquids, such as vases or drinking
vessels, on the equipment.
14. Make certain that objects cannot fall into the device.
15. Use this equipment only with the accessories recommended and intended by the manufacturer.
16. Do not open or modify this equipment.
17. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
18. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
19. If your equipment is no longer functioning properly, if uids or objects have gotten inside the equipment or if it has been damaged in anot her way,
switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualied
personnel.
20. Clean the equipment using a dry cloth.
21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
22. Plastic bags must be kept out of reach of children.
23. Please note that changes or modications not expressly approved by the party responsible for compliance could void the user´s authority to
operate the equipment.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS
24. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground.
Never deactivate the protective ground of a power cord.
25. If the equipment has been exposed to strong uctuations in temperature (for example, after transport), do not switch it on immediately. Mois-
ture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
26. Before connecting the equipment to the power outlet, rst verify that the mains voltage and frequency match the values specied on the equip-
ment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains
power values match. If the included power cord or power adapter does not t in your wall outlet, contact your electrician.
27. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter
and the equipment connector.
28. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equip-
ment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter
from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
29. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the
equipment.
30. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised
service centre.
31. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
32. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. Howe-
ver, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage.
For this reason, always be careful when laying cables.
33. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
