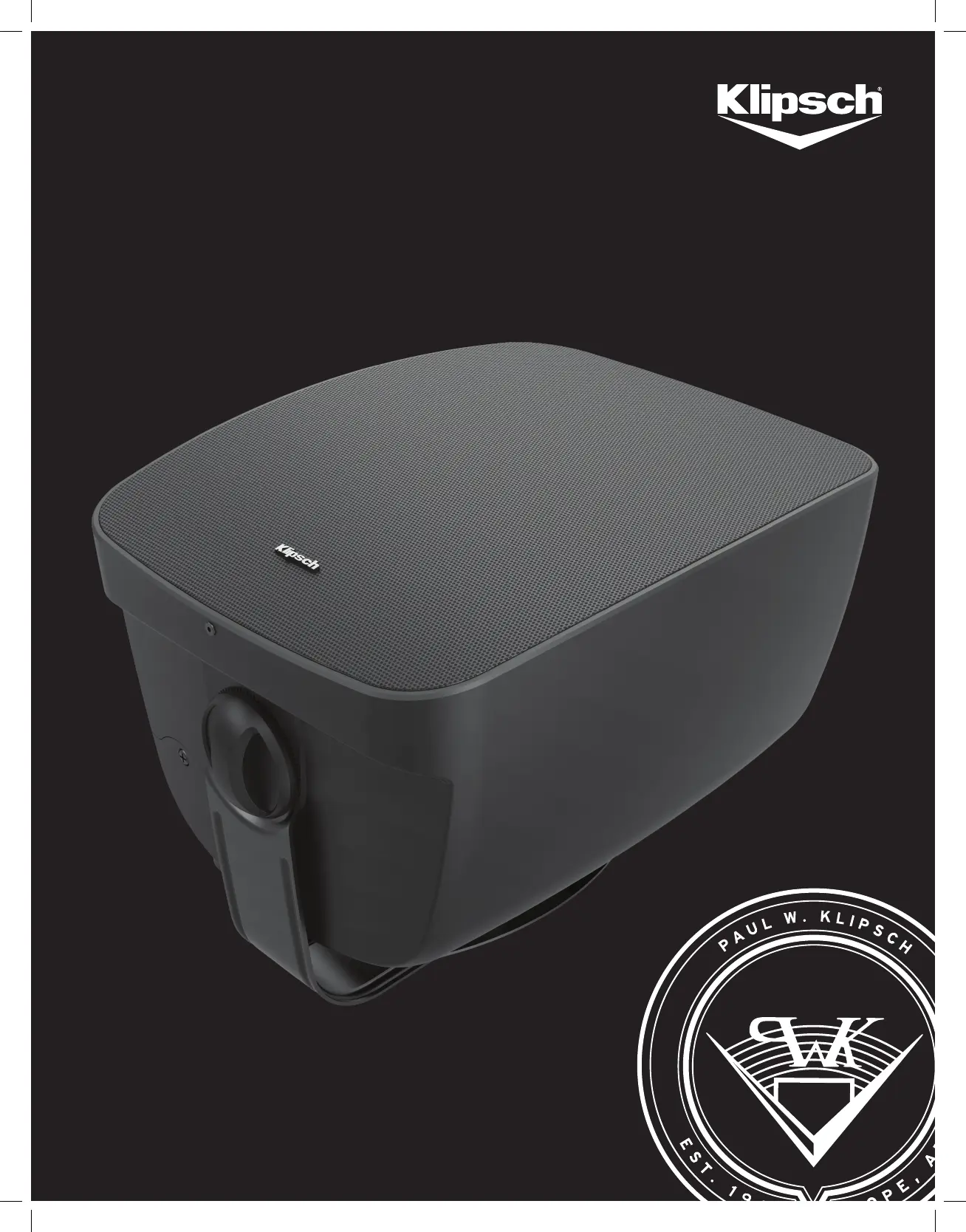

KLIPSCH RESIDENTIAL SURFACE MOUNT
OUTDOOR LOUDSPEAKERS
RSM-400 | RSM-525 | RSM-650 | RSM-800
OWNER’S MANUAL
OWNER’S
MANUAL
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT submerse apparatus beneath water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a bracket specified by the
manufacturer, or sold with the apparatus.
11. REFER all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions
in the literature accompanying the product.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
WARNING: No naked flame sources – such as
candles – should be placed on the product.
WARNING: Voltages in this equipment are hazardous
to life. No user-serviceable parts inside. Refer all
servicing to qualified service personnel.
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this device.
ABOUT YOUR KLIPSCH PURCHASE
Thank you for your purchase of Klipsch outdoor loudspeakers. After
reading this manual and connecting your system, you will hear the
result of over 75 years of stringent engineering and class-leading
research and development. Like all Klipsch products, your outdoor
loudspeakers feature Klipsch Horn-loaded Technology—the guiding
design for the first Klipschorn® developed in 1946 and for every
product that has followed. Horn-loading allows your speakers to
deliver high sensitivity, low distortion, flat frequency response and
controlled dispersion, which translates to unequaled power, detail
and dynamics, the hallmarks of “The Klipsch Sound.” Please be sure
to register online at www.klipsch.com/register so we are better
able to serve you. Again, thank you for choosing Klipsch and we
hope that your speakers bring life to your music for many years.
KLIPSCH RESIDENTIAL SURFACE
MOUNT LOUDSPEAKERS
(RSM-400, RSM-525, RSM-650, RSM-800)
The Klipsch Residential Surface Mount loudspeakers are a coaxial
design, excluding the RSM-400. using a high performance bass
driver for the low frequencies. Tractrix Hyperfold Ports with a 5
stage folded horn included in each port are used to improve sound
dispersion, allowing the speaker system to radiate sound waves
more evenly in all directions. A 1” Titanium dome, compression driver
mounted to round, modified tractrix horn, with mumps (patented),
provides 105 degrees of coverage for clean and efficient reproduction
of the high and midrange frequencies. The RSM-400 is a two way
with a 3/4” dome compression driver mounted to a tractrix horn.
Klipsch Residential Surface Mount loudspeakers are constructed
from UV-resistant material and are remarkably durable against
the elements. With an IPX6 rating while mounted horizontal
with a 20 degree down angle, they are highly water resistant.
They can be painted to match any trim or siding color.
PLACEMENT
The Residential Surface Mount models are perfect for patios, decks,
swimming pools, porches or any other place where exposure to
the elements makes conventional loudspeaker usage unsuitable.
(RSM-400, RSM-525, RSM-650, RSM-800)
To achieve the best performance from your speakers, place the
pair on the same wall facing the listening area and space them
six to fifteen feet apart. For a higher quality stereo image, angle
down, or toe in, the speakers toward the primary listening area.
This is especially important in installations that place the speakers
well above ear level. Some additional bass will result if you place
the speakers in a corner or near a wall. This provides greater bass
coupling due to the additional reflected energy from the walls.
WALL MOUNTING
Please consult your dealer, custom installer or building contractor
in before installation. Included with your speakers are ”C”
style mounting brackets constructed of weather-resistant,
powder-coated zinc. These brackets attach to the speaker
with the supplied low profile knobs that thread onto the top
and bottom studs protruding from the cabinet. This allows
the speaker to be angled to the left or right when mounted
vertically, or up and down when mounted horizontally.
After determining the desired location and orientation of your
speakers, remove the bracket from the loudspeaker and use it as
a template to mark the location of the mounting holes. Check the
alignment of the holes with a torpedo level before drilling the pilot
IMPORTANT SAFETY INSTRUCTIONS
hole. Use #10-12 2.5” – 3” long pan head screws to attach the bracket
into a wall stud. Affix the speaker to the bracket with the supplied
knobs. Be sure to leave enough clearance between the end of the
bracket and any adjacent wall or ceiling for installation of the knobs.
If a wall stud is not available, use the appropriate type of
drywall or masonry anchor to support the weight of the
speaker, allowing for a generous safety margin.
You may also use an optional wall or ceiling mount that will
fit the provided 3/8” – 16 inserts. Please see your authorized
Klipsch dealer to see which model is right for you.
CONNECTIONS
When making any type of speaker wire connection, be sure to observe
proper polarity. Most speaker wire and connectors are color-coded.
Typically, red is positive (+) and black is negative (–), or ground. It
does not matter which wire conductor is connected to the positive or
negative connection of your equipment as long as it is consistent.
Pull the two conductors apart for about an inch and strip
approximately 1/4-inch of insulation from the end of each. (A wire
stripper will simplify this, but you can use an ordinary pocket
knife to cut around and through the insulation down to the wire.)
Twist the strands of wire on each individual conductor tightly
together. Push in the spring-loaded speaker terminal and insert
the corresponding wire. Release the terminal and the wire will
be securely held in place. Make sure that no strands of wire are
touching from one binding post to the other or to any strands from
the other conductor. Failure to observe this precaution at either end
of the connection can result in amplifier malfunction or damage.
OTHER TYPES OF SPECIALTY CONNECTORS ARE AVAILABLE TO FACILITATE
HOOKING UP YOUR SPEAKERS. PLEASE CONSULT YOUR AUTHORIZED
KLIPSCH DEALER FOR SUGGESTIONS AND FURTHER DETAILS.
SPEAKERS TO AMPLIFIER
(RSM-400, RSM-525, RSM-650, RSM-800)
One of the most important things about hooking up your speakers
is keeping them in the same polarity, or phase. If they are
connected out of phase, bass and sound imaging will be degraded.
The easiest way to ensure that your speakers are wired in phase
is to always connect the positive and negative output terminals
on your amplifier or receiver to the matching input terminals on
your speakers: positive (“+”, color-coded red) to positive and
negative (“–”, color-coded black) to negative. (See Figure 1.)
PAINTING
The grille and cabinet of your speakers may be painted. For
best results, lightly sand all surfaces to be painted (cabinet and
grille) with 300-400 grit sandpaper. Wash these surfaces with
a moistened cloth dipped into a mild detergent to remove any
fingerprints or grease. Allow speaker to dry before painting.
Care must be taken to mask off the front of the speaker to protect
the tweeter, woofer and front panel from overspray. This will
maintain the existing uniform dark color behind the grille and protect
the woofer and tweeter from being damaged by the paint. Affix
masking tape to the inboard wall of the grille groove and attach
plastic or newspaper to the tape to cover the entire front panel
of the speaker. Also before painting, mask the speaker wire push
terminals on the rear of the cabinet to preserve their conductivity.
Remove the grill set screws, grille and speaker terminal cover
before painting. For best results, use several light coats of
paint instead of one heavy coat. This will help prevent the
perforations in the grille from becoming clogged with paint.
Figure 1
