Seite 1/6

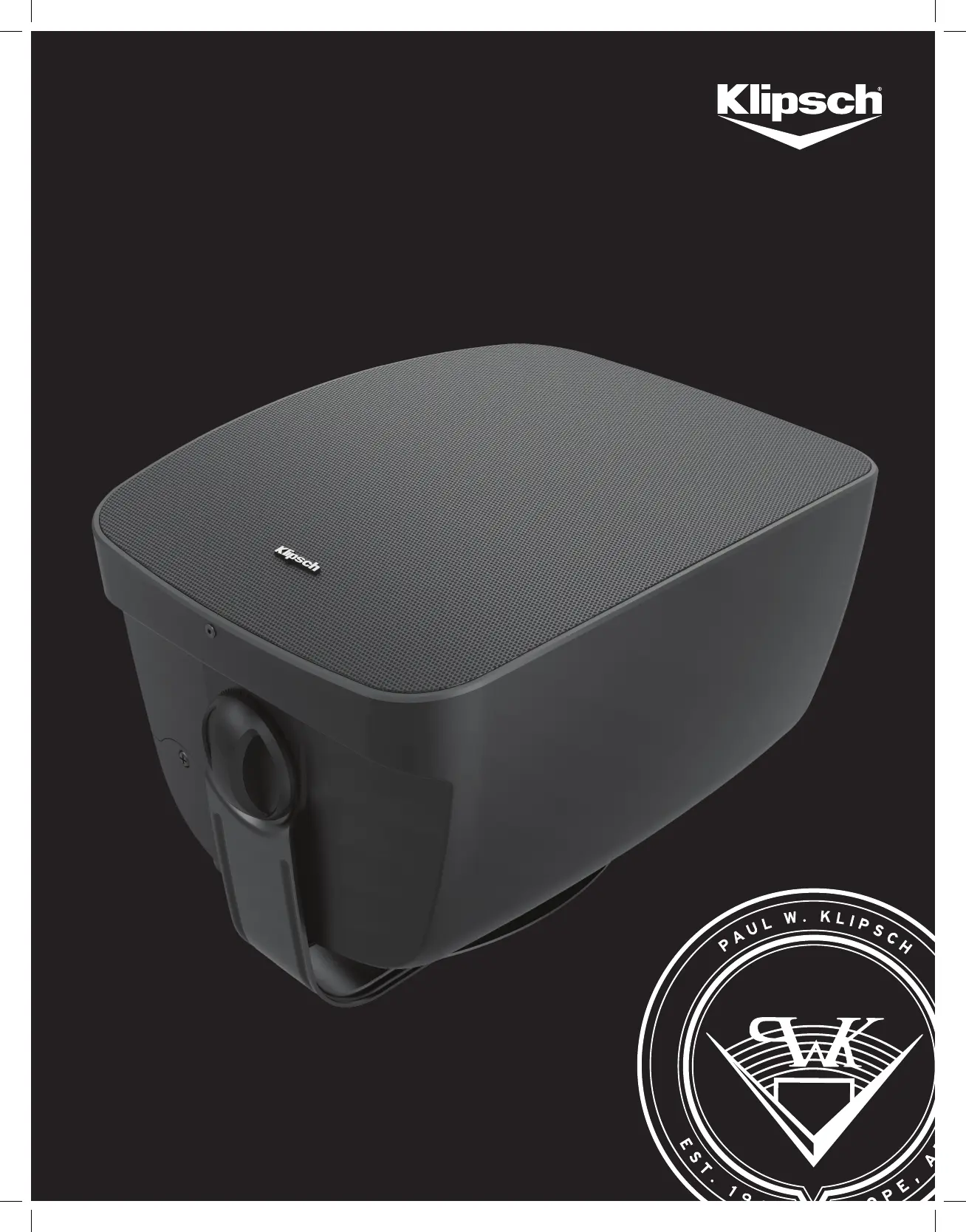

KLIPSCH PROFESSIONAL SURFACE MOUNT
OUTDOOR LOUDSPEAKERS
PSM-450-T | PSM-525-T | PSM-650-T | PSM-800-T | PSM-800-SW-T
OWNER’S MANUAL
OWNER’S
MANUAL
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT submerse apparatus beneath water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a bracket specified by the
manufacturer, or sold with the apparatus.
11. REFER all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions
in the literature accompanying the product.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
WARNING: No naked flame sources – such as
candles – should be placed on the product.
WARNING: Voltages in this equipment are hazardous
to life. No user-serviceable parts inside. Refer all
servicing to qualified service personnel.
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this device.
ABOUT YOUR KLIPSCH PURCHASE
Thank you for your purchase of Klipsch outdoor loudspeakers. After
reading this manual and connecting your system, you will hear the
result of over 75 years of stringent engineering and class-leading
research and development. Like all Klipsch products, your outdoor
loudspeakers feature Klipsch Horn-loaded Technology—the guiding
design for the first Klipschorn® developed in 1946 and for every
product that has followed. Horn-loading allows your speakers to
deliver high sensitivity, low distortion, controlled frequency response
and controlled dispersion, which translates to unequaled power,
detail and dynamics, the hallmarks of “The Klipsch Sound.” Please
be sure to register online at www.klipsch.com/register so we are
better able to serve you. Again, thank you for choosing Klipsch and
we hope that your speakers bring life to your music for many years.
KLIPSCH PROFESSIONAL SURFACE
MOUNT LOUDSPEAKERS
(PSM-450-T, PSM-525-T, PSM-650-T, PSM-800-T, PSM-800-SW-T)
The Klipsch Professional Surface Mount loudspeakers are
a coaxial design using a high performance bass driver for
the low frequencies. Tractrix Hyperfold Ports with a 5 stage
folded horn included in each port are used to improve sound
dispersion, allowing the speaker system to radiate sound waves
more evenly in all directions. A 1” Titanium dome, compression
driver mounted to round, modified tractrix horn, with mumps
(patented), provides 105 degrees of coverage for clean and
efficient reproduction of the high and midrange frequencies.
Klipsch Professional Surface Mount loudspeakers are constructed
from UV-resistant material and are remarkably durable against
the elements. With an IPX6 rating while mounted horizontal
with a 20 degree down angle, they are highly water resistant.
They can be painted to match any trim or siding color.
PLACEMENT
The Professional Surface Mount models are perfect
for any place where exposure to the elements makes
conventional loudspeaker usage unsuitable.
(PSM-450-T, PSM-525-T, PSM-650-T, PSM-800-T, PSM-800-SW-T)
WALL MOUNTING
Included with your speakers are ”C” style mounting brackets
constructed of weather- resistant, powder-coated zinc. These
brackets attach to the speaker with the supplied low profile knobs
that thread onto the top and bottom studs protruding from the
cabinet. This allows the speaker to be angled to the left or right when
mounted vertically, or up and down when mounted horizontally.
Secure the mounting bracket to the mounting surface using hardware
(not provided) suitable for the specific surface type. Always be
sure to use best practices when mounting your speakers.
CONNECTIONS
The PSM-450-T, PSM-525-T, PSM-650-T, PSM-800-T and PSM-800-
SW-T include a multi-tap transformer for 70 or 100 volt installations.
There is also a bypass position that allows normal 8 ohm operation
for installations that do not require a transformer. The switch is
on the back of the speaker and can be set using a small flat head
screwdriver. Make the appropriate tap selection as indicated below:
Bypass Position: 8 ohm Nominal
PSM-450-T (Transformer Power Rating: 15W)
70V: 15W, 7.5W, 3.7W, 1.9W
100V: 15W, 7.5W, 3.7W
IMPORTANT SAFETY INSTRUCTIONS
PRODUCT REGISTRATION
Register your product online at www.klipsch.com/register
• Klipsch will keep you up-to-date on new products and promotions
• Your personal information will never be resold
• This registration information is not used for warranty purposes.
Please retain your receipt for warranty claims.
Bypass Position: 8 ohm Nominal
PSM-525-T (Transformer Power Rating: 30W)
70V: 30W, 15W, 7.5W, 3.7W
100V: 30W, 15W, 7.5W
Bypass Position: 8 ohm Nominal
PSM-650-T (Transformer Power Rating: 60W)
70V: 60W, 30W, 15W, 7.5W
100V: 60W, 30W, 15W
Bypass Position: 8 ohm Nominal
PSM-800-T (Transformer Power Rating: 100W)
70V: 100W, 50W, 25W, 12.5W
100V: 100W, 50W, 25W
Bypass Position: 4 ohm Nominal
PSM-800-SW-T (Transformer Power Rating: 150W)
70V: 70W, 35W
100V: 150W, 70W
When making any type of speaker wire connection, be sure to observe
proper polarity. Most speaker wire and connectors are color-coded.
Typically, red is positive (+) and black is negative (–), or ground. It
does not matter which wire conductor is connected to the positive or
negative connection of your equipment as long as it is consistent.
TYPES OF CONNECTORS
Your speaker is equipped with detachable screw euro block connectors
for inputs and outputs. The speaker features a rubber grommet that
can be used to thread the speaker wires through. Also included is
a conduit connector which can be installed by removing the rubber
grommet.Make sure that there is no metal-to-metal contact between
the two wires. Failure to observe this precaution at either end of
the connection can result in amplifier malfunction or damage.
PAINTING
The grille and cabinet of your speakers may be painted. For
best results, lightly sand all surfaces to be painted (cabinet and
grille) with 300-400 grit sandpaper. Wash these surfaces with
a moistened cloth dipped into a mild detergent to remove any
fingerprints or grease. Allow speaker to dry before painting.
Care must be taken to mask off the front of the speaker to protect the
tweeter, woofer and front panel from overspray. This will maintain the
existing uniform dark color behind the grille and protect the woofer
and tweeter from being damaged by the paint. Affix masking tape to
the inboard wall of the grille groove and attach plastic or newspaper
to the tape to cover the entire front panel of the speaker. Also before
painting, mask the connector pins where the euro block connectors
are inserted on the rear of the cabinet to preserve their conductivity.
Remove the grill set screws, grille and speaker terminal cover
before painting. For best results, use several light coats of
paint instead of one heavy coat. This will help prevent the
perforations in the grille from becoming clogged with paint.
Figure 1
Figure 2
A
B
