Seite 1/4
ProMedia Ultra 2.0
Personal Audio System
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present
within this unit.
The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product enclosure
that may be of sufficient magnitude to constitute a risk of shock to persons.
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus
to rain or moisture. The product must not be exposed to dripping and splashing and no object filled with
liquids – such as a vase of flowers – should be placed on the product.
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all
servicing to qualified service personnel.
CAUTION: Changes or modifications not expressly approved by the manufacturer could void the users
authority to operate this device.
No naked flame sources – such as candles – should be placed on the product.
The ventilation should not be impeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
SERVICE: Equipment for servicing should be returned to the supplying dealer, or to the appointed service
agents in your area. For service within the United States:
Klipsch Customer Service:1-888-554-5665
If purchased outside the U.S., please contact your local dealer.
PACKING LIST
1 control satellite and 1 passive satellite
1 Owner's manual
1 Stereo mini-plug cable
1 22 gauge speaker wire/ RCA terminations
1 Power supply with AC cord and power cable attached

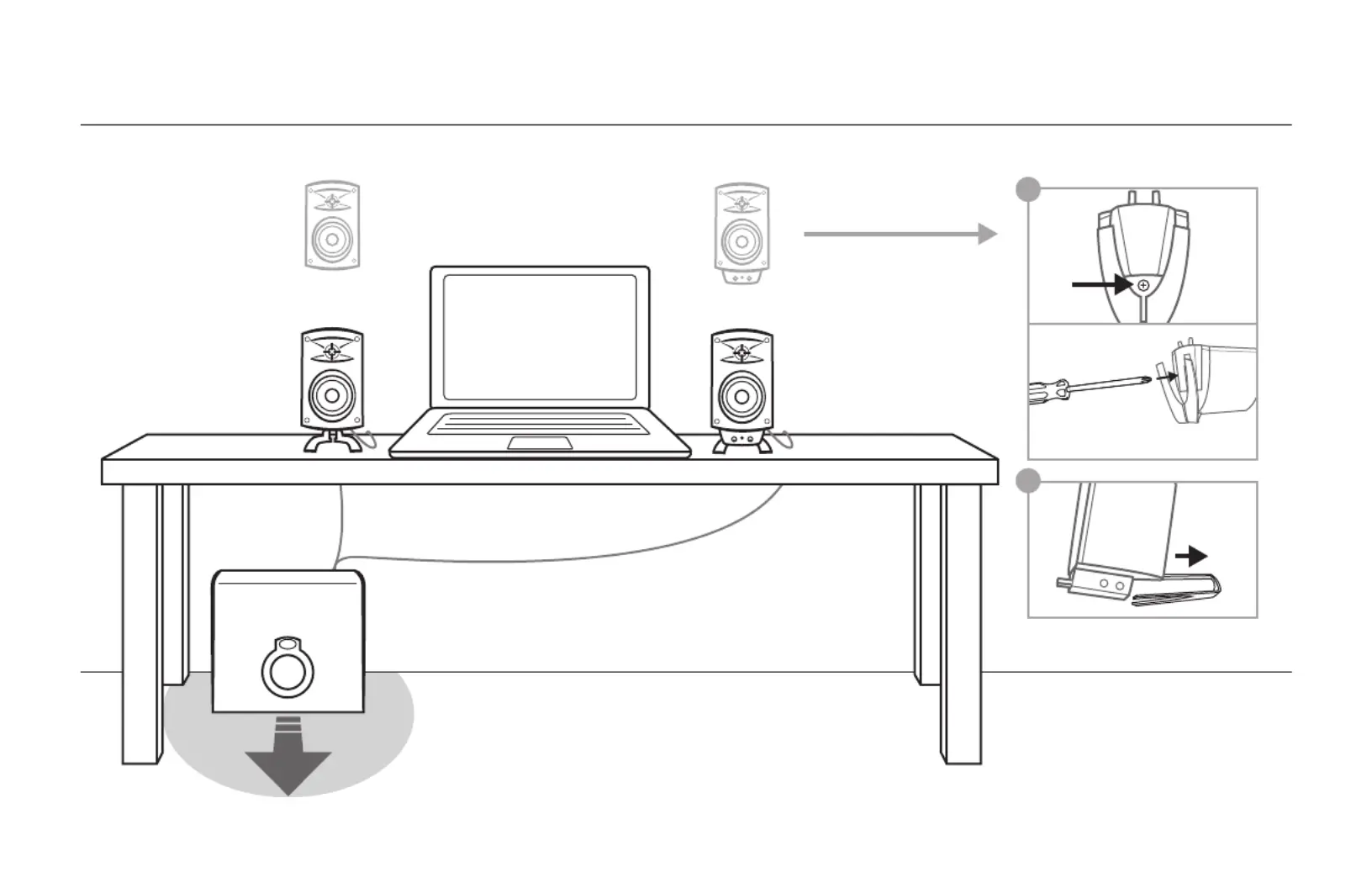

SPEAKER PLACEMENT
1. The two speakers should be positioned on each side of your computer monitor, with the control
satellite on the right.
2. Do not cover up the ventilation slots or rear acoustic port of the enclosure and be sure to
provide enough ventilation. It is normal for the area around the ventilation slots to be warm
to the touch.
3. Avoid running speaker or power cables across an area of foot traffic.
SPEAKER CONNECTION DIAGRAM
1. Do not plug in AC power until system setup is complete.
2. Connect mini plug cable from the control speaker to the primary audio source (computer,
iPod®, etc.).
3. Connect RCA speaker cable from control (active) speaker to the passive speaker.
Note: The active speaker plays right channel, and the passive speaker plays the left channel.
4. Connect DC power supply cable to the DC IN of the control speaker.
5. Plug headphone mini stereo plug into headphone jack, if desired.
Note: The speakers will not play while headphones are connected.
6. Plug stereo mini plug into MP3/Aux jack. Plug stereo mini plug into MP3 player (for example).
SOFTWARE AND HARDWARE GAIN CONTROLS
Software Volume Controls in Microsoft Windows
1. Click the Start button on your taskbar
2. Choose Accessories
3. Windows 95: Choose Multimedia
Windows 98/2000: Choose Entertainment
Windows XP: Choose Entertainment
4. Click on the Volume Control
5. Adjust the Wave Volume Elevator Button to halfway
Volume Control Programs
Some soundcard and/or PC manufacturers may have software that must be adjusted separately
from the Windows volume control. Consult applicable manual for specific hardware documentation.
CONTROL FEATURES
Headphones: The 1/8" stereo headphone output jack, located on the front of the master
speaker, turns off the two speakers. The main volume control will adjust the headphone output.
The bass control knob does not function in this mode.
5
6
2
1
3
4
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Desktop PC
Power Supply
PMU 2.0
iPod®/MP3
CD/DVD
Laptop
MP3/Aux: The MP3/Auxiliary input jack is used with portable audio players. This signal will be
mixed with the main source. To obtain the proper balance with the main signal, the level adjust-
ments in the computer software and in the portable player will need to be adjusted. An example
would be listening to an MP3 player while surfing the net and hearing associated sounds from
various websites. The mixed sound may not be desirable, and you will ultimately determine how
you use this feature.
NOTE: During playback of MP3 files, overall sound quality may be perceptibly degraded compared
to other audio sources such as CD. This is caused by the encoding method and quality of the MP3
file. It is recommended that MP3 files be encoded at a minimum 128 bit rate.
SPECIFICATIONS (Visit www.klipsch.com for more details)
Speaker Impedance: 3 ohms nominal
Master Speaker Features: Bass and Main volume level controls
LED power indicator
MP3/Aux player line input with soundcard mixing function
Headphone jack
Direct path interface
Slave speaker output RCA jack
Enclosure & Drivers: Ported elliptical two-way enclosure with 25mm metalized
polymer dome tweeter mated to MicroTractrix®Horn and
dual 2.5" long-throw mid-bass drivers
Amplifier: High-efficiency Class D power section and audio quality
transformer designed for uncompressed full
power sound
TROUBLESHOOTING
If no sound, ensure that:
- Power, input, speaker cables and connectors are securely attached
- Software is properly installed and functioning
- Computer sound (control panel) volume is turned up and not muted
- Rotate volume knob clockwise to turn on, LED glowing
If one or more speakers have little or no sound, ensure that:
- All cables are connected properly
- Connectors are fully "seated" in soundcard and speakers
- Volume level controls are properly adjusted
- Computer software audio settings are adjusted for proper use
- Computer system's sound (control panel) volume is turned up
If the speakers exhibit distortion or buzzing:
- Turn down computer's overall volume (via control panel) and reduce speaker volume
- Turn down bass volume, as program signal may be too strong
- Plug the power cord into a surge protector
If there is noise or hissing and the volume is low even with main volume turned up:
- Turn up computer's sound volume (via control panel)
- Turn down main volume on control pod to compensate
- Ensure that software/hardware is properly installed and operating
If there is computer monitor interference:
- Increase the distance between the speakers and the computer monitor.
For more detailed information and FAQs, please visit www.klipsch.com.
DC Power Adapter
The Ultra 2.0 is designed to be used only with the supplied DC power adapter.
FCC and Canada EMC Statements
Approved under the verification provision of FCC Part 15 as a Class B Digital Device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio freuency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turninng the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Certifications Statement:
ProMedia Ultra 2.0: Conforms to European Union Directives, Eligible to bear CE marking, Meets
European Union Low Voltage Requirements: Safety per EN60065 Sixth Edition and IEC60065 Sixth
Edition (CB Scheme); Meets European Union EMC Requirements: Emissions per EN55013:2001,
EN61000-3-2:2000, and EN61000-3-3:1995; Immunity per EN55020:2002.
Note: EMC conformance testing is based on the use of supplied and recommended cable types
and power supply. The use of other cable types may degrade EMC performances.
WARRANTY—U.S. AND CANADA ONLY
KLIPSCH, LLC ("KLIPSCH") warrants this product to be free from defects in materials and
workmanship (subject to the terms set forth below) for a period of one (1) year from the date of
purchase. During the warranty period, KLIPSCH will repair or replace (at KLIPSCH's option) this
product or any defective parts. Proof of purchase in the form of a bill of sale or receipted invoice
from an authorized Klipsch dealer, which is evidence that this product is within the warranty
period, must be presented or included to obtain warranty service. This warranty does not cover
damage due to misuse, abuse, negligence, acts of God, accident, commercial use or modification
of, or to any part of this product. This warranty does not cover damage due to improper operation,
maintenance or installation, or attempted repair by anyone other than KLIPSCH or someone
authorized by KLIPSCH to do warranty work. Any unauthorized repairs will void this warranty. This
warranty does not cover product sold AS IS or WITH ALL FAULTS. This warranty is invalid if the
factory applied serial number or date stamp has been altered or removed from this product.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE
REMEDY OF THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT
LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or
implied warranties so the above exclusions may not apply to every customer. This warranty gives
you specific legal rights, and you may have other rights which vary from State to State.
To obtain warranty service, please follow these directions:
1. If you purchased this product from a retail store, please return this product to such store in its
original packaging along with proof of purchase.
2. If you purchased this product from a computer manufacturer, please contact that
manufacturer.
3. For purchases made through www.klipsch.com, please call KLIPSCH Customer Service at
1-888-554-5665. Product may only be returned to KLIPSCH after a Return Authorization
number has been obtained from KLIPSCH.
Returned product must be shipped, freight prepaid to KLIPSCH in either its original packaging or
packaging affording an equal degree of protection along with proof of purchase.
WARRANTY—OUTSIDE THE U.S. AND CANADA
The warranty on this product if it is sold to a consumer outside of the United States or Canada
shall comply with applicable law and shall be the sole responsibility of the distributor that
supplied this product. To obtain any applicable warranty service, please contact the dealer from
which you purchased this product, or the distributor that supplied this product.

Produktspezifikationen

Marke: Klipsch
Kategorie: Lautsprecher
Modell: ProMedia 2.1

Brauchst du Hilfe?

Wenn Sie Hilfe mit Klipsch ProMedia 2.1 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Lautsprecher Klipsch

Klipsch

Klipsch R-50M Bedienungsanleitung

5 Oktober 2024
Klipsch

Klipsch Palladium P-38F Bedienungsanleitung

5 Oktober 2024
Klipsch

Klipsch Reference R-28PF Bedienungsanleitung

28 September 2024
Klipsch

Klipsch Reference CDT-2800-C II Bedienungsanleitung

23 September 2024
Klipsch

Klipsch PRO-18RC Bedienungsanleitung

21 September 2024
Klipsch

Klipsch R-5650-S II Bedienungsanleitung

21 September 2024
Klipsch

Klipsch CDT-5800-C Bedienungsanleitung

19 September 2024
Klipsch

Klipsch The Three II Bedienungsanleitung

18 September 2024
Klipsch

Klipsch Heritage La Scala AL5 Bedienungsanleitung

16 September 2024
Klipsch

Klipsch Heritage Forte IV Bedienungsanleitung

15 September 2024

Bedienungsanleitung Lautsprecher

Neueste Bedienungsanleitung fĂĽr -Kategorien-

Sonance

Sonance Visual Performance VP65 SST Bedienungsanleitung

16 Oktober 2024
Bowers And Wilkins

Bowers And Wilkins CWM664 Bedienungsanleitung

16 Oktober 2024
Focal

Focal Chorus 826 V Bedienungsanleitung

16 Oktober 2024
KEF

KEF Ci200ER Bedienungsanleitung

16 Oktober 2024
Steren

Steren SPK-1100BL Bedienungsanleitung

16 Oktober 2024
Aiwa

Aiwa SP-A100 Bedienungsanleitung

16 Oktober 2024
Trust

Trust GXT 628 Bedienungsanleitung

15 Oktober 2024
Pyle

Pyle PBMSPG6 Bedienungsanleitung

15 Oktober 2024
Marshall

Marshall Tufton Bedienungsanleitung

15 Oktober 2024
Sunstech

Sunstech SPUBT780 Bedienungsanleitung

15 Oktober 2024
