INSTRUCTION MANUAL
ENGLISH
VDV500-223
Digital Probe-Pro
Tracing Probe
FRANÇAIS
p. 13
ESPAĂ‘OL
•
TRACE INDIVIDUAL
OR PAIRED WIRES*
•
TRACE SHORTED O
CONNECTED WIRES
VIA DIGITAL TONIN
•
PERFORM
PIN-TO-PIN
MAPPING*
•
EASY-TO-
UNDERSTAND
STATUS LED
s
•
REPLACEABLE
PROBE TIP
* When used with
VDV500-163
Digital Toner Pro
2
ENGLISH
GENERAL SPECIFICATIONS
The Klein Tools VDV500-223 Digital Probe-Pro is a professional-series
digital and analog tone tracer, featuring an inductive probe with speake
for amplification, and LED light for use in dark spaces. It also features a
headphone jack for use in extreme noise environments.
•
Operating Altitude:
6562 ft. (2000 m) maximum
•
Relative Humidity:
10% – 90% non-condensing
•
Operating Temp:
32° to 122° F (0° to 50°C)
•
Storage Temp:
-4° to 140°F (-20° to 60°C)
•
Dimensions:
1.92" Ă— 9.96" Ă— 1.32" (49 Ă— 253 Ă— 34 mm)
•
Weight:
6.88 oz. (195 g) including batteries
•
Battery Type:
4 Ă— 1.5V AAA Alkaline
•
Battery Life: Active:
20 hours
Standby/Storage:
3 years
•
Auto-Power Off:
After 15 minutes of inactivity
Specifications subject to change.
CAUTION:
Excessive volume can cause permanent hearing damage.
Use as low a volume as possible.
FEATURE DETAILS

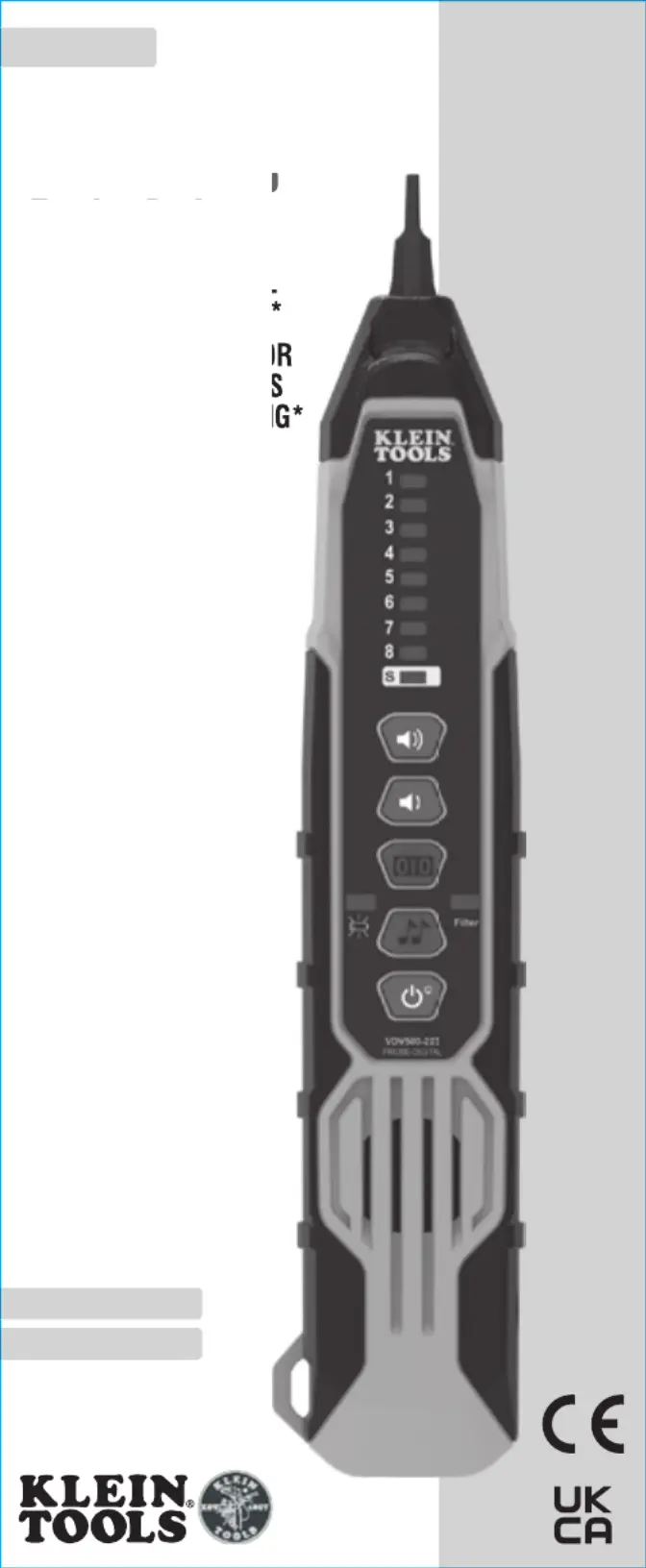

P1
Replaceable Inductive Polymer Tip (VDV999-070
P2
Worklight
P3
Power/Worklight On/Off Button
P4
Wire Map Indicators*
P5
Shield Indicator*
*P4 + P5 together constitute Signal Strength Indicator Bars
P6
Volume Increase Button
P7
Volume Decrease Button
P8
Battery Status Indicator
P9
Speaker
P10
Lanyard Slot
P11
Digital Toning Mode Button
P12
Analog Toning Mode / 60Hz Filter On/Off Button
P13
Filter Indicator
P14
RJ45 Port
P15
Battery Cover
P16
Battery Cover Screw (#2 Phillips)
P17
3.5mm Headphone Jack*
3
FEATURE DETAILS
P2
P17
P3
P9
P6
P7
P11
P14
P12
P13
P8
P5
P10
P15
P16
P1
P4
SYMBOLS ON PROBE
Warning or Caution
Conformité Européenne:
Conforms with European
Economic Area directives
Always wear approved
eye protection
UKCA:
UK Conformity Assessment
Do NOT use on
energized circuits
WEEE:
Electronics disposal
Read instructions
