HD MEMORY CARD CAMERA RECORDER

GY-HM710U

Thank you for purchasing this JVC product.

Before operating this unit, please read this sheet and the instructions of the separate volume carefully to ensure the best possible

performance.

Please change the model number under [For Customer Use:] on the cover of the instructions of the separate volume to

“GY-HM710U” and take down the serial number.

Accessories and Dimensional Outline Drawing of GY-HM710U is the same as GY-HM750U in the specifications listed in the

instructions of the separate volume.

Functions may vary according to the model. The details are as follows.

TThe INT setting of IEEE1394 Interface Terminal Switch is invalid.

The specifications of the MENU changes to the following due to the differences in the functions listed above.

[RECORD Set Menu] Record Format Menu

[Camera Function Menu] Switch Set Item

[Camera Process Menu] Detail/ Adjust. . . Item

Configuring Setup Files

�Preset Setup Files (Page 117)

The scene file and picture file that are loaded according to different shooting conditions are as follows.

� : Provided : Not Provided-

GY-HM710U

GY-HM750U

GY-HM750CHU

GY-HM750E

GY-HM750CHE

Main Page

1280 × 720p

Recording & Playback -�

1440 × 1080 / 50i

Recording & Playback -�

1920 × 1080 / 50i, 25p

Recording & Playback -�

Variable Frame Rec Page 60-�

Dual Rec Page 57-�

Accessory Connection Terminal Page 15 Rear -�B

IEEE1394 Interface Terminal Switch INT / EXT INT / EXTTPage 14

Side Terminal H

Item Setting Value Page

Camera Resolution 1920 × 1080

1440 × 1080

720 × 480

Page 75

Frame & Bit Rate

When [Camera Resolution] is

“1440 × 1080”

60i(HQ)

60i(SP)

When [Camera Resolution] is

“1920 × 1080”

60i(HQ)

30p(HQ)

24p(HQ)

Item Setting Value Page

AE LEVEL AE LEVEL

Disable Page 80

Item Setting Value Page

V Frequency Not displayed Page 84

Scene file [CINEMA 1080/24p]

Picture file [CINEMA]

1





  

1    

●

 

●  

●

2 

 ( )R

●

●  •

  •

 

●



3  ( )R

●  

  



SYSTEM DIAGNOSIS

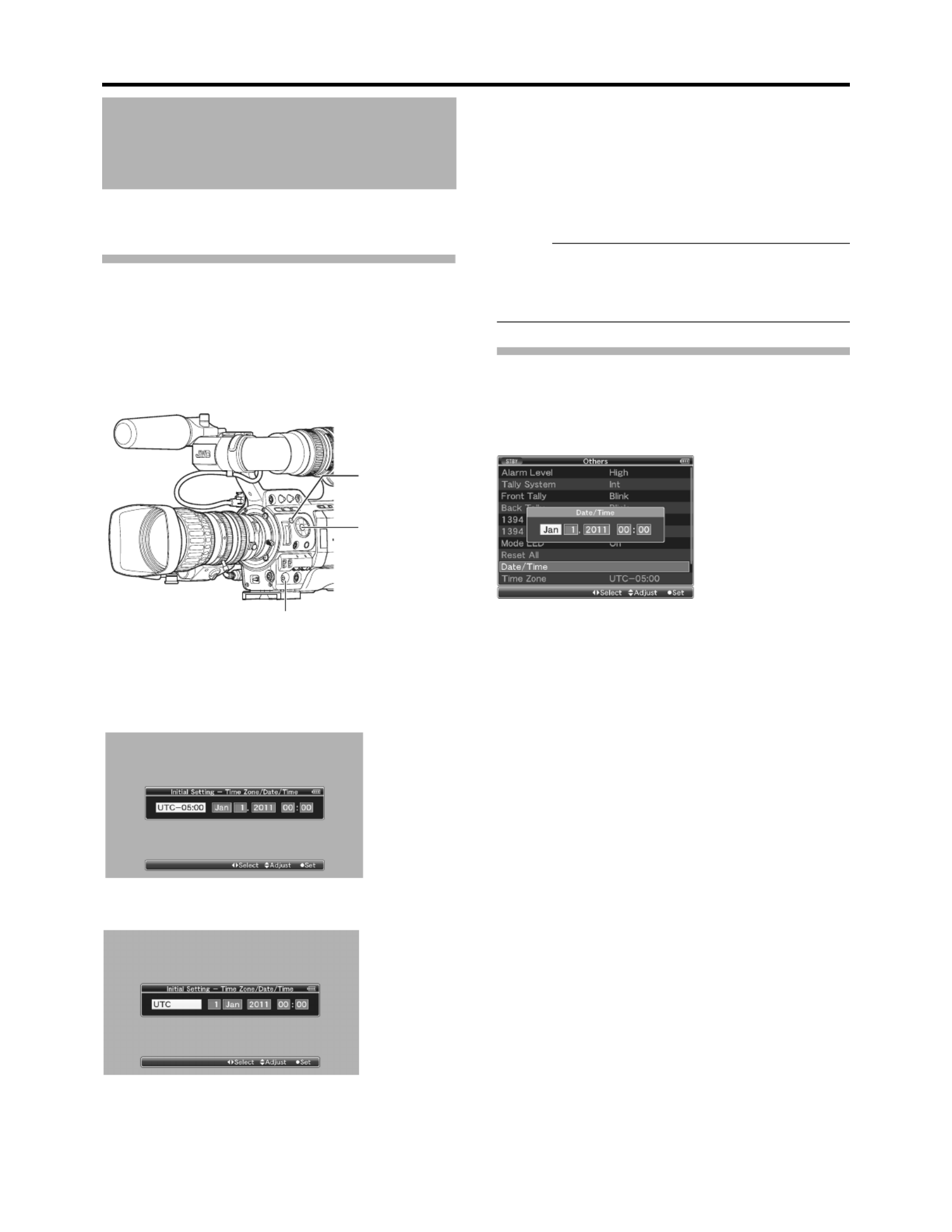

When this unit is turned on for the first time

after purchase, initial configuration through

[SYSTEM DIAGNOSIS] starts.

1 Set the [POWER] switch to “ON”.

●The initial screen appears.

Memo :

●It is recommended to use an AC adapter for

power supply.

●Make sure that the lens cap is attached.

2 After checking that the lens cap is

attached, press the set button (R).

●Diagnosis starts.

●During execution, “•” changes to “>”.

Diagnosis is complete when all “•” have

changed to “>”.

Memo :

●The diagnosis takes about 6 minutes to

complete. Do not operate this unit or turn off

the power during execution.

3 After the completion screen appears,

press the set button (R).

●The [Initial Setting] screen appears.

For details on [Initial Setting], refer to the

instructions manual.

SYSTEMDIAGNOSE

Wenn Sie dieses Gerät nach dem Erwerb zum

ersten Mal einschalten, beginnt die

Ersteinstellung mit einer [SYSTEM

DIAGNOSIS].

1 Stellen Sie den [POWER]-Schalter auf

ON.

●Der Startbildschirm wird angezeigt.

Notiz:

●Wir empfehlen, für die Stromversorgung ein

Netzteil zu benutzen.

●Vergewissern Sie sich, dass die

Objektivabdeckung angebracht ist.

2 Nachdem Sie sich davon überzeugt

haben, dass die Objektivabdeckung

angebracht ist, betätigen Sie die

Einstellungstaste (R).

●Die Diagnose beginnt.

●Während der Diagnose verändert sich das

Symbol   zu >. Die Diagnose ist •

abgeschlossen, wenn für alle   das Symbol •

> angezeigt wird.

Notiz:

●Der Diagnosevorgang dauert etwa 6

Minuten. Benutzen Sie das Gerät während

der Diagnose nicht und schalten Sie es nicht

aus.

3 Wird der Endbildschirm angezeigt,

betätigen Sie die Einstellungstaste (R).

●Der Bildschirm [Initial Setting] wird

angezeigt.

Einzelheiten zu [Initial Setting] finden Sie in der

Dokumentation.

DIAGNOSTIC DU SYSTÈME

Lorsque cette unité est allumée pour la

première fois après lachat, la configuration

initiale via [SYSTEM DIAGNOSIS] démarre.

1 Réglez le sélecteur [POWER] sur ON.

●Lécran initial saffiche.

Memo :

●Il est recommandé dutiliser un adaptateur

AC pour lalimentation électrique.

●Assurez-vous que le capuchon dobjectif est

fixé.

2 Après avoir vérifié que le capuchon

dobjectif est fixé, appuyez sur le bouton

de réglage (R).

●Le diagnostic commence.

●Pendant lexécution les   se transforment •

en >. Le diagnostic est terminé lorsque

tous les   sont devenus des >.•

Memo :

●Le diagnostic dure environ 6 minutes.

Pendant lexécution, ne faites pas

fonctionner pas cette unité et ne coupez pas

lalimentation.

3 Une fois que lécran final saffiche,

appuyez sur le bouton de réglage (R).

●Lécran [Initial Setting] saffiche.

Pour de plus amples détails concernant [Initial

Setting], reportez-vous au manuel

dinstructions.

- - - Y TEM DIAGNO I - - -S S S S

PLEA E EXECUTE DIAGNO IS S S

ON U ING AT FIR T.S S

FIT LEN CAP!S

THE TIME I ABOUT 6 MIN.S

PU H ET BUTTONSS

- - - SYSTEM DIAGNOSIS - - -

DIAGNOSING . . .

PLEASE DO NOT REMOVE

LENS CAP

>>>>>>>>>>

- - - Y TEM DIAGNO I - - -S S S S

COMPLETE

PU H ET BUTTONSS

 Initial Screen/

Startbildschirm/Écran initial





Execution Screen/

Ausführungsbildschirm/Écran dexécution

 Completion Screen/

Endbildschirm/Écran final

  

[Initial Setting] Screen/

[Initial Setting]-Bildschirm/

Écran de [Initial Setting]



ENGLISH

DEUTSCH

FRANÇAIS

   

HD MEMORY CARD CAMERA RECORDER

GY-HM750U

GY-HM750CHU

GY-HM750E

GY-HM750CHE

INSTRUCTIONS

* The illustration shows the GY-HM750E with the supplied viewfinder, microphone and lens attached.

* GY-HM750CHU/GY-HM750CHE does not come with a lens.

For Customer Use:

Enter below the Serial No. which is located on the body.

Retain this information for future reference.

Model No. GY-HM750U/GY-HM750CHU

Serial No.

Please read the following before getting started:

Thank you for purchasing this JVC product.

Before operating this unit, please read the instructions

carefully to ensure the best possible performance.

In this manual, each model number is described without the last letter

(U/E) which means the shipping destination. (U: for USA and Canada,

E: for Europe)

Only “U”models (GY-HM750CHU/GY-HM750U) have been evaluated by

UL.

LST1190-001A

II

Introduction

1.

Re d ll of the e in tr ction .a a s s u s

2.

Sa s s u s a usve the e in tr ction for l ter e.

PORTABLE CART WARNING

( ym ol provided y RETAC)s b b

S3125A

IMPORTANT AFEGUARDS S

4.

Unpl g thi ppli nce y tem from the w ll o tlet efore cle ning. Do not e liq id cle ner or ero olu s a a s s a u b a us u a s a s

cle ner . U e d mp cloth for cle ning.a s s a a a

5.

Do not us a ae tt chment not recommended y the ppli nce m n f cts b a a a u a u as a aus a a srer they m y c e h z rd .

6.

Do not e thi ppli nce ne r w ter - for ex mple, ne r tht , w h owl, kitchen ink, or l ndry t , in wetus s a a a a a a a ba ub as b s au ub a

basement, or ne r wimming pool, etc.a a s

7.

Do not pl ce thi ppli nce on n n t le c rt, t nd, or t le. The ppli nce m y f ll,a s a a a u s ab a s a ab a a a a

c ing erio inj ry to child or d lt, nd erio d m ge to the ppli nce.aus s us u a a u a s us a a a a

U e only with c rt or t nd recommended y the m n f ct rer, or old with the ppli nce.s a a s a b a u a u s a a

W ll or helf mo nting ho ld follow the m n f ct rer' in tr ction , nd ho ld e a s u s u a u a u s s u s a s u us a

mo nting kit pproved y the m n f ct rer. An ppli nce nd c rt com in tion ho ld eu a b a u a u a a a a b a s u b

moved with c re.a

Q ick top , exce ive force, nd neven rf ce m y c e the ppli nce nd c rtu s s ss a u su a s a aus a a a a

com in tion to overt rn.b a u

8.

S s a s ab a ba b a a a su ab alot nd opening in the c inet nd the ck or ottom re provided for ventil tion, nd to in re reli le oper tion of

the ppli nce nd to protect it from overhe ting, the e opening m t not e locked or covered. The opening ho lda a a a s s us b b s s u

never e locked y pl cing the ppli nce on ed, of , r g, or other imil r rf ce.b b b a a a a b s a u s a su a

Thi ppli nce ho ld never e pl ced ne r or over r di tor or he t regi ter.s a a s u b a a a a a a s

Thi ppli nce ho ld not e pl ced in ilt-in in t ll tion ch ookc e nle proper ventil tion i provided.s a a s u b a a bu s a a su as a b as u ss a s

9.

Thi ppli nce ho ld e oper ted only from the type of power o rce indic ted on the m rking l el. If yo re not res a a s u b a s u a a ab u a su

of the type of power pplied to yo r home, con lt yo r de ler or loc l power comp ny. For ppli nce de igned tosu u su u a a a a a s

oper te from ttery power, refer to the oper ting in tr ction .a ba a s u s

10.

For dded protection for thi prod ct d ring lightning torm, or when it i left n ttended nd n ed for long perioda s u u a s s u a a u us s

of time, npl g it form the w ll o tlet nd di connect the ntenn or c le y tem. Thi will prevent d m ge to theu u a u a s a a ab s s s a a

prod ct d e to lightning nd power-line rge .u u a su s

The e are eneral IMPORTANT AFEGUARD and certain item may not apply to all appliance .s g S S s s

3.

All w rning on the prod ct nd in the oper ting in tr ction ho ld e dhered to.a s u a a s u s s u b a

FOR U AS

14.

Never p h o ject of ny kind into thi ppli nce thro gh c inet lot they m y to ch d ngero volt ge point orus b s a s a a u ab s s as a u a us a s

s u a s a u su a s s u a a ahort o t p rt th t co ld re lt in fire or electric hock. Never pill liq id of ny kind on the ppli nce.

15.

Do not ttempt to ervice thi ppli nce yo r elf opening or removing cover m y expo e yo to d ngero volt gea s s a a u s as s a s u a us a

or other h z rd . Refer ll ervicing to q lified ervice per onnel.a a s a s ua s s

16.

Unpl g thi ppli nce from the w ll o tlet nd refer ervicing to q lified ervice per onnel nder the following condition :u s a a a u a s ua s s u s

a u s a a a. When the power cord or pl g i d m ged or fr yed.

b u as b s a a. If liq id h een pilled into the ppli nce.

c. If the ppli nce h een expo ed to r in or w ter.a a as b s a a

d.

e. If the ppli nce h een dropped or the c inet h een d m ged.a a as b ab as b a a

f.

If the ppli nce doe not oper te norm lly y following the oper ting in tr ction . Adj t only tho e control th ta a s a a b a s u s us s s a

a b a s u s as a us s a su a a are covered y the oper ting in tr ction improper dj tment of other control m y re lt in d m ge nd will

often req ire exten ive work y q lified technici n to re tore the ppli nce to norm l oper tion.u s b a ua a s a a a a

When the ppli nce exhi it di tinct ch nge in perform nce - thi indic te need for ervice.a a b s a s a a s a s a s

17.

When repl cement p rt re req ired, e re the ervice technici n h ed repl cement p rt pecified y thea a s a u b su s a as us a a s s b

m n f ct rer th t h ve the me ch r cteri tic the origin l p rt. Un thorized tit tion m y re lt in fire,a u a u a a sa a a s s as a a au subs u s a su

electric hock, or other h z rd .s a a s

18.

Upon completion of ny ervice or rep ir to thi ppli nce, k the ervice technici n to perform ro tine fety checka s a s s a a as s a u sa s

to determine th t the ppli nce i in fe oper ting condition.a a a s sa a

13.

Do not overlo d w ll o tlet nd exten ion cord thi c n re lt in fire or electric hock.a a u s a s s as s a su s

12.

Follow ll w rning nd in tr ction m rked on the ppli nce.a a s a s u s a a a

11.

Do not llow nything to re t on the power cord. Do not loc te thi ppli nce where the cord will e ed y per ona a s a s a a b abus b s s

w lking on it.a

III

Safety Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

The exclamation point within an e uilateral q

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

FOR USA AND CANADA

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTSINSIDE.REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an e uilateral triangle is intended to q

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to

persons.

INFORMATION:

This e uipment has been tested and found to comply q

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

e uipment is operated in a commercial environment.q

This e uipment generates, uses, and can radiate q

radio fre uency energy and, if not installed and used q

in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this e uipment in a residential area is q

likely to cause harmful interference in which case the

user will be re uired to correct the interference at his q

own expense.

CAUTION:

CHANGES OR MODIFICATIONS NOT APPROVED

BY JVC COULD VOID USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

THIS DEVICE COMPLIES WITH PART 15 OF THE

FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS: (1) THIS DEVICE

MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED

OPERATION.

POUR CANADA

Le ym ole de l’écl ir àl intérie r d n tri ngle s b a ’ u ’u a

éq il tér l e t de tiné à lerter l tili te r r lu a a s s a ’u sa u su a

pré ence d ne ten ion d ngere e non is ’u “ s a us ” solée

d n le oîtier d prod it. Cette ten ion e t a s b u u s s

su sa uffi nte po r provoq er l électroc tion de u ’ u

per onne .s s

Le point d excl m tion à l intérie r d n tri ngle ’ a a ’ u ’u a

éq il tér l e t de tiné à lerter l tili te r r lu a a s s a ’u sa u su a

pré ence d opér tion d entretien import ntes ’ a s ’ a s au

su s u s s s s s ujet de q elle de ren eignement e tro vent

d n le m n el d in tr ction .a s a u ’ s u s

Ce ym ole ne ont tili é q x Et t -Uni .s s b s s u s s u’au a s s

RI QUE D ELECTROCUTIONS ’

NE PA OUVRIRS

INFORMATION (FOR CANADA)

REN EIGNEMENT (POUR CANADA) S

This ass Cl A digit l ppa a a ar t complieus s with C na a adi n

ICES-003.

Cet ppa areil numérique de l Cla ass A e t conforme à s

l norme NMB-003 da u a C n d .a a

WARNING:

TO REDUCE THE RI K OF FIRE OR ELECTRIC HOCK,S S

DO NOT EXPO E THI APPLIANCE TO RAIN OR MOI TURE.S S S

CAUTION:

Thi nit s u sho ld e u b used with 12V DC only. To prevent electric

shock nd fire hs a az rda s, do NOT use ny other power a s uo rce.

AVERTI EMENT:SS

POUR EVITER LE RI QUE D’INCENDIE OU S S S

D’ELECTROCUTION, NE PA EXPO ER L’APPAREIL S S

A L’HUMIDITE OU A LA PLUIE.

ATTENTION:

Ce m gnéto cope ne doit être tili é q e r d co r nt a s u s u su u u a

direct en 12V.

Afin d eviter to t re q e d incendie o d electroc tion, ne ’ u s u ’ u ’ u

p till er d tre o rce d liment tion électriq e.as u s ’au s s u s ’a a u

The pp r t h ll not e expo ed to dripping or a a a us s a b s

s as a a b s u s su aspl hing nd th t no o ject filled with liq id , ch

v eas s, h ll e pl ced clo e to the pp r t .s a b a s a a a us

NOTE:

The r ting pl te ( eri l n m er pl te) i on the nit.a a s a u b a s u

REMARQUE:

L pl q e ign létiq e (pl q e d n méro de érie) e t a a u s a u a u u u s s

s u su a u ’uit ée r le c dre inférie r de l nité.

CAUTION:

To prevent electric hock, do not open the c inet.s ab

No er erviceus s able p rt in ide. Refer ervicing to a s s s

q lified ervice per onnel.ua s s

D e to de ign modific tion , d t given in thi in tr ction u s a s a a s s u

b a sub ss b a uook re ject to po i le ch nge witho t prior notice.

ATT ENTION:

POUR EVITER TOUT RI QUE S

D ELECTROCUTION NE PA OUVRIR LE ’ S

BOITER. AUCUNE PIECE INTERIEURE N E T A ’ S

REGLER PAR L’ SUTILI ATEUR. E REFERER A S

UN AGENT QUALIFIE EN CA DE PROBLEME. S

ATTENTION

IV

Introduction

FOR EUROPE

This e uipment is in conformity with the provisions and q

protection re uirements of the corresponding European q

Directives. This equipment is designed for professional video

appliances and can be used in the following environments:

●

Controlled EMC environment (for example, purpose-built

broad-casting or recording studio), and rural outdoors

environments.

In order to keep the best performance and furthermore for

electromagnetic compatibility we recommend to use cables

not exceeding the following lengths:

Safety Precautions

(continued)

Port Cable Length

[DC INPUT] Exclusive Cable 5 m

[Y/VIDEO], [PB R], [P ] Coaxial Cable 10 m

[AUDIO INPUT 1/2] Shielded Cable m3

[AUDIO OUTPUT] Shielded Cable 10 m

[PHONES] Exclusive Cable m3

[IEEE1 94] Exclusive Cable m3 3

[HD/SD-SDI] Coaxial Cable 10 m

[REMOTE] Exclusive Cable 5 m

[LENS] Unshielded Cable 0.1m

[VF] Special Cable 0. m3

[USB] Shielded Cable m3

Caution:

Where there re trong electrom gnetic wa s a ave ors

m gneti m, for ex mple ne r r dio or TV tr n mitter,a s a a a a a s

tr n former, motor, etc., the pict re nd the o nd ma s u a s u ay

b s u b su as ase di t r ed. In ch c e, ple e keep the pp r ta a a us

awa s u s s u bay from the o rce of the di t r nce.

Dear Customer,

This apparatus is in conformance with the valid European

directives and standards regarding electromagnetic

compatibility and electrical safety.

European representative of Victor Company of Japan,

Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

dieses Gerät stimmt mit den gültigen europäischen

Richtlinien und Normen bezüglich elektromagnetischer

Verträglichkeit und elektrischer Sicherheit überein.

Die europäische Vertretung für die Victor Company of

Japan, Limited ist:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Deutschland

Sehr geehrter Kunde, sehr geehrte Kundin,

Information for U ers s son Di posal of Old Equipment

[European Union]

Thi ym ol indic te th t the electric l nd electronics s b a s a a a

eq ipment ho ld not e di po ed gener l ho eholdu s u b s s as a us

w te t it end-of-life. In te d, the prod ct ho ld eas a s s a u s u b

h nded over to the pplic le collection point for thea a ab

recycling of electric l nd electronic eq ipment for propera a u

tre tment, recovery nd recycling in ccord nce with yo ra a a a u

n tion l legi l tion.a a s a

By di po ing of thi prods s s uct correctly, yo will help tou

con erve n ts a ur l re o rce nd will help prevent potenti la s u s a a

neg tive effect on the environment nd h m n he ltha s a u a a

which co ld otherwi e e c ed y in ppropriu s b aus b a ate w teas

h ndling of thi prod ct. For more inform tion o ta s u a ab u

collection point nd recycling of thi prod ct, ple e cont cta s u as a

yo r loc l m nicip l office, yo r ho ehold w te di po lu a u a u us as s sa

s s u u as uervice or the hop where yo p rch ed the prod ct.

Pen ltie m y e pplic le for incorrect di po l of thia s a b a ab s sa s

w te, in ccord nce with n tion l legi l tion.as a a a a s a

(Bu ine u er )s ss s s

If yo wi h to di po e of thi prod ct, ple e vi it o r weu s s s s u as s u b

p ge http://www.jvc.e to o t in inform tion o t thea u b a a ab u

t ke- ck of the prod ct.a ba u

[Other Countrie out ide the European Union]s s

If yo wi h to di po e of thi prod ct, ple e do o inu s s s s u as s

a a a ab a a s accord nce with pplic le n tion l legi l tion or other

r le in yo r co ntry for the tre tment of old electric l ndu s u u a a a

electronic eq ipment.u

Attention:

Thi ym ol i only v lid in the E rope ns s b s a u a

Union.

V

FOR USE IN CHINA ONLY

2

Introduction

Precautions for Proper Use . . . . . . . . . . . . . . . . . . . . . . . . .5

Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Names of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Side Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Side Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

SD Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Zoom Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Basic System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Displays on the LCD Monitor and Viewfinder . . . . . . . . . .18

Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Enlarged Status Display on LCD Monitor . . . . . . . . . .19

Auto White Display (Camera Mode Only) . . . . . . . . . .20

Menu Setting Screen . . . . . . . . . . . . . . . . . . . . . . . . . .20

Alarm Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Zebra Pattern Display . . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparations

Attaching Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Attaching the Zoom Lens . . . . . . . . . . . . . . . . . . . . . . .21

Attaching the Microphone (Supplied) . . . . . . . . . . . . . .21

Attaching the Viewfinder (Supplied) . . . . . . . . . . . . . . .21

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Using AC Power (DC IN Power) . . . . . . . . . . . . . . . . . . . .22

Using a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Turning On/Off the Power . . . . . . . . . . . . . . . . . . . . . . . . .25

Setting the Clock (Initial Setting) . . . . . . . . . . . . . . . . . . . .26

Adjusting the Monitor Speaker . . . . . . . . . . . . . . . . . . . . .27

Adjusting Back Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Adjusting the LCD Monitor and Viewfinder . . . . . . . . . . . .28

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03

SDHC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

SDHC Cards to Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Formatting (Initializing) SDHC Cards . . . . . . . . . . . . . .33

Restoring the SDHC Card . . . . . . . . . . . . . . . . . . . . . . 43

Clips Recorded to SDHC Cards . . . . . . . . . . . . . . . . . 53

Shooting

Basic Shooting Procedures . . . . . . . . . . . . . . . . . . . . . . . . 63

Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Focus Assist Function . . . . . . . . . . . . . . . . . . . . . . . . . 73

Selecting System Definition, File Format and

Video Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Selecting the Aspect Ratio of SD Videos . . . . . . . . . . . 93

Adjusting the Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Setting Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Setting the Electronic Shutter . . . . . . . . . . . . . . . . . . . . . .40

Adjusting the White Balance . . . . . . . . . . . . . . . . . . . . . . .42

Adjusting the White Shading . . . . . . . . . . . . . . . . . . . . . . .44

Setting the ND Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Adjusting Audio Input Settings and Recording Level . . . . .46

Setting Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Adjusting Audio Recording Level . . . . . . . . . . . . . . . . .46

Audio Monitor During Recording . . . . . . . . . . . . . . . . .47

Time Code and User’s Bit . . . . . . . . . . . . . . . . . . . . . . . . .48

Displaying Time Code and User’s Bit . . . . . . . . . . . . . .48

Time Code Operation Mode . . . . . . . . . . . . . . . . . . . . .48

Time Code Generator Settings . . . . . . . . . . . . . . . . . . . . .49

Presetting the User’s Bit . . . . . . . . . . . . . . . . . . . . . . . .50

Setting Time Code Without Opening the Menu . . . . . .51

Setting User’s Bit Without Opening the Menu . . . . . . .52

Recording Time Code in Continuation of the

Recorded Time Code on SDHC Card . . . . . . . . . . . .52

Setting Zebra Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Setting Spot Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Protecting Important Scenes (OK Mark Function) . . . . . . .55

Viewing Recorded Videos Immediately (Clip Review) . . . .56

Assigning Functions to User Buttons . . . . . . . . . . . . . . . . .56

Dual Rec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Special Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Pre Rec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Clip Continuous Rec . . . . . . . . . . . . . . . . . . . . . . . . . .59

Variable Frame Rec . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Playback

Playing Back Recorded Clips . . . . . . . . . . . . . . . . . . . . . . .61

Thumbnail Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Playing Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Thumbnail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Deleting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Appending and Deleting OK Marks . . . . . . . . . . . . . . . . . .68

Contents

3

Menu Display and Detailed Settings

Basic Operations in Menu Screen . . . . . . . . . . . . . . . . . . . 70

Display and Description of the Menu Screen . . . . . . . .70

Text Input with Software Keyboard . . . . . . . . . . . . . . . .71

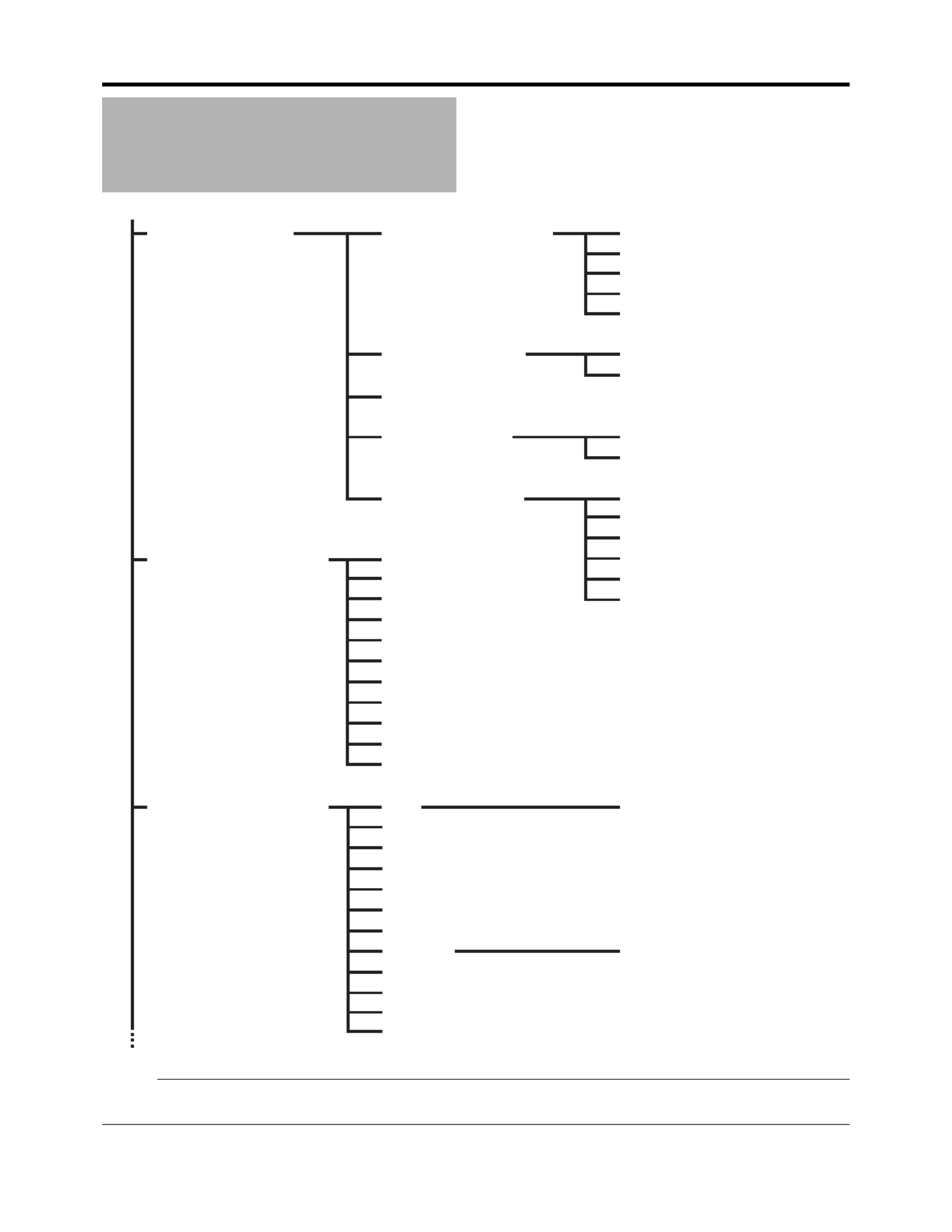

Menu Screen Hierarchical Chart . . . . . . . . . . . . . . . . . . . .72

Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Record Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Record Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . .75

Rec Mode Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Clip Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Audio Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Camera Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Switch Set Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

FULL AUTO Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Camera Process Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Detail/Adjust... Item . . . . . . . . . . . . . . . . . . . . . . . . . . .84

White Balance Item . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Shading Mode/Adjust Item . . . . . . . . . . . . . . . . . . . . . .86

Color Matrix/Adjust Item . . . . . . . . . . . . . . . . . . . . . . .86

TC/UB Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

LCD/VF Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Shooting Assist Item . . . . . . . . . . . . . . . . . . . . . . . . . .89

Marker Setting Item . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Status Display Item . . . . . . . . . . . . . . . . . . . . . . . . . . .90

A/V Out Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Others Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Media Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Setup File Manage Menu . . . . . . . . . . . . . . . . . . . . . . . . .95

Adding/Editing Fre uently Used Menu Itemsq

(Favorites Menu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Adding Menu Items to Favorites Menu . . . . . . . . . . . .96

Editing Favorites Menu . . . . . . . . . . . . . . . . . . . . . . . .97

Status Screen

Status Screen in Camera Mode . . . . . . . . . . . . . . . . . . .100

Status Screen in SD Card Mode . . . . . . . . . . . . . . . . . . .106

Status Screen in IEEE1 94 Input Mode . . . . . . . . . . . . .1073

Enlarged Status Display on LCD Monitor . . . . . . . . . . . .108

Camera Features

Marker and Safety Zone Displays

(Camera Mode Only) . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Smoothening the Skin Color (Skin Detail Function) . . . . .112

Color Bar Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Color Matrix Adjustment . . . . . . . . . . . . . . . . . . . . . . . . .114

Reproduction of Dark Areas (Black Stretch/Compress

Function) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Configuring Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . .117

Saving Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Loading a Setup File . . . . . . . . . . . . . . . . . . . . . . . . .119

Resetting Setup Files . . . . . . . . . . . . . . . . . . . . . . . . .119

Connecting External Devices

Connecting an External Monitor . . . . . . . . . . . . . . . . . . .120

IEEE1 94 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .1223

Backup Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Managing/Editing Clips on a PC . . . . . . . . . . . . . . . . . . .124

Remote Control Unit Connection . . . . . . . . . . . . . . . . . . .125

List of Remote Control Unit Functions . . . . . . . . . . . .126

Others

Error Displays and Actions . . . . . . . . . . . . . . . . . . . . . . .128

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Alarm Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 03

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 13

How to use this manual

Symbols used

Note �Describes precautions concerning the

operation of this product.

Memo �Describes reference information, such as

functions and usage restrictions of this

product.

A�Indicates the reference page numbers and

reference items.

Content of this manual

reprinting of this manual, in whole or in part, is strictly

prohibited.

All other product names used in this manual are

trademarks or registered trademarks of their respective

companies. Marks such as ™, ,  have been omitted in

this manual.

Illustrated designs, specifications and other contents of

this manual are subject to change for improvement

without prior notice.

4

Introduction

This camera recorder enables recording of HD/SD format

images to an SDHC card, and also playback of these

images.

New [Dual Rec] feature

This recorder is e uipped with two SD card slots as well as aq

new [Dual Rec] feature that enables simultaneous recording

to both SDHC cards.

Backup recording is also supported on the camera unit.

* When [Slot Mode] is set to Dual ( Page 57, 76)A B A

Long-duration recording using dual media

slots

By loading two memory cards to the recorder, you can

perform continuous recording or long-duration recording by

recording to the two cards in se uence.q

* When [Slot Mode] is set to Series ( Page 76)A B A

SD (Standard Definition) Recording

Supports DV compression of SD images and recording in the

QuickTime or AVI file format.

The use of a wide array of non-linear editing software is also

supported, which helps to ease production of SD videos,

such as DVDs.

Recording in QuickTime File Format

Recording can be made in QuickTime file format of Final Cut

Pro, a video editing software from Apple Inc.

You can edit the recorded clips directly with Final Cut Pro.

Recording in MP4 File Format

This camera supports recording in the MP4 file format for

Windows NLE systems, which can be utilized in a wide range

of non-linear editing environments.

Recording on SDHC Memory Card

(Class 6/10)

The absence of mechanisms with the use of SDHC (Class 6/

10) as recording media brings about increased operation

reliability. In addition, the improved compatibility with

computers enables high-speed data transfer to NLE as well

as reduction of operating costs.

35 Mbps High Image Quality Mode

This camera recorder is equipped with a 5 Mbps high uality3 q

mode, in addition to the HDV mode bit rate (19/25 Mbps).

Wide Variety of Recording Formats

This camera recorder supports various HD formats (1080i,

1080p, 720p) as well as SD (DV) formats (480i : U model,

576i : E model), enabling it to be used under various

environments. It also supports 1440x1080 and 1920x1080

full resolution in the 1080 format.

Adoption of MPEG-2 Long GOP for Easy

Editing

Shortens editing and output time by adopting MPEG-2

codec, which puts less stress on the editing computer.

High Resolution via Triplex Offset

2.5k x 1.4k pixels are generated with the Triplex Offset, and a

high resolution of more than 900 horizontal lines and 1000

diagonal lines is achieved using the proprietary front

processing.

Spot Meter Function

The brightest and darkest positions on the screen are

automatically detected and displayed together with the

dynamic range. As this is a pre-gamma value, it allows you to

understand the lighting ratio and prevents overexposure or

underexposure in shooting scenes where lighting is

controlled.

High Resolution Viewfinder

With a high resolution of 852 x 480 in 0.425 inches, the

viewfinder is now more robust and enables more accurate

focusing.

High Resolution LCD Monitor

E uipped with a 4. inch 800x480 large LCD monitor, both q 3

shooting precision and viewing performance are improved.

Intuitive User Interface

The sophisticated user interface allows more intuitive

operations. Thumbnail display is also available for you to

easily select a recorded clip for playback.

Compact Shoulder Style

By inheriting the compact shoulder style from the GY-HD100

series which is widely accepted in the industry, more stable

shooting can be done on this camera recorder while its

weight remains similar to that of a handheld camera

recorder.

Lens Interchangeability

Existing lenses can be used, thus saving on costs. You can

also select the most appropriate lens according to your

shooting re uirements.q

Main Features

5

Professional Batteries Included

Batteries such as Anton Bauer and IDX batteries that are

used in the broadcast industry can be used with this camera

recorder.

Support for Wide Variety of Output

Supports industrial output such as HD-SDI output and

IEEE1 94 output.3

Application Software Provided

The [JVC ProHD Clip Manager] application software is

provided for you to copy recorded clips to Windows or

Macintosh computers and for checking the video images.

(For MP4 file format)

Storage and Usage Locations

�Allowable ambient temperature and humidity

Be sure to use this unit within the allowable temperature

range of 0 to 40 and a relative humidity of 0 % to f f 3

80 %. Using this unit at a temperature or humidity outside the

allowable ranges could result not only in malfunction but also

serious impact on the CCD elements as small white spots

may be generated. Please exercise care during use.

�Strong electromagnetic waves or magnetism

Noise may appear in the picture or audio and/or the colors

may be incorrect if this unit is used near a radio or television

transmitting antenna, in places where strong magnetic fields

are generated by transformers, motors, etc., or near devices

emitting radio waves, such as transceivers or cellular

phones.

�Use of wireless microphone near this unit

When a wireless microphone or wireless microphone tuner is

used near this unit during recording, the tuner could pick up

noise.

�Avoid using or placing this unit in the following places.

●Places subject to extreme heat or cold

●Places with excessive dirt or dust

●Places with high humidity or moisture

●Places subject to smoke or vapor such as near a

cooking stove

●Places subject to strong vibrations or unstable surfaces

●In a parked car under direct sunlight or near a heater for

long hours.

�Do not place this unit at places that are subject to

radiation or X-rays, or where corrosive gases occur.

�Protect this unit from being splashed with water.

(Especially when shooting in the rain)

�Protect this unit from getting wet when shooting on a

beach. In addition, salt and sand may adhere to the body. Be

sure to clean the unit after use.

�Protect this unit against penetration of dust when using it

in a place subject to sandy dust.

Transportation

Do not drop or hit this unit against a hard object when

transporting.

Power Saving

�When this unit is not in use, be sure to set the [POWER]

switch to OFF in order to reduce power consumption.A B

The CD-ROM provided with this camera recorder

comes with [JVC ProHD Clip Manager] and other

application software as well as their user guides.

* For details, refer to the user guides for each application

software.

Precautions for Proper Use

6

Introduction

Maintenance

�Turn off the power before performing any maintenance.

�Wipe the external cabinet of the unit with a soft cloth. Do

not wipe the body with benzene or thinner. Doing so may

cause the surface to melt or turn cloudy. When it is extremely

dirty, soak the cloth in a solution of neutral detergent, wipe

the body with it, and then use a clean cloth to remove the

detergent.

Batteries

�The following batteries can be used on this unit.

GY-HM750CHU/GY-HM750U :Dionic90 (Anton Bauer)

GY-HM750CHE/GY-HM750E :Endura-HL9 (IDX)

* Models with an E suffix are for the European market and

the UL Listing mark is not applicable.

�Make use of the recommended batteries. Heavy batteries

may fall off if not used correctly.

Regular Inspection (Maintenance)

Under normal environment, dust will accumulate on the

camera recorder when it is used over a long period. Dust

may enter the camera recorder especially if it is used

outdoors. This may affect the image and sound uality of the q

camera recorder. Check and replace the fan after every 9000

hours (suggested guideline).

You can check the usage time of the fan in the [Others] menu

B [System Information] [Fan Hour]. ( Page 95)B A

If the fan is used for more than 9000 hours without

replacement, FAN MAINTENANCE REQUIRED will beA B

displayed every time you turn on the power.

SDHC Cards

Use an SDHC card (4 GB to 2 GB) with Class 6 or higher3

performance.

* Using cards other than those from Panasonic, TOSHIBA or

SanDisk may result in recording failure or data loss.

Handling of SDHC Cards

�The access lamp lights up in red when data on the SDHC

card is being accessed. Do not remove the SDHC card

during data access (such as recording, playback, or

formatting). Do not turn off the power or remove the battery

and AC adapter during access either.

�Do not use or store the SDHC card in a place that is

subject to static electricity or electrical noise.

�Do not place the SDHC card near locations that are

exposed to strong magnetic fields or radio waves.

�Inserting the SDHC card incorrectly may result in damage

of this unit or the SDHC card.

�We are not liable for any accidental loss of data stored on

the SDHC card. Please back up any important data.

�Make use of the SDHC card within the prescribed

conditions of use.

Do not use it at the following locations.

Places that are subject to direct sunlight, high humidity or

corrosion, places near thermal e uipment, sandy or dusty q

places, or in a car under the sun with the doors and windows

closed.

�Do not bend or drop the SDHC card, or subject it to strong

impact or vibration.

�When formatting or erasing data using the camera

recorder, only the file administration information is changed.

The data is not completely erased from the SDHC card. If

you want to completely erase all of the data, we recommend

either using commercially available software that is specially

designed for that purpose, or by physically destroying the

SDHC card with a hammer, etc.

�Do not dismantle or modify the SDHC card.

�Do not touch the terminals with your hands or with a metal

object.

�Do not allow dust, dirt, water, or foreign objects to adhere

to the terminals.

�Do not remove the labels or stick other labels or stickers

on the SDHC cards.

�Do not use pencils or ballpoint pens to write on the SDHC

cards. Always use oil-based pens.

�If you format (initialize) the SDHC card, all data recorded

on the card, including video data and setup files, will be

deleted.

�You are recommended to use cards that are formatted

(initialized) on this camera recorder.

●The SDHC card may be damaged if the camera recorder

is not operated correctly. Formatting (Initializing) the

SDHC card may allow it to operate correctly.

●SDHC cards that have been formatted (initialized) on

other cameras, computers or peripheral e uipment may q

not operate correctly. In this case, format (initialize) the

SDHC card on this camera recorder.

Precautions for Proper Use

(continued)

7

Others

�Do not insert objects other than the memory card into the

card slot.

�Do not block the vent on the unit.

Blocking of the vent causes internal heating and may lead to

burns and fires.

�Do not turn off the [POWER] switch or remove the power

cable during recording or playback.

�The camera recorder may not show stable pictures for a

few seconds immediately after the power is turned on, but

this is not a malfunction.

�When the video signal output terminals are not in use, put

on the covers to prevent damage to the terminals.

�Do not drop this unit or subject it to strong impact or

vibration as it is a precision e uipment.q

�Optical performance of lens

Due to the optical performance of the lens, color divergence

phenomena (magnification chromatic aberration) may occur

at the periphery of the image. This is not a camera

malfunction.

LCD Monitor and Viewfinder

�The LCD monitor and viewfinder screens are

manufactured using high-precision technology. Black spots

may appear on the LCD monitor and viewfinder screens, or

red, blue, and/or white spots may not disappear. However,

this is not a malfunction and these spots are not recorded on

the SDHC card.

�If you use this unit continuously for a long period of time,

the characters displayed in the viewfinder may temporarily

remain on the screen. This is not recorded on the SDHC

card. They will not appear after you turn the power off and

then on again.

�If you use this unit in a cold place, the images may appear

to lag on the screen, but this is not a malfunction. Retained

images are not recorded on the SDHC card.

�Do not press against the surface with force or subject it to

strong impact. Doing so may damage or break the screens.

�Noise may appear in the viewfinder when switching

between the live video and playback images.

�Due to the characteristic of the viewfinder display device,

colors may appear on the images when you blink your eyes.

This is not a malfunction. It does not affect the recorded

images, SDI output, or component output.

Characteristic CCD Phenomena

�Smear and blooming

Due to the physical structure of CCDs, vertical streaking

(called “smear”) may occur when shooting an extremely

bright light source or expansion of light (called “blooming”)

may appear around it. Although the CCD employed in this

unit produces very little smear or blooming, these

phenomena may still occur when shooting a bright light

source.

�Moire or aliasing

Stripes, lines or other fine patterns may appear jagged when

they are shot.

�White dots

High temperatures can cause CCD sensor pixels to produce

white dots in the image. This is especially prominent when

boosting the sensitivity.

This is a characteristic of the charged-coupled device (CCD).

As far as possible, use this unit under conditions where the

temperature of this unit does not increase.

Copyright

Any recordings made on this camera recorder that are

played back for profit or public preview may infringe on the

rights of the owner of the recordings.

Do not use the recordings for purpose other than personal

enjoyment without prior consent from the owner.

Smear

Vertical pale streaking appearing at

high luminous object

High luminous object (such as light

bulbs, sun)

Blooming

Blurring in highlight

Monitor Screen

8

Introduction

This camera recorder has three operation modes - Camera mode, Media mode, and USB mode.

The operation mode indicator on the left side of the camera recorder lights up according to the mode.

Operation Mode

Camera Mode Media Mode

USB Mode

(USB Mass Storage Class)

Camera Mode IEEE1 94 3

Mode

SD Card Mode

Thumbnail Display

Playback

(Playback/Pause/Fast Forward/Rewind/

Clip Jump)

[CAM/MEDIA] Selection Button

[CAM/MEDIA]

Selection

Button

[CAM/MEDIA] Selection Button

Playback Button

Stop Button

Connection disabled on PC

[CAM/MEDIA] Button

USB Connection (When the confirmation to change to USB mode

appears and [Change] is selected)

Playback Button

Stop Button

Operation Mode Indicator

9

Operation Mode

Operation

Mode

Indicator

Description

Camera

Mode

Camera

Mode

Blue This is the camera shooting mode. The camera recorder starts up in Camera mode when

the power is turned on.

Memo :

●Images recorded on the SDHC card cannot be played back in this mode. However, you

can check (play back) the most recently recorded image using the Clip Review function.

( Page 56)A

Purple When [Rec Mode] is set to AVariable Frame , the operation mode indicator lights up in B

purple during Variable Frame REC in Camera mode. ( Page 60)A

Media

Mode

SD Card

Mode

Green This mode allows you to play back or delete clips recorded on the SDHC card.

Press the [CAM/MEDIA] selection button to enter SD Card mode when you are not

shooting in Camera mode. Once the camera recorder is in SD Card mode, thumbnails of

the selected media slot are displayed.

IEEE1 94 3

Mode

Orange This is the input mode for video images from the IEEE1 94-connected e uipment.3 q

The camera recorder enters IEEE1 94 mode when you press the [CAM/MEDIA] selection 3

button while the power of the e uipment connected to the [IEEE1 94] terminal is turned on q 3

during thumbnail display in Media mode (SD Card mode). (Only for HD video systems)

When an SD video system is in use, availability of the [IEEE1 94] terminal connection3

cannot be detected in Media mode (SD Card mode). Allow the camera recorder to detect

the [IEEE1 94] terminal connection in advance by turning on the power of the connected 3

e uipment in Camera mode.q

Once the camera recorder is in IEEE1394 mode, the playback images of the connected

e uipment are displayed.q

However, if the IEEE1 94 connection is not recognized (such as when the power of the3

IEEE1 94-connected e uipment is not turned on), the camera recorder will switch to 3 q

Camera mode instead.

Press the [CAM/MEDIA] selection button during IEEE1 94 mode to switch to Camera mode.3

If the power of the e uipment connected to the [IEEE1 94] terminal is OFF or if connection q 3

is canceled in IEEE1 94 mode, the camera recorder will not automatically switch to other 3

modes. To uit IEEE1 94 mode, you must operate the [CAM/MEDIA] selection button.q 3

Note :

●This mode is used for viewing images input to the [IEEE1 94] terminal from an external 3

device, and not intended for recording input images on the camera recorder.

USB Mode Orange This mode allows you to connect to a PC and transfer the files on an SDHC card to the PC.

When the camera recorder is connected to a USB cable, the message Change to USB A

Mode appears. Select [Change] and press the Set button to switch to USB mode. B

( Page 124)A

In USB mode, the camera recorder is recognized by the connected PC as a peripheral

drive (USB mass storage class only). Disable the connection on the PC and remove the

USB cable from the camera recorder to switch to Camera mode. ( Page 124)A

Memo :

●When a USB cable is connected, the message appears after recording stops.

●If playback is in progress, the message appears once the files are closed automatically,

such as when playback stops.

10

Introduction

AFront Tally Lamp ( Page 0, 9 )A3 3

BViewfinder Cable Clamp ( Page 22)A

C[ZEBRA ON/OFF] Zebra ON/OFF Switch (APage 20)

[SKIN AREA/SPOT METER] Skin Area/Spot Meter Switch

( Page 0) A8

D[AWB] Auto White Balance Button ( Page 42) A

●Setting the [WHT.BAL.] selection switch ( Page 12) AI

on the control panel on the right side of the camera

recorder to A or B starts up the Auto White function.A B A B

●If the [WHT.BAL.] selection switch (APage 12) is set I

to PRESET , you can switch the color temperature of the A B

preset white balance.

ELens Lock Lever ( Page 21)A

F[MONITOR SELECT] Audio Monitor Selection Switch

( Page 46)A

G[DISPLAY] Display Button ( Page 0) A3

H[CAM/MEDIA] Camera/Media Mode Selection Button

( Page ) A8

I[FULL AUTO] Full Auto Shooting (FAS) Switch

( Page 1) A8

JMonitor Speaker (Cheek Pad) ( Page 27)A

KShoe

For mounting separately sold lights and accessories.

LMicrophone Holder Lock Knob ( Page 21)A

MMicrophone Holder ( Page 21)A

NMicrophone ( Page 21)A

Names of Parts

LN M K

B

A

DC E

J

F G H I

Viewfinder ( Page 1 )A3

Side Control Panel ( Page 12)A

LCD Monitor ( Page 1 )A3

Zoom Lens ( Page 16)A

11

OBack Tally Lamp ( Page 0, 9 )A 3 3

P[PHONES] Earphone Connector ( .5) ( Page 47)3 A

Q[LENS] Lens Connector (12-pin Connector)

( Page 21)A

R[INPUT1/INPUT2] Audio Input Terminal 1, 2

(XLR -pin 2) ( Page 46)3�A

SMicrophone Cable Clamp ( Page 21)A

T[CH-2 INPUT] CH-2 Audio Input Terminal Selection

Switch

Select the audio input terminal to record to CH-2. (

A

Page 46)

Memo :

● Audio from [INPUT1] terminal is input to CH-1 regardless

of the setting.

U[AUDIO INPUT 1/2] Audio Input Signal Selection

Switch ( Page 46)A

VViewfinder Connector (20-pin) ( Page 22)A

WAccessory Mounting Screw Hole (x2)

X[FOCUS ASSIST] Focus Assist Button ( Page 7) A 3

YRecord Button Lock Switch

Set the switch toward the lens to lock the [REC] trigger

button .Z

Memo :

● The [REC] trigger button ( Page 12) at the sideA K

control panel on the right of the camera recorder is not

locked.

Z[REC] Rec Trigger Button (Recording Start/Stop)

Starts/stops recording.

Memo :

● The [REC] trigger button ( Page 12) at the sideA K

control panel on the right of the camera recorder is

interlocked with this button.

aHandle

Z

O

Q

P

a

R

S

V

UT

XY W

W

Battery Adapter

( Page 22)A

Side Terminal ( Page 14)A

SDHC Slot

( Page 15)A

12

Introduction

Side Control Panel

A

[VF BRIGHT] Viewfinder Luminance Adjustment Knob

(

A

Page 29)

B

[VF PEAKING] Contour Adjustment Knob (

A

Page 29)

Memo :

●

This knob does not function when Focus Assist is activated.

(

A

Page 7)3

C

[FOCUS ASSIST] Focus Assist Button

Press this button during shooting to display the focus area in

either blue, red, or green. This enables easy and accurate

focusing. ( Page 7)A 3

D[USER1], [USER2], [USER ] User Buttons 3

( Page 79)A

Use these buttons to switch shooting conditions according to

the object. The functions change as below according to the

operation mode ( Page 8).A

Memo :

● Set the functions of the [USER1,USER2,USER ] buttons 3

in the menu. ( Page 79)A

● When the menu screen is displayed, these buttons

function as the menu operation buttons.

( Page 70 [Operation Buttons])A

E[MENU] Menu Button ( Page 70) A

F[ND FILTER] ND Filter Switch ( Page 45)A

G[STATUS] Status Screen Display Button

● Press the [STATUS] button to display the status screen on

the viewfinder and LCD monitor during normal screen

display (when the menu screen is not displayed).

( Page 18 [Status Screen])A

● Switches between [Main Menu] and [Favorites Menu]

when the [STATUS] button is pressed while the menu

screen is displayed. ( Page 70)A

H[GAIN] Sensitivity Selection Switch ( Page 40)A

I

[WHT.BAL.] White Balance Selection Switch (

A

Page 42)

You can select one of the three white balance types.

J

[POWER] Power ON/OFF Switch

Turns ON/OFF the power.

When the power is OFF, POFF appears on the LCD A B

monitor and viewfinder.

Wait for 5 seconds or more to turn on the power again.

K

[REC] Rec Trigger Button (Recording Start/Stop)

Starts/stops recording.

The [REC] trigger button ( Page 11) on top and theA Z

[REC] trigger button ( Page 16) of the lens are interlocked A

with this button.

Memo :

● When [1 94 Rec Trigger] in the [Others] menu is set to3

A BSplit , this button becomes the recording start/stop

button of the external e uipment. ( Page 94)q A

( Page 122 [Backup Recording])A

L[AUDIO LEVEL CH-1/CH-2]/[AUTO] CH-1/CH-2

Recording Level Adjustment Knob/Auto Indicator

( Page 46)A

M[CANCEL] Cancel Button

Cancels various settings and stops playback.

NCross-Shaped Button (JKH I R)/Set Button ( )

The function changes according to the operation status of

the camera recorder.

�During menu operation (all modes) ( Page 70)A

Center Set button ( R) : Confirms menu items and

setting values

Cross-Shaped Button ( JK) : Selects menu items and

setting values

�During Camera mode

Shutter operation:

Center Set button ( R) : Shutter ON/OFF

Cross-Shaped Button ( ) : Switches shutter speed JK

when shutter is ON

AE level operation : Cross-shaped button ( H I)

Names of Parts (continued)

During Camera mode During Media mode

[USER1]

Button

●

Activates the function assigned

to [USER1] in the menu.

●

Loads the [TC Preset] screen

when pressed together with the

[MENU] button. (

A

Page 51)

Adds/deletes OK

mark.

( Page 68)A

[USER2]

Button

●

Activates the function assigned

to [USER2] in the menu.

●

Resets settings on the [TC

Preset]/[UB Preset] screen when

pressed. (

A

Page 51, 52)

Deletes Clips

( Page 66)A

[USER ] 3

Button

●

Activates the function assigned

to [USER ] in the menu.3

^

A

B

D

E

F

G

I

J

L

M

N

O

P

K

C

H

13

Memo :

● When [Camera Function] menu [Switch Set] [AE B B

LEVEL] is set to AE LEVEL/VFR , the cross-shaped A B

button ( ) is used to set the number of frames duringH I

Variable Frame Rec.

( Page 60 [Variable Frame Rec])A

( Page 80 [AE LEVEL])A

�During Media mode (SD Card mode) ( Page 61)A

Thumbnail operation : Cross-shaped button ( ), JKH I

center Set button ( R)

OOperation Mode Indicator

Lights up as below according to the operation mode.

(

A

Page 8)

Memo :

● You can select whether to light up the indicator using

[Mode LED] in the [Others] menu. ( Page 94)A

P[MONITOR] Audio Monitor Level Adjustment Knob

For adjusting the volume of the monitor speaker and

earphones.

Viewfinder

( Page 29)A

AViewfinder Slide Lock Ring

For loosening the ring and adjusting the position of the

viewfinder to the left or right.D

BEyepiece Focus Ring

For adjusting the visibility.

CViewfinder Eyepiece Lock Ring

For loosening the ring and adjusting the eyepiece position of

the viewfinder to the front or back.

DViewfinder

EEyepiece

Prevents external light from entering the viewfinder screen

and cameraman’s vision.

LCD Monitor

ALCD Monitor ( Page 2 )A 8

B[LCD PEAKING +/-] LCD Contour Adjustment Button

( Page 2 ) A 8

C[LCD BRIGHT +/-] LCD Display Brightness

Adjustment Button ( Page 2 ) A 8

D[AUDIO SELECT CH-1/CH-2] Audio Recording Mode

Switch ( Page 46)A

E[TC DISPLAY] TC/UB Display Switch ( Page 4 ) A 8

F

[TC GENE.] Time Code Generator Switch (

A

Page 4 )8

GLCD Cover Lock Release Knob ( Page 2 )A 8

Operation Mode Color

Camera Mode Blue/Purple

Media Mode (SD Card Mode) Green

Media Mode (IEEE1 94 Mode) Orange3

USB Mode Orange

ED

A

C

B

C

D

EF

A

G

When the LCD monitor is open

14

Introduction

Side Terminal

A[HD/SD-SDI] HD/SD-SDI Output Terminal (BNC)

( Page 120) A

B[Y/VIDEO] Y/Composite Video Signal Output

Terminal (BNC) ( Page 120) A

C[PB] PB Video Signal Output Terminal (BNC)

( Page 120) A

D[PR] PR Video Signal Output Terminal (BNC)

( Page 120) A

E[REMOTE] Remote Terminal ( Page 125) A

F[DC INPUT] DC Input Terminal ( Page 22)A

Input terminal for DC 12 V power supply. Connects with an

AC adapter.

G[AUDIO OUTPUT CH-1/CH-2] Audio Output Terminal

(RCA)

Output terminal for audio signals.

● Input audio signals are output during Camera mode.

● Playback audio signals are output during Media mode.

● Audio from input audio signals is output during HD/DV

signal (IEEE1 94) input.3

Memo :

● Alarm tone is not output.

H[INT/EXT] IEEE1 94 Interface Terminal Switch3

( Page 122) A

For selecting a valid IEEE1 94 interface terminal.3

IShoulder Pad Slide Button

For adjusting the shoulder pad position. Press this button to

adjust the shoulder pad position to the front or back.J

JShoulder Pad

K[USB] USB Terminal ( Page 124) A

L[IEEE1 94] IEEE1 94 Terminal (4-pin)3 3

For connecting digital video e uipment with IEEE1 94q 3

terminal using an IEEE1 94 cable (sold separately).3

To enable this terminal, set the [INT/EXT] IEEE1 94 terminal 3

switch to [EXT].H

( Page 122 [IEEE1 94 Connection])A 3

Note :

● When connecting IEEE1 94 cables, check that the3

connectors are facing the right direction before you insert.

Memo :

● Put on the covers when the connectors are not in use.

Names of Parts (continued)

A

C

E

F

G

D

B

HIJ

K

L

[EXT] Enables IEEE1 94 signals from the [IEEE1 94] 3 3

terminal .L

[INT] Enables the accessory connector at the rear B

of the camera recorder. ( Page 15)A

15

SD Slot

( Page 1)A 3

ACard Slot A Status Indicator

B[SLOT SELECT] Card Slot Selection Button

For switching SDHC cards.

CSDHC Card Cover

DCard Slot B Status Indicator

E[OPEN] SDHC Card Cover Open/Close Knob

Rear

AShoulder Belt Mount (x2)

For mounting a shoulder belt (sold separately).

Note :

● Be sure to use a shoulder belt with the strength to

withstand the weight of this camera recorder.

● If the shoulder belt is not properly attached, the camera

recorder may fall and cause injuries.

● Check the instruction manual provided with the shoulder

belt before using.

BAccessory Connection Terminal

Terminal for connecting a KA-MR100G (Memory Recorder:

sold separately) or other units.

Memo :

● When using this terminal, make sure that the Battery

Adapter is removed.C

CBattery Adapter ( Page 22)A

The shape is different for GY-HM750CHU/GY-HM750U and

GY-HM750CHE/GY-HM750E.

* The above is the illustration for GY-HM750CHE/GY-

HM750E.

D

C

E

B

A

B

C

16

Introduction

Zoom Lens

(Supplied with GY-HM750U/GY-HM750E only)

AFocus Ring

BZoom Lever/Ring

To operate zoom with this lever, turn the [ZOOM] switch M

and set it to MANU. .A B

C

Iris Ring

To operate auto iris, set the iris mode switch to A .H A B

DLens Cable

E[REC] Record Trigger Button

Starts/stops recording.

F[RET] Return Video Button

Press this button to play back and check the latest clip,

according to the settings under [Clip Review] of [Switch Set]

in the [Camera Function] menu. ( Page 79)A

( Page 56 [Viewing Recorded Videos Immediately (Clip A

Review)])

Memo :

● When [LENS RET] of [Switch Set...] in the [Camera

Function] menu is set to Focus Assist , this button A B

functions as the Focus Assist button. When it is set to

A BReturn , a return video is displayed. ( Page 79)A

GZoom Servo Control Lever

To operate zoom servo with the zoom servo control lever, set

the [ZOOM] switch to SERVO .M A B

● Zooms into wide angle and increases the angle of view

when AW is pressed.B

● Zooms into telephoto and decreases the angle of view

when AT is pressed.B

● Zoom speed increases when the lever is pressed hard.

HIris Mode Switch

IIris Momentary Button

Press and hold this button to change to auto iris mode when

the iris mode switch is set at M .H A B

J[I.G.] Iris Speed Adjustment Knob

If the speed is set too fast, opening/closing of the iris

becomes unstable and hunting may occur. Readjust the

speed in this case.

KFilter Built-In Screw

A transparent or UV filter for lens protection can be installed

inside the lens hood from the front. Filters for various effects

can also be used.

● Installable filter types

LZoom Servo Connector

For connecting a zoom servo unit (sold separately).

M[ZOOM] Zoom Switch

NBack Focus Ring/Lock Screw

Exclusive ring for adjusting the back focus. After adjusting,

secure with a lock screw.

( Page 28 [Adjusting Back Focus])A

O[M] Macro Focus Ring (for close-ups)

Turn the ring in the direction of the arrow to take close-up

shots of small objects.

Normal focusing and zooming cannot be performed in macro

mode.

To take macro shots

● Set focus ring to infinity ( ).A n

● Set zoom ring to the maximum wide angle.B

● Rotate this ring in the direction of the arrow to adjust

focus on the object.

Note :

● As the back focus knob is located nearby, be careful not to

mistake the two knobs.

● Do not forget to restore the macro ring to its original

position after use. ( Page 28 [Adjusting Back Focus])A

Names of Parts (continued)

M

RET

IRIS

A M

W

T

REC

H

ABC

IGFE

NL O

D J

K

MANU. SERVO

ZOOM

M

CANON KT14 x 4.4KRSJ A: Auto iris operation mode.

M: Manual iris operation mode.

When installed on the hood : 82 mm P0.75

When installed on the lens body : 72 mm P0.75

SERVO : Enables zooming with the zoom servo control

lever G.

MANU. : Enables zooming with the zoom lever/ring .B

17

* Models with an E suffix are for the European market and the UL Listing mark is not applicable.

Basic System Diagram

Shoulder Belt

Earphone

Focus Manual Unit

HZ-FM1 (FUJINON)3

HZ-FM15 (CANON)

1/ Zoom Lens3

Th1 x .5BRMU(FUJINON)3 3

Zoom Servo Control

HZ-ZS1 B3

1/2 Zoom Lens

Microphone

1/ Zoom Lens3

KT14x4.4KRSJ (CANON)

(GY-HM750U/GY-HM750E only)

Standard Package

Mount Converter

(1/2 1/ ):ACM-12B 3

Carrying Case

SDHC Memory Card

XLR 4P

AC Adapter

AC

Tripod

Composite Cable

BNC

Audio Cable

RCA pin

IEEE1 94 Cable3

4P-6P

Monitor

VTR

Non-linear Editing

System

BR-HD50U/E*

For GY-HM750CHE/GY-HM750E*

Anton Bauer

Battery

(Dionic90)

Remote Control Unit

RM-LP25U/RM-LP55U/

RM-LP57U

IDX

Battery Charger

External Recording

Device

Component Cable

BNC

Battery Adapter

Monitor

IDX Battery

(Endura)

Anton Bauer

Battery Charger

For GY-HM750CHU/GY-HM750U

SDI Cable

BNC

GY-HM750CHU/GY-HM750U:Gold Mount

GY-HM750CHE/GY-HM750E:V Mount

SDHC Card Reader

USB Cable

Mount Converter

(2/ 1/ ): ACM-173B 3

2/ Zoom Lens3

Tripod Base

KA-551U

Non-linear Editing

System

PL Mount

Film Lens

16 mm PL Mount

Film Lens adapter

HZ-CA1 U3

Studio Viewfinder

VF-HP790G

Memory Recorder

KA-MR100G

18

Introduction

You can display the camera status, media information, zebra

pattern, and various markers in the video image on the LCD

monitor and viewfinder screens during shooting.

Besides camera and playback images, the following

characters are displayed on the LCD monitor and viewfinder.

�Status screen ( Page 18)A

�Auto White display* ( Page 20)A

�Menu setting screen ( Page 20)A

�Alarm display ( Page 20)A

�Marker and safety zone indicators* ( Page 110)A

�Zebra pattern display (APage 20)

* Displayed in Camera mode only

Memo :

● When [Analog Out Char.]/[SDI Out Char.] in the [A/V Out]

menu is set to AOn , the status screen and menu screenB

are also displayed in the video image of the video signal

output terminal. ( Page 92)A

Status Screen

This screen allows you to check the current settings.

To display the status screen, press the [STATUS] button in

the normal screen.

The status display differs according to the operation mode

(4 types). ( Page 8 [Operation Mode])A

�Status Screen in Camera Mode

( Page 100)A

Viewfinder display

The display switches between the 5 screen types with every

press of the [STATUS] button. (STATUS 0

B

1

B

2

B

3

B

4

B

0)

LCD monitor display

The display switches between the 5 screen types with every

press of the [STATUS] button. (STATUS 0

B

1

B

2

B

3

B

4

B

0)

Press the [DISPLAY] button to switch to the enlarged status

display screen. ( Page 19)A

Displays on the LCD

Monitor and Viewfinder

[STATUS]

Button

[DISPLAY]

Button

Viewfinder

LCD Monitor

STBY

MAX 12 %3

MIN 45%

S.DTL

B -3

A< 200K>3

F5.6 AE+1 dB 1/100009

30/24 fps

00:00:00:00

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

F5.6 AE+1 dB 1/100009STBY

100min

1280x720

24p HQ

B

A

282min

30/24 fps

CAMERA INFORMATION

SETUP FILE SCENE

[ SCENE ]

ZEBRA1 50%~100%

ZEBRA2 70%~80%

AUDIO CH1 CH2

FORMAT QuickTime

MEDIA 125min

12 min3

B

A

STBY Jan 2. 200 01:2 :45AM9 3

282min

SWITCH ASSIGN

FAW NONE

GAIN [ L / M / H ] 0dB / dB / 12dB 9

USER 1 BARS

USER 2 B.STRETCH3

USER LOAD FILE3

RET CLIP REVIEW

SKIN/SPOT SPOT METER

AELEVEL AE LEVEL/VFR

STBY Jan 2. 200 01:2 :45AM9 3

282min

30/24 fps

MAX 12 %3

MIN 45%

STBY

DF

FREE

A

B

100 min

min

1280 x 720

24p HQ

CH 1

CH 2

STBY

282min

STATUS 0 Screen

STATUS 1 Screen

STATUS 4 Screen

STATUS 2 Screen

STATUS Screen3

STATUS 1 Enlarged Display Screen (LCD monitor only)

Press [DISPLAY]

19

�Status Screen (VF/LCD) During Clip

Playback in Media Mode (SD Card Mode)

( Page 106)A

The display switches between the screen types with every 3

press of the [STATUS] button. (STATUS 0 1 2 0)BBB

�Status Screen in Media Mode (IEEE1 94 3

Mode) ( Page 107)A

The display switches between the 2 screen types with every

press of the [STATUS] button. (STATUS 0 1 0)B B

�Status Screen in USB Mode

This screen displays the USB mode.

Enlarged Status Display on LCD Monitor

You can enlarge and display only the characters of the status

screen on the LCD monitor. (Camera mode only)

1 Set [LCD + VF] in the [LCD/VF] menu to On . A B

( Page )A88

2 Press the [DISPLAY] button while the LCD screen is

displayed.

The display switches between the same display as the

viewfinder and the enlarged display with every press of the

button.

Memo :

●During enlarged display of the status on the LCD monitor

screen, the video image remains displayed on the

viewfinder.

STATUS 0 Screen

STATUS 1 Screen

STATUS 2 Screen

1280x720

24p HQ

282min

STATUS 0 Screen

STATUS 1 Screen

DF

FREE

A

B100 min

min

12 0 x 7208

24p HQ

CH1

CH2

STBY

2 2min8

[DISPLAY] Button

20

Introduction

Auto White Display (Camera Mode Only)

Displays the operation and result when Auto White Balance is

activated.

( Page 42 [Adjusting the White Balance])A

Menu Setting Screen

For configuring various settings.

Press the [MENU] button to display the menu setting screen.

( Page 70 [Basic Operations in Menu Screen])A

Alarm Display

●Alarm is displayed during the status screen display in

Camera mode (STATUS 0, 1, 4) and Media mode. If the

alarm sounds during STATUS 2 or screen display in 3

Camera mode, the display will return to STATUS 0 screen

and alarm will be displayed.

( Page 128 [Error Displays and Actions])A

Zebra Pattern Display

Two types of zebra patterns that indicate the luminance level

of the video image can be displayed on this camera recorder.

You can set the luminance levels for displaying the two types

of zebra patterns.

( Page 5 [Setting Zebra Pattern])A3

Memo :

●Use the [ZEBRA ON/OFF] switch in front to turn ON/OFF

the zebra pattern display.

●Set the display pattern and luminance level in [LCD/VF]

menu [Shooting Assist] [Zebra]. ( Page 89)B B A

Displays on the LCD Monitor

and Viewfinder (continued)

[Main Menu] Screen

STBY

MAX 12 %3

MIN 45%

S.DTL

B -3

A< 200K>3

F5.6 AE+1 dB 1/100009

30/24 fps

1min

1minB

A

RES

Alarm Display Area

Zebra Pattern

21

Preparations

Attaching the Zoom Lens

(Supplied with GY-HM750U/GY-HM750E only)

1 Loosen the mount ring.

2 Attach the zoom lens such that the pin matches the

hole of the mounting area.

3 Tighten the mount ring.

4 Connect the cable connector.

5 Attach the lens cable to the clamp.

Memo :

●

Tighten the mount ring completely. If it is not fully tightened,

the lens may drop or the back focus may be out of alignment.

●When attaching or removing the zoom lens, set the

[POWER] switch of the camera recorder to OFF .A B

Attaching the Microphone (Supplied)

You can attach the supplied microphone to the microphone

holder.

The supplied microphone has a phantom power supply.

1 Turn the knob on the microphone holder

anticlockwise to loosen and open the microphone

holder.

2 Place the microphone in the microphone holder.

3 Turn the knob on the microphone holder clockwise to

secure the microphone.

4 Connect the microphone cable to the [INPUT1] or

[INPUT2] terminal.

5 Pin the microphone cable to the clamp.

6 Make sure to perform the correct settings for the

phantom microphone ( Page 46).A

Attaching the Viewfinder (Supplied)

1 Slide the viewfinder in the direction of the arrow to

attach it.

2 Turn the slide lock ring to secure the position of the

viewfinder.

3 Attach the viewfinder cable to the viewfinder terminal.

4 Pin the viewfinder cable to the clamp.

Attaching Accessories

REC

1

2

3

4

Hole

Clamp

Microphone

Microphone Holder

Clamp

[INPUT1/INPUT2] Terminal

Knob

1

2

Viewfinder

Slide Lock Ring

3

Clamp

22

Preparations

To use this camera recorder, you can attach a battery pack or

connect an AC adapter to it.

( Page 22 [Using a Battery Pack])A

( Page 22 [Using AC Power (DC IN Power)])A

Note :

●Set the [POWER] switch to AOFF before changing theB

power supply that operates this camera recorder.

Use an AC adapter (sold separately) to operate the camera

recorder with AC power.

1 Connect the DC cable of the AC adapter to the [DC

INPUT] terminal of the camera recorder.

Check that the power of the camera recorder and the AC

adapter is turned OFF and connect as shown in the A B

diagram.

2 Set the [POWER] switch of the camera recorder to

AON after turning on the AC adapter.B

Power will be supplied to the camera recorder.

Note :

●Do not insert or remove the DC cable during recording.

●

Do not use power supply of high voltage fluctuation,

containing noise such as ripple, or with insufficient capacity.

�Charging the Built-In Battery

The date/time and time code data are stored using the built-

in rechargeable battery.

When power is connected to the camera recorder, the built-in

battery always gets charged. When the power is

disconnected, the battery gradually discharges.

The battery will be totally discharged if left unused for 3

months and the date/time and time code data will be reset.

When this happens, set the [POWER] switch to AON to B

display the [Initial Setting] screen, then set the date/time.

( Page 26 [Setting the Clock (Initial Setting)])A

Recommended Batteries

U model : Dionic90 (Anton Bauer)

E model : Endura-HL9 (IDX)

* Models with an E suffix are for the European market and

the UL Listing mark is not applicable.

Note :

●Make use of the recommended batteries. Heavy batteries

may fall off if not used correctly.

●See the battery instruction manual on how to charge the

battery.

Battery Operating Time

The following are the approximate times for continuous

operation on fully-charged batteries.

Memo :

●Actual operating times may differ depending on the age of

the battery, charging condition, and operating

environment.

●Operating time is shortened in cold environment.

●The operating time may shorten when power zoom is

used, accessories are connected, or when the LCD

monitor is fre uently used.q

Power Supply

Using AC Power (DC IN

Power)

DC Cable

AC Adapter

[DC INPUT]

DC OUTPUT

Using a Battery Pack

Battery Continuous Operating Time

(At 25 )f

Dionic90 (U model) Approx. h3

Endura-HL9 (E model) Approx. h3

23

Precautions for the Battery Operation

●Do not remove the battery when the [POWER] switch is

AON .B

●Do not insert or remove the DC cable when the battery is

in use.

●Leaving the camera recorder unused with the battery

inside will deplete the battery power even if you set the

[POWER] switch to OFFA B. Remove the battery if you are

not using the camera recorder.

Attaching the Battery

(GY-HM750CHU/GY-HM750U)

Use the Dionic90 (Anton Bauer) battery.

1 Align the battery guide pins (x ) with the battery,3

adapter, and guide hole, and insert straight.

Memo :

●If the guide pins are not inserted straight, the battery will

not be attached correctly.

2 Slide the battery toward the SDHC card cover side

panel until it snaps into place.

�Detaching the Battery

Press down the release lever and slide the battery toward

you to detach it from the camera recorder.

Attaching the Battery

(GY-HM750CHE/GY-HM750E)

Use the Endura-HL9 (IDX) battery.

1 Attach the battery

Face the terminal downward and attach the V mount of the

battery onto the V mount attachment bracket of the camera

recorder.

2 Press down the battery until it snaps into place.

�Detaching the Battery

Press down the release lever and slide the battery upward to

detach it from the camera recorder.

Release Lever

Guide Hole (x )3

Guide Pins

Battery

LCD Screen Side

Release Lever

Battery

V Mount

V Mount Attachment

Bracket

Release Button

Battery

24

Preparations

Power Status Display

�Viewfinder and LCD Monitor Screens

The power status is displayed on the status and menu

screens. If the battery or supplied voltage from the AC

adapter is low, a warning will be displayed in red.

Note :

●If the battery in use is not a recommended one, the battery

mark which indicates the battery level may not appear.

�Status Screen

( Page 100 [Status Screen in Camera Mode])A

( Page 106 [Status Screen in SD Card Mode])A

( Page 107 [Status Screen in IEEE1 94 Input Mode])A3

�Menu screen ( Page 70)A

�Warnings by Lamps and Alarm Tones

●

Warning status is indicated by tally lamps and alarm tones.

●The front and back tally lamps of the camera recorder

blink.

●Alarm tone is output from the monitor speaker or

[PHONES] terminal.

Memo :

●If you continue to use the camera recorder while the

power warning is displayed, the camera recorder will stop

automatically when the battery or supplied voltage from

the AC adapter becomes lower.

●Alarm tone is not output during recording.

Note :

●The remaining battery power and time are displayed as

there are from the battery information. Accurate data may

not be displayed according to the battery condition.

Replace the battery as soon as possible when the

remaining battery power and time are low.

Precautions for Batteries

●Store the battery in a cool and dry place when not in use.

Do not expose the battery to high temperatures (such as

in a car under direct sunlight). This will cause battery

leakage and shorten the battery life.

●Operating time is shortened if the battery terminal is dirty.

●If the operating time shortens drastically even after

charging, the battery may be reaching the end of its life.

Replace the battery with a new one.

Charging

●Use up the charge completely before you charge the

battery. If the battery is not fully discharged before

charging, the battery capacity may drop after repeated

cycles.

●If the battery capacity drops due to repetitive shallow

charging and discharging, it may be recovered by using

up the charge completely and then fully charging the

battery again.

●If you charge the battery immediately after using while the

battery is still warm, it may not be fully charged.

●

It is recommended that you charge the battery in an

environment between 10

f

and 5 3

f

. The battery may

not be fully charged or the charging time may be prolonged

if charged under low temperatures (below 10

f

).

Using a Battery Pack

(continued)

0 0 : 0 0 : 0 0 : 0 0

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

F5.6 AE+1 dB 1/100009

STBY

100min

1280x720

24p HQ

B

A

30/24 fps

RES

DF

FREE

A

B100 min

min

1280 x 720

24p HQ

CH1

CH2

STBY

�Enlarged status display on the LCD monitor

( Page 108)A

25

Turning On the Power

1 Set the [POWER] switch to AON .B

The camera recorder starts up in Camera mode.

Memo :

●The camera recorder always start up in Camera mode

when the [POWER] switch is set to AON .B

●Press the [CAM/MEDIA] button to switch to a different

mode. The operation mode indicator changes as below.

See [Operation Mode] ( Page 8) for details of each A

operation mode.

Memo :

●The camera recorder will switch to IEEE1 94 Input mode 3

only when the IEEE1 94-connected e uipment is in3 q

operation.

�Camera Mode

Camera images are output on the viewfinder and LCD

monitor. When a recordable SDHC card is inserted, the

camera recorder enters the recording standby mode.

A BSTBY appears on the operation mode display area of the

LCD monitor and viewfinder.

Press the [REC] trigger button to start recording.

Memo :

●Playback of SDHC card is not possible in Camera mode.

However, you can use the Clip Review function to check

the most recently recorded video clip. ( Page 56)A

�Media Mode (SD Card Mode)

This mode allows you to play back or delete clips recorded

on the SDHC card.

When a playable SDHC card is inserted, the thumbnail or

playback screen is output on the viewfinder and LCD

monitor.

�Media Mode (IEEE1 94 Input Mode)3

This mode allows you to check IEEE1 94 input signals.3

When playable IEEE1 94 signals are input, input images are 3

output on the viewfinder and LCD monitor. IEEE1 94 input 3

signals cannot be recorded.

Turning Off the Power

Set the camera recorder to the recording standby or stop

mode.

1 Set the [POWER] switch to AOFF .B

2 Remove the battery and the power to the [DC INPUT]

terminal (when not in use for a long time).

Note :

●Do not set the [POWER] switch to AOFF during B

recording. Check that the operation mode display is

A B ASTBY or STOP before you turn off the power.B

●If you have mistakenly set the [POWER] switch to OFFA B

during recording, wait for 5 seconds or more before you

turn on the power again.

●When turning off the power, first set the [POWER] switch

of the camera recorder to AOFF . Do not remove the B

battery or turn off the AC power while the [POWER] switch

is set to AON .B

Turning On/Off the Power

●During Camera mode : Lights up in blue/

purple

●During Media mode (SD Card mode) : Lights up in green

●Media Mode (IEEE1 94 Input Mode) :Lights up in orange3

●During USB mode :Lights up in orange

●During mode switching :Blinks in the color of

the new mode

[POWER] Switch

[MENU] Button

[CAM/MEDIA] Button

[REC] Button

[CANCEL]

Button

Cross-Shaped

Button

(JKH I)

Set Button

(R)

26

Preparations

Set the date/time of the built-in clock in the [Initial Setting]

screen. The configured date/time data is saved in the built-in

rechargeable battery even if the power is turned off.

Setting the Clock in the [Initial Setting]

Screen

The [Initial Setting] screen appears when the power is turned

on for the first time and when the built-in battery is turned on

again after being fully discharged.

All operations are disabled until initial settings are complete.

1 Set the [POWER] switch to AON .B

The [Initial Setting] screen appears.

�For GY-HM750CHU/GY-HM750U

�For GY-HM750CHE/GY-HM750E

2 Specify [Time Zone] and [Date/Time].

AMove the cursor with the cross-shaped button ( ) and H I

select the setting item.

BChange the values with the cross-shaped button ( ).JK

3 Press the Set button after setting is complete.

The clock is set to 0 seconds of the input date/time.

Memo :

●

The configured date/time data can be displayed on the LCD

monitor and viewfinder and be recorded to the SDHC card.

●The value of the year can be set in the range of 2000 toA B

A B2099 .

Changing the Time after Initial Setting

�Setting the date/time ( Page 94)A

1 Select [Others] menu [Date/Time].B

The [Date/Time] setting screen appears.

2 Set the date and time.

AMove the cursor with the cross-shaped button ( ) and H I

select the setting item.

BChange the values with the cross-shaped button ( ).JK

3 Press the Set button ( ) after setting is complete.R

The clock is set to 0 seconds of the input date/time.

Setting the Clock (Initial

Setting)

[MENU] Button

Cross-Shaped

Button

(JKH I)

Set Button

(R)

[POWER] Switch

27

Changing the Display Style

You can change the display style of the date/time on the

menu.

Memo :

●To perform the settings while looking at the monitor

screen connected to the video signal output terminal, set

[Analog Out Char.] or [SDI Out Char.] in the [A/V Out]

menu to AOn . ( Page 92)BA

�Setting the date style (Date Style) ( Page 91)A

ASelect [LCD/VF] menu [Status Display] menu [Date B B

Style].

BSelect the date display style.

[Setting values: YMD (year, month, day), MDY (month,

day, year), DMY (day, month, year)]

CPress the Set button ( ).R

�Setting the time style (Time Style) ( Page 91)A

ASelect [LCD/VF] menu [Status Display] menu [Time B B

Style].

BSelect the time display style.

[Setting values: 12hour (12 hour display), 24hour

(24 hour display)]

CPress the Set button ( ).R

Date/Time Display in Different Operation

Modes

The monitor speaker can be rotated 180 degrees.

Adjust according to the position of your ear.

Memo :

●Adjust the volume of the monitor speaker with the

[MONITOR] level adjustment knob at the side control

panel on the right of the camera recorder. Various warning

alarm tones may also be output repeatedly. ( Page 129)A

Note :

●The rotation angle of the monitor speaker is 180 degrees.

Do not over-rotate the monitor speaker.

During Camera mode Date/time of the built-in clock is displayed.

During Media mode

(SD Card mode)

Shooting date/time of the clip being

played back is displayed.

During Media mode

(IEEE1 94 mode)3

Date/time is not displayed.

Adjusting the Monitor

Speaker

Monitor

Speaker

180 Degrees Rotation

[MONITOR] Level Adjustment Knob

28

Preparations

When the lens is first attached, adjust the back focus of the

lens if the focus is not clear when zoomed to the telephoto or

wide angle end.

● Place an object m and above away from the camera3

recorder.

● The Siemens Star Chart is most suitable as the object.

1 Set the iris mode switch of the lens to M (manual).A B

2 Set the zoom mode switch to MANU.A B (manual).

3 Turn to open the iris ring.

Adjust the lighting such that the optimum image level can be

obtained.

4 Turn the zoom lever to set the lens to the maximum

telephoto position.

5 Turn the focus ring to adjust the focus of the object.

6 Set the lens to the maximum wide angle position.

7 Loosen the lock screw of the back focus ring.

8 Shoot the same object and secure the back focus ring

at the position where the object is in focus.

9 Repeat steps 4 8 to three times until the object is in

focus at both the telephoto and wide angle positions.

10 Tighten and secure the lock screw of the back focus

ring.

Adjusting the LCD Monitor

You can change the angle and brightness of the LCD monitor

screen according to your usage condition.

Changing the brightness of the screen will not affect the

recorded images.

�Adjusting the Angle of the LCD Monitor

1 Slide the LCD lock release knob to open the LCD

monitor.

2 Rotate the LCD monitor to adjust the angle.

● While the LCD monitor is open, you can rotate it 180

degrees upward or 90 degrees downward.

● Rotating the LCD monitor 180 degrees upward enables

you to see the screen from the lens side. To display the

image when it is viewed from the opposite direction

(mirror image), perform setting as follows.

[Main Menu] [LCD/VF] menu Set [LCD Mirror Mode] B B

to Mirror Press Set button (A B B R) ( Page 88)A

Adjusting Back Focus

1

2 7, 8, 10

RET

IRIS

A M

W

T

M

3 4, 6 5

Siemens Star Chart

Adjusting the LCD Monitor

and Viewfinder

1

2

LCD Lock Release Knob

Tilt 90 degrees

downward

Tilt 180 degrees

upward

[LCD PEAKING +/-] Button

[LCD BRIGHT +/-] Button

29

�Adjusting the LCD Monitor Screen

Adjusting contour and brightness

● Use the [LCD BRIGHT +/-] button to adjust the brightness

of the LCD monitor screen. Press the [+] and [-] buttons

simultaneously to return to standard settings.

● During adjustment, the brightness level is displayed on

the LCD monitor screen.

● During Camera mode, SD Card mode (playback), or

IEEE1 94 mode3

● During SD Card mode (thumbnail), menu operation, or

USB mode

● Use the [LCD PEAKING +/-] button to adjust the contour

of the LCD monitor screen. Press the [+] and [-] buttons

simultaneously to return to standard settings.

● During adjustment, the contour level is displayed on the

LCD monitor screen. ( Page 29 [Adjusting contour andA

brightness])

● During Camera mode, SD Card mode (playback), or

IEEE1 94 mode3

● During SD Card mode (thumbnail), menu operation, or

USB mode

Adjusting the Viewfinder

You can change the brightness and peaking of the viewfinder

screen according to your usage conditions.

Changing the brightness of the screen will not affect the

recorded images.

Note :

● A high-definition viewfinder is used on this camera

recorder in order to provide an accurate focusing

environment. Due to the characteristic of the display

device, colors may appear on the images when you blink

your eyes. This is not a malfunction. It does not affect the

recorded images, SDI output, or component output.

�Adjusting the Angle

Adjust the position and angle of the viewfinder.

�Adjusting the Visibility

Turn the eyepiece focus ring to sharpen the image on the

viewfinder screen.

�Adjusting the Viewfinder Screen

Adjusting contour and brightness

●

Use the [VF BRIGHT] knob to adjust the brightness of the

viewfinder screen.

●

Use the [VF PEAKING] knob to adjust the contour of the

viewfinder screen.

T Screen display during adjustment

( Page 29 [Adjusting contour and brightness])A

Displaying in black and white ( Page )A 88

You can display the viewfinder screen in black and white.

[Main Menu]

B

[LCD/VF] menu

B

[VF Display] item

B

Press Set button (

R

)

B

Select

A

B & W

B

Press Set button (

R

)

[+] : Press this button to brighten the screen.

[-] : Press this button to darken the screen.

[+] : Press the button to increase contour correction.

[-] : Press the button to decrease contour correction.

Slide Lock Ring

[VF PEAKING] Knob

[VF BRIGHT] Knob

Eyepiece

Lock Ring

Eyepiece Focus Ring

30

Preparations

Displays on the LCD Monitor and

Viewfinder Screens

�When [LCD + VF] in the [LCD/VF] Menu

is Set to AOff ( Page )B A 88

Displays on the LCD monitor and viewfinder screens (VF)

are indicated as below.

Memo :

● Press and hold the [DISPLAY] button for 2 seconds to

switch the display between the LCD monitor and

viewfinder screens.

● The function to switch between LCD monitor and

viewfinder displays by pressing the [DISPLAY] button can

be canceled by opening/closing or rotating the LCD

monitor.

● When the LCD monitor is stored in the camera recorder in

the direction of normal display, pressing of the [DISPLAY]

button will not work.

● You can display both the LCD monitor and viewfinder

screens at the same time by selecting [LCD + VF] in the

[LCD/VF] menu. ( Page 88)A

�When [LCD + VF] in the [LCD/VF] Menu

is Set to AOn ( Page )B A 88

Displays on the LCD monitor and viewfinder screens (VF)

are indicated as below.

Memo :

● Press and hold the [DISPLAY] button for 2 seconds to turn

ON/OFF the LCD monitor screen.

● The function to turn ON/OFF the LCD monitor screen by

pressing the [DISPLAY] button can be canceled by

opening/closing or rotating the LCD monitor.

● The viewfinder screen is always displayed.

These are indicator lamps for recording and warning. The

operation changes according to the menu settings. When the

battery or remaining space on the SDHC card is low, the

lamps blink. (Camera mode only)

* Set using [Tally System]/[Front Tally]/[Back Tally] in the

[Main Menu] [Others] menu. ( Page 9 )B A 3

Adjusting the LCD Monitor

and Viewfinder (continued)

LCD Monitor Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON OFF

Opened LCD Normal LCD ON OFF

Inversed LCD ON OFF

[DISPLAY] Button

Normal LCD

Inversed LCD

LCD closed at 40

degrees and below

LCD opened at 40 degrees

and above

LCD Monitor Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON ON

Opened LCD Normal LCD ON ON

Inversed LCD ON ON

Tally Lamps

Back Tally Lamp

Front Tally Lamp

31

*1 : [Front Tally] and [Back Tally] can be set independently

with the menu settings. ( Page 9 )A 3

*2 : Only battery alarm is displayed.

* : Paused state during special recording ([Clip3

Continuous]). ( Page 59)A

Memo :

● Blinking takes priority over lighting up.

This camera recorder saves the recorded images and audio

sound on the SDHC card (sold separately) in the card slot.

Memo :

● If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a

PC, the recordable time may be shorter or data may not

be properly recorded.

SDHC Cards to Use

Use a Class 6/10 SDHC card (4 GB - 2 GB).3

Note :

● Using cards other than those from Panasonic, TOSHIBA

or SanDisk may result in recording failure or data loss.

�Estimated Recordable Time of SDHC

Cards

The estimated recordable time is only a guide. Differences

may occur depending on the SDHC card in use and the

battery condition.

( Page 75 [Camera Resolution])A

( Page 75 [Frame & Bit Rate])A

Memo :

● If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a

PC, the recordable time may be shorter or data may not

be properly recorded.

�Write-Protect Switch on the SDHC Card

ASlide the write-protect switch upward to enable writing or

deleting.

BSlide the write-protect switch downward to prevent writing

or deleting. (Images in the card are protected.)

Menu

Setting

[Tally System]

^

[Int] [Ext] [Studio]

[Front Tally]/

[Back Tally] *1

Off On Blink On Blink On Blink

Camera

Recorder

Information

Warning ^ ^ J J J^ ^

Alarm *2^ ^ ^o o ^o

External

Device

Information

Warning

^ ^ ^ ^ J^ ^

Alarm

Camera

Recorder

Recording

Status

Recording ^ R R ^ ^ ^ ^

Special

Recording *3 ^R R ^ ^ ^ ^

External

Device

Recording

Status

Recording ^ ^ ^ R R ^ ^

Remote

Control Unit

Input

[CALL] ^ ^ ^ ^ ^ o o

[TALLY(PGM)] ^ ^ ^ ^ ^ R R

[TALLY(PVW)] ^ ^ ^ ^ ^ X X

R: Lights up : Blinks once in 1 secondo

J X: Blinks four times in 1 second : Only back tally lamp lights up

SDHC Cards

SDHC Card Cover Knob

[SLOT SELECT]

Button

Slot A Status

Indicator

Slot B Status Indicator

SDHC Card

Cover

SDHC Card Size

Camera

Resolution Bit Rate

4 GB GB 16 GB 2 GB8 3

1280x720

1440x1080

1920x1080

HQ 12 min 25 min 50 min 100 min

1440x1080 SP 17 min 5 min 70 min 140 min3

1280x720 SP 22 min 45 min 90 min 180 min

720 x 480 15 min 0 min 60 min 120 min-- 3

720 x 576 15 min 0 min 60 min 120 min-- 3

A B

Write/Delete Enabled Write/Delete Disabled

Write-Protect Switch

32

Preparations

Inserting an SDHC Card

This camera recorder comes with two card slots for video/

audio recording and playback (Slot A and B).

1 Slide the SDHC card cover knob of the desired slot in

the direction of the arrow and open the cover.

2 Insert an SDHC card with the notched corner first.

3 Close the SDHC card cover.

�Card Slot Status Indicator

The following table shows the respective states of slot A and B.

Removing the SDHC Card

1 Check that the SDHC card to be removed is not being

accessed (lights up in red).

2 Slide the SDHC card cover knob in the direction of the

arrow and open the cover.

3 Push the SDHC card and remove it from the slot.

4 Close the SDHC card cover.

Memo :

● When both slots are inserted with usable SDHC cards, the

previously selected slot is used.

Note :

● Data may be lost if you turn off the power of the camera

recorder or remove the SDHC card when it is being

accessed. All data recorded on the card, including the file

that is being accessed, may be corrupted. Be sure to

check whether the status indicator is lighted in green or

not before you turn off the power or remove the SDHC

card.

● If you mistakenly remove the card when it is being

accessed, reinsert the card only after the status indicator

goes off.

● The SDHC card may not be recognized if you insert and

remove the card within a short time. When this happens,

remove the card and wait for a few seconds before you

reinsert.

Switching SDHC cards

When both card slots are inserted with SDHC cards, you can

use the [SLOT SELECT] button to switch the card to use.

When the memory on an SDHC card is full during recording,

data recording automatically switches to the other card.

Memo :

● The [SLOT SELECT] button is disabled during recording

or playback. Cards will not be switched even if you press

the button.

SDHC Cards (continued)

Lamp Slot Status

Lights up in red Inserted SDHC card is being accessed.

(writing/reading data)

Do not turn off the power of the camera

recorder or remove the SDHC card.

Lights up in green On standby. Inserted SDHC card can be

used for recording or playback.

Light goes out SDHC card is not inserted.●

● An unusable card is inserted.

● An SDHC card is inserted but a different

slot is selected.

1

2

3

SDHC Card

Notched Corner

2

3

4

1

[SLOT SELECT] Button

[CANCEL] Button

Cross-Shaped

Button

( )JKH I

Set Button ( )R

33

Formatting (Initializing) SDHC Cards

When the following cards are inserted, FORMATTINGA

REQUIRED appears. Format the card using the camera B

recorder menu.

● Unformatted SDHC cards

● SDHC cards formatted under different specifications

* For details of the menu operation, see [Basic Operations in

Menu Screen] ( Page 70).A

Note :

● Be sure to format the SDHC card on this camera recorder.

SDHC cards formatted on a PC and other peripheral

e uipment cannot be used on this camera recorder.q

Memo :

● To cancel the message display, press the [CANCEL]

button. A [!] mark appears at the remaining media display

area when an SDHC card that re uires formatting is q

inserted.

1 Select [Format Media] in the [Media] menu.

( Page 95)A

2 Select the slot of the SDHC card to be formatted and

press the Set button ( ).R

3 The status of the selected SDHC card appears.

4 Select [Format] and press the Set button ( ).R

5 Formatting starts.

6 Formatting is complete.

AComplete appears when formatting is complete.B

Memo :

● If you do not want to format the card, select [Cancel] or

press the [CANCEL] button to return to the previous

screen.

● If you remove the SDHC card during formatting, FormatA

Error! appears and the camera recorder returns to the B

previous screen.

● During formatting, menu operation is unavailable but you

can start recording. However, this is only available when a

recordable SDHC card is inserted in the other slot.

● Formatting cannot be performed in the following cases.

● Recording is in progress on the SDHC card to be

formatted.

● SDHC card is not inserted.

● Write-protect switch of the SDHC card is set ( is

displayed).

Note :

● If you format the SDHC card, all data recorded on the

card, including video data and setup files, will be deleted.

2

4

34

Preparations

Restoring the SDHC Card

It is necessary to restore the SDHC card if an abnormality

occurs to the data in the card due to some reasons.

The message RESTORE MEDIA appears on the LCD A B

monitor/viewfinder screen when an SDHC card that re uires q

restoring is inserted.

Memo :

● To cancel the message display, press the [CANCEL]

button. A [!] mark appears at the remaining media display

area when an SDHC card that re uires formatting is q

inserted.

1 Select [Restore Media] in the [Media] menu.

( Page 95)A

2 Select the SDHC card to be restored and press the Set

button ( R).

3 Restoring starts.

4 Restoring is complete.

● When restoring is complete, AComplete appears and the B

camera recorder returns to the [Restore Media] screen.

● When no media that re uires restoring is inserted, theq

camera recorder returns to the [Media] menu screen.

Note :

● [Restore Media] can only be selected in Camera mode.

However, it cannot be selected while the camera recorder

is recording. Select [Restore Media] in Camera mode

when the camera recorder is not recording.

● [Restore Media] does not restore the SDHC card to its

original states completely. If restoring fails, replace or

format the SDHC card. Take note that formatting the

SDHC card erases all information inside.

Memo :

● Restoring cannot be performed in the following cases.

● Camera recorder is recording in progress.

● SDHC card is not inserted.

● Write-protect switch of the SDHC card is set ( is

displayed).

● Restoring is not re uired.q

SDHC Cards (continued)

2

35

Clips Recorded to SDHC Cards

�Folders in the SDHC Card

Images captured are recorded to [PRIVATE] [JVC] folder B

inside the SDHC card.

Images recorded are sorted into the respective folders

according to the menu settings below.

Memo :

● By formatting (initializing) the SDHC card from the

[Format Media] menu on the camera recorder, folders

re uired for recording in the current [System Definition] q

settings and [File Format] settings will be generated.

●

When the [System Definition] settings and [File Format]

settings are changed, folders re uired for recording in those q

settings will be automatically generated.

Note :

● When a clip inside the folder is moved or deleted using the

Explorer (Windows) or Finder (Mac), recording to the

SDHC card may fail if formatting (initializing) of the card is

not performed.

�Clip (Recorded Data) and Clip Name

When recording is stopped, the images, audio and

accompanying data which are recorded from start to stop are

recorded as one “clip” on the SDHC card.

An 8-character clip name is automatically generated for the

recorded clip. (Clip Name Prefix + Clip Number)

Example:

Clip Name Prefix (any 4 alphanumeric characters)

This is set to xxxG ( xxx denotes the last A B A B 3 digits of the

serial number) by default.

Memo :

● Before recording starts, you can set any characters for the

clip name prefix by using [Main Menu] [Record Set] B

menu [Clip Set] [Clip Name Prefix]. ( Page 76)B B A

● Changes cannot be made after recording.

�Recorded Clips

This camera recorder uses FAT 2 File System.3

As such, recorded materials may be split into several files

due to the file size. However, they can be played back

continuously on the camera recorder. Clips may be recorded

across the two SDHC cards in card slots A and B depending

on the recording time of the clip.

When copying clips to a HDD using a PC, it is recommended

to use [JVC Clip Manager Software], which is found in the

bundled CD-ROM, to maintain continuity.

Note :

● A clip recorded across several cards cannot be played

back continuously. Continuous playback is only possible

when the recording is made on one card.

System Definition

Setting File Format Setting

Record Folder

HD (MPEG2) MOV CQAV

HD (MPEG2) MP4 BPAV

SD (DV) MOV CQDV

SD (DV) AVI CADV

ABCG000 1

Clip Number

A number in automatic ascending order is

assigned in the recording order.

The clip number can be reset in the menu.

* [Clip Set] [Reset Clip Number] ( Page 76)B A

36

Shooting

Preparations

1 Attach the accessories. ( Page 21)A

2 Supply battery or AC adapter power to the camera

recorder. ( Page 22)A

3 Insert an SDHC card. ( Page 1)A 3

4 Turn on the power of the camera recorder.

Set the [POWER] switch to AON . The camera recorder B

starts up in Camera mode and is ready for shooting.

5 Adjust the angle of the LCD monitor and viewfinder.

( Page 2 )A 8

Shooting

1 Configure the video and audio input settings.

You have to configure video settings such as brightness

adjustment (iris, gain, shutter) and white balance adjustment

in order to start shooting. You also have to adjust the audio

input settings and audio recording level for audio recording.

● Adjusting the Iris ( Page 9)A 3

● Setting Gain ( Page 40)A

● Setting the Electronic Shutter ( Page 40)A

● Adjusting the White Balance ( Page 42)A

● Adjusting the White Shading ( Page 44)A

● Setting the ND Filter ( Page 45)A

● Adjusting Audio Input Settings and Recording Level

( Page 46)A

2 Press the [REC] button to start recording to the SDHC

card.

● There are two [REC] buttons on the camera recorder and

one on the lens. Any of the [REC] buttons can be used to

start/stop recording by default.

● During recording, the front and back tally lamps light up in

red.

Memo :

● If both the slots are loaded with recordable cards in the

factory default, pressing the [REC] button starts recording

only to the media in the selected slot. When [Slot Mode] in

the [Record Set] menu is set to Dual , recording can be A B

performed simultaneously to the cards in both the slots.

( Page 57 [Dual Rec])A

● Tally lamps can be turned off with [Front Tally]/[Back Tally]

in the [Others] menu. ( Page 9 )A 3

● To separately control this camera recorder and other

e uipment connected to the [IEEE1 94] terminal, you can q 3

configure the setting at [1 94 Rec Trigger] in the [Others]3

menu. ( Page 94)A

3 Check the most recently captured images (Clip

Review).

Press the [RET] button on the lens to activate the Clip

Review function ( Page 56). The most recently capturedA

images are played back on the LCD monitor and viewfinder

screens. After playback, the camera recorder returns to

standby mode (STBY).

* When [Main Menu] [Camera Function] B B [Switch Set] B

[LENS RET] is set to AClip Review (B A Page 79)

Basic Shooting Procedures

1

5

2

3

4

[REC] Button

[POWER] Switch

Back Tally Lamp

Front Tally Lamp

37

Focus Assist Function

When the [FOCUS ASSIST] button is pressed during

shooting, the focused area is displayed in color (blue, red, or

green). This enables easy and accurate focusing. Select the

color in the menu.

Memo :

● When [Main Menu] [LCD/VF] menu [Shooting Assist] B B

B [Focus Assist] is set to ACCU-Focus , the depth of A B

field becomes shallower to enable easier focusing.

( Page 89)A

● The ACCU-Focus function switches automatically to A B

AOff after about 10 seconds.B

● Select the display color in [Main Menu] [LCD/VF] B B

[Shooting Assist] [Color]. ( Page 89)B A

● The [VF PEAKING] knob and [LCD PEAKING +/-] button

do not function when Focus Assist is activated.

�Assigning Focus Assist function to the [RET]

button on the lens

You can assign the Focus Assist function to the [RET] button

on the lens.

* Set [Main Menu] [Camera Function] [Switch Set] B B B

[LENS RET] to Focus Assist . ( Page 79)A B A

[FOCUS ASSIST] Button

38

Shooting

You can select the system definition (HD or SD), file format

for recording/playback and the record format for video

images on this camera recorder.

Memo :

● Make a selection in [Main Menu] [Record Format] B

menu.

Selecting a System Definition

Select the system definition in [System Definition].

There are two different definitions for selection.

HD (MPEG2) : Records in HD (High Definition) ualityq

SD (DV) : Records in SD (Standard Definition) ualityq

Selecting a File Format

Select a file format in [File Format].

There are three file formats for selection.

QuickTime : QuickTime file format (.MOV)

MP4 : MP4 file format

AVI : Standard video file format for Windows

systems

Memo :

● The available options vary as follows depending on the

[System Definition] setting.

● For HD (MPEG2) : QuickTime, MP4A B

● For SD (DV) : QuickTime, AVIA B

Selecting a Video Format

Select a [Record Format] from the list of formats. The

selectable [Frame & Bit Rate] changes according to the

settings of [System Definition], [File Format], and [Camera

Resolution].

The recording bit rate is 5 Mbps VBR when HQ is 3 A B

selected, and 18. Mbps (1080i is 25 Mbps) CBR when 3 A BSP

is selected.

�List of Formats

The following is a list of file formats and video formats that

can be selected on this camera recorder.

�When [System Definition] is set to HD (MPEG2)A B

�When [System Definition] is set to SD (DV)A B

When [System Definition] is set to SD (DV) , the video A B

format is fixed as follows for the different models.

Selecting System

Definition, File Format and

Video Format

Record Format

Remarks

File Format Camera Resolution Frame & Bit Rate

Horizontal×Line

QuickTime/

MP4

1280x720 60p (HQ)

60p (SP) HDV

compatible

30p (HQ)

30p (SP) HDV

compatible

24p (HQ)

24p (SP) HDV

compatible

50p (HQ)

50p (SP) HDV

compatible

25p (HQ)

25p (SP) HDV

compatible

1440x1080 60i (HQ)

60i (SP) HDV

compatible

50i (HQ)

50i (SP) HDV

compatible

1920x1080 60i (HQ) Full HD

30p (HQ) Full HD

50i (HQ) Full HD

25p (HQ) Full HD

24p (HQ) Full HD

Record Format

Remarks

File Format Camera Resolution Frame & Bit Rate

Horizontal×Line

QuickTime/

AVI

720 x 480 (U model) 60i DV

compatible

720 x 576 (E model) 50i DV

compatible

39

Selecting the Aspect Ratio of SD Videos

Select an aspect ratio for the images.

The available options vary as follows depending on the

[System Definition] setting.

● For HD (MPEG2) : Fixed at 16:9A B

● For SD (DV) : 16:9, 4:A B 3

Setting the Record Format Menu

1 Display the [Main Menu] [Record Format] menu.B

2 Set each of the items.

3 After setting is complete for all items, select [SET] at

the bottom of the screen, and press the Set button ( R).

● The record format is switched.

● A Please Wait message appears on the screen duringA B

switching.

You can adjust the aperture of the lens iris manually or

automatically according to the brightness of the object.

Manual Iris (Manual Adjustment) Mode

Set the [IRIS] switch on the lens to M to enter Manual Iris A B

mode.

Turn the iris ring on the lens to adjust the iris manually.

Memo :

● Even during Manual Iris mode, the camera recorder

enters forced Auto Iris mode while the [IRIS AUTO] button

is pressed.

Auto Iris (Automatic Adjustment) Mode

Set the [IRIS] switch on the lens to A to enter Auto Iris A B

mode. The iris is automatically adjusted according to the

brightness of the object.

Memo :

● Even when the [IRIS] switch of the lens is set to M , it A B

switches automatically to Auto Iris mode when the [FULL

AUTO] switch is set to AON .B

●

When [Iris Control] in the [Camera Function]

B

[FULL AUTO]

menu is set to

A

Off

B

, you can adjust the iris manually even if

the [FULL AUTO] switch on the camera recorder is set to

A

ON

B

. (

A

Page 81)

● You can use the cross-shaped button ( ) on this cameraH I

recorder to set the target level (brighter/darker) of the auto

iris. You can also use the menu to set the tracking

sensitivity of the auto iris. ( Page 78)A

3

Adjusting the Iris

RET

IRIS

A M

W

T

[IRIS] Switch

Iris Ring

40

Shooting

This function electrically boosts the light sensitivity when

there is insufficient illumination on the object. You can set the

gain of the video amplifier according to the brightness of the

object. Select the setting mode according to your shooting

conditions.

Fixed Gain Mode (Manual Gain Switching)

You can select the gain of the video amplifier using the

[GAIN] switch on the camera recorder.

The default positions of the switch are as follows.

Memo :

●

The gain value of each position can be set to

A

ALC

B

and

within the range of

A

0dB

B

to

A

18dB

B

(in increments of 3 dB)

in the menu. Increasing the sensitivity causes the screen to

appear grainier. (

A

Page 79)

Automatic Gain Mode (Automatic Gain

Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter Automatic gain Level Control ( ALC fixed). The A B

gain of the video amplifier is automatically set according to

the brightness of the object.

In this case, the [GAIN] switch on the camera recorder is

disabled.

Memo :

● When [Gain] in the [Camera Function] [FULL AUTO] B

menu is set to ASW Set , you can switch the gain with the B

[GAIN] switch even if the [FULL AUTO] switch on the

camera recorder is set to AON . ( Page 81)BA

You can change the shutter speed (time for each shooting

frame) using the electronic shutter function. Electronic

shutter can be adjusted manually or automatically.

Fixed Shutter Mode (Manual Shutter

Switching)

Use the Set button ( ) to switch between the shutter modes R

and the cross-shaped button ( JK) to switch between the

speeds.

�Switching Shutter Mode

Press the Set button (center of the cross-shaped button) to

turn ON/OFF the shutter.

Memo :

● When the shutter is ON, Step , A B AVariable , or EEIB A B

(Extended Electric Iris, i.e. Automatic Shutter mode) may

be selected using [Shutter] in the [Camera Function]

menu. Step is the factory default. ( Page 78)A B A

Setting Gain

[L] : 0 dB (No electrical boosting.)

[M] : 9 dB (Boosts sensitivity by about 2.8 times.)

[H] : 18 dB (Boosts sensitivity by about 8 times.)

[GAIN] Selection

Switch

[FULL AUTO]

Switch

Setting the Electronic

Shutter

Cross-Shaped Button

( )JK

[FULL AUTO] Switch

Set Button ( )R

41

�Switching Shutter Speed

When shutter is ON, use the cross-shaped button ( ) to set JK

the shutter speed. Shutter speed differs according to the

video format and variable frame rate settings.

�During modes other than Variable Frame Rec

�During Variable Frame Rec

Memo :

●Shutter speed is usually displayed in seconds (SEC).

However, only when [Frame & Bit Rate] is set to 24pA

(SP) , 24p (HQ) , 25p (SP) , or B A B A B A25p (HQ) , the speed B

can be displayed in angle (DEG).

( Page 75 [Frame & Bit Rate])A

( Page 91 [Shutter Disp.])A

Automatic Shutter Mode (Automatic

Shutter Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter the automatic shutter adjustment mode. The shutter

speed is automatically adjusted according to the brightness

of the object.

Switching of shutter speed with the cross-shaped button

(JK) and switching of shutter mode with the Set button ( ) R

are disabled.

Memo :

●When [Shutter] in the [Camera Function] [FULL AUTO] B

menu is set to SW Set , you can switch the shutter mode A B

with the Set button (R) and shutter speed with the cross-

shaped button ( ) even if the [FULL AUTO] switch onJK

the camera recorder is set to ON . ( Page 81)A B A

●When [Shutter] in the [Camera Function] [FULL AUTO] B

menu is set to EEI , the camera recorder enters A B

Automatic Shutter Adjustment mode. Switching of shutter

mode with the Set button (R) and shutter speed with

cross-shaped button ( ) is disabled. ( Page 81)JK A

Shutter

Camera

Resolution/

Frame &

Bit Rate

720/60p

720/ 0p3

10 0/60i8

10 0/ 0p8 3

4 0/60i8

720/50p

720/25p

10 0/50i8

10 0/25p8

576/50i

720/24p

10 0/24p8

J

Button

Step

1/10000

1/10000 1/10000 1/4000

1/4000 1/4000 1/2000

1/2000 1/2000 1/1000

1/1000 1/1000 1/500

1/500 1/500 1/250

1/250 1/250 1/100

1/100 1/120 1/60

(Standard) 1/60 1/50 1/48

1/ 0 1/25 1/243

1/15 1/12.5 1/12

K

Button

1/7.5 1/6.25 1/6

J

Button

Variable

(Upper

limit) 1/10489.5

to

(Standard) 1/60.00 1/50.00 1/48.00

to

K

Button

(Lower

limit) 1/ 0.0 1/25.04 1/24.013 3

Shutter

Camera

Resolution/

Frame & Bit

Rate

720/ 0p3

720/24p

Frame

Rate

60, 0, 15 48, 24, 12 40, 20, 103

J

Button

Step

1/10000

1/10000 1/4000

1/10000 1/4000 1/2000

1/4000 1/2000 1/1000

1/2000 1/1000 1/500

1/1000 1/500 1/250

1/500 1/250 1/100

1/250 1/100 1/60

1/100 1/60 1/48

(Standard) 1/60 1/48 1/40

1/ 0 1/24 1/203

1/15 1/12 1/10

K

Button

1/7.5 1/6 1/5

J

Button

Variable

(Upper

limit) 1/10489.5

to

K

Button

(Lower

limit) 1/60.00 1/48.00 1/40.00

Shutter

Camera

Resolution/

Frame &

Bit Rate

720/25p

Frame

Rate

50, 25, 12.5 40, 20, 10

J

Button

Step

1/10000

1/10000 1/4000

1/4000 1/2000

1/2000 1/1000

1/1000 1/500

1/500 1/250

1/250 1/120

1/120 1/50

(Standard) 1/50 1/40

1/25 1/20

1/12.5 1/10

K

Button

1/6.25 1/5

J

Button

Variable

(Upper

limit) 1/10489.5

to

K

Button

(Lower

limit) 1/50.00 1/40.00

42

Shooting

Adjust the white balance according to the color temperature

of the lighting. You can select the adjustment mode

according to the shooting conditions.

As the color of the light (color temperature) varies according to

the light source, it is necessary to readjust the white balance

when the main light source illuminating the object changes.

Manual White Balance Mode (Manual

Switching)

You can select the white balance with the [WHT.BAL.]

selection switch.

Use the [WHT.BAL.] selection switch to select

A

PRESET

B

(preset

mode),

A

B

(memory A mode), or

A

B

(memory B mode).

Memo :

●The [FAW] (Fulltime Auto White balance) function can be

assigned to the [A], [B], or [PRESET] button using [Switch

Set] in the [Camera Function] menu. ( Page 79)A

●In [FAW] mode, color temperature of the images is

sampled and white balance is automatically adjusted to

the appropriate level.

●When [White Balance] in the [Camera Function] [FULL B

AUTO] menu is set to AFAWB and the [FULL AUTO] switch

on the camera recorder is set to AON , the mode is fixed B

at FAW .A B

�Preset Mode (PRESET)

Two different color temperature settings are registered on

this camera recorder. You can switch between them using

the [AWB] button.

(Default setting: 200K 5600K )A3B A1B

You can change both the color temperature settings in the

Preset mode in the menu.

[Main Menu] [Camera Process] [White Balance] menuB B

B Select either [Preset Temp.] or [Alternative Temp.].

( Page 85)A

1 Set the [W. BAL] switch to PRESET .A B

2 Press the [AWB] button.

Press the [AWB] button to switch to a different color

temperature. ( Preset Temp. Alternative Temp. )A B A1B

�

Memory A Mode (A), Memory B Mode (B)

Set to the white balance saved in Memory A or Memory B.

When the [WHT.BAL.] selection switch is set to [A] or [B],

press the [AWB] button to execute white balance. The white

balance will be automatically adjusted and the adjusted

value will be saved in Memory A or Memory B.

1 Prepare the camera recorder.

ASet the [POWER] switch to AON .B

BSet the iris mode switch of the lens to A (automatic).A B

CSet the [FULL AUTO] switch to AOFF .B

2 Set the [ND FILTER] switch according to the lighting

( Page 45).A

3 Set the [WHT.BAL.] switch to A or B .A B A B

4 Locate a place with similar lighting conditions as the

object to be shot, place a white object near the center of

the screen and zoom in to fill the screen with white.

5 Press the [AWB] (Auto White Balance) button.

●The white detection frame appears when Auto White

Balance is activated. Fill the frame with white completely.

●AAUTO WHITE A, B OPERATION appears on the B

viewfinder when Auto White Balance is activated.

●When the correct white balance is achieved, AUTOA

WHITE A, B OK appears for about seconds together B3

with the approximate color temperature.

Note :

●Do not use highly reflective objects, such as metals. Doing

so may result in improper white balance adjustment.

●The Auto White function cannot provide optimum white

balance with an object outside the adjustment range, for

example when it contains only a single color or not

enough white color.

Adjusting the White

Balance

[WHT.BAL.] Selection Switch

[FULL AUTO]

Switch

[POWER]

Switch

[AWB] Button

AUTO WHITE A

OK < 200K>3

AUTO WHITE A

OPERATION

[AWB] Activating

Result Display

White Detection Frame

43

�Error Message

If the white balance adjustment is not correctly completed,

one of the following messages will appear for about 5

seconds.

�White Paint Adjustment

You can fine-tune the white balance saved in Memory A or

Memory B.

* Adjust [White Paint R]/[White Paint B] in [Main Menu] B

[Camera Process] [White Balance] menu ( Page 85)B A

When [AWB] is selected, the normal white paint adjustment

value is cleared. However, you can also set to keep the value

even when [AWB] is executed. ( Page 85)A

Automatic White Balance Mode

(FAW: Fulltime Auto White balance)

You can assign FAW (Fulltime Auto White balance) to any A B

of the three positions on the [WHT.BAL.] selection switch.

Configure the setting with [FAW] in the [Camera Function] B

[SW Set] menu. ( Page 79)A

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter FAW mode. White balance is automatically adjusted

according to the color temperature of the lighting on the

object.

White balance switching with the [WHT.BAL.] selection

switch is disabled.

Memo :

●When [White Balance] in the [Camera Function] [FULL B

AUTO] menu is set to A BSW Set , you can switch the white

balance with the [WHT.BAL.] selection switch on the

camera recorder. ( Page 81)A

Note :

●The accuracy of [FAW] is inferior to that of Auto White

Balance.

●When the power of the camera recorder is turned on with

the [FAW] mode selected, it takes about 15 seconds for

the colors to stabilize.

Error Message Status

NG : OBJECT The object used is defective.

Displayed when there is not enough

white color on the object, or when the

color temperature is not suitable.

Use another white object and adjust

the white balance again.

ERROR : LOW LIGHT Insufficient illumination.

Displayed when the lighting is dark.

Increase the lighting and adjust the

white balance again.

ERROR : OVER LIGHT Excessive illumination.

Displayed when the lighting is too

bright. Decrease the lighting and adjust

the white balance again.

44

Shooting

You need to adjust white shading when you change the lens.

Even if white balance is adjusted in the center of the screen,

the top and bottom of the screen may not be adjusted.

In this case, green and yellow colors may appear on the

screen. This is due to the characteristic of the lens. Correcting

this phenomena is known as white shading adjustment.

Perform this adjustment after adjusting the white balance.

1 Fill the monitor screen with a pattern box of uniform

light source or white (plain) paper shone with uniform

lighting.

2 Set the control of the camera lens as follows.

ASet the aperture to F4 or more such that the iris

achieves optimum brightness.

If the brightness is insufficient even at F4, set to the

optimum brightness by increasing the lighting.

BWhen using a zoom lens, set to the center of the zoom

adjustment range.

3 Adjust the white balance of the camera recorder.

( Page 42 [Memory A Mode (A), Memory B Mode (B)])A

4 Set the chroma level of the monitor to the maximum.

5 Check the monitor screen.

●There is no need for adjustment if there is no color at the

top and bottom of the screen.

●If the top of the screen is greenish and the bottom is

reddish or vice versa, continue this adjustment.

6 Adjust the white shading.

It is recommended to adjust only G (green).

ASet [Main Menu] [Camera Process] [White B B

Balance] [Shading Mode] to ManualBA B. ( Page 85)A

BSelect [Adjust] in the [White Balance] menu and press

the Set button (R).

CSelect the item to change with the cross-shaped button

( ) and press the Set button ( ).JK R

DChange the setting value with the cross-shaped button

( ) while looking at the evaluated value at the bottom JK

right of the LCD monitor or viewfinder screen.

●If the evaluated value of the adjusting channel is larger

than 0, use the cross-shaped button ( ) to change the K

setting value so that the value is more or less Even . A B

Similarly, if the value is smaller than 0, use the cross-

shaped button (J) to change the setting value.

( Page 44 [Evaluated value:])A

(Adjustment range : Min (-128) to Normal to Max (127))

Memo :

●There may be some delay in the changes of the evaluated

value after pressing the cross-shaped button ( ).JK

●Increasing the setting value suppresses the colors at the

bottom and enhances the colors on top.

EPress the Set button ( ) to save the settings after the R

changes are complete.

FSelect [Back] and press the Set button ( ) to return to R

the [White Balance] menu.

7 Press the [MENU] button to return to the normal

screen.

8 Readjust the white balance. ( Page 42)A

Note :

●If the lens setup is incorrect, you may over-correct the

white shading. Set to the recommended settings for the

lens. (Do not open the iris more than F4. Do not adjust the

zoom lens at the telephoto or wide angle end.)

●White shading occurs as a result of the optical

characteristic of the attached lens. This is not a camera

malfunction.

Adjusting the White

Shading

Cross-Shaped

Button ( )JK

Set Button ( )R

[MENU] Button

[R] Red adjustment

[G] Green adjustment

[B] Blue adjustment

Evaluated value:

A value that compares the average values of the R, G, B

channels in the evaluated value detection frames at the top

(Top) and bottom (Btm) of the LCD monitor or viewfinder

(difference between [Top] and [Btm]).

If [Top] is larger than [Btm], a negative value is displayed. If

[Top] is smaller than [Btm], a positive value is displayed.

When there is no difference between [Top] and [Btm],

A BEven is displayed. Set such that the evaluated value is

more or less Even .A B

Top

Btm

C D

F

Evaluated Value Detection Frames

Evaluated Value

45

Use the ND filter to keep the lens aperture in the appropriate

range.

Switch according to the brightness of the object. When the

switch is changed, the position of the switched ND filter is

displayed on the LCD monitor and viewfinder screens.

(STATUS 1 Screen)

Memo :

●The display of the ND filter position is set to Off byA B

default. To display the position of the ND filter, set [Filter]

in the [LCD/VF] [Status Display] menu to BAOn . B

( Page 90)A

●It is recommended to use the ND filter to set the lens

aperture to less than F5.6.

Setting the ND Filter

[1/16] Reduces the amount of incident light to 1/16. Select

this for extremely bright outdoor environments.

[1/4] Reduces the amount of incident light to 1/4. Select

this for bright and sunny outdoor environments.

[OFF] Select this for indoor and dark outdoor environments.

00:00:00:00

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

STBY

100min

1280x720

24p HQ

B

A

282min

30/24 fps

[ND FILTER]

Switch

Displays the position of the ND filter

46

Shooting

You can record audio from the two channels (CH-1/CH-2) in

synchronization with video images on this camera recorder.

The camera recorder is e uipped with [INPUT1] and [INPUT2]q

terminals for audio input. You can select a recording channel

and the adjustment mode (manual/automatic).

Setting Audio Input

Select the audio to input through [INPUT1] and [INPUT2]

terminals with the [AUDIO INPUT 1/2] mode switch.

Note :

●When connecting a device that does not re uire a +48 V q

power supply, make sure that it is not set to the

A BMIC+48V position.

●When the [AUDIO INPUT 1/2] mode switch is set to

A BMIC , make sure that a microphone is connected to the

[INPUT1/INPUT2] terminal. If you increase the recording

level when a microphone is not connected, noise from the

input terminal may be recorded.

●When a microphone is not connected to the [INPUT1/

INPUT2] terminal, set the [AUDIO INPUT 1/2] mode

switch to LINE or adjust the volume with the [AUDIOA B

LEVEL CH-1/CH-2] recording level adjustment knob.

Memo :

●Set the reference input level of MIC and MIC+48VA B A B

using [Input1 Mic Ref.]/[Input2 Mic Ref.] in the [Main

Menu] [Record Set] [Audio Set] menu. ( Page 77)B B A

�

Setting of [CH-2 INPUT] Selection Switch

Use the [CH-2 INPUT] selection switch to select the audio to

be recorded to CH-2.

Adjusting Audio Recording Level

You can select to adjust the audio recording levels for the two

channels (CH-1/CH-2) manually or automatically.

�Manual Adjustment Mode (Manual

Adjustment)

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera

recorder to MANUAL to enter the manual adjustment A B

mode, and use the [AUDIO LEVEL CH-1/CH-2] adjustment

knob to set the recording level.

You can adjust the level manually during the recording,

recording standby, and stop modes.

1 Set the [AUDIO SELECT CH-1/CH-2] switch to

AMANUAL for the channel to manually adjust the B

recording level.

2 Turn the corresponding [AUDIO LEVEL CH-1/CH-2]

adjustment knob to adjust the level.

Adjust such that the audio level meter does not light up at

-2 dB even for loud sounds.

Memo :

●

Set [Audio Limiter] in the [Main Menu]

B

[Record Set]

B

[Audio Set] menu to

A

On

B

to activate the audio limiter in

the Manual Adjustment mode. This controls the recording

level when excessive audio signals are input. (

A

Page 77)

●For the reference level to be recorded on SDHC cards, set

[Audio Ref. Level] in the [Main Menu] [Record Set]B B

[Audio Set] menu to -20dB or -12dB . (common for A B A B

CH-1, CH-2) ( Page 77)A

Adjusting Audio Input

Settings and Recording

Level

[LINE]

Use this setting when connecting to an audio device or

other e uipment. The reference input level is +4 dBu.q

[MIC] Use this setting when connecting to a dynamic

microphone.

[MIC+4 V]8Use this setting when connecting to a microphone

(phantom microphone) that re uires a +48 V power q

supply.

[INPUT1] Records audio from [INPUT1] terminal to CH-2.

[INPUT2] Records audio from [INPUT2] terminal to CH-2.

[AUDIO INPUT 1/2]

Mode Switch

[INPUT1/INPUT2] Terminal

[CH-2 INPUT] Selection Switch

[AUDIO LEVEL

CH-1/CH-2]

Adjustment Knob

[AUDIO SELECT CH-1/

CH-2] Selection Switch

When the LCD monitor is open

[FULL AUTO] Switch

0 0 : 0 0 : 0 0 : 0 0

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

F5.6 AE+1 dB 1/100009

STBY

100min

1280x720

24p HQ

B

A

282min

30/24 fps

Audio Level Meter

STATUS 1 Screen

-2 dB

47

Note :

●When the [FULL AUTO] switch on the camera recorder is

set to AON , the recording level cannot be adjusted withB

the [AUDIO LEVEL CH-1/CH-2] adjustment knob.

�Automatic Adjustment Mode

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera

recorder to AUTO or the [FULL AUTO] switch to ON to A B A B

enter Automatic Adjustment mode. The audio recording level

is set automatically according to the input level.

When the [FULL AUTO] switch is set to AON , modeB

switching with the [AUDIO SELECT CH-1/CH-2] switch is

disabled.

Memo :

●When [Audio] in the [Camera Function] [FULL AUTO] B

menu is set to SW Set , you can switch the recording A B

level mode with the [AUDIO SELECT CH-1/CH-2] switch

on the camera recorder even if the [FULL AUTO] switch is

set to AON . ( Page 81)BA

Audio Monitor During Recording

You can check the input audio with the monitor speaker or

earphones.

1 Select the channel to monitor with the [MONITOR

SELECT] switch.

2 Adjust the volume of the monitor audio with the

[MONITOR] adjustment knob.

Memo :

●

Alarm tone is output when there is an abnormality in the

camera recorder. Alarm tone is also output when the

SDHC card is full or when the battery is low. (

A

Page 129)

●Alarm tone is not output during recording.

Note :

●Increasing the volume of the monitor too much may result

in howling of the camera microphone.

�Using Stereo Type Earphone Jack

When a stereo type earphone jack is connected, perform the

following setting to output stereo sound.

1 Set the [MONITOR SELECT] switch to BOTHA B.

2 Set [Main Menu] [A/V Out] [Audio Monitor] to B B

A BStereo . ( Page 9 )A3

Only audio from [CH-1] is output through the monitor

speaker.

Memo :

●You can set the volume of the alarm tone with [Alarm

Level] in the [Main Menu] B [Others] menu. (AOff / Low /B A B

A B A BMiddle / High ) ( Page 9 )A3

[CH-1] Outputs audio from [INPUT1] terminal.

[BOTH] Mixes and outputs audio from both [INPUT1/INPUT2]

terminals.

[CH-2] Outputs audio from [INPUT2] terminal.

[MONITOR]

Adjustment Knob

[MONITOR SELECT]

Switch

Monitor

Speaker

[PHONES]

Terminal

48

Shooting

Time code and user’s bit data are recorded with the video in

this camera recorder.

The time code and user’s bit are displayed on the viewfinder

and LCD screens during playback or recording. (Status

screen)

Displaying Time Code and User’s Bit

The time code and user’s bit are displayed on the viewfinder

and LCD screens during playback or recording.

The display differs according to the menu settings.

1 Set [Main Menu] [LCD/VF] B B [Status Display] B [TC/

UB] to AOn . ( Page 91)BA

Time code or user’s bit data is displayed on the status

screen.

2 Select the display with the [TC DISPLAY] switch on

the LCD monitor.

Select time code display (TC) or user’s bit display (UB).

Memo :

●Time code display for [IEEE1 94] input is not supported.3

●Values recorded on the SDHC card is displayed in Media

mode.

Time Code Operation Mode

Three types of time code operation can be selected with the

[TC GENE.] switch. They are FREE , REC , andA B A B

A BREGEN .

* When [Rec Mode] in the [Record Set] menu is set to

AVariable Frame , time code operation enters RecRun B

mode.

Time Code and User’s Bit

0 0 : 0 0 : 0 0 : 0 0

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

F5.6 AE+1 dB 1/100009

STBY

100min

1280x720

24p HQ

B

A

282min

30/24 fps

Time Code or User’s Bit

STATUS 1 Screen

[TC DISPLAY]

Setting Switch

[TC GENE.] Setting Switch

Setting Display LCD/VF Display VIDEO Output

Display

TC Time

Code

When [Main Menu] [LCD/B

VF] [Status Display] B B

[TC/UB] is set to A BOn , time

code or user’s bit is

displayed during the

following status display and

information display mode of

the LCD screen.

�

STATUS 1 screen in

Camera mode

�

STATUS 1, STATUS 2

screens in Media mode (SD)

When [Analog

Out Char.] or [SDI

Out Char.] in the

[A/V Out] menu is

set to On , time A B

code or user’s bit

is displayed in the

respective video

output images

during the LCD/

VF display setting

on the left.

UB User’s

Bit

Setting Mode Description

FREE FreeRun

mode

The time code operates in the run mode at all

times regardless of the recording status.

It continues to run even when the power of the

camera recorder is turned off. *

REC RecRun

mode

The time code operates in the run mode during

recording. It continues to run in the order of the

recorded clips as long as the SDHC card is not

replaced. If the SDHC card is removed and

recording is made on another card, time code

will be recorded on the new card from where it

was left off in the previous card.

REGEN

Regen

mode

The time code operates in the run mode during

recording. When the SDHC card is replaced,

the last time code recorded on the card is read

and recorded on a new card so that the time

code continues in running order. ( Page 52)A

49

Presetting the Time Code

Time code and user’s bit data generated from the internal

time code generator are recorded.

This section describes how to set [TC Preset] in the [TC/UB]

menu. ( Page 88)A

Memo :

●When the frame rate setting in [Main Menu] [Record B

Set] [Record Format] [Frame & Bit Rate] is 50, 25, B B A

24 , settings cannot be made in [Drop]. ( Page 75)BA

●

You can configure the setting without accessing the [TC/UB]

menu screen. (

A

Page 51)

�Required Settings Before Preset

1 Set the [TC GENE.] switch to REC or FREE .A B A B

2 Select the framing mode for the time code generator

(only when the frame rate setting is 60 or 0 ).A B A3B

Set using [Main Menu] [TC/UB] [Drop].B B

( Page 88)A

Memo :

Drop frame/non-drop frame mode

●When the frame rate setting in [Main Menu] [Record B

Set] [Record Format] [Frame & Bit Rate] is 60 ( 0),B B 3

the actual number of frames per second is approximately

59.94 (29.97). However, the time code processing

standard is 60 ( 0) frames. To make up for the frame 3

number discrepancy, the drop frame mode (Drop) drops

the 00 frame and 01 frame every minute except for

minutes that are multiples of 10.

●On the other hand, the non-drop frame mode (Non Drop)

does not drop frames and ignores the discrepancy with

the actual time.

Time Code Generator

Settings

[REC] Preset data in the time code generator operates in

run mode during recording mode. Set this when

recording continuous time code in connecting

frames.

[FREE] Time code starts to operate in run mode from the

preset time in the time code generator.

[Drop] Sets the run mode of the time code generator to drop

frame mode.

Use this setting when placing emphasis on the

recording time.

[Non

Drop]

Sets the run mode of the time code generator to non-

drop frame mode.

Use this setting when placing emphasis on the

number of frames.

[TC GENE.] Setting Switch

[USER2] Button

50

Shooting

Presetting the Time Code (continued)

�Setting Time Code

1 Select [Main Menu] [TC/UB] [TC Preset] and B B

press the Set button (R). ( Page )A 88

The [TC Preset] screen appears.

Memo :

●When the [TC GENE.] switch is set to REGEN , the A B

parameter is displayed as Regeneration and cannot be A B

selected.

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button ( H I) to place the cursor at the

item to set, then the cross-shaped button ( JK) to change the

values.

Memo :

●Press the [USER2] button to reset each digit to 0 . The A B

cursor moves to the time digit (left).

3 Check the values and press the Set button ( ).R

●The time code is set and the screen returns to [TC/UB].

●To cancel the setting, press the [CANCEL] button.

4 Press the [MENU] button.

Returns to the normal screen.

Presetting the User’s Bit

You can add an 8-digit hexadecimal number as the user’s bit

to the recorded image.

1 Select [Main Menu] [TC/UB] [UB Preset] and B B

press the Set button (R). ( Page )A 88

The [UB Preset] setting screen appears.

Memo :

●When the [TC GENE.] switch is set to REGEN , the A B

parameter is displayed as Regeneration and cannot beA B

selected.

Time Code Generator

Settings (continued)

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

1

[TC/UB] Menu Screen

Cursor

[TC Preset] Screen

(During drop frame)

During non-drop frame

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

1

[TC/UB] Menu Screen

51

2 Use the cross-shaped button ( ) to place the cursor H I

at the item to set, then use the cross-shaped button ( JK)

to change the values.

Numbers between 0 and 9 or alphabets between A and F

can be specified for the user’s bit.

Memo :

● Press the [USER2] button to reset each digit to 0 . The A B

cursor moves to the left.

3 Check the values and press the Set button ( ).R

● The time code is set and the screen returns to [TC/UB].

● To cancel the setting, press the [CANCEL] button.

4 Press the [MENU] button.

Returns to the normal screen.

Setting Time Code Without Opening the

Menu

Memo :

●

Settings cannot be made in the following cases.

● [TC GENE.] switch is set to REGEN .A B

● Menu screen is displayed.

● The camera recorder is not in the Camera mode.

�Required Settings Before Preset

( Page 49)A

● Set the [TC DISPLAY] switch to ATC .B

● Set the [TC GENE.] switch to settings other than

A BREGEN .

�Setting Time Code

1 Hold down the [MENU] button and press the [USER1]

button.

The [TC Preset] setting screen appears.

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button ( H I) to place the cursor at the

item to set, then the cross-shaped button ( JK) to change the

values.

Memo :

● Press the [USER2] button to reset each digit to 0 . The A B

cursor moves to the time digit (left).

3 Check the values and press the Set button ( ).R

● The time code is set and the screen returns to the normal

screen.

● To cancel the setting, press the [CANCEL] button.

Note :

● Editing will be canceled and the screen will close under

the following situations.

● The [TC DISPLAY] switch is selected during editing.

● The camera recorder is switched to the Media mode.

●

When editing time code, operations of the [USER1],

[USER2], [USER ] buttons that are set in the [Main Menu]3

B

[Camera Function]

B

[Switch Set] menu are disabled.

[USER2] functions as the number reset button. (

A

Page 79)

Cursor

[UB Preset] Screen

[USER1] Button

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

Cursor

[TC Preset] Screen

(During drop frame)

52

Shooting

Setting User’s Bit Without Opening the Menu

Memo :

● Settings cannot be made in the following cases.

● [TC GENE.] switch is set to REGEN .A B

● Menu screen is displayed.

● The camera recorder is not in Camera mode.

�Required Settings Before Preset

( Page 49)A

● Set the [TC DISPLAY] switch to AUB .B

● Set the [TC GENE.] switch to settings other than

A BREGEN .

�Setting User’s Bit

1 Hold down the [MENU] button and press the [USER1]

button.

The [UB Preset] setting screen appears.

2 Set the user’s bit.

Use the cross-shaped button ( H I) to place the cursor at the

item to set, then the cross-shaped button ( JK) to change the

values.

Memo :

● Press the [USER2] button to reset each digit to 0 . The A B

cursor moves to the left.

3 Check the values and press the Set button ( ).R

● The user’s bit is set and the screen returns to the normal

screen.

● To cancel the setting, press the [CANCEL] button.

Note :

● Editing will be canceled and the screen will close under

the following situations.

● The [TC DISPLAY] switch is selected during editing.

● The camera recorder is switched to the Media mode.

●

When editing time code, operations of the [USER1],

[USER2], [USER ] buttons that are set in the [Main Menu]3

B

[Camera Function]

B

[Switch Set] menu are disabled.

[USER2] functions as the number reset button. (

A

Page 79)

Recording Time Code in Continuation of

the Recorded Time Code on SDHC Card

This camera recorder is e uipped with the time code reader.q

1 Set [Main Menu] [TC/UB] [TCG Source] to B B

A BInternal . ( Page )A 88

2 Set the [TC GENE.] switch on the inner panel of the

LCD to REGEN .A B

When the camera recorder enters from recording standby

mode to recording mode, it reads the time code already

recorded on the SDHC card and records the new time code

in continuation of that value.

The same data as the user’s bit already recorded on the

SDHC card is recorded.

Memo :

● When the [TC GENE.] switch is set to REGEN , the A B

framing mode of the time code follows the settings in

[Drop] of the [TC/UB] menu instead of the clip settings.

( Page 88)A

Time Code Generator

Settings (continued)

Cursor

[UB Preset] Screen

[TC GENE.] Setting Switch

53

When the luminance level range for displaying zebra patterns

is specified, diagonal lines (zebra pattern) are displayed at

areas with the specified luminance levels during shooting.

Specify the Brightness (Luminance) Level

Range for Displaying Zebra Pattern

Specify the upper (Top1, Top2) and lower (Bottom1,

Bottom2) limits of the luminance level.

1 Set the zebra display pattern.

● Select the display pattern in [LCD/VF] menu [ShootingB

Assist] [Zebra].B

2 Specify the brightness (luminance) level range for

displaying zebra pattern.

Specify the upper (Top1, Top2) and lower (Bottom1,

Bottom2) limits of the luminance level in [LCD/VF] menu B

[Shooting Assist] [Zebra].B

Memo :

● ATop2 and Bottom2 cannot be set if [Zebra] is set to B A B

A1Pattern .B

● When the specified range of two zebra patterns overlaps,

the two zebra patterns overlap and are displayed in a grid.

3 Display the zebra pattern.

Set the [ZEBRA ON/OFF] switch in front of the camera

recorder to AON to display the zebra pattern at the specified B

range.

Setting Zebra Pattern

Item Settings Options

Zebra Zebra display pattern 1Pattern

2Patterns

Top1 Upper luminance limit for

displaying [Zebra1]

5 % - 100 %, Over (in 5 %

increments)

Bottom1 Lower luminance limit for

displaying [Zebra1]

0 % - 100 % (in 5 %

increments)

Top2 Upper luminance limit for

displaying [Zebra2]

5 % - 100 %, Over (in 5 %

increments)

Bottom2 Lower luminance limit for

displaying [Zebra2]

0 % - 100 % (in 5 %

increments)

[ZEBRA ON/OFF] Switch

[Zebra1] Display [Zebra2] Display

Zebra Pattern

54

Shooting

The brightness of the object during shooting is displayed.

This function is useful when setting video or stage lighting or

when specifying camera exposure.

A cursor indicating the location and the brightness (%) of that

location are displayed in the images shown on the LCD

monitor and viewfinder screens.

● Zebra patterns display the brightness of output video

signals. ( Page 5 )A 3

● This function allows you to check the brightness of input

images from the lens without depending on image

processing such as gamma curve. The dynamic range of

the camera recorder is 00 % and a brightness range of 3

0 % to 00 % and above is displayed.3

Memo :

● Spot meter may not be consistent with the zebra display

range. When [Gamma] in the [Camera Process] menu is

set to ACinema or Film Out , the 100IRE output is not B A B

consistent with the 100 % display. ( Page 8 )A 3

When an object of more than 00 % luminance is 3

detected, it is displayed as 00 %.3

1

Select

A

Spot Meter

B

in [SKIN A./SPOT M.] of the [Main

Menu]

B

[Camera Function]

B

[Switch Set] menu. (

A

Page 0)8

2 Select one of the following from [SPOT METER].

( Page 0) A 8

3 Flip the [SKIN AREA/SPOT METER] switch of the

camera recorder.

The operation switches as below when the [SKIN AREA/

SPOT METER] switch is flipped.

�When [Max&Min]/[Max]/[Min] is selected

A[SPOT METER ON] is displayed when the switch is

flipped. Cursors appear according to the settings. The

positions of the brightest (Max) and darkest (Min) areas

in the screen are automatically detected with regard to

the changes of the object, and the brightness of these

areas is displayed.

B[SPOT METER FIXED] is displayed when the switch is

flipped. Automatic detection stops. Frames are fixed at

the stopped positions and the brightness is displayed.

C[SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

DReturns to the state in .A

Setting Spot Meter

Item Settings

Color of Frame

Indicating the

Position

[Max&Min]

Displays the brightness (%) and

positions of the brightest and

darkest areas in the screen.

Frames may also be stopped at

the current positions.

[Max] : Green

[Min] : Yellow

[Max]

Displays the brightness (%) and

position of the brightest area in

the screen. Frames may also be

stopped at the current positions.

Green

[Min]

Displays the brightness (%) and

position of the darkest area in

the screen. Frame may also be

stopped at the current positions.

Yellow

[Manual]

Displays the brightness (%) of

the specified position.

Green

(Blinks in red when

specifying the

position)

[SKIN AREA/SPOT METER] Switch

Set Button ( R)

Cross-

shaped

Button

(JKH I)

Cursor

([Max]:Green)

Cursor

([Min]:Yellow)

Cursor

([Max]:Green)

Cursor

([Min]:Yellow)

55

�When [Manual] is selected

A[SPOT METER FIXED] is displayed when the switch is

flipped. The brightness of the cursor position is displayed.

B[SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

C[SPOT METER SELECT] is displayed when the switch is

flipped. The cursor blinks in red.

Move the cursor with the cross-shaped button ( JKH I) to

specify the position to display the brightness. When the

position is decided, press the Set button ( ) or flip the R

switch to confirm.

DReturns to the state in .A

Memo :

● When moving the cursor position, [SHUTTER]/[AE

LEVEL] control is disabled.

● You can also decide the position of the cursor with the Set

button ( R).

● When the brightness is 0 % in the entire screen, the frame

is fixed in the center.

● If the cursor is outside the 4: range, changing the A 3B

[Aspect Ratio] item in the [Record Format] menu from

A B A16:9 to 4: restores the cursor to the default position. 3B

( Page 75)A

You can append OK marks to the clips for important scenes.

Clips appended with OK marks cannot be deleted, thus

protecting the important clips. In addition, you can display

only the clips with OK marks in the thumbnail display during

Media mode.

Appending OK Marks During Recording

1 Assign the AOK Mark function to the [RET] button on B

the lens from the menu.

● Select [Main Menu] [Camera Function] [Switch Set]B B

B B [LENS RET] AOK Mark . ( Page 79)B A

● Append or delete the [OK] mark with every press of the

[RET] button.

● When an OK mark is appended, AOK appears at the top B

left of the status screen on the viewfinder/LCD monitor.

( Page 102, 109)A

Memo :

● Clips appended with [OK Mark] cannot be deleted from

the camera recorder using [Delete Clip]. (However, they

will be deleted when the SDHC card is formatted.)

● When the camera recorder is in Media mode (SD Card

mode), you can delete the [OK] marks appended during

recording, or append/delete [OK] marks after shooting.

( Page 68 [Appending and Deleting OK Marks])A

● When the write-protect switch on the SDHC card is set

( is displayed), [OK] marks cannot be appended/

deleted.

Cursor (Green)

Cursor

(Blinks in red)

Protecting Important

Scenes (OK Mark Function)

00:00:00:00

MAX 12 %3

MIN 45%

S.DTL

B -3

ND1/16 A< 200K>3

F5.6 AE+1 dB 1/100009REC

100min

1280x720

60p HQ

OK

B

A

282min

30/24 fps

A BOK Mark

STATUS 1 Screen

56

Shooting

You can check (review) the last recorded video clip on the

screen.

However, the video clip cannot be played back if the settings

of the camera recorder are different from the video format

(Camera Resolution/Frame & Bit Rate) of the clip.

( Page 75)A

Memo :

● To use this function, assign Clip Review to any of the A B

[USER1], [USER2], [USER ] buttons or the [RET] button 3

on the lens.

* [Main Menu] [Camera Function] B B [Switch Set] B [LENS

RET]/[USER1]/[USER2]/[USER ] Clip 3 B A

Review ( Page 79)B A

1 Press the button assigned with the Clip ReviewA B

function during standby ( STBY is displayed).A B

Playback of the configured section starts.

Memo :

● The video clip is played back according to the [Clip

Review] settings in the [Camera Function] menu. By

default setting (Last 5 sec), the last 5 seconds of the clip is

played back. ( Page 79)A

● When playback is complete, the camera recorder exits

Clip Review and returns to STBY (recording standby) A B

mode.

Note :

● During Clip Review, only the [CANCEL] and [REC]

buttons are enabled. Press the [CANCEL] button to

cancel clip review and return to STBY (recording A B

standby) mode. Press the [REC] button to cancel clip

review and enter recording mode. It will take some time to

start recording after the button is pressed.

● When the last clip is less than 5 seconds, the whole clip is

played back.

● Only video clips in the currently selected slot can be

reviewed.

● When there are no clips in the selected slot, Clip Review

function is disabled.

● Clip Review is unavailable when Clip Continuous Rec is

paused (STBY , yellow text). To operate Clip Review, C

use the [CANCEL] button to set to STBY (white text)A CB

first. ( Page 59)A

● Clip Review is unavailable when the camera recorder is

connected to an external e uipment and the e uipment is q q

in recording state.

You can assign functions to the [USER1], [USER2], and

[USER ] buttons.3

By assigning functions to the [USER1], [USER2], and

[USER ] buttons, the usability of the camera recorder is3

enhanced.

1 Assign functions to the [USER1], [USER2], and

[USER ] buttons from the menu. ( Page 79)3 A

Set each of the [USER1], [USER2], and [USER ] items in 3

the [Main Menu] [Camera Function] [Switch Set] menu.B B

Memo :

● Operations of the [USER1], [USER2], and [USER ] 3

buttons are interlocked with the menu settings.

● When the menu screen is displayed, these buttons

function as the menu operation buttons. ( Page 70 A

[Basic Operations in Menu Screen])

Viewing Recorded Videos

Immediately (Clip Review)

RET

IRIS

A M

W

T

[RET] Button Assigning Functions to

User Buttons

[USER1], [USER2], [USER ] 3

Buttons

57

If both the slots are loaded with recordable cards in the

factory default ([Slot Mode] is set to Series ), pressing the A B

[REC] button starts recording only to the media in the

selected slot. When the remaining space in the selected

media runs out, recording continues by automatically

activating the media in the other slot.

If both the slots are loaded with recordable cards in the Dual

Rec mode ([Slot Mode] is set to Dual ), pressing the [REC] A B

button starts recording simultaneously to the media in both

the slots.

The clips recorded to the media in both the slots are

identical, and backup recording can only be performed on

this camera recorder.

( Page 76 [Slot Mode])A

Setting to Dual Rec mode

1 Set [Slot Mode] in the [Main Menu] B [Record Set]

menu to Dual . ( Page 76)A B A

A DUAL display appears on the status display screen.A B

2 Start recording

● Load recordable media to both slots, and press the [REC]

button.

● In the Dual Rec mode, recording to the media in both slots

starts at the same time.

● Both the card slot marks turn red, and the status

indicators of both the card slots also light up in red.

3 Stop recording

● Press the [REC] button again.

● Recording to both slots stops, and both the card slot

marks turn white.

● The same clips are recorded to both cards.

Memo :

● During recording in the Dual Rec mode, both the card slot

marks light up in red.

● During recording in the Dual Rec mode to two cards with a

different amount of remaining space, if the space of one

card runs out, recording to both slots will stop

automatically. After recording stops, recording

automatically resumes for the card with remaining space.

Although the clips are separated in this case, the clips can

be seamlessly joined by arranging them on the timeline of

the editing software since they are recorded seamlessly.

● If the last clip on the cards that are loaded to the two slots

are different from each other, and the time code operating

mode is set to REGEN , the Regen mode for the A B

selected card slot will be enabled in the next recording.

Dual Rec

REC

[REC] Button

Slot Status Indicator

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

60p HQ

OK

B

A

282min

DUAL

STATUS 1 Screen

ADUAL DisplayB

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000REC

100min

1280x720

60p HQ

OK

B

A

282min

DUAL

STATUS 1 Screen

Lit in red

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

60p HQ

OK

B

A

282min

DUAL

STATUS 1 Screen

White

58

Shooting

Note :

● To perform recording in the Dual Rec mode, it is

recommended that you start recording by making use of

two cards with the same capacity and from the formatted

state.

● You can combine the use of the Dual Rec mode with a

special recording mode. While in the Dual Rec mode, you

can also set [Rec Mode] to Normal , Pre Rec , A B A B AClip

Continuous , or B AVariable Frame .B

( Page 58 [Special Recording])A

( Page 76 [Rec Mode])A

● When both the slots are loaded with recordable cards, the

Dual Rec (simultaneous recording) operation can be

performed. If a recordable media is only loaded to one of

the slots, you can also start recording with one card.

● In the Dual Rec mode, continuous recording by switching

from one slot to another cannot be performed. Continuous

recording will not be performed if a recordable media is

loaded to a slot after recording to the other slot has

started.

● When recording to one slot is in progress with the

recorder set to the Dual Rec mode, loading a recordable

media to the other slot does not enable the Dual Rec

operation. To perform the Dual Rec operation, stop

recording temporarily (excluding pausing recording in the

Clip Continuous Rec mode), and start again.

● When one of the cards is accidentally removed while the

Dual Rec operation is in progress, recording to the card in

the other slot will continue. However, repair of the

accidentally removed card by the recovery function may

fail.

● If an error occurs on one of the cards in the two slots

during recording, recording of the erroneous card stops,

while that of the other card continues.

● Operations on clips recorded in the Dual Rec mode, such

as clip deletion in the Media mode or appending of OK

marks, can only be performed on the card in the selected

slot.

Besides the normal recording mode, three special recording

methods are available in this camera recorder. They are Pre

Rec, Clip Continuous Rec, and Variable Frame Rec.

Select the mode from [Rec Mode] in the [Record Set] menu.

* Set using [Main Menu] [Record Set] [Rec Mode]. B B

( Page 76)A

Pre Rec

By setting the number of seconds in the [Pre Rec Time], you

can start recording video and audio before actual recording

starts based on the Pre Rec Time setting.

When starting actual recording while the camera recorder is

in Recording Standby (STBYP) mode, you can start

recording a few seconds earlier based on the [Pre Rec Time]

setting.

Using Pre Rec allows you to record a complete event without

missing the initial scenes even if you start the recording late.

* Pre Rec Time can be set to 5sec , 10sec , or 20secA B A B A B

in [Main Menu] [Record Set] [Pre Rec Time].B B

( Page 76)A

1 Set [Rec Mode] to Pre Rec . ( Page 76)A B A

●

Set [Main Menu]

B

[Record Set]

B

[Rec Mode] to

A

Pre Rec

B

.

● The status display changes from STBY STBY .A B AB PB

2 Press the [REC] button to start recording in Pre Rec

mode.

● The status display changes from STBY RECA PB AB PB

and the card slot status indicator lights up in red.

● Press the [REC] button again to pause recording. The

display changes from A B A BRECP B STBYP and the card

slot status indicator lights up in green.

Note :

● When the interval between start and stop recording is

short, STBY may not be displayed immediately after A PB

recording is complete.

ARECPB A BB STBYP (STBY blinks in red) B A BSTBYP

is displayed.

● When the SDHC card becomes full during recording,

recording stops and STOP is displayed.A B

Dual Rec (continued) Special Recording

Completed Clip

(Recorded video and audio)

Press [REC]

(Recording starts)

Recording starts a

number of seconds

earlier based on the

[Pre Rec Time]

setting Press [REC]

(Recording stops)

59

Note :

● Video and audio before the above mentioned time may

not be recorded after recording starts in the following

cases.

● Immediately after power on

● Immediately after recording stops

● Immediately after switching from Media mode to

Camera mode

● Immediately after setting [Rec Mode]

● Immediately after the end of Clip Review

● Immediately after changing file format

● Immediately after changing video format

Clip Continuous Rec

In normal recording, when the recording stops, the image,

audio, and accompanying data from the start till the end of

the recording are recorded as one clip on the SDHC card.A B

This mode allows you to consolidate several rounds of Astart-

stop recording into one clip.B

Example: In normal recording, three clips are generated as

Recording 1, Recording 2, and Recording . However,3

recording in this mode generates only one clip.

1 Set [Rec Mode] to AClip Continuous .B

● Set [Main Menu] [Record Set] [Rec Mode] to B B AClip

Continuous . ( Page 76)B A

● The status display changes from STBY STBY .A B AB CB

2 Start recording. (Recording 1)

● Press the [REC] button to start recording in Clip

Continuous mode.

● The status display changes from STBY RECA CB AB CB

and the card slot status indicator lights up in red.

3 Pause recording.

●

Press the [REC] button again to pause recording. The

display changes from

A

REC

C

B

A

STBY

C

B

(yellow text).

● The card slot status indicator remains lighted in red.

Memo :

● When the [CANCEL] button is pressed while the camera

recorder is paused (STBY ), the display changes fromC

A BSTBYC (yellow text) STBY (blinking yellow text) B A CB

B A B A BSTBYC (white text). A clip is generated. The card

slot status indicator lights up in green.

4 Resume recording. (Recording 2)

● Press the [REC] button again to resume recording. The

display changes from STBY (yellow text) A CB B A BRECC .

● The card slot status indicator remains lighted in red.

5 Pause recording.

● Press the [REC] button again to pause recording. The

display changes from REC STBY (yellow text).A CB AB CB

● The card slot status indicator remains lighted in red.

6 Resume recording. (Recording )3

● Press the [REC] button again to resume recording. The

display changes from STBY (yellow text) A CB B A BRECC .

● The card slot status indicator remains lighted in red.

7 Press and hold the [REC] button.

● Recording stops and the display changes from RECA CB

B A B A BSTBYC . A clip is generated.

● The card slot status indicator lights up in green.

8 Press the [REC] button again.

● The status display changes from STBY RECA CB AB CB

and the card slot status indicator lights up in red.

● A new clip is generated from here.A B

Memo :

● The following operations cannot be performed while

recording is paused (STBY , yellow text).C

● Clip Review operation ( Page 56)A

● Switching SDHC card slots

● Switching operation mode ( Page 8)A

● Files are split into sizes of 4 GB (or 30 minutes)

regardless of the menu settings.

Note :

● Do not remove the SDHC card during recording (REC , C

red text) or recording pause (STBY , yellow text).C

● To remove the SDHC card in AClip Continuous mode, B

press the [CANCEL] button, check that STBY (white A CB

text) is displayed and the card slot status indicator is

lighted in green before you remove the card.

● When the SDHC card becomes full during recording,

recording stops and STOP is displayed.A B

● When the [POWER] switch is turned off during recording

or recording pause, recording stops and power is cut off

after a clip is generated.

● If the power is cut off due to low battery power, a proper

clip may not be generated.

Completed Clip

(Recorded video and audio)

Recording 1 Recording 2 Recording 3

Press [REC]

(Recording starts)

Press [REC]

(Recording pauses)

Press [REC]

(Recording resumes)

Press [REC]

(Recording pauses)

Press [REC]

(Recording stops)

Press [REC]

(Recording resumes)

62

Playback

Thumbnail Screen (continued)

�No Detailed Properties (4x Thumbnails) 3

Screen (continued)

Playing Back Recorded

Clips (continued)

Name Description

BSDHC Card Displays the status of the inserted SDHC

card, selected SDHC card, write-protect

switch, and the need for restoring.

Use the [SLOT SELECT] switch to switch

slots. Clips in slot A and B cannot be

displayed at the same time.

:Write-protect switch of the SDHC card in

slot A is set.

: SDHC card in slot B needs to be

restored or formatted, or is an

unsupported SDHC card.

C

File Format

Shows the file format of the currently

displayed clips.

Only clips with the resolution ( HDA

(MPEG2) or B ASD (DV) ) selected in [System B

Definition] are displayed. ( Page 75)A

* Depends on the settings in [Record Set] B

[Record Format] [File Format] on the B

[Main Menu] screen. ( Page 75)A

BF

D

G

H

J

A

C

E

I

Name Description

DVideo

Format

Displays the video format (Camera

Resolution/Frame Rate) that allows playback

and thumbnail display.

Five types including [1080/60i, 0p, 24p], 3

[1080/50i, 25p], [720/60p, 0p, 24p], 3

[720/50p, 25p], [480/60i] (U model) and

[576/50i] (E model). Clips of other video

formats are represented in alternative

display. Clips that are in alternative display

cannot be played back with the current video

format settings.

AA clip with corrupted management

information. It cannot be played back

even if you press the playback button.

B

A clip that cannot be played back nor

displayed in thumbnail with the current

video format settings. It cannot be played

back even if you press the playback

button. The format of the clip is displayed.

* Depends on the settings in [Record Set] B

[Record Format] [System Definition], B

[Camera Resolution], and [Frame & Bit

Rate] items of the [Main Menu] screen.

( Page 75)A

ENumber of

Clips

Displays the [running number/total number of

clips] of the displayed clips.

FRemaining

Battery

Power

: Ample battery power.

: Slightly reduced battery power.

: Low battery power.

: Empty battery power. (Blinks in red)

: External power supply connected.

Memo :

● If the battery in use is not a recommended

one, the battery mark which indicates the

battery level may not appear.

GScroll Bar Indicates the scroll position.

When there is a black space below the scroll

bar (white), this indicates further pages.

When the scroll bar (white) is at the bottom,

this indicates the last page.

A B

63

Name Description

HThumbnail

Text

Displays the time code or date/time at the

start of clip recording. Date/time is displayed

in the local time of the shooting location.

Set whether to display ATC or Date/TimeB A B

in the thumbnail menu [Thumbnail Text].

( Page 65)A

Data/time display depends on the settings in

[LCD/VF] [Status Display] B B [Date Style] of

the [Main Menu] screen. ( Page 91)A

Time is displayed in 24-hour display

regardless of the [Time Style] setting.

IClip Mark Displays clip information (properties).

AOK Mark

Clip is appended with OK mark.

Memo :

● Clips appended with OK marks

cannot be deleted on the camera

recorder.

B

Continued From Mark

This mark indicates that the current clip is

continued from another SDHC card when

recording is divided and made on several

SDHC cards.

C

Continue Mark

This mark indicates that the current clip will

continue to another SDHC card when

recording is divided and made on several

SDHC cards.

JOperation

Guide

Guide for the current operation buttons.

Moves the clip cursor to the top/bottom/left/

right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. ( Page 68)A

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. ( Page 69)A

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip.

( Page 66)A

A

B

C

64

Playback

Thumbnail Screen (continued)

�Detailed Properties (4x1 Thumbnails)

Screen

Playing Back Recorded

Clips (continued)

Name Description

ACursor Indicates the selected clip. Use the cross-

shaped button ( ) to move the cursor.H I

After power is turned on and SDHC card is

inserted, or when the camera recorder is

switched to Media mode (SD Card mode),

the cursor is positioned on top of the latest

clip.

When the camera recorder changes to the

thumbnail screen during playback, the cursor

is positioned on the clip that was played

back. If you play back the same clip again, it

will continue from where it was left off.

The default position of the cursor when

SDHC card slot is switched is on the

previously selected clip before the switch.

�Example of the moving order of the cursor

(total 6 clips)

BScroll Bar Indicates the scroll position.

When there is a black space on the right of

the scroll bar (white), this indicates further

pages.

When the scroll bar (white) is at the right end,

this indicates the last page.

D

A

B

C

Scrolls page

Name Description

CDetailed

Properties

Shows the detailed properties of the selected

clip. The following information is displayed.

File Format : File format

Clip Name : Clip name

Resolution : Image size

Frame Rate : Frame rate

Bit Rate : Bit rate

Audio : Audio format

Start TC : Time code at the start of

recording

End TC : Time code at the end of

recording

Duration : Clip length

UB : User’s bit

Creation Date : Date created

Memo :

● The information of time and date displays

in the following order, Year, Month, Date,

Time, Minute, Second and Time zone.

● A B- is the break character between Year,

Month and Date for each, and : is the A B

break character between Time, Minute

and Second for each, and AT is the break B

character Date and Time.

● A BZ displays behind Time when Time

zone is set to AUTC+00:00 .B

(Time and date display example)

In case of AUTC+00:00 21:18:50 on B

March 4th in 2009 (Western European

time zone):

A B2009-0 -04T21:18:50Z3

In case of AUTC-05:00 10:1 :15 onB 3

March 19th in 2009 (North American

Eastern time zone).

A B2009-0 -19T10:1 :15-05:003 3

Variable Frame : Variable frame (only in

Variable Frame Rec)

DOperation

Guide

Guide for the current operation buttons.

Moves the clip cursor to the left/right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. ( Page 68)A

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. ( Page 69)A

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip.

( Page 66)A

65

Playing Back

Use the operation buttons on the side control panel of the

camera recorder to play back.

1 Select the clip to play back on the thumbnail screen.

Select the clip to play back with the cross-shaped button

(JKH I).

2 Press the playback/pause button.

Playback of the selected clip starts.

�Time Code Playback

Time code or user’s bit recorded on an SDHC card can be

displayed on the LCD monitor and viewfinder.

Memo :

● When [HD/SD-SDI Out] in the [A/V Out] menu is set to

A B A BHD-SDI or SD-SDI , time code is also output from the

[HD/SD-SDI] output terminal. ( Page 92)A

● User’s bit output from the [HD/SD-SDI] output terminal is

used as a flag to determine valid video signals. Therefore,

accurate values will not be output.

● If a section without time code is played back, the time

code will stop. However, playback will continue.

Press the [MENU] button during thumbnail display to display

the thumbnail menu.

Press the [MENU] button during menu display to cancel the

settings and exit the menu.

Name Description

A Button Plays back/pauses the selected clip.

B Button Skips in the reverse or forward

direction.

Button Fast forwards in the reverse or forward

direction.

C Button Stops playback.

A

B

C

Thumbnail Menu

Item Function

Media info Displays the information screen of the SDHC

card.

Detailed

Properties

For selecting the display method of the

thumbnail screen.

If a check is selected, the thumbnail screen will

be displayed as [Detailed Properties (4x1

Thumbnail) Screen]. ( Page 64)A

Thumbnail Text For selecting the display method for the

thumbnail text on the thumbnail screen.

TC Displays the recording start time code at the

thumbnail text display area (below the

thumbnail).

Date/Time Displays the recording start date/time at the

thumbnail text display area (below the

thumbnail).

Delete Clip For deleting clips. ( Page 66)A

One Clip Deletes the selected clip.

All Clips Deletes all clips that are displayed.

Main Menu... Opens the [Main Menu] screen. ( Page 74)A

Exit Exits and closes the menu.

Thumbnail Menu

Sub-Menu

Thumbnail Menu Screen

66

Playback

For deleting clips.

Memo :

● Clips appended with OK marks cannot be deleted on the

camera recorder.

● Read-only clips can be deleted on a PC.

Deleting One Clip

You can delete a selected clip with any of the following

operations.

APress [USER2] button when menu is not displayed.

BPerform [Delete Clip] [One Clip] in thumbnail menu.B

Memo :

● A clip cannot be deleted with the [USER2] button and

menu operation ([Delete Clip] [One Clip]) under the B

following situations.

● A clip with OK mark is selected.

● Write-protect switch of the SDHC card is set ( is

displayed).

�During Thumbnail Screen

�Deleting with [USER2] button

1 Select the clip to delete.

Select the clip to delete with the cross-shaped button (

JKH I

).

2 Press the [USER2] button.

A screen to confirm deletion appears.

3 Select [Delete] using the cross-shaped button ( ), JK

and press the Set button ( R).

Deleting starts.

Memo :

● Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

● The cursor moves to the next clip (or previous clip if a next

clip does not exist) after deletion.

�Deleting with [Delete Clip] [One Clip] in the B

menu

1 Select the clip to delete.

Select the clip to delete with the cross-shaped button (

JKH I

).

2 Press the [MENU] button.

The thumbnail menu screen appears.

3 Select [Delete Clip] [One Clip] and press the Set B

button ( R).

A screen to confirm deletion appears.

Deleting Clips

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

1

3

1

67

4 Select [Delete] using the cross-shaped button ( ), JK

and press the Set button (R).

Deleting starts.

Memo :

●Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

●The cursor moves to the next clip (or previous clip if a next

clip does not exist) after deletion.

�During Playback or Pause Screen

�Deleting with [USER2] button

1 Press [USER2] button during clip playback.

A screen to confirm deletion appears.

2 Select [Delete] and press the Set button ( ).R

Deleting starts.

Deleting All Clips

Deletes all clips that are displayed.

1 Press the [MENU] button.

The thumbnail menu screen appears.

2 Select [Delete Clip] [All Clips] in the menu.B

A screen to confirm deletion appears.

3 Select [Delete] and press the Set button ( ).R

Deleting starts.

Memo :

●Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

●The time taken to delete clips depends on the number of

clips to be deleted.

3

2

68

Playback

You can append OK marks to the clips for important scenes.

Clips appended with OK marks cannot be deleted, thus

protecting the important clips.

When the camera recorder is in Media mode (SD Card

mode), you can delete the OK marks appended during

recording, or append/delete OK marks after shooting.

Appending OK Marks

�During Thumbnail Screen

1 Select a clip without an OK mark and press the

[USER1] button.

An OK mark is appended to the clip.

Memo :

●The [USER1] button is disabled (displayed in gray) and

OK marks cannot be appended when the write-protect

switch of the SDHC card is set ( is displayed).

●AOK Mark Added... is displayed when changing marks B

and other operations are unavailable.

�During Playback or Pause Screen

1 Press [USER1] button during clip playback.

An OK mark is appended to the clip.

Memo :

●The clip pauses when an OK mark is appended or deleted

during playback.

Appending and Deleting

OK Marks

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button (R)

Cross-

shaped

Button

(JKH I)

1

OK Mark

69

Deleting OK Marks

�During Thumbnail Screen

1 Select a clip to delete OK mark and press the [USER1]

button.

The OK mark is deleted.

Memo :

●The [USER1] button is disabled (displayed in gray) and

OK marks cannot be deleted when the write-protect

switch of the SDHC card is set ( is displayed).

●AOK Mark Added... / OK Mark Deleted... is displayed B A B

when changing marks and other operations are

unavailable.

�During Playback or Pause Screen

1 Press the [USER1] button when playing back a clip

appended with OK mark.

The OK mark is deleted.

1

70

Menu Display and Detailed Settings

Press the [MENU] button on the side control panel of the

camera recorder to display the menu screen on the LCD

monitor and viewfinder.

Various settings for shooting and playback can be configured

on the menu screen.

There are two types of menu screens - [Main Menu] and

[Favorites Menu].

[Main Menu] contains all the setting items of the camera

recorder, classified according to functions and uses, while

[Favorites Menu] allows users to customize the menu items

freely. ( Page 96)A

The operating procedures and main screen displays are the

same for both menus.

The menu screen can also be displayed on external monitors

connected to the video signal output terminal.

( Page 92 [Analog Out Char.])A

( Page 92 [SDI Out Char.])A

Operation Buttons

Use the operation buttons on the side control panel of the

camera recorder to operate the menu.

Display and Description of the Menu

Screen

�Selecting Menu Items

Basic Operations in Menu

Screen

Name Description

A[MENU] Button Displays the menu screen. ([Main

Menu] is displayed by default when

pressed.)

During normal usage, [Main Menu] is

displayed if the previous menu

operation ended at [Main Menu], and

[Favorites Menu] if the previous menu

operation ended at [Favorites Menu].

Press this button to close the menu

screen during menu display and return

to the normal screen.

B[USER1] Button Adds the selected menu or submenu

item to the [Favorites Menu].

( Page 96)A

C[USER2] Button Resets settings in the [TC Preset] or

[UB Preset] setting screen. This button

is disabled in other screens.

DSet Button ( )RSets the values and items.

Name Description

ECross-shaped

Button ( )JKH I

J: Moves the cursor upward.

K: Moves the cursor downward.

H: Moves back to the previous item.

I: Moves forward to the next item.

F[CANCEL] Button Cancels settings and returns to the

previous screen.

G[STATUS] Button Switches between the [Main Menu] and

[Favorites Menu] screens.

Name Description

AStatus Display Recording, playback, etc. Displays the

current status.

Same display as the status screen.

�During Camera mode:

[STBY], [REC], etc. ( Page 100)A

�

During Media mode (SD Card mode):

[PLAY], [STILL], etc. ( Page 107)A

BCursor Indicates the selected item. Use the cross-

shaped button ( ) to move the cursor.JK

CMenu Item Displays the names of the menu item and

sub-menu.

Menu items with [...] after them indicates

that there is a sub-menu to access.

DFixed Item Items that cannot be changed are displayed

in gray and cannot be selected.

E[Back] Back Select [Back] and press the Set button ( ) R

to return to the previous level.

FMenu Title Title of the currently displayed menu.

GRemaining

Battery Power

: Ample battery power.

:Slightly reduced battery power.

: Low battery power.

: Empty battery power. (Blinks in red)

: External power supply connected.

Memo :

●If the battery in use is not a

recommended one, the battery mark

which indicates the battery level may not

appear.

AG

F

I

J

K

B

D

C

E

H

71

�Changing Setting Values

Text Input with Software Keyboard

Use the software keyboard to enter the [Scene File]/[Picture

File] subname and [Clip Name Prefix].

�[Scene File]/[Picture File] ( Page 11 )A8

�[Clip Name Prefix] ( Page 76)A

Name Description

HHeader Indicates the current menu type with the

line color.

Blue : [Main Menu] Screen

Green : [Favorites Menu] (Operation

screen)

Magenta : [Favorites Menu] (Editing

screen)

IScroll Bar Indicates the scroll position.

JSetting Values Setting values for the menu items.

For menus with sub-menus, values are not

displayed.

KOperation

Guide

Guide for the current operation buttons.

Name Description

AMenu Item to

Change

Menu item to be changed.

A list of setting values appears in C

a pop-up.

BOperation Guide Guide for the current operation

buttons.

CList of Setting

Values

A pop-up displaying a list of setting

values for selection.

The height of the pop-up depends

on the number of settings available.

Use the scroll bar to confirm the D

current display status.

DScroll Bar Indicates the scroll position.

ECursor Indicates the selected item. Use the

cross-shaped button ( ) to move JK

the cursor.

FSetting Values

Before Change

Setting values before changing. R

appears at the beginning of the item.

D

C

E

A

F

B

Name Description

ACharacter

Entry Field

Field for entering the title.

You can enter up to 8 characters for the

[Scene File]/[Picture File] subname or up

to 4 characters for the [Clip Name Prefix].

BCharacter

Cursor

Select a character using the key cursor

D, and press the Set button ( ) to inputR

the selected character at the position of

the character cursor. The character cursor

moves to the next position on the right

each time a character is input.

The cursor can be moved using the arrow

keys .F

CCharacter

Keys

Use the cross-shaped button ( ) toJKH I

move the key cursor to the character D

you want to enter.

DKey Cursor Indicates the currently selected character

or item. Use the cross-shaped button

( ) to move the cursor.JKH I

EConfirmation

Buttons

Select [Set]/[Store] and press the Set

button ( ) to confirm the title.R

Select [Cancel] and press the Set button

( ) on the side control panel of the R

camera recorder to abort character input

and return to the previous screen.

FArrow Keys

Moves the position of the character cursor

B

.

G[BS]

Backspace

Key

Select [BS] and press the Set button ( ) R

on the side control panel of the camera

recorder to delete the character on the left

of the character cursor .B

H[SP] Space

Key

Select [SP] and press the Set button ( ) R

on the side control panel of the camera

recorder to enter a space at the current

position of the character cursor .B

G

A

B

D

E

H

F

C

A

B

D

E

F

72

Menu Display and Detailed Settings

Memo :

●A [Back] item (omitted in the chart) can be found at the end of each menu item. Select [Back] and press the Set button ( ) to R

return to the previous level.

Menu Screen Hierarchical

Chart

Main Menu... ( Page 74)A

Record Set... ( Page 75) Record Format...( Page 75) System DefinitionA A

File Format

Camera Resolution

Frame & Bit Rate

Aspect Ratio

Rec Mode... ( Page 76) Frame RateA

Pre Rec Time

Slot Mode ( Page 76)A

Clip Set... ( Page 76) Clip Name PrefixA

Reset Clip Number

Audio Set... ( Page 77) Input1 Mic Ref.A

Input2 Mic Ref.

Mic Wind Cut

Camera Function... ( Page 78) Bars Audio Ref. LevelA

Shutter Audio Limiter

AE LEVEL Test Tone

AE Speed

ALC Limit

Auto Iris Limit (OPEN)

Auto Iris Limit (CLOSE)

EEI Limit

Smooth Trans

Switch Set... ( Page 79)A

FULL AUTO... ( Page 81)A

Camera Process... ( Page 82) Detail Adjust... ( Page 84)A A

Master Black

Black Toe

Knee

White Clip

Gamma

White Balance... ( Page 85)A

Color Matrix Adjust... ( Page 86)A

Color Gain

DNR

Reverse Picture

Reset Process

73

Memo :

●A [Back] item (omitted in the chart) can be found at the end of each menu item. Select [Back] and press the Set button ( ) to R

return to the previous level.

TC/UB... ( Page 88) TC PresetA

UB Preset

Drop

LCD/VF... ( Page 88) Shooting Assist... ( Page 89)A A

Marker Setting... ( Page 90)A

Status Display... ( Page 90)A

LCD + VF

VF Display

LCD Mirror Mode

A/V Out... ( Page 92) Output TerminalA

Set Up

HD/SD-SDI Out

Down Convert

Analog Out Char.

SDI Out Char.

Audio Monitor

Others... ( Page 9 ) Alarm LevelA3

Tally System

Front Tally

Back Tally

1 94 Rec Trigger3

1 94 Auto Power Off3

Mode LED

Reset All

Date/Time

Time Zone

System Information

Media... ( Page 95) Format MediaA

Restore Media

Setup File Manage... ( Page 95) Load File...A

Store File...

Reset File...

75

Record Format Menu

After setting of all items in the [Record Format] menu is complete, select [Set] at the bottom of the screen to apply the new

settings on the camera recorder and switch the record format. A Please Wait message appears during switching.A B

* Default values are indicated in bold characters.

Record Set Menu

Item Setting Values Function

System Definition HD (MPEG2)

SD (DV)

For selecting a system definition.

HD (MPEG2) : Records in HD (High Definition) uality.q

SD (DV) : Records in SD (Standard Definition) uality.q

Note :

●The selectable options for the [File Format], [Camera Resolution], and

[Frame & Bit Rate] settings vary depending on the setting of this item.

File Format For selecting the format of the file to be recorded to the SDHC card.

When [System Definition] is

A BHD (MPEG2)

QuickTime

MP4

When [System Definition] is ASD

(DV)B

QuickTime

AVI

Camera Resolution 1920x10 08

1440x1080

1280x720

720 x 480

720 x 576

For setting the size of the recorded image when [System Definition] is set to

A BHD (MPEG2) . (Horizontal x vertical)

Memo :

●When [System Definition] is set to SD (DV) , this item is fixed as follows for A B

the different models.

●U model :720 x 480

●E model :720 x 576

●The selectable values of [Frame & Bit Rate] vary according to the setting of

this item.

Frame & Bit Rate For setting the frame rate and encoding bit rate when [System Definition] is set

to HD (MPEG2) .A B

Selection can be made from 19 combinations of frame rate (60p, 50p, 0p, 25p,3

24p, 60i, 50i) and bit rate (HQ ( 5Mbps) VBR), (SP (25 Mbps/19 Mbps) CBR).3

Memo :

●When [System Definition] is set to SD (DV) , this item is fixed as follows for A B

the different models.

●U model :60i

●E model :50i

●The selectable items vary according to the [File Format] and [Camera

Resolution] settings.

When [Camera Resolution] is

A B1280x720

60p (HQ) (U model),

60p (SP), 0p (HQ), 0p 3 3

(SP),

50p (HQ) (E model),

50p (SP), 25p (HQ), 25p

(SP), 24p (HQ), 24p (SP)

When [Camera Resolution] is

A B1440x1080

60i (HQ) (U model),

60i (SP),

50i (HQ) (E model),

50i (SP)

When [Camera Resolution] is

A B1920x1080

60i (HQ) (U model),

30p (HQ),

50i (HQ) (E model),

25p (HQ), 24p (HQ)

Aspect Ratio 16:9

4:3

For setting the aspect ratio of the recorded image when [System Definition] is

set to SD (DV) .A B

Memo :

●When [System Definition] is set to HD (MPEG2) , this item is fixed at A B

A B16:9 .

76

Menu Display and Detailed Settings

Rec Mode Menu

Clip Set Menu

* Default values are indicated in bold characters.

Record Set Menu

(continued)

Item Setting Values Function

Rec Mode Normal

Pre Rec

Clip Continuous

Variable Frame

For selecting the record mode for recording to the SDHC card. ( Page 58)A

Memo :

●[Variable Frame] is selectable when [Camera Resolution] is set to

A B A B A B1280x720 , and [Frame & Bit Rate] is set to 30p (HQ) , 24p (HQ) , or

A B25p (HQ) .

Frame Rate For setting the recording [Frame Rate] when [Rec Mode] is set to [Variable

Frame].

Memo :

●When [AE LEVEL] in the [Main Menu] [Camera Function] [Switch Set] B B

menu is set to AE LEVEL/VFR , you can use the cross-shaped button (A B H

I) to select the frame rate during Variable Frame Rec. In modes other than

Variable Frame Rec, the cross-shaped button ( ) functions as the [AE H I

LEVEL] setting button. ( Page 80)A

●When [Frame Rate] is changed and the shutter speed becomes a value that

is invalid for the current [Frame Rate], the shutter speed is automatically

changed to match the current [Frame Rate].

When [Frame & Bit Rate] is

A B30p (HQ)

60, 48, 40,

30,

24, 20, 15, 12, 10

When [Frame & Bit Rate] is

A B24p (HQ)

60, 48, 40, 0,3

24,

20, 15, 12, 10

When [Frame & Bit Rate] is

A B25p (HQ)

50, 40,

25,

20, 15, 12.5, 10

Pre Rec Time 5sec,

10sec, 20sec

For setting the pre-recording time when [Rec Mode] is set to Pre Rec .A B

Slot Mode Series

Dual

For setting the operation of the card slot. ( Page 57)A

Series : Mode that activates the two slots se uentially.q

Dual : Mode that activates the two slots at the same time.

Memo :

●When this is set to Series , and recordable media are loaded to both the A B

slots, pressing the [REC] button starts recording only to the card in the

selected slot (active slot).

●When this is set to Dual , and recordable media are loaded to both the A B

slots, pressing the [REC] button starts simultaneous recording to the cards in

both slots.

Item Setting Values Function

Clip Name Prefix xxxG

(The default value of xxx

is the last three digits of

the serial number.)

For setting the first four characters of the name of the clip file to be recorded to the SDHC

card.

Enter any of the 8 characters including alphabets (upper case), numbers (0 to 9), “_” 3

(underscore), and “-” (hyphen) using the software keyboard.

( Page 71 [Text Input with Software Keyboard])A

Reset Clip

Number

^For assigning a new number to (Clip Number) by resetting it (0001). Select [Reset] and

press the Set button ( ) to reset the number.R

When other clips exist on the SDHC card, the smallest available number is used after reset.

Example: If the [Clip Name Prefix] is ABCD , and ABCD0001 already exists on the A B A B

SDHC card, ABCD0002 will be assigned.A B

77

Audio Set Menu

Item Setting Values Function

Input1 Mic Ref. -50dB

-60dB

For setting the reference input level when the [AUDIO INPUT1] button is set to MIC or A B

A BMIC+48V .

-50dB : Sets -50 dB as the reference value.

-60dB : Sets -60 dB as the reference value.

Input2 Mic Ref. -50dB

-60dB

For setting the reference input level when the [AUDIO INPUT2] button is set to MIC or A B

A BMIC+48V .

-50dB : Sets -50 dB as the reference value.

-60dB : Sets -60 dB as the reference value.

Mic Wind Cut Both

Input2

Input1

Off

For selecting whether to cut the low fre uencies of the audio input signals (low-cut) when q

the [AUDIO INPUT 1/2] button is set to MIC or MIC+48V . Set this item to reduce wind A B A B

noise from the microphone.

Both : Enables low-cut on both the [INPUT1] and [INPUT2] terminals.

Input2 : Enables low-cut on the audio of the [INPUT2] terminal only.

Input1 : Enables low-cut on the audio of the [INPUT1] terminal only.

Off : Disables low-cut.

Audio Ref. Level -12dB

-20dB

For setting the audio reference level to be recorded to the SDHC card. (Applies to both

[CH1/CH2].)

-20dB : Outputs signals of the reference level when the meter is at -20 dBFS.

-12dB : Outputs signals of the reference level when the meter is at -12 dBFS.

Audio Limiter On

Off

For specifying whether to trigger the limiter when the [AUDIO SELECT CH-1/CH-2] switch

is set to MANUAL .A B

On : Triggers the limiter when excessive audio signals are input, and compresses the

recording level.

Off : Does not trigger limiter.

Test Tone On

Off

For specifying whether to output the audio test signals (1 kHz) during color bar output.

On : Audio test signals are output.

Off : Audio test signals are not output.

79

Switch Set Item

* Default values are indicated in bold characters.

Item Setting Values Function

FAW None

PRESET

A

B

For assigning the FAW (Fulltime Auto White Balance) function to a position on the [WHT.BAL.]

selection switch.

This is fixed at FAW when the [FULL AUTO] switch of the camera recorder is set to ON .A B A B

None : FAW function is not assigned.

PRESET : Assigns FAW to the PRESET position.

A : Assigns FAW to the A position.

B : Assigns FAW to the B position.

GAIN L

GAIN M

GAIN H

ALC, 18dB, 15dB,

12dB, 9dB, 6dB, dB, 3

0dB

For setting the gain value of each position on the [GAIN] selection switch.

This is fixed at ALC when the [FULL AUTO] switch of the camera recorder is set to ON .A B A B

(Default values GAIN L: 0dB, GAIN M: 9dB, GAIN H: 1 dB)8

USER1

USER2

USER3

By assigning one of the following functions to each of the [USER1]/[USER2]/[USER ] buttons, these buttons can be 3

used to control the assigned function (on/off, start, switch).

Set according to the shooting conditions. Usable only in the Camera mode.

(Default values USER1: Bars, USER2: B.Stretch , USER : Load File)3 3

Setting Values Description

None No function is assigned.

Bars Assigns the function of [Bars] in the [Camera Function] menu. ( Page 78)A

Load File Assigns the function of [Load File] in the [Setup File Manage] menu. ( Page 95)A

Clip Review Assigns the Clip Review function. ( Page 56)A

B.Stretch1

B.Stretch2

B.Stretch3

B.Stretch4

B.Stretch5

B.Compress1

B.Compress2

B.Compress3

B.Compress4

B.Compress5

Assigns the functions of [Stretch Level] and [Compress Level] under [Black Toe] in the

[Camera Process] menu. ( Page 82)A

LENS RET Clip Review

OK Mark

Focus Assist

Return

For assigning a function to the [RET] button on the lens. This function does not work if the [RET]

button is not available on the lens in use.

Clip Review : Assigns the Clip Review function to the [RET] button. ( Page 56)A

OK Mark : Assigns the OK mark function to the [RET] button. This function operates

during shooting. ( Page 55)A

Focus Assist : Assigns the Focus Assist function to the [RET] button. ( Page 7)A 3

Return : Assigns the return video display function to the [RET] button.

Memo :

●The Return setting is enabled only when VF-HP790G is connected, and [SDI RETURN] inA B

the [VIDEO FORMAT] menu of VF-HP790G is set to ON . Also, return images only appear A B

on VF-HP790G, and will not be displayed on the LCD monitor of this camera recorder.

Clip Review Last 5 sec

Top 5 sec

CLIP

For specifying the operation when [LENS RET] is set to Clip Review .A B

Last 5 sec : Views about 5 seconds of the clip from the ending.

Top 5 sec : Views about 5 seconds of the clip from the beginning.

CLIP : Views the entire clip.

Memo :

●Selectable when [LENS RET] is set to Clip Review , or when any of the [USER1]/[USER2]/A B

[USER ] buttons is set to Clip Review .3 A B

80

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Camera Function Menu

(continued)

Item Setting Values Function

SKIN A./SPOT M. Skin Area

Spot Meter

For assigning the function of the [SKIN AREA/SPOT METER] switch on the camera recorder.

Skin Area : Assigns the Skin Detail function and its area display.

Spot Meter : Assigns the Spot Meter display function.

Memo :

● When Skin Area is selected, [Skin Detect] is forcibly set to On when the [SKIN AREA/A B A B

SPOT METER] switch is flipped, even if [Skin Detect] is set to AOff . Alternatively, you can set B

[Skin Detect] to AOff , and turn the Skin Detail function On/Off by flipping the lever whenever B

necessary. ( Page 84)A

SPOT METER Max&Min

Min

Max

Manual

For specifying the operation of [Spot Meter]. ( Page 54)A

Max&Min : Displays the brightest and darkest areas of the image.

Min : Displays the darkest area of the image.

Max : Displays the brightest area of the image.

Manual : Displays the image brightness at a specified position.

Memo :

● This item is selectable when [SKIN A./SPOT M.] is set to Spot Meter . When A B A BSkin Area is

set, this item appears as --- and cannot be selected.A B

● Positions are detected automatically when this item is set to Max&Min , Min , or Max . A B A B A B

When set to Manual , it functions in a fixed position.A B

AE LEVEL AE LEVEL/VFR

AE LEVEL

Disable

For specifying the operation of the cross-shaped button ( ) on the right of the cameraH I

recorder.

AE LEVEL/VFR: Sets the number of frames during Variable Frame Rec, and operates as the

AE LEVEL setting button in other cases. ( Page 60)A

AE LEVEL : Operates as the AE LEVEL setting button at all times.

Disable : Disables the button.

81

FULL AUTO Item

This is used to set specific functions to the auto mode when the [FULL AUTO] switch of the camera recorder is set to AON .B

Item Setting Values Function

Gain SW Set

ALC

SW Set : Sets gain according to the [GAIN] selection switch.

ALC : Sets gain to the ALC (forced auto) mode.A B

Memo :

●When the remote control unit comes with an FAS function, this is fixed at ALC and cannot A B

be selected. ( Page 125)A

Iris Control Off

Auto

Off : Iris control is not performed.

Auto : Sets iris control to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at Auto and cannot A B

be selected. ( Page 125)A

●When the iris mode switch of the lens is set to A (auto), the iris is fixed at the point of time A B

when this item is switched from Auto to A B AOff .B

Shutter SW Set

EEI

SW Set : Sets shutter according to the switch.

EEI : Sets shutter to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at EEI and cannot A B

be selected. ( Page 125)A

White Balance SW Set

FAW

SW Set : Sets white balance according to the [WHT.BAL.] selection switch.

FAW : Sets white balance to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at FAW and cannot A B

be selected. ( Page 125)A

Bars Menu Set

Off

Menu Set : Sets color bar output according to the menu settings (via switch operation).

Off : Sets color bar output to the forced Off mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at A BOff and cannot be

selected. ( Page 125)A

Audio SW Set

Auto

SW Set : Sets the audio recording level according to the switch.

Auto : Sets the audio recording level to the forced auto mode.

82

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Camera Process Menu

Item Setting Values Function

Detail Max, 9 to 1,

Normal,

-1 to -9, Min, Off

For adjusting the contour (detail) enhancement level.

Increase the number : Sharpens the contour.

Decrease the number : Softens the contour.

Off : Disables this function.

Adjust... For specifying the detailed settings of the contour (detail). ( Page 84)A

Memo :

●This item cannot be selected when [Detail] is set to Off .A B

Master Black Max, 9 to 1,

Normal,

-1 to -9, Min

For adjusting the pedestal level (master black) that serves as the reference black.

Increase the number : Raises the pedestal level.

Decrease the number : Lowers the pedestal level.

Black Toe Compress

Stretch

Normal

For altering the gain of dark areas. Adjust this item according to the condition of the captured

video signals.

Compress : Compresses the gain of dark areas to increase the contrast when the entire image

appears bright and contrast is weak. Specify the compression amount with

[Compress Level].

Stretch : Increases the gain of dark areas in an image to stretch the signals of these areas

only, thereby showing the contrast between bright and dark areas more clearly.

Specify the stretch amount with Stretch Level.

Normal : Normal condition.

Stretch Level Level 5

Level 4

Level 3

Level 2

Level 1

Stretch amount increases when a larger value is specified.

Memo :

●This item is displayed only when [Black Toe] is set to A BStretch . Otherwise, this item appears

as --- and cannot be selected.A B

Compress

Level

Compression amount increases when a larger value is specified.

Memo :

●This item is displayed only when [Black Toe] is set to Compress . Otherwise, this itemA B

appears as --- and cannot be selected.A B

Point Level 15% to 11%

10%,

9% to 5%

For specifying the luminance point at which the dark area is to be stretched or compressed.

Memo :

●When [Black Toe] is set to Normal , this item appears as --- and cannot be selected.A B A B

Knee Manual

Auto

For specifying the Knee operation, which compresses video signals beyond a certain level to A B

show the gradation of the highlighted portion. To check the gradation of a bright area, set to

A BManual and adjust the knee point manually.

Manual : Enables manual adjustment of the knee point (starting point of knee operation) using

ALevel .B

Auto : Adjusts the knee point (starting point of knee operation) automatically according to the

luminance level.

Level 100%

95%, 90%, 85%,

80%, 75%, 70%

For setting the starting point of knee compression (knee point).

Increase the number : Increases the knee point level.

Decrease the number : Decreases the knee point level.

Memo :

●When [Knee] is set to Auto , this item appears as --- and cannot be selected.A B A B

Sensitivity Fast

Middle

Slow

For setting the response speed of the Knee operation when [Knee] is set to Auto .A B A B

Set to Slow when shooting an object under a condition where there is drastic change in the A B

light intensity.

Memo :

●When [Knee] is set to Manual , this item appears as --- and cannot be selected.A B A B

83

* Default values are indicated in bold characters.

Item Setting Values Function

White Clip 100%

10 %8

For setting the point to apply white clip for input video signals with a high luminance level.

100% : Applies white clip at the point where the luminance level is 100 %. Even when this

item is set to 108% , it switches automatically to A B A B100% if the screen appears too

white. Set to this value when the system in use limits Y output signals within 100 %.

108% : Applies white clip at the point where the luminance level is 108 %.

Gamma Film Out

Cinema

Standard

Off

For adjusting the gamma curve that determines the gradation expression.

Film Out : Sets to a gamma curve that focuses on the gradation expression of dark areas in

order to ease post-processing of movie film output.

Cinema : Sets to a gamma curve with similar gradation to the screen characteristics of

movies.

Standard : Sets to a standard gamma curve.

Off : Disables gamma curve adjustment.

Master Level Max, 4 to1,

Normal,

-1 to -4, Min

This item can be specified separately when [Gamma] is set to Standard , A B ACinema , or Film B A

Out .B

Increase the number : Enhances the gradation of black. However, the gradation of bright

areas deteriorates.

Decrease the number : Enhances the gradation of bright areas. However, the gradation of

black deteriorates.

Memo :

●When [Gamma] is set to Off , this item appears as --- and cannot be selected.A B A B

R Level Max, 4 to1,

Normal,

-1 to -4, Min

Gamma curves can be adjusted for each of R, G, and B.

Use this to adjust to a color tone that cannot be expressed by the [Color Matrix] setting.

Memo :

●When [Gamma] is set to Off , this item appears as --- and cannot be selected.A B A B

G Level

B Level

White Balance... Menu for adjusting white balance. ( Page 85)A

Color Matrix Cinema Subdued

Cinema Vivid

Standard

Off

For setting the color matrix.

Cinema Subdued : Sets to a subdued color matrix that is similar to the screen

characteristics of movies.

Cinema Vivid : Sets to a vivid color matrix that is similar to the screen characteristics of

movies.

Standard : Sets to a standard color matrix.

Off : Sets the color matrix function to Off.

Adjust... This item is used to adjust [Color Matrix] to a color according to the user’s preference.

This item cannot be selected when [Color Matrix] is set to Off . ( Page 86)A B A

Color Gain Off, Min, -1 to -9,

Normal

9 to 1, Max

For adjusting the video signal color level.

Off : Sets the video to black-and-white.

Increase the number : Makes the colors more dense.

Decrease the number : Makes the colors less dense.

Memo :

●Images are displayed in black-and-white when this is set to Off .A B

DNR On

Off

For setting the DNR (Digital Noise Reduction) function. The S/N ratio of the video can be

enhanced by setting [DNR] to On .A B

On : Enables noise reduction.

Off : Disables noise reduction.

Memo :

●A retained image may appear when this is set to On .A B

Reverse Picture Rotate

Off

For recording images correctly by reversing the image horizontally or vertically (Rotate) when

the lens image appears upside down or laterally inverted.

Rotate : Enables horizontal/vertical inversion of the image.

Off : Disables horizontal/vertical inversion of the image.

Reset Process ^Restores all items in the [Camera Process] menu to their default settings.

84

Menu Display and Detailed Settings

Detail/Adjust... Item

* Default values are indicated in bold characters.

Camera Process Menu

(continued)

Item Setting Values Function

V/H Balance H-Max, 4 to1,

Normal,

-1 to -4, H-Min

For setting the H/V balance to enhance contour (detail) in the horizontal (H) or vertical (V)

direction.

Increase the number : Enhances contour in the horizontal direction.

Decrease the number : Enhances contour in the vertical direction.

H Frequency High

Middle

Low

For specifying the correction fre uency of the horizontal contour. Set this according to the object.q

High : Emphasizes the high fre uency range. Use this when shooting objects with fine q

patterns.

Middle : Emphasizes the intermediate fre uency range.q

Low : Emphasizes the low fre uency range. Use this when shooting objects with largeq

patterns.

V Frequency High

Low

For specifying the correction fre uency of the vertical contour. Set this according to the object.q

Low : Emphasizes the low fre uency range.q

High : Emphasizes the high fre uency range.q

Memo :

●This item can only be selected when [Camera Resolution] of [Record Format] in the [Record

Set] menu is set to 1280x720 . ( Page 75)A B A

Skin Detect On

Off

For turning On/Off the Skin Detail function, which is used to adjust the contour correction effect

of the colors captured by the [Skin Color Adjust] menu.

On : Enables the Skin Detail function. (Softens the detail at areas where skin tone is

detected.)

Off : Disables the Skin Detail function.

Memo :

●Even if [Skin Detect] is set to Off , [Skin Detect] is forcibly set to On when the [SKIN A B A B

AREA/SPOT METER] switch is flipped. Alternatively, you can set [Skin Detect] to AOff , and B

turn the Skin Detail function On/Off by flipping the lever whenever necessary.

Level -3

-2

-1

For setting the level of contour correction (degree of softening) using the Skin Detail function.

- : High level of contour correction (degree of softening)3

-2 : Medium level of contour correction (degree of softening)

-1 : Low level of contour correction (degree of softening)

Skin Color

Adjust...

For setting the Skin Detail function. ( Page 112)A

Skin Color

Detect

Execute

Stop

For capturing the skin color.

Execute : Captures the color that triggers the Skin Detail function.

Stop : Disables capturing of the color that triggers the Skin Detail function.

Skin Color

Range

Wide, 9 to 1,

Normal,

-1 to -9, Narrow

For adjusting the range of skin tone to trigger the Skin Detail function. Adjust accordingly while

checking the color range visually.

Increase the number : Widens the range.

Decrease the number : Narrows the range.

Memo :

●When [Color Gain] in the [Camera Process] menu is set to AOff , only the area where Skin B

Detail is functioning is displayed in skin tone. ( Page 8 )A3

85

White Balance Item

* Default values are indicated in bold characters.

Item Setting Values Function

Preset Temp. 2800K,

3200K,

3400K, 4200K,

4800K, 5200K,

5600K, 6500K,

7500K

For setting the color temperature when the [WHT.BAL.] selection switch of the camera recorder

is set to PRESET .A B

Alternative Temp. 2800K, ,3200K

3400K, 4200K,

4800K, 5200K,

5600K,

6500K, 7500K

For setting the alternative color temperature in the Preset mode.

When the [WHT.BAL.] switch of the camera recorder is set to PRESET , pressing the [AWB] A B

button each time switches the color temperature setting in the Preset mode. ([Preset

Temp.] [Alternative Temp.])1

White Paint R Max, 0 to 1,3

Normal,

-1 to - 1, Min3

For adjusting the R (red) component in the AWB (Auto White Balance) mode.

Increase the number : Strengthens the red.

Decrease the number : Weakens the red.

Memo :

●This item is selectable when the [WHT.BAL.] selection switch on the right of the camera

recorder is set to A or B . When PRESET is set, this item appears as --- and cannot A B A B A B A B

be selected.

●Different values can be specified for A and B .A B A B

●After the [AWB] (Auto White Balance) button is pressed to readjust the white balance while

[Clear Paint After AWB] set to On , [White Paint R] switches automatically to Normal .A B A B

White Paint B Max, 0 to 1,3

Normal,

-1 to - 1, Min3

For adjusting the B (blue) component in the AWB (Auto White Balance) mode.

Increase the number : Strengthens the blue.

Decrease the number : Weakens the blue.

Memo :

●This item is selectable when the [WHT.BAL.] selection switch on the right of the camera

recorder is set to A or B . When PRESET is set, this item appears as --- and cannot A B A B A B A B

be selected.

●Different values can be specified for A and B .A B A B

●After the [AWB] (Auto White Balance) button is pressed to readjust the white balance while

[Clear Paint After AWB] set to On , [White Paint B] switches automatically to Normal .A B A B

Clear Paint After

AWB

On

Off

For specifying whether to clear the [White Paint R]/[White Paint B] settings after executing AWB

(Auto White Balance).

On : [White Paint R]/[White Paint B] are set to Normal after executing AWB.A B

Off : [White Paint R]/[White Paint B] are not changed after executing AWB.

Shading Mode Manual

Preset

For specifying white shading adjustment settings. ( Page 44)A

Preset : Sets white shading adjustment to a fixed level. Manual adjustment is disabled.

Manual : Enables manual white shading adjustment.

Adjust... For making white shading adjustments.

Memo :

●This item cannot be selected when [Shading Mode] is set to Preset .A B

86

Menu Display and Detailed Settings

Shading Mode/Adjust Item

* Default values are indicated in bold characters.

●

This item is selectable only when [Shading Mode] is set to

A

Manual

B

. [R Level], [G Level], and [B Level] cannot be selected when

this is set to

A

Preset

B

.

●

The screen switches to a color display, and the displays for Bars, Zebra and the Focus Assist mode are temporarily set to

A

OFF

B

,

while the

A

B & W

B

mode in the [VF Display] menu temporarily switches to

A

Color

B

.

Color Matrix/Adjust Item

This item is used to adjust [Color Matrix] to a color according to the user’s preference.

The adjusted values of Standard , A B ACinema Vivid , and Cinema Subdued in [Color Matrix] can be stored individually. B A B

( Page 8 )A3

Camera Process Menu

(continued)

Item Setting Values Function

R Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the red level of white shading when [Shading Mode] is set to Manual .A B

Increase the number : Decreases the red level at the bottom of the screen, and increases the

red level at the top of the screen.

Decrease the number : Decreases the red level at the top of the screen, and increases the red

level at the bottom of the screen.

G Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the green level of white shading when [Shading Mode] is set to Manual .A B

Increase the number : Decreases the green level at the bottom of the screen, and increases

the green level at the top of the screen.

Decrease the number : Decreases the green level at the top of the screen, and increases the

green level at the bottom of the screen.

B Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the blue level of white shading when [Shading Mode] is set to Manual .A B

Increase the number : Decreases the blue level at the bottom of the screen, and increases the

blue level at the top of the screen.

Decrease the number : Decreases the blue level at the top of the screen, and increases the

blue level at the bottom of the screen.

Item Setting Values Function

Mg&R Mg Level Max, 19 to 1,

Normal,

-1 to -19, Min

For adjusting the magenta/red level of the video toward magenta.

Increase the number : Enhances the magenta component of magenta/red.

Decrease the number : Reduces the magenta component of magenta/red.

Mg&R R Level For adjusting the magenta/red level of the video toward red.

Increase the number : Enhances the red component of magenta/red.

Decrease the number : Reduces the red component of magenta/red.

R&Yl R Level For adjusting the red/yellow level of the video toward red.

Increase the number : Enhances the red component of red/yellow.

Decrease the number : Reduces the red component of red/yellow.

R&Yl Yl Level For adjusting the red/yellow level of the video toward yellow.

Increase the number : Enhances the yellow component of red/yellow.

Decrease the number : Reduces the yellow component of red/yellow.

Yl&G Yl Level For adjusting the yellow/green level of the video toward yellow.

Increase the number : Enhances the green component of yellow/green.

Decrease the number : Reduces the yellow component of yellow/green.

Yl&G G Level For adjusting the yellow/green level of the video toward green.

Increase the number : Enhances the green component of yellow/green.

Decrease the number : Reduces the green component of yellow/green.

Yl&G Mask Range Max, 19 to 11,

10,

9 to 1, Min

For adjusting the extent of effect on the skin tone (color near the I-axis) when [Yl&G Yl Level]

and [Yl&G G Level] are adjusted.

Increase the number : Reduces the effect on the skin tone.

Decrease the number : Increases the effect on the skin tone.

Memo :

●When green is enhanced in the + direction with [Yl&G G Level], increasing the [Yl&G Mask

Range] value helps to prevent the skin tone from becoming greenish.

●When [Yl&G Yl Level] and [Yl&G G Level] are set to Normal , no changes will be observed A B

on the screen when the [Yl&G Mask Range] value is changed.

87

* Default values are indicated in bold characters.

Item Setting Values Function

G&Cy G Level Max, 19 to 1,

Normal,

-1 to -19, Min

For adjusting the green/cyan level of the video toward green.

Increase the number : Enhances the green component of green/cyan.

Decrease the number : Reduces the green component of green/cyan.

G&Cy Cy Level For adjusting the green/cyan level of the video toward cyan.

Increase the number : Enhances the cyan component of green/cyan.

Decrease the number : Reduces the cyan component of green/cyan.

Cy&B Cy Level For adjusting the cyan/blue level of the video toward cyan.

Increase the number : Enhances the cyan component of cyan/blue.

Decrease the number : Reduces the cyan component of cyan/blue.

Cy&B B Level For adjusting the cyan/blue level of the video toward blue.

Increase the number : Enhances the blue component of cyan/blue.

Decrease the number : Reduces the blue component of cyan/blue.

B&Mg B Level For adjusting the blue/magenta level of the video toward blue.

Increase the number : Enhances the blue component of blue/magenta.

Decrease the number : Reduces the blue component of blue/magenta.

B&Mg Mg Level For adjusting the blue/magenta level of the video toward magenta.

Increase the number : Enhances the magenta component of blue/magenta.

Decrease the number : Reduces the magenta component of blue/magenta.

R Rotation Max, 4 to1,

Normal,

-1 to -4, Min

For adjusting the hue of the R-axis (red and cyan).

Increase the number : Rotates hue of red toward yellow, and cyan toward blue.

Decrease the number : Rotates hue of red toward magenta, and cyan toward green.

G Rotation For adjusting the hue of the G-axis (green and magenta).

Increase the number : Rotates hue of green toward blue, and magenta toward red.

Decrease the number : Rotates hue of green toward yellow, and magenta toward blue.

B Rotation For adjusting the hue of the B-axis (blue and yellow).

Increase the number : Rotates hue of blue toward magenta, and yellow toward green.

Decrease the number : Rotates hue of blue toward cyan, and yellow toward red.

90

Menu Display and Detailed Settings

Marker Setting Item

( Page 110 [Marker and Safety Zone Displays (Camera Mode Only)])A

* Default values are indicated in bold characters.

*1: During Clip Review or when in the Media mode, the markers do not appear regardless of the setting.

Status Display Item

This menu is used to set the status displays on the LCD monitor and viewfinder screens.

LCD/VF Menu (continued)

Item Setting Values Function

Aspect Ratio *1 4: , 14:9,3

16:9,

16:9 (+4: ),3

2. 5:1 Center, 3

2. 5:1C.HeadRM, 3

1.85:1 Center,

1.85:1C.HeadRM,

1.66:1, 1.75:1

For selecting the final image aspect ratio to be used from the overall angle of view.

Memo :

● When [Aspect Ratio] in the [Record Format] menu is set to 4: , this item is fixed at 4:A 3B A 3B

and cannot be selected. ( Page 75)A

Aspect Marker *1 Line+Halftone

Halftone

Line

Off

For specifying how boundary markers are to be used to indicate the parts of an image that are

beyond the range of the aspect ratio selected in [Aspect Ratio].

Line+Halftone : Displays the boundary using lines, and areas outside the boundary in

halftone.

Halftone : Displays areas outside the boundary in halftone.

Line : Displays the boundary using lines.

Off : Hides the boundary markers.

Safety Zone *1 95%, 9 %, 90%, 3

88%, 80%,

Off

For setting the percentage of area that is to be deemed as valid area (Safety Zone) within the

boundary of the aspect ratio selected in [Aspect Ratio].

Center Mark *1 On

Off

For specifying whether to display a mark to indicate the screen center within the aspect ratio

selected in [Aspect Ratio].

On : Displays the center mark.

Off : Hides the center mark.

Item Setting Values Function

F.No/Iris Indicator F.No+Iris Ind.

F.No

Off

For specifying whether to display the iris position/iris level mark in the status display on the LCD

monitor and viewfinder screens.

F.No+Iris Ind. : Displays the iris position/level.

F.No : Displays the iris position.

Off : Hides the iris position/iris level mark.

Filter On

Off

For specifying whether to display the filter position in the status display on the LCD monitor and

viewfinder screens.

On : Displays the filter position.

Off : Hides the filter position.

Video Format On

Off

For specifying whether to display the recording/playback video format in the status display on

the LCD monitor and viewfinder screens.

On : Displays the video format mode.

Off : Hides the video format mode.

Media Remain On

Off

For specifying whether to display the remaining space of the recording SDHC card in the status

display on the LCD monitor and viewfinder screens.

On : Displays the remaining space on the SDHC card.

Off : Hides the remaining space on the SDHC card. However, when the remaining space

warning is displayed, the information appears regardless of the setting.

91

* Default values are indicated in bold characters.

Item Setting Values Function

TC/UB On

Off

For specifying whether to display the time code/user’s bit rate in the status display on the LCD

monitor and viewfinder screens.

On : Displays the time code or user’s bit rate. Whether time code or user’s bit rate is

displayed is determined by the setting of the [TC DISPLAY] switch on the inner

panel of the camera recorder’s LCD monitor.

Off : Hides the time code or user’s bit rate.

Audio Meter On

Off

For specifying whether to display the audio level meter in the status display on the LCD monitor

and viewfinder screens.

On : Displays the audio level meter.

Off : Hides the audio level meter.

Battery Info Time

Capacity%

Voltage

For setting the battery information to be displayed on the status screen when an AntonBauer or

IDX battery that supports communication is loaded.

The status screen is displayed on the LCD monitor and/or viewfinder.

The battery information appears only on the STATUS 1 screen in Camera mode. ( Page 102)A

Time : Displays the remaining battery power in minutes. minA B

Capacity% : Displays the remaining battery power in percentage. %A B

Voltage : Displays the current battery voltage in units of 0.1 V. AVB

Memo :

● When a battery other than the one recommended (communication supported) is used,

AVoltage may sometimes be displayed even when B ATime or Capacity% is selected.B A B

● When ATime or Capacity% is selected, the battery mark that appears before the valueB A B

changes according to the remaining battery power.

: 12 % and below, : 1 % - 29 %, : 0 % - 59 %, : 60 % - 100 %3 3

● Display changes to once the battery power falls below 12 %.A B

● When calibration of the battery is re uired, appears for 2 seconds after every 0 q A B 3

seconds of the voltage display.

● CALIBRATION is a state that re uires renewal of the battery power information. The batteryq

is able to function as usual without calibration. However, calibration is recommended as

correct information of the remaining power and time cannot be obtained otherwise. For more

details, refer to the instruction manual of the battery.

● The remaining battery power and remaining time are intended as reference values for the

shooting duration.

● When an IDX battery is loaded while the camera recorder is connected to a KA-MR100G

(Memory Recorder), the ATime display setting may be disabled even when a recommended B

battery (communication supported) is used.

Date Style DMY (E model)

MDY (U model)

YMD

For setting the date display se uence in the status display on the LCD monitor and viewfinder q

screens.

DMY : Day/Month/Year

MDY : Month/Day/Year

YMD : Year/Month/Day

Time Style 24hour (E model)

12hour (U model)

For setting the time display in the status display on the LCD monitor and viewfinder screens.

24hour : 24-hour display.

12hour : 12-hour display. (AM/PM)

Shutter Disp. DEG

SEC

For setting the shutter display in the status display on the LCD monitor and viewfinder screens.

DEG : Displays the shutter speed in degrees in the same way as film cameras.

SEC : Displays the shutter speed in seconds.

Memo :

● A BDEG is selectable only when [Frame & Bit Rate] is set to 24p (SP) , 24p (HQ) , 25p A B A B A

(SP) , or 25p (HQ) . When [Frame & Bit Rate] is set to other values, the shutter display B A B

setting is fixed at SEC and cannot be selected. ( Page 75)A B A

● When a remote control unit is connected, the shutter display setting is fixed at SECA B

regardless of the [Frame & Bit Rate] setting.

RES

CAL

95

* Default values are indicated in bold characters.

Menu settings and button operations ([SHUTTER], [AE LEVEL], etc.) can be saved.

It is useful to save settings according to different shooting conditions.

Item Setting Values Function

Time Zone UTC-00: 0 to UTC-12:00,3

UTC,

UTC+14:00 to

UTC+00: 03

(In increments of 0 3

minutes)

For setting the UTC time difference in units of 0 minutes.3

[Default values: UTC-05:00 (U model), UTC (E model)]

Memo :

● If [Date/Time] is already set, the [Date/Time] item is automatically adjusted when [Time

Zone] is altered.

System

Information

Version Displays information on the firmware version.

Fan Hour For displaying the usage time of the internal fan.

Memo :

● Under normal environment, dust will accumulate on the internal fan when the camera recorder is used over a long

period. Dust may enter the camera recorder especially if it is used outdoors. This may affect the image and sound

quality of the camera recorder. Check and replace the fan after every 9000 hours (suggested guideline).

Media Menu

Item Function

Format Media For formatting (initializing) an SDHC card.

Select a card slot (A or B), select [Format] from [Cancel]/[Format], and press the Set button ( ) to format (initialize) the R

card.

( Page [Formatting (Initializing) SDHC Cards])A 33

Restore Media For restoring an SDHC card.

Select a card slot (A or B), select [Restore] from [Cancel]/[Restore], and press the Set button ( ) to restore the SDHCR

card.

( Page 4 [Restoring the SDHC Card])A 3

Memo :

● This item appears only when the SDHC card needs to be restored. However, it is not selectable when recording in

Camera mode and during Clip Review.

Setup File Manage Menu

Item Setting Values Function

Load File... ^ ALoads the settings. ( Page 119)

Store File... ^ Saves the settings. ( Page 118)A

Reset File... ^ Restores the saved settings to their default values. ( Page 119)A

96

Menu Display and Detailed Settings

You can select and add/edit fre uently used menu items q

freely to create a personal menu screen (Favorites Menu).

Memo :

● [Favorites Menu] is only enabled in the Camera mode.

[Favorites Menu] remains unchanged even when the

recording format changes.

● Up to 20 menu items can be added (two pages on the

screen).

● Added items in [Favorites Menu] will not be reset even

when [Reset All] in the main menu is executed.

Adding Menu Items to Favorites Menu

1 Press the [MENU] button to open the [Main Menu]

screen.

2 Select the menu or submenu item to add.

Memo :

● Adding items to [Favorites Menu] cannot be performed in

the following cases. [USER1 Add] is displayed in gray in

the operation guide.

● Selected item is already added to [Favorites Menu].

● Number of menu items that can be added (20 items) is

exceeded.

3 Press the [USER1] button.

A screen to confirm the addition appears.

4 Select [Add] and press the Set button ( ).R

The selected menu item is added to [Favorites Menu].

Memo :

● Long descriptive names may be displayed for the menu

items in [Favorites Menu] to enable better understanding.

Adding/Editing Frequently

Used Menu Items

(Favorites Menu)

[STATUS] Button

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

[USER2] Button

4

97

Editing Favorites Menu

You can delete or change the order of the items added to

[Favorites Menu].

�Deleting Items from [Favorites Menu]

1 Open the [Favorites Menu] screen.

APress the [MENU] button to open the [Main Menu]

screen.

BPress the [STATUS] button to open the [Favorites Menu]

screen.

2 Select [Edit Favorites] and press the Set button ( ) or R

crossed-shaped button ( I).

The header turns magenta and the editing mode is activated.

3 Select the menu or submenu item to delete.

4 Press the [USER2] button.

[Delete Mark] ( ) appears at the beginning of the item.

Memo :

● When the [USER2] button is pressed again while the

menu item with [Delete Mark] ( ) is selected, [Delete

Mark] ( ) disappears.

5 Press the [USER1] button.

The option menu to exit the [Favorites Menu] editing mode

appears.

6 Select [Save & Exit] and press the Set button ( ).R

Memo :

● Deletion is not complete until the changes are saved with

[Save & Exit].

● To exit the editing mode without deleting any items, select

[Exit without Saving].

● To return to the editing mode, select [Cancel].

2

Header

(Magenta)

3

Delete Mark

6

98

Menu Display and Detailed Settings

Editing Favorites Menu (continued)

�Changing the Order of Items in

[Favorites Menu]

1 Open the [Favorites Menu] screen.

APress the [MENU] button to open the [Main Menu]

screen.

BPress the [STATUS] button to open the [Favorites Menu]

screen.

2 Select [Edit Favorites] and press the Set button ( ) or R

crossed-shaped button ( I).

The header turns magenta and the editing mode is activated.

3 Select the menu or submenu item to move and press

the Set button ( R).

The moving mode is activated and a position selection bar

for the move appears.

Adding/Editing Frequently

Used Menu Items (Favorites

Menu) (continued)

[STATUS] Button

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button ( R)

Cross-

shaped

Button

(JKH I)

[USER2] Button

2

Header

(Magenta)

3

Position

Selection Bar

99

4 Select the position to move to with the cross-shaped

button ( JK).

Move the position selection bar with the cross-shaped button

(JK) and select a position to move to.

5 Press the Set button (R).

The selected item moves to the new position.

6 Press the [USER1] button.

The option menu to exit the [Favorites Menu] editing mode

appears.

7 Select [Save & Exit] and press the Set button ( ).R

Memo :

● Moving is not complete until the changes are saved with

[Save & Exit].

● To exit the editing mode without saving any changes,

select [Exit without Saving].

● To return to the editing mode, select [Cancel].

5

4

7

100

Status Screen

STATUS 0 Screen

Status Screen in Camera

Mode

STBY

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

A<3200K>

F5.6 AE+1 9dB 1/10000

30/24 fps

20 min

1min

1minB

A

RES

DD

DUAL

2

0

min

DD

R

ES

1min

B

A

DU

AL

N

M

L

K

J

I

H

GFEC DBA

Appears only when a warning is displayed. ( Page 102)A

Appears only when connected to an external device.

Item Description

ADual Rec Display Displayed when the card slot operation is set to Dual . ( Page 76)A B A

BMedia Status ---- : No card found in the selected slot*

STBY : Recording standby

REC : Recording

REVIEW : Clip Review ( Page 56) A

STBY : Pre Rec recording standby ( Page 58) P A

REC : Pre Rec recording ( Page 58) P A

STBY : Clip Continuous recording standby C

( Page 59) A

REC : Clip Continuous recording ( Page 59) C A

STBY (displayed in yellow)C

: Clip Continuous recording pause

( Page 59) A

STOP : Unable to record to the card in the slot

POFF : Power OFF

* When [Tally System] in the [Others] menu is set to Studio , ---- is not displayed even when a card is A B A B

not inserted into the slot. ( Page 9 )A 3

CIris Status Mark Indicates whether the brightness of the image is appropriate.

J : Iris set higher than normal

R : Iris set to normal

K : Iris set lower than normal

DIris F-Number Displays F-number of the lens iris.

This is not displayed for some lens types, and when the lens cable is disconnected.

(OPEN, F2, F2.8, F4, F5.6, F8, F11, F16, CLOSE)

Memo :

● You can specify the type of display and whether to display the information using [F.No/Iris Indicator] of

[Status Display...] in the [LCD/VF] menu. ( Page 90)A

EAE Level Appears when the AE function is activated and [AE LEVEL] in the [Camera Function] menu is set to a

value other than Normal . ( Page 78)A B A

(AE- , AE-2, AE-1, AE+1, AE+2, AE+ )3 3

FGain Displays the gain value when it is not 0dB .A B

( dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC)3

GShutter Displays the current shutter speed when [Shutter] in the [Camera Function] menu is set to [Step]/

[Variable] and the shutter is ON. ( Page 78)A

EEI : Displayed when [Shutter] is set to EEI (auto adjustment mode).A B

FAS : Displayed when shutter or gain is set to the auto adjustment mode.

Memo :

● The variable range of the shutter speed varies according to the video format settings. ( Page 41)A

HWhite Balance Mode Displays the current white balance mode.

A<**00K>, B<**00K>, P<**00K> (

A

**00

B

indicates color temperature)

FAW : When the Fulltime Auto White balance mode is ON

MANU : Manual White Balance mode (only during control using the remote control unit)

101

* 1 : The variable range of the shutter speed varies according to the video format settings. ( Page 41)A

Item Description

IBlack Toe Appears when [Black Toe] in the [Camera Process] menu is set to a value other than Normal . A B

( Page 82)A

B+1 to B+5 : Displays the Stretch Level when [Black Toe] is set to Stretch (Level 1 to Level 5)A B A B

B-1 to B-5 : Displays the Compress Level when [Black Toe] is set to Compress (Level 1 to Level 5)A B A B

No display : When [Black Toe] is set to NormalA B

JSkin Detail Operation Appears as S.DTL when the Skin Detail function is turned ON.A B

KOperation of Functions SKIN AREA : Blinks when the Skin Area display is ON.

FOCUS : Appears when the Focus Assist function is activated. When ACCU-Focus is enabled, A B

A BACCU-FOCUS blinks for about 10 seconds while Focus Assist starts up, after which

the FOCUS indicator lights up. If recording starts while [ACCU-Focus] is active, [ACCU-A B

Focus] will be forcibly deactivated. ( Page 89)A

LLuminance Information Appears when the Spot Meter function is activated. For details of the display, refer to [Setting Spot Meter]

( Page 54).A

MAX : Maximum luminance

MIN : Minimum luminance

MEvent/Warning Display

Area

Displays the settings for about seconds when the gain or shutter speed is manually changed.3

For other messages displayed in this area, refer to [Error Displays and Actions] ( Page 128).A

Displayed Content Setting Status

GAIN **dB (** : 0, , 6, 9, 12, 15, 18) Gain value is altered3

GAIN ALC Gain is set to ALCA B

FULL AUTO ON, FULL AUTO OFF [FULL AUTO] is turned ON/OFFA B

ZEBRA ON, ZEBRA OFF [Zebra] is turned AON/OFFB

FOCUS ASSIST ON, FOCUS ASSIST OFF [Focus Assist] is turned ON/OFFA B

SHUTTER **

(****K : 1/6, 1/6.25, 1/7.5, 1/12, 1/12.5, 1/15, 1/24, 1/

25, 1/ 0, 1/48, 1/50, 1/60, 1/100, 1/120, 1/3

250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000)

Shutter speed is altered *1

V. SHUTTER **** (**** : 1/24.01 to 1/1998.0) Variable shutter speed is altered *1

SHUTTER OFF **

(**** is the standard shutter value in the respective

modes.)

Shutter is turned AOFF *1B

WHITE BAL * <****K>

(* : A, B, PRESET)

(****, K indicates color temperature)

White balance value is altered

WHITE BAL FAW FAW (Fulltime Auto White balance) is activated

FILTER ****

(** : OFF,1/4ND,1/16ND)

[ND FILTER] setting is altered

AE LEVEL **

(**** : - , -2, -1, NORMAL, +1, +2, + )3 3

[AE LEVEL] value is altered

SPOT METER ****

(**** : ON, FIXED, OFF, SELECT)

Spot meter status is changed

( Page 54)A

BLACK NORMAL [Black Toe] is set to NormalA B

BLACK STRETCH * (* : 1,2, ,4,5,) [Stretch Level] of [Black Toe] is altered3

BLACK COMPRESS * (* : 1,2, ,4,5,) [Compress Level] of [Black Toe] is altered3

REC SWITCH LOCKED, REC SWITCH UNLOCKED Record button lock switch is turned ON/OFF in

Camera mode, or [REC] switch on the handle of

the camera recorder is pressed while being

locked

SLOT SWITCHED * (* : A, B) Active SDHC slot is switched automatically or

using the [SLOT SELECT] button in Camera

mode.

TRIGGER TO EXT Recording command is sent out from the

[IEEE1 94] terminal3

FRAME RATE rrrr/pp fps

(rrrr: recording frame rate, pp: playback frame rate)

Variable frame rate is adjusted using the cross-

shaped button

OK MARK ADDED, OK MARK DELETED OK mark is added or deleted

( Page 68)A

Other Displays ( Page 128 [Error Displays and Actions])A

NFrame Rate Appears as xx/yy fps (xx: recording frame rate, yy: playback frame rate) only when AVariable Frame is set B

in the [Rec Mode] menu. ( Page 76)A

103

Item Description

HND Filter Position Displays the current ND filter position.

No display : [ND FILTER] is set to OFFA B

ND1/4 : [ND FILTER] is set to 1/4A B

ND1/16 : [ND FILTER] is set to 1/16A B

Memo :

●You can turn ON/OFF the display using [Filter] of [Status Display] in the [LCD/VF] menu.

( Page 90)A

IRemaining Space on

External Device

Displays the remaining recording time of the external device (0 to 999). When the remaining time is running out,

this is indicated in red (value + unit of measurement) as a warning to the user.

Memo :

●Only warnings are displayed in the STATUS 0 and STATUS 4 screens.

JOperation of External

Device

Displays the operating status of the connected external device. For details, refer to the instruction manual of the

corresponding external device.

Memo :

●Only warnings are displayed in the STATUS 0 and STATUS 4 screens.

KTime Code (TC)/

User’s Bit (UB)

Displays the time code (hour: minute: second: frame) or user’s bit data.

Memo :

●You can turn ON/OFF the display using [TC/UB] of [Status Display] in the [LCD/VF] menu.

( Page 91)A

●You can select whether to display the time code or user’s bit using the [TC DISPLAY] switch on the inner

panel of the LCD monitor.

00:00:00:00

FF EE DD 20

Colon (:) for non-drop frames

Dot (.) for drop frames

Example:Time Code:

User’s Bit:

105

STATUS Screen3

This screen displays a list of the functions assigned to the switches.

STATUS 4 Screen

This screen displays the event. It is also used to display warnings only.

S SSWITCH A IGN

FAW NONE

GAIN [ L / M / H ] 0dB / 9dB / 12dB

U ER 1 BARS S

U ER 2 B. TRETCH3S S

U ER 3 LOAD FILES

RET CLIP REVIEW

S S SKIN/ POT POT METER

AE LEVEL AE LEVEL/VFR

J n 2. 200 01:23:45AMa 82 2min8

1min

B

A1m

in

1min

B

A

DUAL

A

B

C

D

E

F

2 2mi8

n

J

a 8n 2. 200 01:23:45A

M

* 0 : Same as STATUS 0 Screen ( Page 100)A

* 1 : Same as STATUS 1 Screen ( Page 102)A

* 2 : Same as STATUS 2 Screen ( Page 104)A

* 0 * 1 * 2

* 1 : (Appears only during warnings)

Item Description

A[FAW] Function

Assignment

Displays the position of the [WHT.BAL.] selection switch that is assigned with the FAW function.

(NONE, A, B, PRESET)

B[GAIN] Switch Settings Displays the setting values for each of the positions ([L]/[M]/[H]) on the [GAIN] switch.

(0dB, dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC)3

C[USER1,USER2,USER ] 3

Button Function Settings

Displays the setting status of the [USER1], [USER2], and [USER ] buttons.3

(NONE, BARS, B.STRETCH*, B.COMPRESS*, CLIP REVIEW, LOAD FILE)

* indicates 1 to 5

D[RET] Button Function

Settings

Displays the setting status of the [RET] button on the lens.

(CLIP REVIEW, RETURN, FOCUS ASSIST, OK MARK)

E[SKIN AREA/SPOT

METER] Switch Settings

Displays the setting status of the [SKIN AREA/SPOT METER] switch.

(SKIN AREA, SPOT METER)

FCross-Shaped Button ( ) H I

Function Assignment

Displays the functions assigned to the left/right ( ) of the cross-shaped button.H I

(DISABLE, AE LEVEL, AE LEVEL/VFR)

30/24 fps

MAX 123%

MIN 45%

20 min

DD

STBY

1min

1minB

A

RESRE

S

1m

in

1min

B

A

20 mi

n

DD

DUAL

* 0 : Same as STATUS 0 Screen ( Page 100)A

* 1 : Same as STATUS 1 Screen ( Page 102)A

* 0 * 1 (Appears only during warnings)

* 0

Appears only when connected to an external device ( Page 102)A
