Seite 1/13
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/jl-audio/hd6004/html/bg1.png)

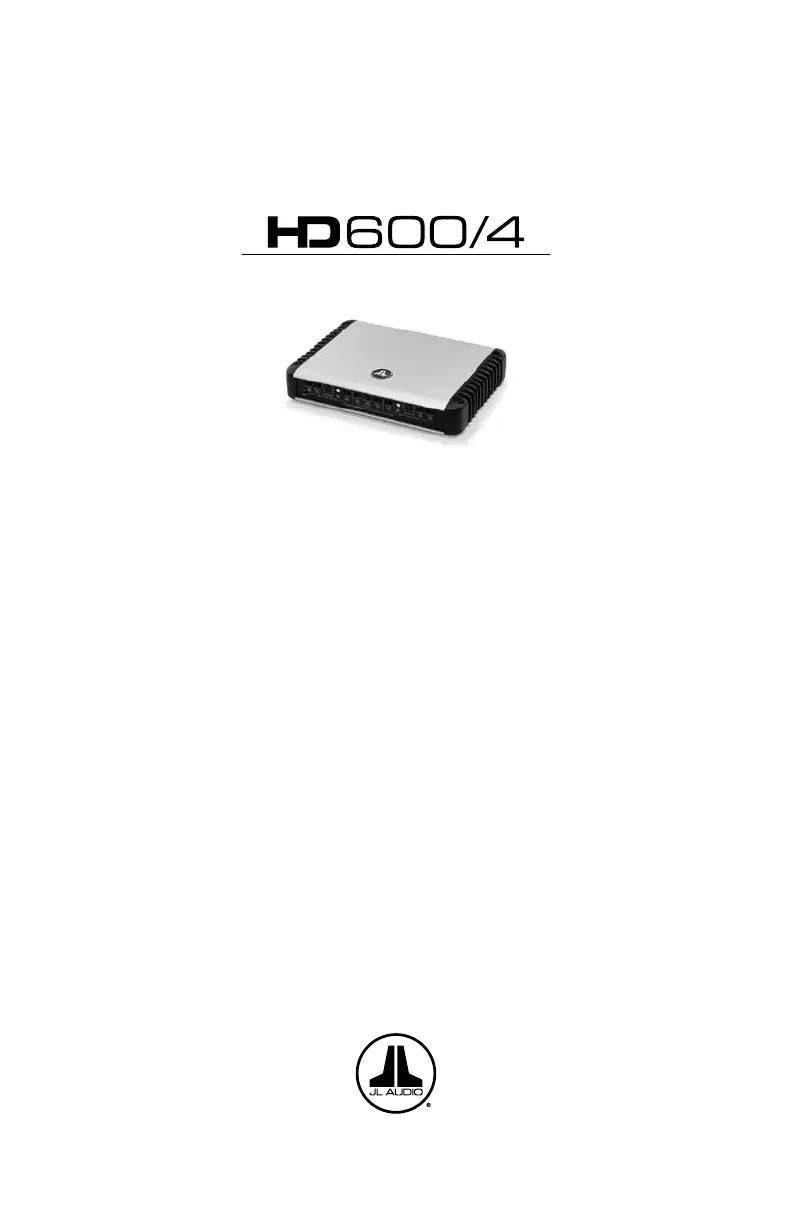

owner’s manual
4-Channel Class-D Full-Range Amplifier
Thank you for purchasing a JL Audio amplifier for
your automotive sound system.
Your amplifier has been designed and manufactured to exacting
standards in order to ensure years of musical enjoyment in your vehicle.
For maximum performance, we highly recommend that you have
your new amplifier installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the amplifier yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/jl-audio/hd6004/html/bg2.png)
2 | JL Audio - HD600/4 Owner’s Manual
PROTECT YOUR HEARING!
We value you as a long-term customer. For
that reason, we urge you to practice restraint in
the operation of this product so as not to damage
your hearing and that of others in your vehicle.
Studies have shown that continuous exposure to
high sound pressure levels can lead to permanent
(irreparable) hearing loss. This and all other
high-power amplifiers are capable of producing
such high sound pressure levels when connected
to a speaker system. Please limit your continuous
exposure to high volume levels.
While driving, operate your audio system in
a manner that still allows you to hear necessary
noises to operate your vehicle safely (horns,
sirens, etc.).
SERIAL NUMBER
In the event that your amplifier requires
service or is ever stolen, you will need to
have a record of the product’s serial number.
Please take the time to enter that number in
the space provided below. The serial number
can be found on the bottom panel of the
amplifier and on the amplifier packaging.
Serial Number:
INSTALLATION APPLICATIONS
This amplifier is designed for operation in
vehicles with 12V, negative-ground electrical
systems. Use of this product in vehicles with
positive ground and/or voltages other than 12V
may result in damage to the product and will void
the warranty.
This product is not certified or approved for
use in aircraft.
Do not attempt to “bridge” the outputs of this
amplifier with the outputs of a second amplifier,
including an identical one.
PLANNING YOUR INSTALLATION
It is important that you take the time to read
this manual and that you plan out your
installation carefully. The following are some
considerations that you must take into account
when planning your installation.
Input Sensitivity
Control
(pg. 10)
Power Status
Indicator
(pg. 16)
Filter Mode
Selection
(pg. 11)
Filter Slope
Selection
(pg. 11)
Filter Frequency
Selector
(pg. 11)
Input Mode
Selection
(pg. 9)
Input Voltage
Selection
(pg. 10)
Rear Preouts Remote
Level
Control
Front Inputs
L
R
L
R
+12 VDC Ground Remote
Chassis Ground
Connector
(pgs. 6-7)
Front Left & Right
Channel Input Jacks
(pg. 9)
Left & Right Preamp
Output Jacks
(pg. 13)
Rear Left & Right
Channel Input Jacks
(pg. 9)
Jack for
Remote Level
Control Knob
(pg. 13)
Remote Turn-On
Connector
(pgs. 6-7)
+12 V Power
Connector
(pgs. 6-7)
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/jl-audio/hd6004/html/bg3.png)
4 | JL Audio - HD600/4 Owner’s Manual
ProduCt desCriPtion
The JL Audio HD600/4 is a very powerful
and compact four-channel, full-range amplifier
utilizing patented Single Cycle Control™
Class D technology for all channels. This
groundbreaking technology delivers reference-
grade sonic performance while requiring
far less current from the vehicle’s electrical
system than a conventional amplifier.
JL Audio’s exclusive R.I.P.S. power supply
design optimizes the output of each channel pair
for any impedance between 1.5 and 4 ohms per
channel (3-8 ohms bridged) allowing you to get
full use of the HD600/4’s performance capabilities
with a wide range of speaker systems.
The tightly regulated power supply design also
means that the HD600/4’s clean power output
capability remains stable over a wide range of
vehicle voltages, resulting in enhanced fidelity.
The HD600/4 flexible, studio-grade signal
processing allows it to be deployed in a wide
range of system applications:
1) As a four-channel (150W x 4) full-range
amplifier, delivering full-range signals to two
separate stereo speaker systems (front and rear,
for example).
2) As a powerful (150W x 4) four-channel satellite
amplifier in a bi-amplified system, delivering
high-passed signals to front and rear speaker
systems. Preamp outputs permit connection of a
separate amplifier to drive the subwoofer system.
3) As a 600W full-system amplifier in
bi-amplified mode with one channel pair
driving subwoofers in low-pass mode (150W
x 2 or 300W x 1) and the other channel pair
driving main speakers in high-pass mode
(150W x 2).
4) As a very powerful (300W x 2) full-range
amplifier, delivering full-range signals to a
stereo speaker system.
5) As a very powerful (300W x 2) two-channel
satellite amplifier in a bi-amplified system,
delivering high-passed signals to a stereo
speaker system. Preamp outputs permit
connection of a separate amplifier to drive the
subwoofer system.
6) As a powerful (300W x 2) two-channel
subwoofer amplifier in a bi-amplified system,
delivering low-passed signals to a dual
subwoofer system. Preamp outputs permit
connection of a separate amplifier to drive the
satellite speakers.
The HD600/4’s flexible input and crossover
sections permit operation with a wide variety of
source units and system configurations. It can be
operated with a single pair of stereo inputs or with
separate inputs for its front and rear channels.
The HD600/4’s preamp output can send pass-
through signals from the Front Inputs only or it
can sum all four input channels to feed a non-
fading signal to a separate subwoofer amplifier.
As we said, it’s very flexible.
