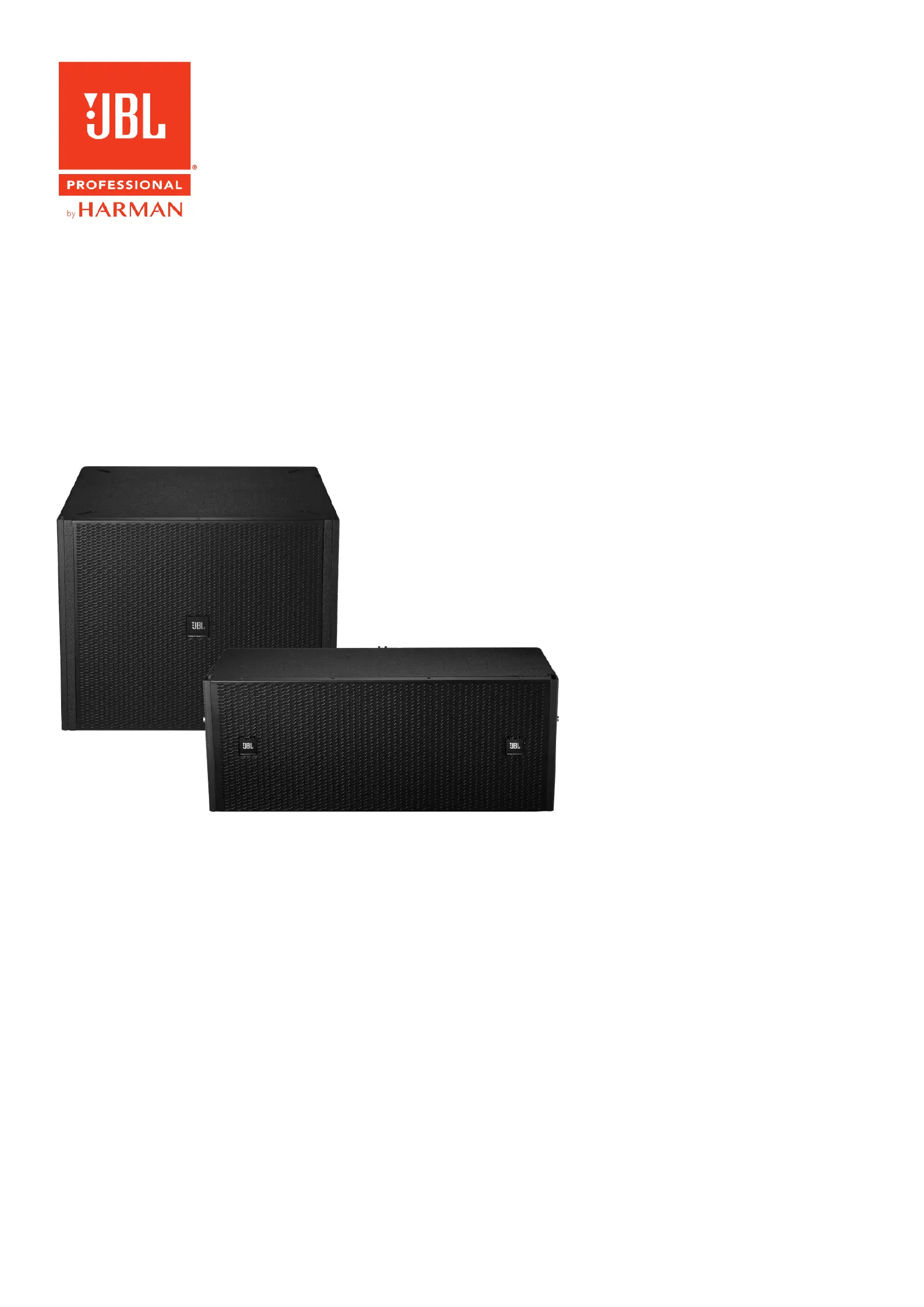

CVLINK Series
Loudspeaker System
User's Manual
CVLINK Series Loudspeaker System Manual | User's Manual
2
Contents
1 – Safety 3 ..........................................................................................................................................
1.1 Guidelines for Safety 3 ..............................................................................................................
1.2 General Hardware Information 3 ...............................................................................................
1.3 Structural Link 3 ........................................................................................................................
1.4 Important Security Warning 3 ...................................................................................................
1.5 You are new to îš¿xture of rigging ............................................................................................4
1.6 Check and Maintenance 4 ........................................................................................................
1.7 Signs 4 ......................................................................................................................................
2 – DECLARATION OF CONFORMITY 6 ...........................................................................................
3 – SYSTEM COMPONENTS 6 ...........................................................................................................
4 – INTRODUCTION 7 .........................................................................................................................
4.1 CVL28 Passive Line-array Full Range Loudspeaker 7 .............................................................
4.2 CVL18S Passive Line array Subwoofer 8 .................................................................................
5 – CONNECTIONS 9 ..........................................................................................................................
6 – CVL28 Rigging Setting 10 ............................................................................................................
7 – CVL18S Rigging Setting .........................................................................................................11
8 – CVL28 CVLINK Series TECHNICAL SPECIFICATIONS 12 .......................................................
9 – CVL18S CVLINK Series TECHNICAL SPECIFICATIONS 14 ......................................................
3
CVLINK Series Loudspeaker System Manual | User's Manual
1 – Safety
1.1 Guidelines for Safety
1. Please read the following guidelines.
2. Please keep the following guidelines.
3. Please pay attention to all warning information.
4. Please comply with all guidelines.
5. Do not expose the front of the Loudspeaker directly to rain or ocean wave.
6. Do not install the equipment near heat sources, such as transmitters, electric heaters, furnaces or other
equipment that can generate heat.
7. Only use îš¿ttings designated by the manufacturer.
8. Wipe the equipment with dry cloth only.
9. Only use movable cabinets, stands, tripods, holders, or platforms designated by the manufacturer or sold
alongside the equipment. If a movable cabinet is used, exercise caution when moving the assembled
movable cabinet and the equipment to prevent damage caused by overturn.
10. The equipment should be repaired in case of any damage. All repairing services should be provided by
qualiîš¿ed repairing personnel.
11. Please contact professionals for further maintenance problems.
12. Please do not repair the equipment by yourself unless you are qualiîš¿ed.
13. Long exposure to overly high sound pressure levels may lead to hearing damage. The Loudspeaker can
easily produce sound pressure levels (SPL) that can cause permanent hearing damage to performers,
production crews, and audience. Take care to avoid long exposure to SPL of over 90 dB.
14. Please read the System Rigging Manual before installing and using the Product.
1.2 General Hardware Information
Any hardware used in Overhead Setup shall have a load that îš¿ts its intended use. In general, the hardware
can be obtained from the rigging supply rooms, the industrial supply catalogs, and the specialized rigging
dealers. Local hardware stores normally do not have a stock of these products.
1.3 Structural Link
Before installing any suspended object, the location and method of structural connection must be approved
by a licensed professional engineer. For design purpose, the following performance standards shall be
provided to such professional engineer: Uniform building codes (if applicable), municipal building codes
(if applicable) and seismic codes (if applicable). The hardware shall be installed and connected in ways
designated by such professional engineer. Improper installation may cause product damage or personal injury.
1.4 Important Security Warning
The information contained in the section is compiled with widely-accepted engineering data, and is only used
for reference only.
None of such information should be used without receiving appropriate advice on particular applicability.
No information provided herein constitutes representation or warranty. Any person who uses such information
shall be solely liable for any consequence arising from the use of such information.
Due to di󰀨erences in material size, specications and/or local regulations, users in other countries should
seek advice from appropriate engineering and regulatory authorities for speciîš¿c guidelines.
To ensure safety in system suspension, please make sure all hardwares contained are correctly used.
Careful calculations should be made to ensure that all components are used within their workload limits
before being suspended. Never exceed the maximum recommended rated load.
