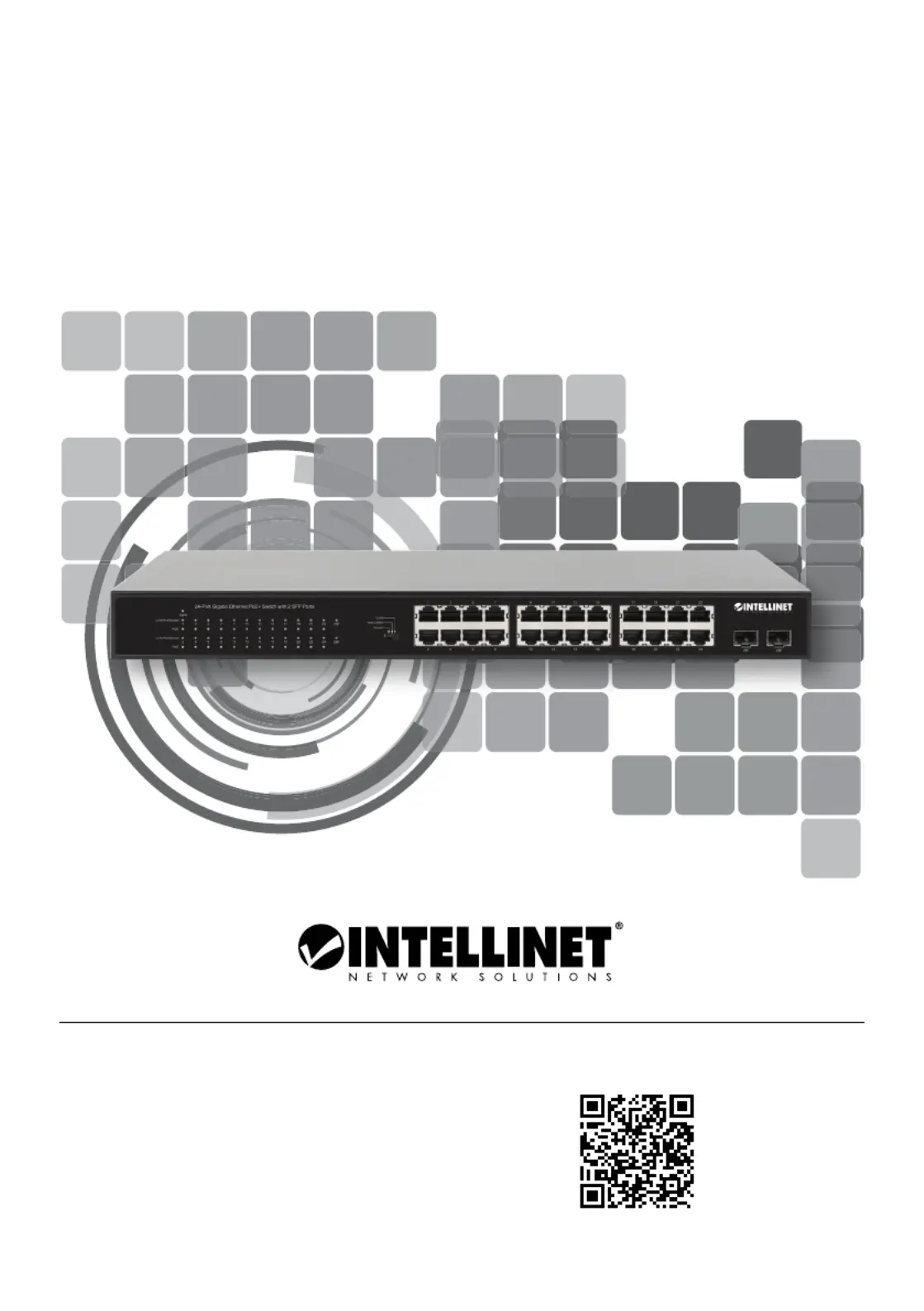

Important: Read before use. • Importante: Leer antes de usar.
24-Port Gigabit Ethernet
PoE+ Switch with 2 SFP Ports
Instructions
Model 561891 (IPS-24G02-370W)
For additional benets:
or go to: register.intellinet-network.com/r/561891
Scan to
register your
product warranty
2English
Instructions
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports offers
an array of time-saving, cost-effective features while providing superior network throughput.
No configuration is required and installation is plug and play. With a backplane speed of 52
Gbps, plenty of performance is available for your computers, servers and other networking
devices. Each of the ports automatically senses the link speed of the connected network
device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.
This PoE switch is designed to provide compatible devices with enough power when needed.
It offers up to 30 watts of power per port until its power budget of 370 watts is reached.
Green Ethernet Technology
This Intellinet Network Solutions switch detects link status to all connected devices and
reduces the power usage of ports not in use. In addition, the switch can adjust the level of
power output based on the length of the network cable connected to a particular port. This
feature allows for the enjoyment of maximum network performance, and when things slow
down, it automatically scales back power usage to conserve energy and save money.
For specifications, visit intellinetnetwork.com. Register your product at
register.intellinet-network.com/r/561891 or scan the QR code on the cover.
Front Panel
LED COLOR STATUS STATUS DESCRIPTION
PWR Off Power Off
Green On Power On
Link/Act/
Speed
(1-24,
25F-26F
[SFP])
Off No device is connected to the port.
Orange On A device is connected to the port at 10/100 Mbps speeds.
Green On A device is connected to the port at 1000 Mbps speeds.
Orange / Green Flashing Sending or receiving data
PoE (1-24) Green
Off No powered device (PD) is connected to the port.
On The connected device is receiving power.
Flashing Abnormal power supply
Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn’t indicate
a link or activity, check the corresponding device for proper setup and operation.
Slide Switch
• : default mode; allows normal communication between ports 1 – 26.Normal
• Flow Control: disables the switch’s flow-control function.
• : isolates ports 1 – 24 from each other while VLAN
allowing them to connect to ports 25 and 26.
3
English
Rear Panel
Power
Use the included power cord to connect the device (on the rear panel)
to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.
Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal connector is used to
provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis
grounding screw, it should be wired to an object that provides earth ground. In rackmount
installations, grounding is typically provided by the metal frame of the mounting rack.
Placement
Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned on a level surface that can
support the weight of the switch (and possibly other objects) with at least 25 mm (approx. 1”) of
clearance for ventilation; away from sources of electrical noise (radios, transmitters, broadband
amplifiers); and within 100 m (approx. 328’) of network devices it’s to be connected to.
Rackmount Installation
The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting brackets
on the switch’s side panels (one on each side) and secure them with the screws provided.
Use the screws provided with the equipment rack to mount the
Intellinet Network Solutions switch to the rack.
Instructions
