Seite 1/24

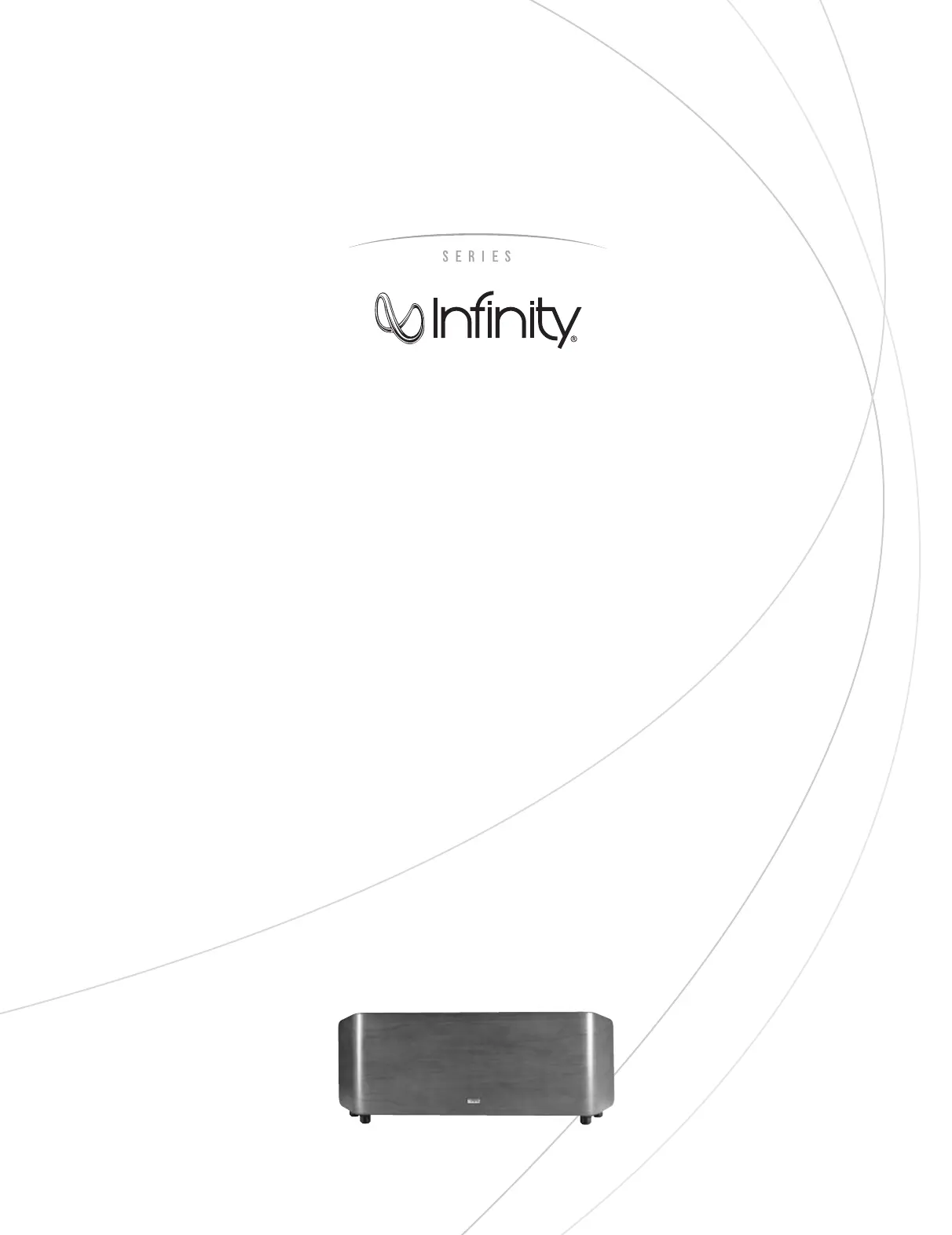

Compact Powered Subwoofer
CASCADE
™
M FODEL IFTEEN
Owner’s Guide
(120V)
C
ASCADE
™
ii CASCADE MODEL FIFTEEN
Read First!
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug.A polarized plug
has two blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong.The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles and the point wher they exit from thee
apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand,
tripod, bracket or table specified
by the manufacturer or sold with
the apparatus.When a cart is
used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
15. Do not use attachments not recommended by
the product manufacturer, as they may cause
hazards.
16. This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your product dealer
or local power company. For products intended to
operate from battery power, or other sources,
refer to the operating instructions.
17. If an outside antenna or cable system is
connected to the product, be sure the antenna or
cable system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Article 810 of the National
Electrical Code,ANSI/NFPA 70, provides
information with regard to proper grounding of
the mast and supporting structure, grounding of
the lead-in wir to an antenna discharge unit, sizee
of grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode. See Figure A.
18. An outside antenna system should not be
located in the vicinity of overhead power lines
or other electric light or power circuits, or where
it can fall into such power lines or circuits.When
installing an outside antenna system, extreme
care should be taken to keep from touching such
power lines or circuits, as contact with them
might be fatal.
19. Do not overload wall outlets, extension cords,
or integral convenience receptacles, as this can
result in a risk of fire or electric shock.
20. Never push objects of any kind into this
product through openings, as they may touch
dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never
spill liquid of any kind on the product.
21. Do not attempt to service this product
yourself, as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
22. When replacement parts are required, be sure
the service technician has used replacement
parts specified by the manufacturer or that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
23. Upon completion of any service or repairs
to this pr ask the service technician tooduct,
perform safety checks to determine that the
product is in proper operating condition.
24. The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock, 
do not remove cover (or back). 
No user-serviceable parts inside. 
Refer servicing to qualified service personnel.

CAUTION: To prevent electric shock,
do not use this (polarized) plug with 
an extension cord, receptacle or other outlet 
unless the blades can be fully inserted to 
prevent blade exposure.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute 
a risk of electric shock to persons.
Figure A.
Example of Antenna Grounding as per
National Electrical Code ANSI/NFPA 70
IMPORTANT AFETY RECAUTIONSS P
iii
CASCADE MODEL FIFTEEN
Table of Contents
ii Important Safety Precautions
1Unpacking the Subwoofer
1Placement
2Controls and Connections
3Connections
4Operation
5Room Adaptive Bass Optimization System
™(R.A.B.O.S.
™)
6Contents of the R.A.B.O.S.Test CD
6The R.A.B.O.S. Sound-Level Meter (RSLM)
6RSLM Placement
7Initial System-Level Setting
7Setting the Subwoofer Test Level
7Performing Low-Frequency Measurements
9What Does a Parametric Equalizer Do?
9Completing the Measurement Template
10 Using the Width Selector
11 Level
11 What You Measure, What to Do
14 Adjusting the R.A.B.O.S. Equalizer
15 Final System Balance
16 Maintenance and Service
17 R.A.B.O.S. Measurement Templates
19 Specifications
C M F OASCADE ODEL IFTEEN WNER’S UIDEG
