User Manual

CONTROL PANEL

WASH CYCLE TABLE

THANK YOU FOR BUYING A INDESIT PRODUCT

In order to receive a more complete assistance,

please register your product on

www.indesit.com/register

Before using the appliance carefully read the Safety Instruction.

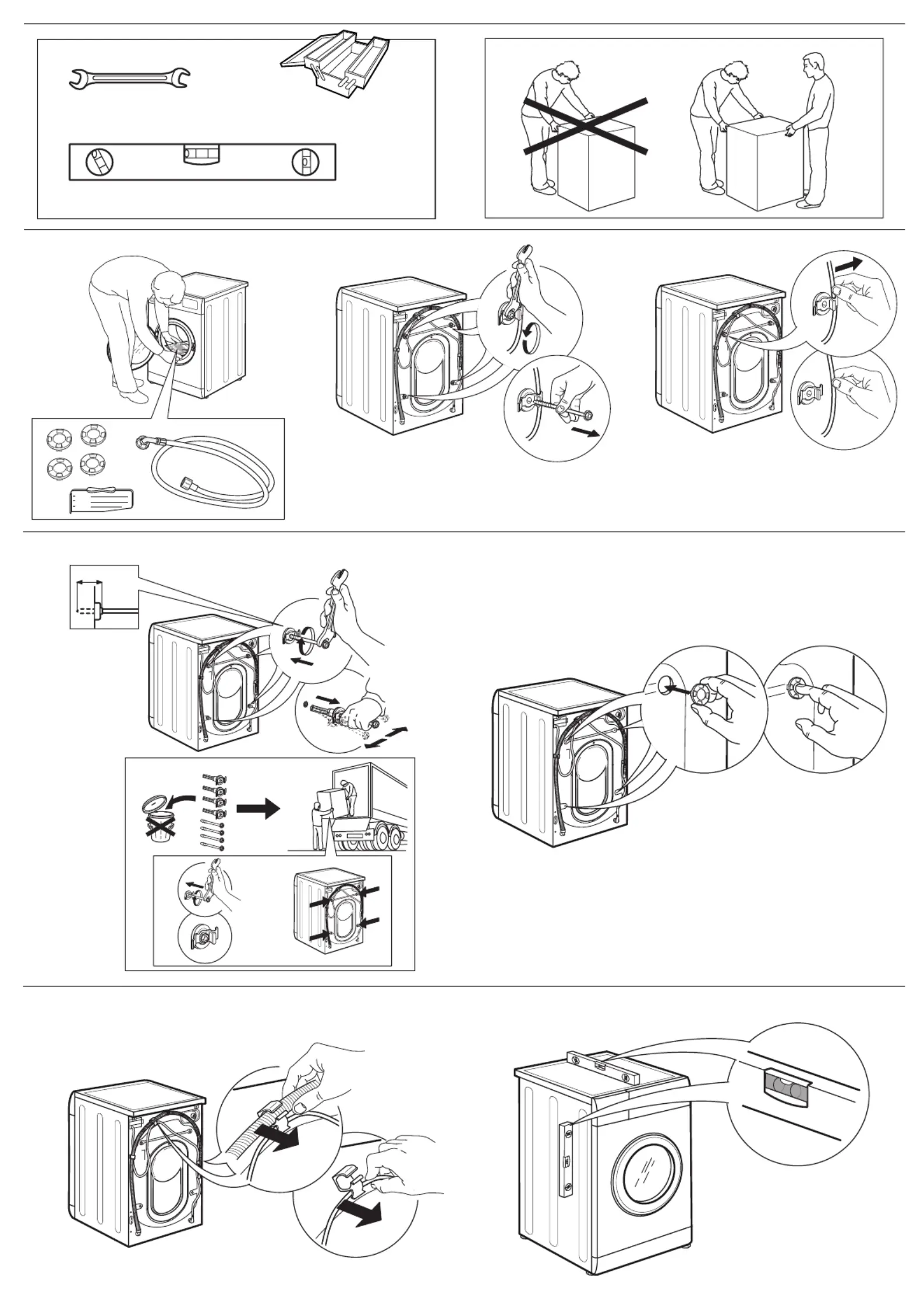

Before using the machine, it is imperative that the transport bolts are removed.

For more detailed instructions on how to remove them, see the Installation Guide.

Maximum load 8 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Residual

dampness %

(**)

Energy con-

sumption kWh

Total water l

Laundry

temperature °C

Wash cycle Temperature Maxim

spin

(r.p.m.)

Maximum

load (kg)

Duration

(h : m)

Prewash Wash Fabric

softener

Powder

Liquid

Setting Range 1 2 3

1 Mixed 40°C – 40°C 1000 80:59 –   –– – – –

2 Cotton 60°C – 60°C 1000 80:59 –     – – – –

3 Cotton 40°C – 40°C 1200 80:45 –   –– – – –

4 Cotton 30°C – 30°C 1200 4,5 0:30 –   –71 0,178 37 27

5 Synthetics 30°C – 30°C 1000 4 0:59 –   –– – – –

6 Silk & Delicates 30°C – 30°C 600 1 0:59    –– – – –

7 Wool 40°C – 40°C 800 2 0:59 –   –– – – –

8 Express 20°C – 20°C 1200 1,5 0:15 –   –– – – –

9 Cotton (2) 40°C – 60°C 1400 83:55 –    49 1,100 97 45

10 Synthetics (3) 40°C – 60°C 1200 4,5 2:55 –    35 0,800 55 43

11 Whites 60°C – 90°C 1400 8 2:35   +90°   55 1,790 89 55

12 Sport 30°C – 30°C 600 4 0:55 –   –– – – –

13 20°C 20°C – 20°C 1400 8 1:50 –   –55 0,138 78 22

14 Eco 40-60 (1) 40 °C 40°C

1351 8 3:38 –    53 0,730 56 40

1351 42:48 –    53 0,545 45 35

1351 22:25 –    53 0,340 40 25

15 Rinse + Spin – – 1400 80:55 – –– – – – – –

16 Spin + Drain * – – 1400 8 0:10 – – – – – – – – –

  Required dosage Optional dosage

* By selecting the 16 cycle and excluding the spin cycle, the washing machine will drain only.

** After programme end and spinning with maximum selectable spin speed, in default

programme setting.

Note: for the Eco 40-60 program in the WASH CYCLE TABLE the value of the maximum eective

spin is shown.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as the

temperature and pressure of the incoming water, ambient temperature, amount of detergent,

load quantity and type, load balancing and any additional options selected. The values given

for programmes other than the Eco 40-60 programme are indicative only.

1) Eco 40-60

Test wash cycle in compliance with EU Ecodesign regulation 2019/2014.

The most ecient programme in terms of energy and water consumption for washing

normally soiled cotton laundry.

For all testing institutes:

2) Long cotton cycle: set cycle 9 at a temperature of 40°C.

3) Long synthetics cycle: set cycle 10 at a temperature of 40°C.

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

Compartment 1: Pre-wash detergent

(powder)

Compartment 2: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic

partition A (supplied) should be used for proper

dosage. If powder detergent is used, insert the

partition into slot B.

Compartment 3: Additives (fabric softener,

etc.)

The fabric softener must never exceed the “max”

level indicated on the central pin.

! Use powder detergent for white cotton garments, for pre-washing, and

for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

! To remove the drawer, press lever and pull the drawer outwards.C

1. ON/OFF button

2. START/PAUSE button and indicator light

3. WASH CYCLE PHASE indicator lights

4. DOOR LOCKED indicator light

5. DELAY START and indicator lights

6. OPTION buttons and indicator lights

7. CHILD LOCK button and indicator light

8. SPIN knob and indicator light

9. TEMPERATURE knob and indicator light

10. WASH CYCLE SELECTOR KNOB

1 3

68 7

2 4 5

10 9

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash

care label. The value indicated in the symbol is the maximum

recommended temperature for washing the garment.

Mixed

To wash mixed and coloured items together.

Cotton 60°

Cycle designed to wash cotton garments - mainly white items. It can be

used with powder detergent too.

Cotton 40°

Short cycle designed to wash delicate cotton items.

Cotton 30°

Short cycle designed to wash a mixed load of cotton and synthetic fabrics

- white and coloured items together.

Synthetics 30°

Suitable for washing moderately soiled garments made of synthetic bres

(e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.

Silk & Delicates

To wash all silk and delicate garments. We recommend the use of special

detergent which has been designed to wash delicate clothes.

Wool

All wool garments can be washed using programme 7, even those

carrying the “hand-wash only” label. For best results, use special

detergents and do not exceed 2 kg of laundry.

Express

This cycle refreshes your garments in just 15 minutes.

Cotton 40°-60°

Suitable for washing towels, underwear, table cloths, etc. made of

resistant linen and cotton that are moderately to heavily soiled.

Synthetics 40°-60°

Specic for synthetic items. If the dirt is dicult to remove, the

temperature can be increased up to 60° and powder detergent can be

used too.

Whites

For heavily soiled whites and resistant colours.

Sport

Is designed for washing lightly soiled sports clothing (tracksuits, shorts,

etc.); for best results, we recommend not exceeding the maximum load

indicated in the “Wash Cycle Table”. We recommend using liquid

detergent, and adding the amount suitable for a half-load.

20°C

For washing lightly soiled cotton garments, at a temperature of 20 °C.

Eco 40-60

For washing normally soiled cotton garments declared to be washable at

40 °C or 60 °C, together in the same cycle. This is the standard cotton

programme and the most ecient in terms of water and energy

consumption.

Rinse + Spin

Designed for rinsing and spinning.

Spin + Drain

Designed to spin and drain the water.

INDICATOR LIGHTS

The indicator lights provide important information.

This is what they can tell you:

Delayed start

If the DELAY TIMER function has been activated, after the wash cycle has

been started the indicator light corresponding to the selected delay

period will begin to ash:

As time passes, the remaining delay will be displayed and the

corresponding indicator light will ash:

The set programme will start once the selected time delay has expired.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the

indicator lights switch on one-by-one to indicate which phase of the cycle

is currently in progress.

Wash

Rinse

Spin

Drain

End of Wash Cycle

DOOR LOCKED INDICATOR

When lit, the symbol indicates that the door is locked. To prevent any

damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE

button; if the indicator light is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before it is used for the rst

time, run a wash cycle with detergent and no laundry, by setting the

“Auto-Clean” cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the

“TIPS AND SUGGESTIONS” section.

- Turn the washing machine on by pressing the ON/OFF button. All the

indicator lights will light up for a few seconds, then only the lights

corresponding to the settings for the selected wash cycle will remain lit;

the START/PAUSE indicator light will also ash.

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the Wash Cycle Table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments as described in “DETERGENT DISPENSER

DRAWER” section.

- Close the door.

- Set the WASH CYCLE knob to the desired cycle.

- Set the washing temperature.

- Set the spin speed.

- Select the desired options.

STARTING CYCLE

Press the START/PAUSE button.

The machine will lock the door ( symbol on) and the drum will start to

rotate; the door will be unlocked ( symbol o) and then locked again

( symbol on) as preparation phase of each washing cycle. The “Clicking”

noise is part of the door locking mechanism. Water will enter the drum and

start the washing phase once the door is locked.

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again; the

indicator light will ash amber. If the indicator light is not lit, the door

may be opened. To start the wash cycle from the point at which it was

interrupted, press the START/PAUSE button again.

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the indicator light turns on to signal that the door

cannot be opened. While a wash cycle is running, the door remains

locked. To open the door while a cycle is under way, for example, to add

or remove garments, press the START/PAUSE button to pause the

cycle; the indicator light will ash amber. If the indicator light is not lit,

the door may be opened. Press the START/PAUSE button again to

continue the cycle.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washing machine

using the START/PAUSE button (the relative indicator light will ash

amber), then select the desired cycle and press the START/PAUSE

button again.

! To cancel a cycle that has already begun, press and hold the ON/OFF

button. The cycle will be stopped and the machine will switch o.

END OF THE CYCLE

Once the cycle terminates the indicator light will light up; when the

indicator light switches o, the door may be opened. Open the doorand

switch o the machine. If you do not press ON/OFF button, the

washing machine will switch o automatically after about a 10 minutes.

Close the water tap, open the door and unload the washing machine.

Leave the door ajar to allow the drum to dry.

FUNCTIONS

- If the selected option is not compatible with the set wash cycle, the

indicator light will ash and the option will not be activated.

- If the selected option is not compatible with another previously

selected option, the indicator light will ash accompanied by a buzzer

(3 beeps), and only the latter option will be activated; the indicator

light corresponding to the activated option will turn on.

Delay start

To set a delayed start for the selected cycle, press the corresponding button

repeatedly until the desired delay period has been reached (3h-6h-9h).

When the button is pressed for the fourth time, the option will deactivate.

Once the START/PAUSE button has been pressed, the delay time can

only be modied by decreasing it until the set cycle is launched.

Extra rinse

By selecting this option, the eciency of the rinse is increased and

optimal detergent removal is guaranteed. It is particularly useful for

sensitive skin.

Easy iron

By selecting this function, the wash and spin cycles will be modied in

order to limit the formation of creases.

Temperature

Turning the TEMPERATURE knob to set the wash temperature (see “Wash

Cycle Table”).

The temperature may be lowered, or even set to a cold wash .

N.B.: If the set value is compatible with the selected cycle, the knob

indicator will be lit (xed light). If it isn’t, it will ash and 3 beeps will be

heard.

The washing machine will automatically prevent you from selecting a

temperature which is higher than the maximum value set for each wash

cycle.

Spin

Turning the SPIN SPEED knob to set the spin speed for the selected wash

cycle.

The spin speed may be lowered, or the spin cycle can be excluded

altogether by selecting the symbol .

N.B.: If the set value is compatible with the selected cycle, the knob

indicator will be lit (xed light). If it isn’t, it will ash and 3 beeps will be

heard.

The washing machine will automatically prevent you from selecting a

spin speed which is higher than the maximum speed set for each wash

cycle.

CHILD LOCK

to activate the control panel lock, press and hold the button for

approximately 2 seconds. The lit symbol signals that the control

panel is locked. This prevents wash cycles from being modied

accidentally (except for the ON/OFF button), especially if there are

children in the home. To deactivate the control panel lock, press and hold

the button for approximately 2 seconds.

TIPS AND SUGGESTIONS

Divide the laundry according to:

Type of fabric (cotton, mixed bres, synthetics, wool, garments to be

hand-washed). Colour (separate coloured garments from whites, wash

new coloured garments separately). Delicates (small garments – such as

nylon stockings – and items with hooks – such as bras: insert them in a

fabric bag).

Empty the pockets:

Objects such as coins or lighters can damage the washing machine and

the drum. Check all buttons.

Follow the dosage recommendation / additives

It optimizes the cleaning result, it avoids irritating residues of surplus

detergent in your laundry and it saves money by avoiding waste of

surplus detergent.

Use low temperature and longer duration

The most ecient programmes in terms of energy consumption are

generally those that perform at lower temperatures and longer duration.

Observe the load sizes

Load your washing machine up to the capacity indicated in the

“Wash Cycle Table” table to save water and energy.

Noise and remaining moisture content

They are inuenced by the spinning speed: the higher the spinning speed

in the spinning phase, the higher the noise and the lower the remaining

moisture content.

CARE AND MAINTENANCE

Before performing cleaning and maintenance, switch the washing machine

o and disconnect it from the mains power. Do not use ammable liquids to

clean the washing machine. Clean and maintain your washing machine

periodically (at least 4 times per year).

Disconnect the water and power supplies

Close the water tap after every wash. This will limit wear on the hydraulic

system inside the washing machine and help to prevent leaks.

Unplug the washing machine when cleaning it and during all

maintenance work.

Clean the washing machine

The outer parts and rubber components of the appliance can be cleaned

using a soft cloth soaked in lukewarm soapy water. Do not use solvents or

abrasives.

The washing machine has a “Auto-clean” cycle for its internal parts; it

must be run without any load in the drum.

To optimise this cycle, it is possible to use either detergent (10% of the

quantity specied for lightly soiled garments) or special additives to clean

the washing machine. We recommend running a cleaning cycle every 40

wash cycles.

To start the cycle press buttons and simultaneously for 5

seconds.

The cycle will start automatically and will run for about 70 minutes. To

stop the cycle, press the START/PAUSE button.

Clean the detergent dispenser drawer

Wash it under running water; this operation should be repeated

frequently.

Care for the door and drum

Always leave the porthole door ajar in order to prevent unpleasant odours

from forming.

Clean the pump

The washing machine is tted with a auto-cleaning pump that does not

require any maintenance. Small items (such as coins or buttons) may

sometimes fall into the protective pre-chamber situated at the base of the

pump.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

1. remove the cover panel on the front of the machine by rst pressing it

in the centre then pushing downwards on both sides to extract it;

2. loosen the drainage pump cover by turning it anti-clockwise: it is

normal for some water to leak out;

3. clean the inside thoroughly;

4. screw the cover back on;

5. put the panel back in place, making sure the hooks slot in place before

pushing the panel onto the appliance.

Check the water inlet hose

Check the water inlet hose at least once a year. If it is cracked or broken, it

must be replaced: during wash cycles, the high pressure of the water

could suddenly split the hose open.

! Never use hoses that have already been used.

LOAD BALANCING SYSTEM

Before every spin cycle, to avoid excessive vibrations before every

spin and to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the washing

rotation speed. If, after several attempts, the load is not balanced

correctly, the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washing machine performs the distribution

process instead of spinning. To encourage improved load distribution and

balance, we recommend small and large garments are mixed in the load.

ACCESSORIES

Contact our Technical Assistance Service to check whether the following

accessories are available for this washing machine model.

Stacking kit

With this accessory you can secure the tumble dryer to the upper part of

your washing machine to save space and facilitate loading and unloading

of the tumble dryer.

TRANSPORT AND HANDLING

Do not lift the washing machine by gripping it from the upper section.

Unplug the appliance and close the water tap. Check that the door and

detergent dispenser drawer are tightly closed. Detach the lling hose

from the water tap then detach the drain hose. Empty all the water

remaining in the hoses and secure the latter so that they do not get

damaged during transport. Apply the transport bolts back on. Repeat, in

reverse order, the transport bolt removal procedure described in the

“Health & Safety and Installation Guides”.

Produktspezifikationen

Marke:	Indesit
Kategorie:	Waschmaschine
Modell:	MTWC 81495 BK UK

Brauchst du Hilfe?

Wenn Sie Hilfe mit Indesit MTWC 81495 BK UK benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Waschmaschine Indesit

Indesit WIE 107 X Bedienungsanleitung

14 Oktober 2024

Indesit WIXE 167 (UK) Bedienungsanleitung

12 Oktober 2024

Indesit LIMPIA TRE Bedienungsanleitung

11 Oktober 2024

Indesit BWE 91485X WS EU N Bedienungsanleitung

6 Oktober 2024

Indesit MTWE 91483 W UK Bedienungsanleitung

4 Oktober 2024

Indesit IWDE 71680 C ECO IT Bedienungsanleitung

3 Oktober 2024

Indesit WN 1265 XWO Bedienungsanleitung

3 Oktober 2024

Indesit BWE 71253X WSSS EU Bedienungsanleitung

1 Oktober 2024

Indesit BWSE 71295X WBV Bedienungsanleitung

29 September 2024

Indesit IWDE 7145 B (UK) Bedienungsanleitung

24 September 2024

Bedienungsanleitung Waschmaschine

Neueste Bedienungsanleitung für -Kategorien-

Candy CS 15102D3-80 Bedienungsanleitung

16 Oktober 2024

GE GSD3715FAA Bedienungsanleitung

16 Oktober 2024

Freggia WTIE148 Bedienungsanleitung

16 Oktober 2024

Freggia WISE126R Bedienungsanleitung

16 Oktober 2024

Freggia WISE126B Bedienungsanleitung

16 Oktober 2024

Freggia WISE126 Bedienungsanleitung

16 Oktober 2024

Freggia WISA105 Bedienungsanleitung

16 Oktober 2024

Freggia WISA106 Bedienungsanleitung

16 Oktober 2024

Freggia WIA107 Bedienungsanleitung

16 Oktober 2024

Freggia WDIE14106 Bedienungsanleitung

16 Oktober 2024
