Seite 1/6

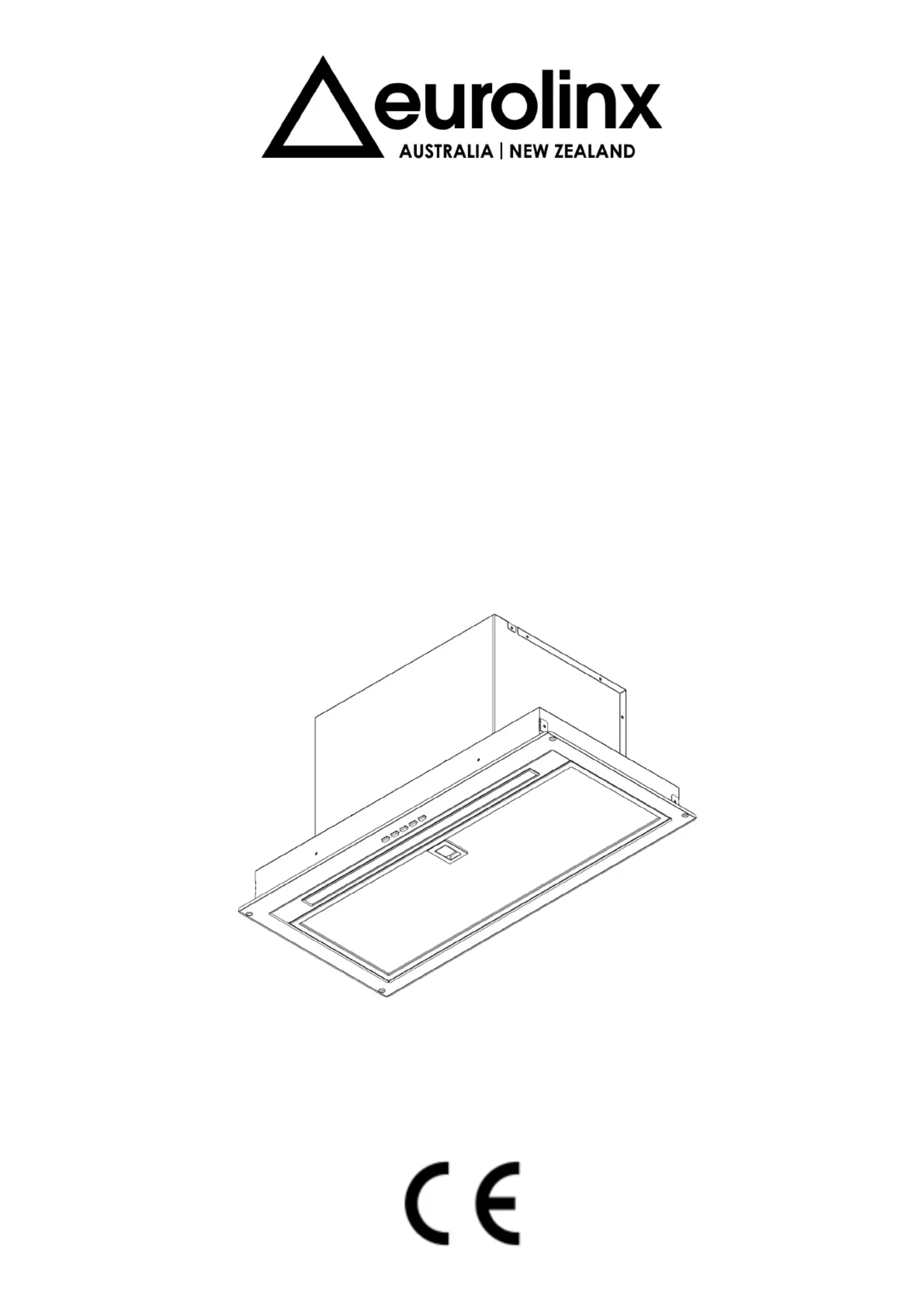

IVCU60
IVCU90
230Vac - 50Hz
Exhausting cooker hood. The equipment is constructed in
accordance with European Standards and with the requirements
included in the following Directives: 2006/95EC ( Low Voltage
Directive), 2004/108 (Electromagnetic Compatibility).
1 INSTALLATION
Read the instruction manual before installing and/or using the
hood .
In order that the minimum distance between the supporting
surface for the cooking pots on gas hob and low-voltage
components present in the hood is at least 65cm as required by
the regulations in force, it is necessary that the lower part of the
hood is at least 60cm away from the work top.
If the mounting instructions of the gas cooker indicate a wider
distance, respect it. The unit must not be mounted above cookers
îš¿tted with top radiant plate.
Respect all the air discharge regulations.
The air must not be discharged in a pipe used to discharge
exhaust fumes produced by gas- fed equipments or fuel-fed
equipments (this does not apply to îš¿ltering hoods).
The room must be adequately ventilated when the hoods is used
together with other gas-fed or fuel-fed equipments.
The hood is equipped with all the necessary fastenings for its
installation, which are suitable for most surfaces. Anyway, ask
to a professional to verify that the installation surface is strong
enough. Installation must be carried out by qualiîš¿ed installers
according to present regulations.
For an easy access, it is advisable to move possible furniture
under the installation area. For mounting the hood follow the
illustrations in Fig. 1-2-3.
2 ELECTRICAL CONNECTIONS
This appliance must be connected to an earthed power supply.
Two types of electrical connection can be used:
1. Using a standard plug to be connected to the power cable
and inserted in a mains socket which must be accessible (so
that the plug can be disconnected when servicing is carried
out). Make sure that the plug is accessible also after the
complete installation of the equipment.
2. By means of a îš¿xed mains connection, îš¿tting a bipolar
switch, which ensures the disconnection, with an opening
distance of the contacts allowing a complete disconnection
on the conditions of the overvoltage III category, according to
installation regulations. The ground connection (yellow-green
wire) must not be interrupted.
Refer to the plate inside the hood for the mains voltage and
frequency ratings.
3 USE
This cooker hood can be employed as exhausting or îš¿ltering.
Exhausting (Fig. 4). The carbon îš¿lters should not be installed on
the hood in exhausting version.
Kitchen smokes are driven outside through a ue joined to the
exhaust pipe ue connector.
Pipes must be communicating with the exterior of the house. The
diameter of the outlet of the hood is 150mm. A 150-125 reduction
is provided with the hood.
This pipe must not under any circumstances be connected to
cooker, boiler or burner exhaust pipes, etc.
Filtering (Fig. 5). The fumes pass through the carbon îš¿lters to be
puriîš¿ed and recycled into the kitchen through a pipe connected
to the outlet of the hood up to the hole in the top of the cabinet.
This hole must be free and communicating with the kitchen.
In the îš¿ltering version you must install the two carbon îš¿lters on
the sides of the aspirator. To install the carbon îš¿lters you must
îš¿rst remove the metal grease îš¿lters (Fig. 6) and then install
carbon îš¿lters by turning them counterclockwise (Fig. 7).
4 OPERATION
The hood is supplied with a multispeed motor.
The hood should be run at low speed under normal conditions
and at higher speeds only when there is a heavy build-up of
fumes or odours.
Ideally, the hood should be switched on as soon as cooking is
started and then kept on until all odours have been eliminated.
The controls consist of these commands. Press TL to turn on the
light, press T1 to swich on the hood at îš¿rst speed and to switch
off the aspirator, press T2-T3-T4 to select functioning speeds.
By pressing of the command T1 the motor starts running at
the 1st speed. The commands T2-T3-T4 switch the motor on
respectively at the 2nd, 3rd and 4th speed. In order to switch the
motor off press T1 once if set at the 1st speed, twice if set at the
2nd, 3rd and 4th speed. With the button T4, select the maximum
speed of the extraction fan for 5 minutes (LED blinking), after
which the extraction fan will automatically switch to the 3rd
speed.
Adjustable and delayed self switching off
While the hood is working, keep the TL command pressed until
all LEDs start blinking. By pressing one of the commands (T1,
T2, T3, T4) you can program the delayed self switching off, as
follows:
T1 corresponds to 5 minutes
T2 corresponds to 10 minutes
T3 corresponds to 15 minutes
T4 corresponds to 20 minutes
Filters maintenance reminder:
Aluminium anti-grease îš¿lters
Once the hood is switched off, after 30 hour functioning, all
the LEDs of the speed buttons switch on with a îš¿xed light for
30 seconds to remind that aluminium anti-grease îš¿lter need
cleaning. To set the timer to zero keep the button T4 pressed
with the aspirator switched off, otherwise the timer will remain set
on 30 hour functioning and the reminder will occur again when
the hood is switched off again.
Charcoal îš¿lter (for îš¿ltering hoods)
Once the hood is switched off, after 120 hour functioning, all
LEDs blink for 30 seconds to remind that the charcoal îš¿lter need
cleaning. To set the timer to zero keep the button T4 pressed with
the aspirator switched off, otherwise the timer will remain set on
120 hour functioning and the reminder will occur again when the
hood is switched off again.
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOOD IVCU MODELS
230-240 Vac - 50 Hz
5 MAINTENANCE AND REMINDERS
Always disconnect the hood from the mains before carrying out
any maintenance or cleaning operation
In order to remove the remaining glue or any impurity, the cooker
hood must be cleaned immediately after installation and after
having removed the protective îš¿lm.
The cooker hood must be cleaned frequently both internally and
externally (at least once a month).
Do not let dirt gather on the inner and outer surfaces of the hood.
To clean the exterior of the hood do not use either acid or basic
products, or abrasive sponges.
Clean the hood with a sponge dampen in warm water and a little
quantity of neutral detergent
(for example dishwasher detergent), in order to remove possible
particles of grease. Rinse with a damp cloth, removing all the
detergent carefully, following the satin îš¿nish direction on the steel
surface.
Drying is very important, especially in areas where water is
particularly hard and leaves limestone.
Particular attention should be paid to the metallic anti-grease
îš¿lters that are designed to trap particles of fat contained in the
fumes. The metallic anti-grease îš¿lters must be washed at least
once a month with detergent in hot water (or in the dish-washer).
ATTENTION: the grease collected in the îš¿lters can easily
catch îš¿re and it is therefore
extremely important to clean the metallic îš¿lters on a regular basis
as per instructions.
The charcoal îš¿lters are designed to collect unpleasant
odours in the cooking fumes. The air is then released
puriîš¿ed in the environment. The charcoal îš¿lters must not
be washed, but replaced 2 or 3 times a year, depending on
how much the hood is used. New îš¿lters are to be requested
directly to the manufacturer. In order to replace the activated
charcoal îš¿lters, you should remove the anti-grease îš¿lters.
Your are then to take off the activated charcoal îš¿lters placed
at the two sides of the aspirator. Turn the îš¿lters until they
unfasten from aspirator (Fig.7). Invert the operation in order
to install the new charcoal îš¿lters.
The hood features a LED light that, in addition to offering
a good lighting and a signiîš¿cant energy savings, are
guaranteed to last on average 10 times more than traditional
lights. For replacement, contact the Assistance Service.
6 WARNINGS
The present instruction manual is an integral part of the appliance
itself, therefore it must be carefully kept and ALWAYS accompany
it, even in case of its assignment to another owner or user or in
case the cooker hood is moved to another installation plant.
Any eventual adjustment to the electrical system, which may be
necessary to install the cooker hood, must be carried out only
by competent people. Any repair carried out by no competent
people may cause damages. For any repair or needed technical
action make reference to a Technical Assistance Center, which is
authorized to carry out the replacement of the spare parts.
Always make sure that all the electrical parts (lights, exhaustion
unit) are disconnected when the appliance is not in use.
By storms take off the main switch of the house electrical system.
The using of the cooker hood must not be other than the use of
exhausting units for cooking damps on domestic kitchens. The
manufacturer does not accept any liability for damages caused
by people, animals or things, by installation and maintenance
mistakes or by any illegitimate use.
Make sure that the voltage (V) and the frequency (Hz) ratings
indicated on the plate inside the cooker hood correspond to the
ones available in the installation place.
We remind that the use of products functioning with electrical
energy implies the observance of some essential security rules,
as follows:
• This equipment is not intended for people (children
included) with reduced mental or motor capacities, with lack
of experience or knowledge, unless they are supervised or
unless a person responsible for their security, gives them
instructions regarding the use of the equipment. Children
must be supervised in order to be sure that they do not play
with the equipment.
• Any cleaning action is forbidden if the appliance hasn’t been
disconnected from the main power supply and if the main
switch of the house electrical system is not off. If cleaning
is not carried out according to these instructions, a îš¿re may
break out.
• Do not pull, take off or twist the cable coming out from the
appliance, even though this has been disconnected from the
main power supply.
• Do not sprinkle or throw any water directly on the appliance.
• Do not stick any sharp tool inside the exhausting holes and
into the air discharge.
• Do not take out the lters in order to reach the internal
sides of the appliance in case the main switch of the house
electrical system is not off.
• Do not singe or ambé directly underneath the cooker hood.
Take particular care when frying to ensure that the oil does
not catch îš¿re.

Produktspezifikationen

Marke: Ilve
Kategorie: Dunstabzugshaube
Modell: IVCU90

Brauchst du Hilfe?

Wenn Sie Hilfe mit Ilve IVCU90 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Dunstabzugshaube Ilve

Ilve

Ilve ANB90AWC Bedienungsanleitung

3 September 2024
Ilve

Ilve ANB150WHC Bedienungsanleitung

2 September 2024
Ilve

Ilve X370GM Bedienungsanleitung

1 September 2024
Ilve

Ilve XBBQ120 Bedienungsanleitung

1 September 2024
Ilve

Ilve X400/100 Bedienungsanleitung

30 August 2024
Ilve

Ilve X400/120 Bedienungsanleitung

30 August 2024
Ilve

Ilve CSP90 Bedienungsanleitung

30 August 2024
Ilve

Ilve X400/150 Bedienungsanleitung

30 August 2024
Ilve

Ilve HU60 Bedienungsanleitung

30 August 2024
Ilve

Ilve IVUM60X Bedienungsanleitung

30 August 2024

Bedienungsanleitung Dunstabzugshaube

Neueste Bedienungsanleitung für -Kategorien-

Pelgrim

Pelgrim ISW990 Bedienungsanleitung

16 Oktober 2024
Amana

Amana UVL6048JSS Bedienungsanleitung

16 Oktober 2024
Maytag

Maytag UVL6048JSS Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS46GTW Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS46GW Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS46GB Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS46B Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS45X Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS45W Bedienungsanleitung

16 Oktober 2024
Freggia

Freggia CHS45B Bedienungsanleitung

16 Oktober 2024
