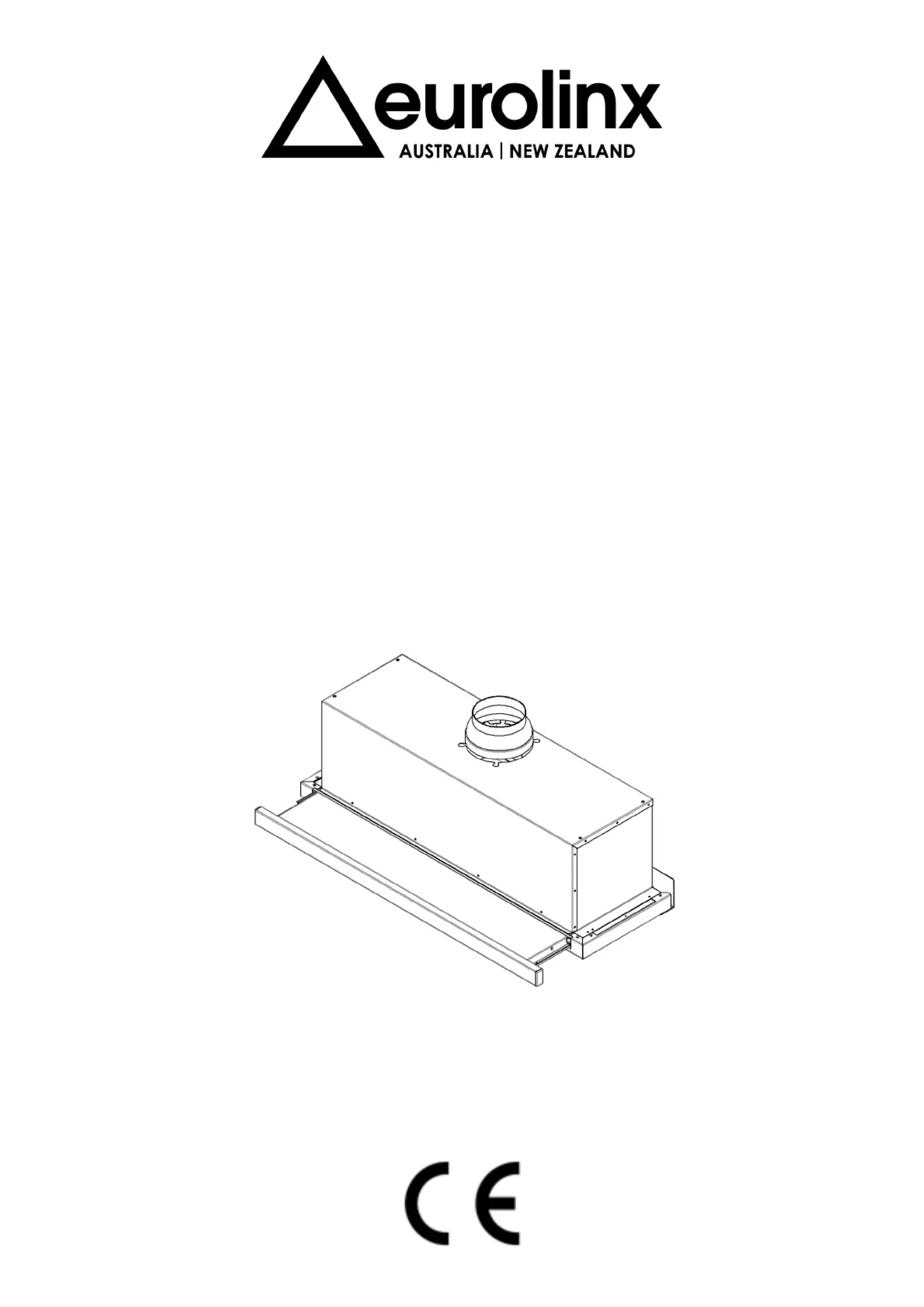

Seite 1/8
CAL/60
CAL/80
CAL/90
230Vac - 50Hz
Exhausting cooker hood. The equipment is constructed in
accordance with European Standards and with the requirements
included in the following Directives: 2006/95EC ( Low Voltage
Directive), 2004/108 (Electromagnetic Compatibility).
1 INSTALLATION
Read the instruction manual before installing and/or using the
hood .
In order that the minimum distance between the supporting
surface for the cooking pots on gas hob and low-voltage
components present in the hood is at least 65cm as required by
the regulations in force, it is necessary that the lower part of the
hood is at least 65-70cm away from the work top.
If the mounting instructions of the gas cooker indicate a wider
distance, respect it. The unit must not be mounted above cookers
tted with top radiant plate.
Respect all the air discharge regulations.
The air must not be discharged in a pipe used to discharge
exhaust fumes produced by gas- fed equipments or fuel-fed
equipments (this does not apply to ltering hoods).
The room must be adequately ventilated when the hoods is used
together with other gas-fed or fuel-fed equipments.
The hood is equipped with all the necessary fastenings for its
installation, which are suitable for most surfaces. Anyway, ask
to a professional to verify that the installation surface is strong
enough. Installation must be carried out by qualied installers
according to present regulations.
For an easy access, it is advisable to move possible furniture
under the installation area.
Two different wall-mounting systems are used, depending on the
model (Fig. 1-2)
A) Hanging and levelling brackets.
B) Locking screws.
C) Hood/chimney fastening screws (if provided)
D) Chimney/wall bracket and fastening screws.
2 ELECTRICAL CONNECTIONS
This appliance must be connected to an earthed power supply.
Two types of electrical connection can be used:
1. Using a standard plug to be connected to the power cable
and inserted in a mains socket which must be accessible (so
that the plug can be disconnected when servicing is carried
out). Make sure that the plug is accessible also after the
complete installation of the equipment.
2. By means of a xed mains connection, tting a bipolar
switch, which ensures the disconnection, with an opening
distance of the contacts allowing a complete disconnection
on the conditions of the overvoltage III category, according
to installation regulations. The ground connection (yellow-
green wire) must not be interrupted.
Refer to the plate inside the hood for the mains voltage and
frequency ratings.
3 USE
This cooker hood can be employed as exhausting or ltering.
Exhausting (Fig. 4). The carbon lters should not be installed on
the hood in exhausting version.
Kitchen smokes are driven outside through a ue joined to the
exhaust pipe ue connector..
Pipes must be communicating with the exterior of the house. The
diameter of the outlet of the hood is 150mm. A 150-125 reduction
is provided with the hood.
This pipe must not under any circumstances be connected to
cooker, boiler or burner exhaust pipes, etc.
Filtering (Fig. 5). The fumes pass through the carbon lters to be
puried and recycled into the kitchen through a pipe connected
to the outlet of the hood up to the hole in the top of the cabinet.
This hole must be free and communicating with the kitchen.
In the ltering version you must install the two carbon lters on
the sides of the aspirator. To
install the carbon lters you must rst remove the metal grease
lters (Fig. 6) and then install carbon lters by turning them
counterclockwise (Fig. 7).
4 OPERATION
The hood is equipped with a multispeed motor.
It is recommended that low speed be selected for normal kitchen
conditions, and higher speeds only to combat a heavy build-up
odours and vapours.
ELECTRONIC CONTROLS
The controls (Fig. 7) have buttons for switching on the TL light, for
switching on the motor and selecting the T1-T2-T3-T4 operating
speed.
By pressing of the command T1 the motor starts running at
the 1st speed. The commands T2-T3-T4 switch the motor on
respectively at the 2nd, 3rd, 4th speed. In order to switch
the motor off press T1 once if set at the 1st speed, twice if set at
the 2nd, 3rd and 4th speed.
With the button T4, select the maximum speed of the extraction
fan for 5 minutes (LED blinking), after which the extraction fan
will automatically switch to the 3rd speed.
AUTO POWER OFF: To activate the auto power off, rst turn on
the hood and, then, push the “T1” button for a few seconds until
all LEDs start ashing. By pressing one of the buttons (T1, T2,
T3, T4) it is possible to program the auto power off time, which
will be different according to the button
pressed (T1= 5 minutes, T2=10 minutes, T3=15 minutes, T4=20
minutes). The set speed can be changed during the auto power
off time. When the auto power off option corresponds to the
previously set speed, the speed LED ashes; if the option is
different, the speed LED is xed.
FILTER TIMER: After the hood has worked for 30 hours, all
LEDS will switch on with a xed light for 30 seconds when the
hood is turned off indicating that the aluminium lters need to be
cleaned. The timer will reset if the T1+T4 button is pressed for a
few seconds with the exhaust fan turned off. If this button is not
pressed, the same operation will occur again once the hood is
switched off again. This operation will occur every 30 hours, until
120 functioning hours are reached. Once the hood has worked
for 120 hours and it is turned off, all the LEDs will turn on with
a ashing light for the following 30 seconds indicating the that
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOODS
FOR WALL FITTING 230 Vac - 50 Hz
0-1 2 3 4
TL T1 T2 T3 T4
FIG.7
