Seite 1/136

Contents

Motorcycle Safety P. 2

Operation Guide P. 16

Maintenance P. 39

Troubleshooting P. 86

Information P. 106

Specifications P. 127

Index P. 131

Welcome

Congratulations on your purchase of a new

Honda motorcycle. Your selection of a

Honda makes you part of a worldwide family

of satisfied customers who appreciate

Honda’s reputation for building quality into

every product.

To ensure your safety and riding pleasure:

●

Read this owner’s manual carefully.

●

Follow all recommendations and

procedures contained in this manual.

●

Pay close attention to safety messages

contained in this manual and on the

motorcycle.

To protect your investment, we urge you to

take responsibility for keeping your

motorcycle well serviced and maintained.

Also, observe the break-in guidelines, and

always perform the pre-ride inspection and

other periodic checks in this manual.

When service is required, remember that

your Honda dealer knows your motorcycle

best. If you have the required mechanical

“know-how” and tools, you can purchase an

official Honda Service Manual to help you

perform many maintenance and repair tasks.

P. 122

Read the warranty information thoroughly so

that you understand the warranty coverage

and that you are aware of your rights and

responsibilities.

P. 123

You may also want to visit our website at

www.powersports.honda.com.

www.honda.ca.

Happy riding!

California Proposition 65 Warning

WARNING: This product contains or emits

chemicals known to the State of California to

cause cancer and birth defects or other

reproductive harm.

Canada

A Few Words About Safety

Your safety, and the safety of others, is very

important. Operating this motorcycle safely is

an important responsibility.

To help you make informed decisions about

safety, we have provided operating

procedures and other information on safety

labels and in this manual. This information

alerts you to potential hazards that could

hurt you or others.

Of course, it is not practical or possible to

warn you about all hazards associated with

operating or maintaining a motorcycle. You

must use your own good judgment.

You will find important safety information in

a variety of forms, including:

●

Safety labels on the motorcycle

●

Safety Messages preceded by a safety alert

symbol and one of three signal words:

DANGER, WARNING, or CAUTION.

These signal words mean:

DANGER

You WILL be KILLED or SERIOUSLY

HURT if you don’t follow instructions.

WARNING

You CAN be KILLED or SERIOUSLY

HURT if you don’t follow instructions.

CAUTION

You CAN be HURT if you don’t follow

instructions.

Other important information is

provided under the following titles:

NOTICE

Information to help you avoid

damage to your motorcycle,

other property, or the

environment.

Motorcycle Safety

This section contains important information for safe riding of your motorcycle.

Please read this section carefully.

Safety Guidelines .........................................P. 3

Safety Labels ................................................P. 7

Safety Precautions .......................................P. 9

Riding Precautions .....................................P. 10

Accessories & Modifications......................P. 14

Loading .......................................................P. 15

Safety Guidelines

continued

Motorcycle Safety

Safety Guidelines

Follow these guidelines to enhance your safety:

●Perform all routine and regular inspections

specified in this manual.

●Stop the engine and keep sparks and flame

away before filling the fuel tank.

●Do not run the engine in enclosed or partly

enclosed areas. Carbon monoxide in exhaust

gases is toxic and can kill you.

It’s a proven fact: helmets and protective

apparel significantly reduce the number and

severity of head and other injuries. So always

wear an approved motorcycle helmet and

protective apparel.

P. 9

Make sure that you are physically fit, mentally

focused and free of alcohol and drugs. Check

that you and your passenger are both wearing

an approved motorcycle helmet and protective

apparel. Instruct your passenger on holding

onto the grab rails or your waist, leaning with

you in turns, and keeping their feet on the

footpegs, even when the motorcycle is stopped.

Even if you have ridden other motorcycles,

practice riding in a safe area to become familiar

with how this motorcycle works and handles,

and to become accustomed to the motorcycle’s

size and weight.

Always Wear a Helmet

Before Riding

Take Time to Learn & Practice

Safety Guidelines

Motorcycle Safety

We recommend that all riders take a certified

course approved by the Motorcycle Safety

Foundation (MSF). New riders should start with

the basic course, and even experienced riders

will find the advanced course beneficial.

For information about the MSF training course

nearest you, call the national toll-free number:

(800) 446-9227.

Other riding tips can be found in the You

and Your Motorcycle Riding Tips booklet that

came with your motorcycle.

Always pay attention to other vehicles around

you, and do not assume that other drivers see

you. Be prepared to stop quickly or perform an

evasive maneuver.

Make yourself more visible, especially at night,

by wearing bright reflective clothing,

positioning yourself so other drivers can see

you, signaling before turning or changing lanes,

and using your horn when necessary.

Never ride beyond your personal abilities or

faster than conditions warrant. Fatigue and

inattention can impair your ability to use good

judgment and ride safely.

Alcohol and riding don’t mix. Even one

alcoholic drink can reduce your ability to

respond to changing conditions, and your

reaction time gets worse with every additional

drink. Don’t drink and ride, and don’t let your

friends drink and ride either.

Ride Defensively

USA

Make Yourself Easy to See

Ride within Your Limits

Don’t Drink and Ride

Safety Guidelines

continued

Motorcycle Safety

It’s important to keep your motorcycle properly

maintained and in safe riding condition.

Inspect your motorcycle before every ride and

perform all recommended maintenance. Never

exceed load limits (

P. 15), and do not modify

your motorcycle or install accessories that

would make your motorcycle unsafe (

P. 14).

Personal safety is your first priority. If you or

anyone else has been injured, take time to

assess the severity of the injuries and whether it

is safe to continue riding. Call for emergency

assistance if needed. Also follow applicable

laws and regulations if another person or

vehicle is involved in the crash.

If you decide to continue riding, first evaluate

the condition of your motorcycle. If the engine

is still running, turn it off. Inspect for fluid leaks,

check the tightness of critical nuts and bolts,

and check the handlebars, control levers,

brakes, and wheels. Ride slowly and cautiously.

Your motorcycle may have suffered damage

that is not immediately apparent. Have your

motorcycle thoroughly checked at a qualified

service facility as soon as possible.

Keep Your Honda in Safe Condition

If You are Involved in a Crash

Safety Guidelines

Motorcycle Safety

Exhaust contains poisonous carbon monoxide,

a colorless, odorless gas. Breathing carbon

monoxide can cause loss of consciousness and

may lead to death.

If you run the engine in confined or even partly

enclosed area, the air you breathe could contain

a dangerous amount of carbon monoxide.

Never run your motorcycle inside a garage or

other enclosure.

Carbon Monoxide Hazard

WARNING

Carbon monoxide gas is toxic.

Breathing it can cause

unconsciousness and even kill you.

Avoid any areas or activities that

expose you to carbon monoxide.

Safety Labels

continued

Motorcycle Safety

Safety Labels

Safety and information labels on your

motorcycle provide important safety

information and may warn you of potential

hazards that could cause serious injury. Read

these labels carefully and don’t remove them.

If a label comes off or becomes hard to read,

contact your dealer for a replacement.

Safety Labels

Motorcycle Safety

Safety Precautions

continued

Motorcycle Safety

Safety Precautions

●Ride cautiously and keep your hands on the

handlebars and feet on the footpegs.

●Keep passenger’s hands on the grab rails or

your waist, passenger’s feet on the footpegs

while riding.

●Always consider the safety of your passenger,

as well as other drivers and riders.

Make sure that you and any passenger are

wearing an approved motorcycle helmet, eye

protection, and high-visibility protective

clothing. Ride defensively in response to

weather and road conditions.

❙

Helmet

Should be safety-standard certified, high-

visibility, and correct size for your head.

●Must fit comfortably but securely, with the

chin strap fastened.

●Face shield with unobstructed field of vision

or other approved eye protection.

Look for a DOT (Department of

Transportation) certification label on any helmet

you buy.

❙

Gloves

Full-finger leather gloves with high abrasion

resistance

Protective Apparel

WARNING

Not wearing a helmet increases the

chance of serious injury or death in a

crash.

Make sure that you and any passenger

always wear an approved helmet and

protective apparel.

USA

Riding Precautions

continued

Motorcycle Safety

●Exercise caution on low traction surfaces.

uThe tires slip more easily on such surfaces

and braking distances are longer.

●Avoid continuous braking.

uRepeated braking, such as when

descending long, steep slopes can

seriously overheat the brakes, reducing

their effectiveness. Use engine braking

with intermittent use of the brakes to

reduce speed.

●For full braking effectiveness, operate both

the front and rear brakes together.

❙

Anti-lock Brake System (ABS)

This model is equipped with an Anti-lock Brake

System (ABS) designed to help prevent the

brakes from locking up during hard braking.

●ABS does not reduce braking distance. In

certain circumstances, ABS may result in a

longer stopping distance.

●ABS does not function at speeds below 6

mph (10 km/h).

●The brake lever and pedal may recoil slightly

when applying the brakes. This is normal.

●Always use the recommended tires to ensure

correct ABS operation.

CBR500RA only

Riding Precautions

Motorcycle Safety

❙

Engine Braking

Engine braking helps slow your motorcycle

down when you release the throttle. For further

slowing action, downshift to a lower gear. Use

engine braking with intermittent use of the

brakes to reduce speed when descending long,

steep slopes.

❙

Wet or Rainy Conditions

Road surfaces are slippery when wet, and wet

brakes further reduce braking efficiency.

Exercise extra caution when braking in wet

conditions.

If the brakes get wet, apply the brakes while

riding at low speed to help them dry.

●Park on a firm, level surface.

●If you must park on a slight incline or loose

surface, park so that the motorcycle cannot

move or fall over.

●Make sure that high-temperature parts

cannot come into contact with flammable

materials.

●Do not touch the engine, muffler, brakes and

other high-temperature parts until they cool

down.

●To reduce the likelihood of theft, always lock

the handlebars and remove the key when

leaving the motorcycle unattended.

Use of an anti-theft device is also

recommended.

Parking

Riding Precautions

Motorcycle Safety

❙

Parking with the Side Stand

Stop the engine.

Push the side stand down.

Slowly lean the motorcycle to the left until its

weight rests on the side stand.

Turn the handlebars fully to the left.

uTurning the handlebars to the right

reduces stability and may cause the

motorcycle to fall.

Turn the ignition switch to the LOCK position

and remove the key.

P. 33

Follow these guidelines to protect the engine

and catalytic converter:

●Use only unleaded gasoline.

●Use recommended octane number. Using

lower octane gasoline will result in decreased

engine performance.

●Do not use fuels containing a high

concentration of alcohol.

P. 121

●Do not use stale or contaminated gasoline or

an oil/gasoline mixture.

●Avoid getting dirt or water in the fuel tank.

Refueling and Fuel Guidelines

Accessories & Modifications

Motorcycle Safety

Accessories &

Modifications

We strongly advise that you do not add any

accessories that were not specifically designed

or approved for your motorcycle by Honda or

make modifications to your motorcycle from its

original design. Doing so can make it unsafe.

Modifying your motorcycle may also void your

warranty and make your motorcycle illegal to

operate on public roads and highways. Before

deciding to install accessories on your

motorcycle be certain the modification is safe

and legal.

Do not pull a trailer with, or attach a sidecar to,

your motorcycle. Your motorcycle was not

designed for these attachments, and their use

can seriously impair your motorcycle’s handling.

WARNING

Improper accessories or modifications

can cause a crash in which you can be

seriously hurt or killed.

Follow all instructions in this owner’s

manual regarding accessories and

modifications.

Operation Guide

Parts Location

Front brake fluid reservoir

(P71)

Throttle grip

(P82)

Engine oil fill cap

(P64)

Engine oil drain bolt

(P67)

Engine oil filter

(P67)

Front brake lever

Fuel fill cap

(P36)

Tool kit

(P38)

Document bag

(P38)

Side cover

(P63)

Engine oil level inspection

window

(P64)

Rear brake fluid reservoir

(P64)

Main fuse

(P105)

Rear brake pedal

Operation Guide

Front seat

(P62)

Drive chain

(P75)

Fuse box

(P104)

Crankcase breather

(P83)

Battery

(P59)

Clutch lever

(P79)

Side stand

(P74)

Coolant reserve tank

(P69)

Rear seat

(P61)

Rear suspension spring preload

adjuster

(P85)

Shift lever

(P35)

continued

Operation Guide

Tachometer

NOTICE

Do not operate the engine in the tachometer

red zone. Excessive engine speed can

adversely affect engine life.

Clock (12-hour display)

To set the clock:

(P25)

Fuel gauge

Remaining fuel when only 1st (E) segment starts flashing:

approximately 0.74 US gal (2.8 liters)

Speedometer

If the fuel gauge indicators repeat flashing or turned off:

(P91)

Tachometer red zone

(excessive engine rpm range)

continued

Operation Guide

The average fuel mileage and fuel consumption will be based on tripmeter A.

• Current fuel mileage:

Current instant fuel mileage. If your speed is less than 5 mph (7 km/h), “ ” is displayed.

When “ ” is displayed at speeds above 5 mph (7 km/h), go to your dealer for service.

• Average fuel mileage:

Average fuel mileage since tripmeter A was reset. When “ ” is displayed, go to your

dealer for service.

• Fuel consumption:

Total fuel consumption since tripmeter A was reset. When “ ” displayed, go to your

dealer for service.

uTo reset the average fuel mileage and fuel consumption:

(P22)

Instruments

(Continued)

Operation Guide

❙

To reset the tripmeter, average fuel

mileage and fuel consumption

!aTo reset tripmeter A, average fuel mileage,

and fuel consumption together, press and

hold button with tripmeter A, average

fuel mileage, or fuel consumption displayed.

!bWhen they are reset, “0.0” is displayed at

each indication.

!cThen, the display returns to the last selected

indication.

!dTo reset tripmeter B, press and hold

button with tripmeter B displayed.

Also, the tripmeter A, average fuel mileage,

and fuel consumption will automatically reset

by refueling more than the reserve amount

and riding your motorcycle for 0.06 mile (0.1

km).

You can activate or deactivate the automatic

reset mode by refueling.

(P27)

SET

Tripmeter A Average

fuel

mileage

Fuel

consumption

or or

SET

Tripmeter B

Operation Guide

continued

Reserve fuel consumption meter

When the 1st (E) segment of the fuel gauge

starts flashing, the odometer & tripmeter &

fuel mileage meter & fuel consumption

meter switches to the reserve fuel

consumption. You should refill the tank as

soon as possible.

When “ ” is displayed, go to your dealer

for service.

Reserve fuel consumption meter

• Flashes from “0.0” gal or L.

uWhen the amount of consumed fuel is

more than 0.26 US gal (1.0 liter), the

display blinks faster.

uIf you change the display to odometer,

tripmeter, fuel mileage meter and fuel

consumption meter and so on

(P20) , it

will automatically return to the reserve

fuel consumption display if the buttons

are not pressed for about 10 seconds.

After refueling more than the reserve

amount, the display returns to normal.

Instruments

(Continued)

Operation Guide

Display Setting

Following items can be changed sequentially.

• Clock setting

• Backlight brightness adjustment

• Activating/deactivating of tripmeter A,

average fuel mileage and fuel

consumption automatic reset mode

• Changing of speed and mileage unit

• Changing of fuel mileage meter unit (only

when km unit system is selected)

Press and hold button and button

SEL

SET

Press button

SET

Ordinary display

Clock setting

Activating/deactivating of

tripmeter A, average fuel

mileage and fuel consumption

automatic reset mode

Changing of speed and mileage

unit

Changing of fuel mileage meter

unit (only when km unit system

is selected)

Backlight brightness adjustment

Setting Mode

Operation Guide

continued

The following moves the ordinary display at

display setting.

• The buttons are not pressed for about 30

seconds

• Turn the ignition switch off and then on

1 Clock Setting:

!aTurn the ignition switch to ON.

!bPress and hold button and

button until the hour digits start flashing.

!cPress button until the desired hour is

displayed.

uPress and hold to advance the hour fast.

SEL

SET

SEL

!dPress button. The minute digits start

flashing.

!ePress button until the desired minute

is displayed.

uPress and hold to advance the minute

fast.

!fPress button. The clock is set, and

then the display moves to the backlight

brightness adjustment.

SET

SEL

SET

Instruments

(Continued)

Operation Guide

2 Backlight brightness adjustment:

You can adjust the brightness to one of five

levels.

!aPress button. The brightness is

switched.

!bPress button. The backlight is set, and

then the display moves to the activating/

deactivating of tripmeter A, average fuel

mileage and fuel consumption automatic

reset mode.

SEL

SET

Operation Guide

continued

3 Activating/deactivating of tripmeter A,

average fuel mileage and fuel

consumption automatic reset mode:

You can also activate or deactivate the

automatic reset mode by refueling after 1st

(E) segment of the fuel gauge starts flashing.

Deactivation is initially set.

!aPress button to select “ ” (activate)

or “ ” (deactivate) in the automatic

reset mode.

SEL

!bTo end the selection, press button.

The activation/deactivation of automatic

reset mode is set, and then the display

moves to the changing of the speed and

mileage unit.

SET

Instruments

(Continued)

Operation Guide

4 Changing of speed and mileage unit:

!aPress button to select either “mph”

and “mile” or “km/h” and “km”.

When selecting the “mph” and “mile”.

• Fuel mileage unit shows “mile/gal”.

• Fuel consumption unit shows “gal”.

When selecting the “km/h” and “km”.

• Fuel mileage unit shows “km/L” or

“L/100km”.

• Fuel consumption unit shows “L”.

To end the selection, press button.

The established setting can also be set by

turning the ignition switch to OFF.

The control is automatically switched from

the setting mode to the ordinary display if

the button is not pressed for about 30

seconds. Even in this case, established

setting is maintained.

Press button. The speed and mileage

unit is set, and then the display moves to the

changing of the fuel mileage meter unit.

SEL

When selecting the “mph” and “mile”.

SET

When selecting the “km/h” and “km”.

SET

Operation Guide

5 Changing of fuel mileage meter unit:

!aPress button to select “km/L” or

“L/100km”.

SEL

!bTo end the selection, press button.

The established setting can also be set by

turning the ignition switch to OFF.

The control is automatically switched from

the setting mode to the ordinary display if

the button is not pressed for about 30

seconds. Even in this case, established setting

is maintained.

SET

Operation Guide

Indicators

Low oil pressure indicator

Comes on when the ignition

switch is turned on.

Goes off when the engine starts.

If it comes on while engine is

running:

(P89)

PGM-FI (Programmed Fuel Injection)

malfunction indicator lamp (MIL)

High coolant

temperature indicator

Comes on briefly when the

ignition switch is turned on.

If it comes on while riding:

(P88)

Comes on briefly when the ignition switch is turned on with the engine stop switch in

the (Run) position. Comes on when the ignition switch is turned on with the engine

stop switch in the (Off) position.

If it comes on while engine is running:

(P89)

ABS (Anti-lock Brake System) indicator

Comes on when the ignition switch is turned on.

Goes off when your speed reaches approximately

6 mph (10 km/h).

If it comes on while riding:

(P90)

CBR500RA only

Operation Guide

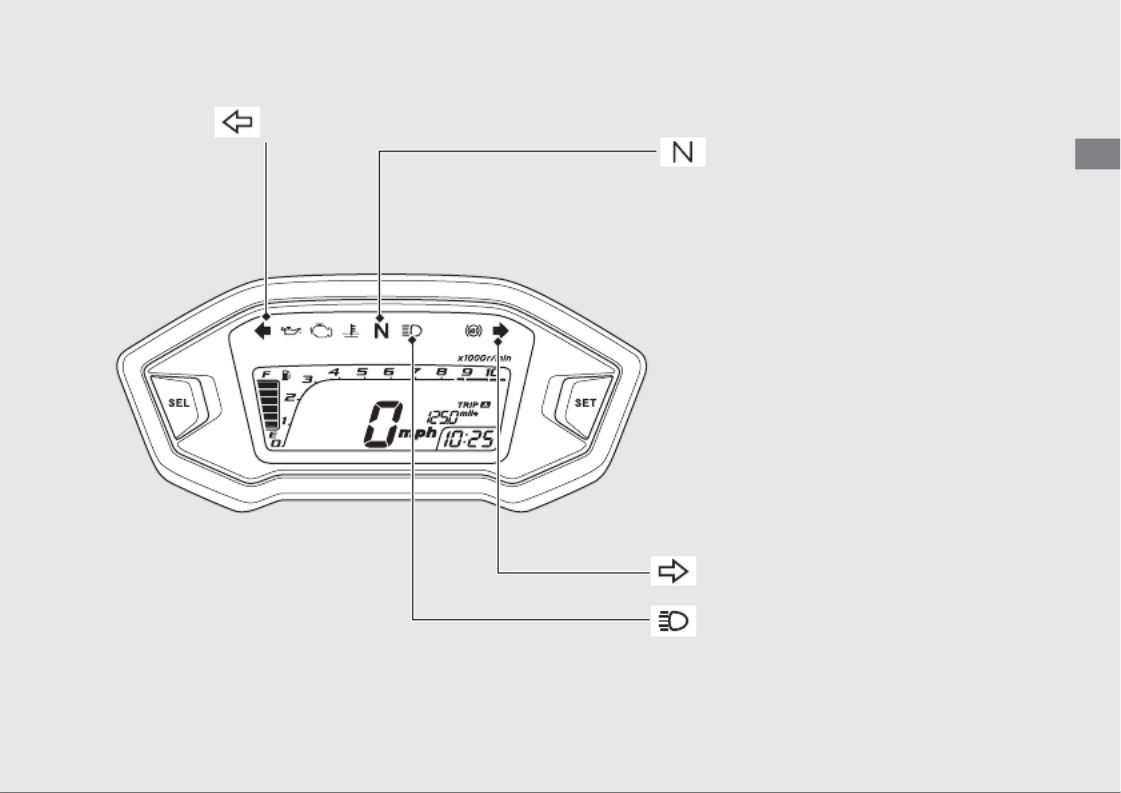

High beam indicator

Left turn signal indicator

Right turn signal indicator

Neutral indicator

Comes on when the transmission

is in Neutral.

Operation Guide

Switches

Engine stop switch

Should normally remain in the

(Run) position.

uIn an emergency, switch to

the (Off) position (the

starter motor will not

operate) to stop the engine.

Hazard switch

Switchable when the ignition

switch is on. Can be turned to

off regardless of the ignition

switch position.

uThe signals continue flashing

when the ignition switch is in

the OFF or LOCK position

after the hazard switch is on.

Start button

Headlight dimmer switch

• : High beam

• : Low beam

Horn button

Turn signal switch

uPressing the switch turns the

turn signal off.

Operation Guide

Steering Lock

Lock the steering when parking to help

prevent theft.

A U-shaped wheel lock or similar device is

also recommended.

❙

Locking

!aTurn the handlebar all the way to the left.

!bPush the key down, and turn the ignition

switch to the LOCK position.

uJiggle the handlebars if the lock is difficult

to engage.

!cRemove the key.

❙

Unlocking

Insert the key, push it in, and turn the

ignition switch to the OFF position.

Ignition Switch

Switches the electrical system on/off, locks the

steering.

uKey can be removed when in the OFF or LOCK

position.

Turns electrical system

on for starting/riding.

OFF

Turns engine off.

LOCK

Locks steering.

Push

Ignition key

Turn

Operation Guide

Starting the Engine

Start your engine using the following

procedure, regardless of whether the engine

is cold or warm.

!aMake sure the engine stop switch is in the

(Run) position.

!bTurn the ignition switch to the ON position.

!cShift the transmission to Neutral (

indicator comes on). Alternatively, pull in

the clutch lever to start your motorcycle

with the transmission in gear so long as the

side stand is raised.

!dPress the start button with the throttle

completely closed.

If the engine does not start:

!aOpen the throttle fully and press the start

button for 5 seconds.

!bRepeat the normal starting procedure.

!cIf the engine starts, open the throttle slightly

if idling is unstable.

!dIf the engine does not start, wait 10 seconds

before trying steps !a & !b again.

❙

If Engine Will Not Start

(P87)

NOTICE

• If the engine does not start within 5 seconds, turn the

ignition off and wait 10 seconds before trying to start

the engine again to recover battery voltage.

• Extended fast idling and revving the engine can

damage the engine, and the exhaust system.

• Snapping the throttle or fast idling for more than about

5 minutes may cause exhaust pipe discoloration.

• The engine will not start if the throttle is fully open.

Operation Guide

Shifting Gears

Your motorcycle transmission has 6 forward

gears in a one-down, five-up shift pattern.

If you put the motorcycle in gear with the

side stand down, the engine will shut off.

❙

Recommended Shift Points

Shifting Up

From 1st to 2nd 12 mph (20 km/h)

From 2nd to 3rd 19 mph (30 km/h)

From 3rd to 4th 25 mph (40 km/h)

From 4th to 5th 31 mph (50 km/h)

From 5th to 6th 37 mph (60 km/h)

Shifting Down

From 6th to 5th 28 mph (45 km/h)

From 5th to 4th 22 mph (35 km/h)

From 4th to 3rd 16 mph (25 km/h)

NOTICE

Improper shifting can damage the engine, transmission,

and drive train. Also, coasting or towing the motorcycle

for long distances with the engine off can damage the

transmission.

Operation Guide

Refueling

Do not fill with fuel above the level plate.

Fuel type: Unleaded gasoline only

Recommended fuel octane number:

Pump Octane Number (PON) 86 or higher.

Tank capacity: 4.15 US gal (15.7 liters)

❙

Refueling and Fuel Guidelines

(P13)

Opening the Fuel Fill Cap

Open the lock cover, insert the ignition key,

and turn it clockwise to remove the cap.

Closing the Fuel Fill Cap

!aAfter refueling, align the fuel fill cap latch

with the slot in the filler neck.

!bPush the fuel fill cap into the filler neck until

it snaps closed and locks.

!cRemove the key and close the lock cover.

uThe key cannot be removed if the cap is

not locked.

Level plate

Fuel fill cap

Ignition key

Lock cover

WARNING

Gasoline is highly flammable and

explosive. You can be burned or

seriously injured when handling fuel.

• Stop the engine, and keep heat,

sparks, and flame away.

• Handle fuel only outdoors.

• Wipe up spills immediately.

continued

Operation Guide

Storage Equipment

The Helmet holder and helmet set wire (in the tool kit) are located under the rear seat.

uUse the helmet holder only when parked.

❙

Removing the Rear Seat

(P61)

Helmet holder

Helmet set wire

WARNING

Riding with a helmet attached to the

holder can interfere with your ability

to safely operate the motorcycle and

could lead to a crash in which you can

be seriously hurt or killed.

Use the helmet holder only while

parked. Do not ride with a helmet

secured by the holder.

Storage Equipment

(Continued)

Operation Guide

The tool kit is located under the rear seat. The document bag is located underside of

the front seat.

❙

Removing the Front Seat

(P62)

Tool kit

Rubber strap

Document bag

Rubber strap

Maintenance

Please read “Importance of Maintenance” and “Maintenance Fundamentals”

carefully before attempting any maintenance. Refer to “Specifications” for service

data.

An optional larger tool kit may be available. Check with your Honda dealer’s parts

department.

Importance of Maintenance ..................... P. 40

Maintenance Schedule .............................. P. 42

Maintenance Fundamentals ..................... P. 45

Removing & Installing Body Components

...

P. 59

Battery...................................................... P. 59

Clip........................................................... P. 60

Rear Seat .................................................. P. 61

Front Seat................................................. P. 62

Side Cover ................................................ P. 63

Engine Oil................................................... P. 64

Air Cleaner ................................................. P. 68

Coolant ....................................................... P. 69

Brakes .........................................................P. 71

Side Stand...................................................P. 74

Drive Chain .................................................P. 75

Clutch ..........................................................P. 79

Throttle .......................................................P. 82

Crankcase Breather ....................................P. 83

Other Adjustments ....................................P. 84

Headlight Aim ...........................................P. 84

Rear Suspension........................................P. 85

Maintenance

Importance of Maintenance

Keeping your motorcycle well-maintained is

absolutely essential to your safety and to

protect your investment, obtain maximum

performance, avoid breakdowns, and reduce air

pollution. Maintenance is the owner’s

responsibility. Be sure to inspect your

motorcycle before each ride, and perform the

periodic checks specified in the Maintenance

Schedule.

P. 42

For information about the exhaust emission and

noise emission requirements of the U.S.

Environmental Protection Agency (EPA), the

California Air Resources Board (CARB), and the

Environment Canada (EC).

P. 115

Maintenance, replacement or repair of the

emission control devices and systems may

be performed by any motorcycle repair

establishment or individual using parts

that are “certified“ to EPA standards.

Importance of Maintenance

WARNING

Improperly maintaining your

motorcycle or failing to correct a

problem before you ride can cause a

crash in which you can be seriously

hurt or killed.

Always follow the inspection and

maintenance recommendations and

schedules in this owner’s manual.

USA

Importance of Maintenance

Maintenance

Always read the maintenance instructions

before you begin each task, and make sure that

you have the tools, parts, and skills required.

We cannot warn you of every conceivable

hazard that can arise in performing

maintenance. Only you can decide whether or

not you should perform a given task.

Follow these guidelines when performing

maintenance.

●Stop the engine and remove the key.

●Place your motorcycle on a firm, level surface

using the side stand or a maintenance stand

to provide support.

●Allow the engine, muffler, brakes, and other

high-temperature parts to cool before

servicing as you can get burned.

●Run the engine only when instructed, and do

so in a well-ventilated area.

Maintenance Safety

Maintenance

Maintenance Schedule

The maintenance schedule specifies the

maintenance requirements necessary to

ensure safe, dependable performance, and

proper emission control.

Maintenance work should be performed in

accordance with Honda’s standards and

specifications by properly trained and

equipped technicians. Your dealer meets all

of these requirements. Keep an accurate

record of maintenance to help ensure that

your motorcycle is properly maintained.

Make sure that whomever performs the

maintenance completes this record.

All scheduled maintenance is considered a

normal owner operating cost and will be

charged for by your dealer. Retain all

receipts. If you sell the motorcycle, these

receipts should be transferred with the

motorcycle to the new owner.

Maintenance Schedule

continued

Maintenance

Maintenance Level

: Intermediate. We recommend service by your dealer, unless you

have the necessary tools and are mechanically skilled.

Procedures are provided in an official Honda Service Manual

(

P. 122).

: Technical. In the interest of safety, have your motorcycle

serviced by your dealer.

Maintenance Legend

: Inspect (clean, adjust, lubricate, or replace, if necessary)

: Clean

: Lubricate

: Replace

Items

Frequency*

× 1,000 mi 0.6 4 8 12 16 20 24 Refer to

page

× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4

Emission-related Items

Fuel Line –

Throttle Operation 82

Air Cleaner*

Crankcase Breather*

Spark Plug –

Valve Clearance –

Engine Oil Initial = 600 mi (1,000 km) or 1 month:

Regular = Every 8,000 mi (12,800 km) or 12 months: 64

Engine Oil Filter 66

Engine Idle Speed –

Radiator Coolant*

Cooling System –

Secondary Air Supply System –

Evaporative Emission Control System*

–

R R

Maintenance Schedule

Maintenance

Notes:

*1 : At higher odometer readings, repeat at the frequency interval established here.

*2 : Service more frequently when riding in unusually wet or dusty areas.

*3 : Service more frequently when riding in rain or at full throttle.

*4 : 50 STATE (meets California).

*5 : Replace every 2 years, or at indicated odometer intervals, whichever comes first. Replacement requires mechanical skill.

Items

Frequency*1

× 1,000 mi 0.6 4 8 12 16 20 24 Refer to

page

× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4

Non-Emission-Related Items

Drive Chain Every 500 mi (800 km) 75

Brake Fluid*

Brake Pads Wear 72

Brake System 45

Brake Light Switch 73

Headlight Aim 84

Clutch System 79

Side Stand 74

Suspension 85

Nuts, Bolts, Fasteners –

Wheels/Tires 55

Steering Head Bearings –

Maintenance

Maintenance Fundamentals

To ensure safety, it is your responsibility to

perform a pre-ride inspection and make sure

that any problem you find is corrected. A pre-

ride inspection is a must, not only for safety,

but because having a breakdown, or even a

flat tire, can be a major inconvenience.

Check the following items before you get on

your motorcycle:

●

Tire tread wear and air pressures are within

limits.

P. 55

●

Lights, horn, and turn signals operate

normally.

●

Check the condition of the drive chain.

Adjust slack and lubricate as needed.

P. 52

Check the following items if you are carrying

a passenger or cargo:

●

Combined weight is within load limits.

P. 127

●

Cargo is secured properly.

●

Suspension spring preload is adjusted to

suit load.

P. 85

Check the following items after you get on

your motorcycle:

●

Throttle action moves smoothly without

binding.

P. 82

●

Brake lever and pedal operate normally.

●

Check the remaining fuel and refuel when

needed.

P. 13 36,

●

Engine stop switch functions properly.

P. 32

Check the following items at regular intervals:

●

Oil level is between the upper and lower

level marks.

P. 64

●

Brake fluid level is

Front:above the LWR mark.

Rear:between the UPPER and LOWER level

marks.

P. 71

●

Engine coolant level is between the UPPER

and LOWER level marks.

P. 69

●

Side stand functions properly.

P. 35 74,

Pre-ride Inspection

Maintenance Fundamentals

Maintenance

You should also perform other periodic

maintenance checks at least once a month

regardless of how often you ride, or more often

if you ride frequently.

Also, check the odometer reading against the

Maintenance Schedule and perform all

maintenance that is due.

P. 42

Periodic Checks

Tires and wheels Check the air pressure (

P. 55), examine tread for wear and

damage (

P. 55), and check the wheels for damage.

Fluid levels Check the engine oil level (

P. 64), engine coolant level (

P. 69),

and brake fluid level (

P. 71).

Lights Check that the headlight, position light, brake light, taillight, turn

signals and license plate light are working properly.

Controls Check the freeplay of the clutch lever (

P. 79), and throttle grip

(

P. 82).

Drive chain Check the slack (

P. 75), adjust the slack (

P. 76), and lubricate

(

P. 53) as needed.

Fuses Check that you have a full supply of spare fuses.

Nuts & bolts Check the major nuts and bolts, and tighten as needed.

Maintenance Fundamentals

Maintenance

Always use Honda Genuine Parts or their

equivalents to ensure reliability and safety.

When ordering colored components, specify

the model name, color, and code mentioned on

the color label. The color label is attached to the

rear fender under the rear seat.

P. 61

Replacing Parts

WARNING

Installing non-Honda parts may make

your motorcycle unsafe and cause a

crash in which you can be seriously

hurt or killed.

Always use Honda Genuine Parts or

equivalents that have been designed

and approved for your motorcycle.

Color label

Maintenance Fundamentals

Maintenance

Your motorcycle has a maintenance-free type

battery. You do not have to check the battery

electrolyte level or add distilled water. Clean the

battery terminals if they become dirty or

corroded.

Do not remove the battery cap seals. There is no

need to remove the cap when charging.

❙

What to do in an emergency

If any of the following occur, immediately see

your doctor.

●Electrolyte splashes into your eyes:

uWash your eyes repeatedly with cool water

for at least 15 minutes. Using water under

pressure can damage your eyes.

●Electrolyte splashes onto your skin:

uRemove affected clothing and wash your

skin thoroughly using water.

●Electrolyte splashes into your mouth:

uRinse mouth thoroughly with water, and

do not swallow.

WARNING: Battery posts, terminals, and

related accessories contain lead and lead

compounds.

Wash your hands after handling.

Battery

WARNING

The battery gives off explosive

hydrogen gas during normal

operation.

A spark or flame can cause the battery

to explode with enough force to kill or

seriously hurt you.

Wear protective clothing and a face

shield, or have a skilled mechanic do

the battery servicing.

Maintenance Fundamentals

continued

Maintenance

❙

Cleaning the Battery Terminals

Remove the battery.

P. 59

If the terminals are starting to corrode and

are coated with a white substance, wash with

warm water and wipe clean.

If the terminals are heavily corroded, clean

the terminals with a wire brush or sandpaper.

Wear safety glasses.

After cleaning, reinstall the battery.

The battery has a limited life span. Consult your

dealer about when you should replace the

battery. Always replace the battery with

another maintenance-free battery of the same

type.

❙

Charging

If you use electrical accessories that drain the

battery or you do not ride frequently, we

recommend that you charge the battery every

30 days using a charger designed specifically for

your Honda, which can be purchased from your

dealer. Read the information that came with

your battery charger and follow the instructions

on the battery. Avoid using an automobile-type

battery charger, as these can overheat a

motorcycle battery and cause permanent

damage.

Make sure the ignition switch is in the OFF

position before charging the battery.

NOTICE

Improper charging can damage the battery. If you can’t

charge the battery or it appears unable to hold a charge,

contact your dealer.

Maintenance Fundamentals

Maintenance

Fuses protect the electrical circuits on your

motorcycle. If something electrical on your

motorcycle stops working, check for and

replace any blown fuses.

P. 104

❙

Inspecting and Replacing Fuses

Turn off the ignition switch to remove and

inspect fuses. If a fuse is blown, replace with a

fuse of the same rating. For fuse ratings, see

“Specifications.”

P. 129

If a fuse fails repeatedly, you likely have an

electrical fault. Have your motorcycle inspected

by your dealer.

NOTICE

Jump starting using an automobile battery can damage

your motorcycle’s electrical system and is not

recommended. Bump starting is also not recommended.

NOTICE

Installing non-Honda electrical accessories can overload

the electrical system, discharging the battery and possibly

damaging the system.

Fuses

NOTICE

Replacing a fuse with one that has a higher rating greatly

increases the chance of damage to the electrical system.

Blown fuse

Maintenance Fundamentals

Maintenance

Engine oil consumption varies and oil quality

deteriorates according to riding conditions and

time elapsed.

Check the engine oil level regularly, and add the

recommended engine oil if necessary. Dirty oil

or old oil should be changed as soon as

possible.

❙

Selecting the Engine Oil

For recommended engine oil, see

“Specifications.”

P. 128

If you use non-Honda engine oil, check the label

to make sure that the oil satisfies all of the

following standards:

●JASO T 903 standard*

: MA

●SAE standard*

: 10W-30

●API classification*

: SG or higher

*1.

The JASO T 903 standard is an index for engine

oils for 4-stroke motorcycle engines. There are

two classes: MA and MB. For example, the

following label shows the MA classification.

*2.

The SAE standard grades oils by their viscosity.

*3.

The API classification specifies the quality and

performance rating of engine oils. Use SG or

higher oils, excluding oils marked as “Energy

Conserving” or “Resource Conserving” on the

circular API service symbol.

Engine Oil

Oil code

Oil classification

Not recommended Recommended

Maintenance Fundamentals

Maintenance

Do not add or replace brake fluid, except in an

emergency. Use only fresh brake fluid from a

sealed container. If you do add fluid, have the

brake system serviced by your dealer as soon as

possible.

The drive chain must be inspected and

lubricated regularly. Inspect the chain more

frequently if you often ride on bad roads, ride at

high speed, or ride with repeated fast

acceleration.

P. 75

If the chain does not move smoothly, makes

strange noises, has damaged rollers, has loose

pins, has missing O-rings, or kinks, have the

chain inspected by your dealer.

Brake Fluid

NOTICE

Brake fluid can damage plastic and painted surfaces.

Wipe up spills immediately and wash thoroughly.

Recommended brake fluid:

Honda DOT 4 Brake Fluid or equivalent

WARNING

Clean filler cap before removing. Use

only DOT 4 fluid from a sealed

container.

Drive Chain

Maintenance Fundamentals

continued

Maintenance

Also inspect the front sprocket and rear wheel

sprocket. If either has worn or damaged teeth,

have the sprocket replaced by your dealer.

❙

Cleaning and Lubricating

After inspecting the slack, clean the chain and

sprockets while rotating the rear wheel. Use a

dry cloth with chain cleaner designed

specifically for O-ring chains, or neutral

detergent. Use a soft brush if the chain is dirty.

After cleaning, wipe dry and lubricate with the

recommended lubricant.

NOTICE

Use of a new chain with worn sprockets will cause rapid

chain wear.

Worn

(REPLACE)

Damaged

(REPLACE)

Normal

(GOOD)

Recommended lubricant:

Pro Honda HP Chain Lube or equivalent

Maintenance Fundamentals

Maintenance

Do not use a steam cleaner, a high pressure

cleaner, a wire brush, volatile solvent such as

gasoline and benzene, abrasive cleaner, chain

cleaner or lubricant NOT designed specifically

for O-ring chains as these can damage the

rubber O-ring seals.

Avoid getting lubricant on the brakes or tires.

Avoid applying excess chain lubricant to prevent

spray onto your clothes and the motorcycle.

Pro Honda HP coolant is a pre-mixed solution of

antifreeze and distilled water.

A concentration of antifreeze below 40% will

not provide proper corrosion and cold

temperature protection.

A concentration of up to 60% will provide

better protection in colder climates.

This motorcycle is equipped with a viscous type

air cleaner element which cannot be cleaned

with compressed air or otherwise without

degrading its performance.

If the filter becomes dirty, replace it with a new

one.

Service more frequently when riding in rain, at

full throttle, or after the motorcycle is washed

or overturned. Service if the deposit level can be

seen in the transparent section of the drain

tube.

P. 83

If the drain tube overflows, the air filter may

become contaminated with engine oil causing

poor engine performance.

Recommended Coolant

Concentration:

50% antifreeze and 50% distilled water

NOTICE

Using coolant not specified for aluminum engines or

using ordinary tap water can cause corrosion.

Air Cleaner

Crankcase Breather

Maintenance Fundamentals

continued

Maintenance

❙

Checking the Air Pressure

Visually inspect your tires and use an air

pressure gauge to measure the air pressure at

least once a month or any time you think the

tires look low. Always check air pressure when

your tires are cold.

P. 128

❙

Inspecting for Damage

Inspect the tires for

cuts, slits, or cracks

that exposes fabric or

cords, or nails or

other foreign objects

embedded in the side

of the tire or the

tread. Also inspect

for the bumps or bulges in the side walls of the

tires.

❙

Inspecting for Abnormal Wear

Inspect the tires for

signs of abnormal

wear on the contact

surface.

Tires (Inspecting/Replacing)

Maintenance Fundamentals

Maintenance

❙

Inspecting Tread Depth

Inspect the tread wear indicators. If they

become visible, replace the tires immediately.

For safe riding, you should replace the tires

when the minimum tread depth is reached.

Have your tires replaced by your dealer.

For recommended tires, air pressure and

minimum tread depth, see “Specifications.”

P. 128

Follow these guidelines whenever you replace

tires.

●Use the recommended tires or equivalents of

the same size, construction, speed rating,

and load range.

Wear indicator

location mark

or TWI

WARNING

Riding on tires that are excessively

worn or improperly inflated can cause

a crash in which you can be seriously

hurt or killed.

Follow all instructions in this owner’s

manual regarding tire inflation and

maintenance.

Maintenance Fundamentals

Maintenance

●Have the wheel balanced with Honda

Genuine balance weights or equivalent after

the tire is installed.

●Do not install a tube inside a tubeless tire on

this motorcycle. Excessive heat build-up can

cause the tube to burst.

●Use only tubeless tires on this motorcycle.

The rims are designed for tubeless tires, and

during hard acceleration or braking, a tube-

type tire could slip on the rim and cause the

tire to rapidly deflate.

WARNING

Installing improper tires on your

motorcycle can adversely affect

handling and stability, and can cause a

crash in which you can be seriously

hurt or killed.

Always use the size and type of tires

recommended in this owner’s manual.

Maintenance

Removing & Installing Body Components

Battery

❙

Removal

Make sure the ignition switch is off.

Remove the front seat.

P. 62

Unhook the rubber strap from rear side.

Disconnect the negative

terminal from

the battery.

Disconnect the positive

terminal from

the battery.

Remove the battery taking care not to

drop the terminal nuts.

❙

Installation

Install the parts in the reverse order of

removal. Always connect the positive

terminal first. Make sure that bolts and nuts

are tight.

Readjust the clock after the battery is

reconnected since the clock goes wrong

once the battery disconnected.

P. 25

For proper handling of the battery, see

“Maintenance Fundamentals.”

P. 48

“Battery Goes Dead.”

P. 99

Rubber

strap

Battery

Positive

terminal

Negative

terminal

Removing & Installing Body Components u Clip

Maintenance

Clip

❙

Removal

Press down on the center pin to release

the lock.

Pull the clip out of the hole.

❙

Installation

Push the bottom of the center pin.

Insert the clip into the hole.

Press down on the center pin to lock the

clip.

Center

Removing & Installing Body Components u Rear Seat

Maintenance

Rear Seat

❙

Removal

Insert the ignition key into the seat lock.

Turn it clockwise, then pull the rear seat

up and back.

❙

Installation

Insert the prongs into the rear stays on the

frame.

Push down on the rear of the rear seat.

Make sure that the seat is locked securely

in position by pulling up lightly.

The seat locks automatically when closed.

Take care not to lock your key in the

compartment under the rear seat.

Seat lock

Ignition key

Prongs Rear seat

Rear stays

Removing & Installing Body Components u Side Cover

Maintenance

Side Cover

The right and left side covers can be removed

in the same manner.

❙

Removal

Remove the bolt and clip.

P. 60

Remove the prongs from the grommets.

Remove the side cover by releasing the

tabs.

❙

Installation

Install the parts in the reverse order of

removal.

Prongs

Bolt

Clip

Grommets Prongs

Tabs

Engine Oil u Adding Engine Oil

Maintenance

Adding Engine Oil

If the engine oil is below or near the lower

level mark, add the recommended engine oil.

P. 51 128,

Remove the oil fill cap. Add the

recommended oil until it reaches the

upper level mark.

uPlace your motorcycle in an upright

position on a firm, level surface when

checking the oil level.

uDo not overfill above the upper level

mark.

uMake sure no foreign objects enter the

oil filler opening.

uWipe up any spills immediately.

Securely reinstall the oil fill cap.

For the recommended oil and oil selection

guidelines, see “Maintenance

Fundamentals.”

P. 51

NOTICE

Overfilling with oil or operating with insufficient oil can

cause damage to your engine. Do not mix different brands

and grades of oil. They may affect lubrication and clutch

operation.

Engine Oil u Changing Engine Oil & Filter

Maintenance

Changing Engine Oil & Filter

Changing the oil and filter requires special

tools. We recommend that you have your

motorcycle serviced by your dealer.

Use a new Honda Genuine oil filter or

equivalent specified for your model.

If the engine is cold, idle the engine for 3

to 5 minutes.

Turn the ignition switch off and wait for

2 to 3 minutes.

Place your motorcycle on a firm, level

surface and lower the side stand.

Place a drain pan under the drain bolt.

Remove the oil fill cap, drain bolt, and

sealing washer to drain the oil.

Remove the oil filter with a filter wrench

and let the remaining oil drain out. Make

sure the prior seal is not stuck to the

engine.

uDiscard the oil and oil filter at an

approved recycling center.

NOTICE

Using the wrong oil filter can result in serious damage to

the engine.

Sealing

washer

Drain bolt

Engine Oil u Changing Engine Oil & Filter

Maintenance

Apply a thin coat of engine oil to the

rubber seal of a new oil filter.

Install the new oil filter and tighten.

Install a new sealing washer onto the

drain bolt. Tighten the drain bolt.

10.

Fill the crankcase with the recommended

oil (

P. 51 128, ) and install the oil fill

cap.

11.

Check the oil level.

P. 64

12.

Check that there are no oil leaks.

Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).

Rubber

seal

Oil filter

Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).

Required oil

When changing oil &

engine oil filter:

2.9 US qt (2.7 liters)

When changing oil only:

2.6 US qt (2.5 liters)

Maintenance

Air Cleaner

Changing Air Cleaner Element

Use a new Honda Genuine air cleaner

element or an equivalent specified for your

motorcycle.

Remove the front seat.

P. 62

Remove the battery.

P. 59

Remove the junction connector by

removing the screw A.

Remove the air cleaner case cover/

element by removing the screws A.

Remove the air cleaner element by

removing the screws B.

Install the new air cleaner element.

Install the parts in the reverse order of

removal.

NOTICE

Using the wrong air cleaner element may cause

premature engine wear or performance problems.

Air cleaner

case cover/

element

Screws A

Junction

connector

Screws A

Air cleaner

element

Screws B Screws B

continued

Maintenance

Coolant

Checking the Coolant

Check the coolant level in the reserve tank

while the engine is cold.

Place your motorcycle on a firm, level

surface.

Hold your motorcycle in an upright

position.

Check that the coolant level is between

the UPPER level and LOWER level marks in

the reserve tank.

If the coolant level is dropping noticeably or

the reserve tank is empty, you likely have a

serious leak. Have your motorcycle inspected

by your dealer.

Adding Coolant

If the coolant level is below the LOWER level

mark, add the recommended coolant

(

P. 54) until the level reaches the UPPER

level mark.

Add fluid only from the reserve tank cap and

do not remove radiator cap.

UPPER level

LOWER level

Reserve tank

Coolant u Changing Coolant

Maintenance

Remove the left side cover.

P. 63

Remove the reserve tank cap and add

fluid while monitoring the coolant level.

uDo not overfill above the UPPER level

mark.

uMake sure no foreign objects enter the

reserve tank opening.

Securely reinstall the cap.

Install the left side cover.

Changing Coolant

Have your dealer change the coolant unless

you have the proper tools and are

mechanically qualified.

WARNING

Removing the radiator cap while the

engine is hot can cause the coolant to

spray out, potentially scalding you.

Always let the engine and radiator

cool down before removing the

radiator cap.

Reserve tank cap

Maintenance

Brakes

Checking Brake Fluid

Place your motorcycle in an upright

position on a firm, level surface.

Check that the brake fluid

reservoir is horizontal and that the fluid

level is above the LWR mark.

Check that the brake fluid reservoir

is horizontal and that the fluid level is

between the LOWER level and UPPER level

marks.

If the brake fluid level in either reservoir is

below the LWR or LOWER level mark or the

brake lever and pedal freeplay becomes

excessive, inspect the brake pads for wear. If

the brake pads are not worn, you most likely

have a leak. Have your motorcycle inspected

by your dealer.

Front

Rear

Front

Rear

Front brake fluid reservoir

LWR mark

Rear brake fluid reservoir

LOWER level

mark

UPPER level

mark

Brakes u Inspecting the Brake Pads

Maintenance

Inspecting the Brake Pads

Check the condition of the brake pad wear

indicators.

The pads need to be replaced if a brake pad

is worn to the indicator.

Inspect the brake pads from below

the brake caliper.

Inspect the brake pads from the

rear right of the motorcycle.

If necessary have the pads replaced by your

dealer.

Always replace both left and right brake pads

at the same time.

Front

Rear

Front

Rear

Pads

Wear indicators Wear indicators

Pads

Disc Disc

Brakes u Adjusting the Brake Light Switch

Maintenance

Adjusting the Brake Light

Switch

Check the operation of the brake light

switch. Hold the brake light switch and turn

the adjusting nut in the direction A if the

switch operates too late, or turn the nut in

the direction B if the switch operates too

soon.

Brake light switch

Adjusting

nut

Maintenance

Side Stand

Checking the Side Stand

Check that the side stand operates

smoothly. If the side stand is stiff or

squeaky, clean the pivot area and

lubricate the pivot bolt with clean grease.

Check the spring for damage or loss of

tension.

Sit on the motorcycle, put the

transmission in Neutral, and raise the side

stand.

Start the engine, pull the clutch lever in,

and shift the transmission into gear.

Lower the side stand all the way. The

engine should stop as you lower the side

stand. If the engine doesn’t stop, have

your motorcycle inspected by your dealer.

Side stand

spring

Maintenance

Drive Chain

Inspecting the Drive Chain

Slack

Check the drive chain slack at several points

along the chain. If the slack is not constant at

all points, some links may be kinked and

binding.

Have the chain inspected by your dealer.

Place the transmission in Neutral. Stop the

engine.

Place your motorcycle on the side stand

on a level surface.

Check the slack in the lower half of the

drive chain midway between the

sprockets.

uDo not ride your motorcycle if the slack

exceeds 2 3/8 in (60 mm).

Roll the motorcycle forward and check

that the chain moves smoothly.

Inspect the sprockets.

P. 52

Clean and lubricate the drive chain.

P. 53

Drive chain slack:

1 3/8 to 1 3/4 in (35 to 45 mm)

Drive Chain u Adjusting the Drive Chain Slack

Maintenance

Adjusting the Drive Chain Slack

Adjusting the chain requires special tools.

Have the drive chain slack adjusted by your

dealer.

When adjusting the drive chain slack, be

careful not to damage the wheel speed

sensor and pulser ring.

Place the transmission in Neutral. Stop the

engine.

Place your motorcycle on the side stand

on a level surface.

Loosen the rear axle nut.

Loosen the lock nuts on both sides of the

swingarm.

CBR500RA only

Rear axle nut

Lock nut

Adjusting nut

Adjusting nut Rear edge of

adjusting slot

Chain adjuster

index mark

Lock nut

Drive Chain u Adjusting the Drive Chain Slack

continued

Maintenance

Turn both adjusting nuts an equal number

of turns until the correct drive chain slack

is obtained. Turn the adjusting nuts

clockwise to tighten the chain. Turn the

adjusting nuts counterclockwise to

provide more slack.

Adjust the slack at a point midway

between the front sprocket and the rear

wheel sprocket.

Check the drive chain slack.

P. 75

Check rear axle alignment by making sure

the chain adjuster index marks align with

the rear edge of the adjusting slots.

Both marks should correspond. If the axle

is misaligned, turn the right or left

adjusting nuts until the marks are aligned

and recheck chain slack.

Tighten the rear axle nut.

Tighten the drive chain adjusting nuts

lightly, then hold the adjusting nuts and

tighten the lock nuts.

Recheck drive chain slack.

If a torque wrench was not used for

installation, see your dealer as soon as

possible to verify proper assembly.

Improper assembly may lead to loss of

braking capacity.

Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m).

Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m).

Drive Chain u Adjusting the Drive Chain Slack

Maintenance

❙

Checking the Drive Chain Wear

Check the chain wear label when adjusting

the drive chain. If the index mark on the

washer enters the red zone on the label after

the chain has been adjusted to the proper

slack, the chain is excessively worn and must

be replaced.

If necessary have the drive chain replaced by

your dealer.

Chain: DID520V0

Red zone

Index mark

Maintenance

Clutch

Checking the Clutch

❙

Checking the Clutch Lever Freeplay

Check the clutch lever freeplay.

Check the clutch cable for kinks or signs of

wear. If necessary have it replaced by your

dealer.

Lubricate the clutch cable with a

commercially available cable lubricant to

prevent premature wear and corrosion.

Freeplay at the clutch lever:

3/8 to 13/16 in (10 to 20 mm)

Clutch lever

Freeplay

NOTICE

Improper freeplay adjustment can cause premature clutch

wear.

Clutch u Adjusting the Clutch Lever Freeplay

Maintenance

Adjusting the Clutch Lever

Freeplay

❙

Upper Adjustment

Attempt adjustment with the upper clutch

cable adjuster first.

Loosen the upper lock nut.

Turn the upper clutch cable adjuster until

the freeplay is 3/8 to 13/16 in (10 to 20

mm).

Tighten the upper lock nut and check the

freeplay again.

❙

Lower Adjustment

If the upper clutch cable adjuster is threaded

out near its limit, or the correct freeplay

cannot be obtained, attempt adjustment

with the lower adjusting nut.

Upper clutch cable adjuster

Upper lock nut

–

Maintenance

Throttle

Checking the Throttle

With the engine off, check that the throttle

rotates smoothly from fully closed to fully

open in all steering positions and throttle

freeplay is correct. If the throttle does not

move smoothly, close automatically, or if the

cable is damaged, have the motorcycle

inspected by your dealer.

Adjusting the Throttle Freeplay

Slide the cable boot.

Loosen the lock nut.

Turn the adjuster until the freeplay is 1/16

to 1/4 in (2 to 6 mm).

Tighten the lock nut, return the cable

boot, and inspect the throttle action

again.

Freeplay at the throttle grip flange:

1/16 to 1/4 in (2 to 6 mm).

Freeplay

Flange

Throttle grip

Cable boot

Lock nut

–

Adjuster

Maintenance

Crankcase Breather

Cleaning the Crankcase

Breather

Place a suitable container under the

crankcase breather tube.

Remove the crankcase breather tube plug

from the tube.

Drain deposits into a suitable container.

Install the crankcase breather tube plug.

Crankcase breather

tube

Crankcase breather tube plug

Maintenance

Other Adjustments

Adjusting the Headlight Aim

You can adjust vertical aim of the headlight

for proper alignment. Turn the pinion in or

out as necessary using a Phillips screwdriver.

Obey local laws and regulations. Pinion

Lower

Raise

Pinion

Lower

Raise

High beam

Low beam

Other Adjustments u Adjusting the Rear Suspension

Maintenance

Adjusting the Rear Suspension

Adjusting the suspension requires pin

spanner and extension bar. We recommend

that you have your motorcycle serviced by

your dealer.

❙

Spring Preload

You can adjust the spring preload by the

adjuster to suit the load or the road surface.

Turn the adjuster using a suitable pin spanner

and extension bar.

The preload adjuster has 9 positions. The

standard position is 3 when the index mark

on the adjuster is aligned with the left end of

the rear shock absorber lower mounting bolt.

Turn the adjuster in the direction A to

decrease spring preload (soft) (position 1 to

2), or turn the adjuster in the direction B to

increase spring preload (hard) (position 4 to

9).

Attempting to adjust directly from 1 to 9 or 9

to 1 may damage the shock absorber.

Pin spanner

Extension bar

Index mark

A B

Lower

mounting bolt

Adjuster

Align (Standard position)

Produktspezifikationen

Marke:	Honda
Kategorie:	Motor
Modell:	CBR500R (2015)

Brauchst du Hilfe?

Wenn Sie Hilfe mit Honda CBR500R (2015) benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Motor Honda

Honda Gold Wing GL1800 (2019) Bedienungsanleitung

16 Oktober 2024

Honda ADV160 (2022) Bedienungsanleitung

14 Oktober 2024

Honda CBR650R (2023) Bedienungsanleitung

4 Oktober 2024

Honda CRF250L (2015) Bedienungsanleitung

3 Oktober 2024

Honda Africa Twin CRF1100 (2020) Bedienungsanleitung

21 September 2024

Honda VF750C (1995) Bedienungsanleitung

17 September 2024

Honda XRV750 (1997) Bedienungsanleitung

5 September 2024

Honda CRF250RWE (2025) Bedienungsanleitung

5 September 2024

Honda NX500 (2021) Bedienungsanleitung

3 September 2024

Honda Deauville NT700V (2006) Bedienungsanleitung

3 September 2024

Bedienungsanleitung Motor

Neueste Bedienungsanleitung für -Kategorien-

Husqvarna 701 Supermoto (2018) Bedienungsanleitung

16 Oktober 2024

Triumph Street Triple R (2020) Bedienungsanleitung

15 Oktober 2024

Triumph Daytona 675 R (2013) Bedienungsanleitung

15 Oktober 2024

KTM 250 XC (2018) Bedienungsanleitung

14 Oktober 2024

KTM 690 Duke R (2011) Bedienungsanleitung

13 Oktober 2024

Triumph Street Triple RX (2016) Bedienungsanleitung

13 Oktober 2024

KTM 350 XC-F (2017) Bedienungsanleitung

12 Oktober 2024

KTM Freeride E-XC (2020) Bedienungsanleitung

12 Oktober 2024

Husqvarna TE 250 (2015) Bedienungsanleitung

11 Oktober 2024

KTM 250 EXC-F Six Days (2010) Bedienungsanleitung

10 Oktober 2024
