Seite 1/17

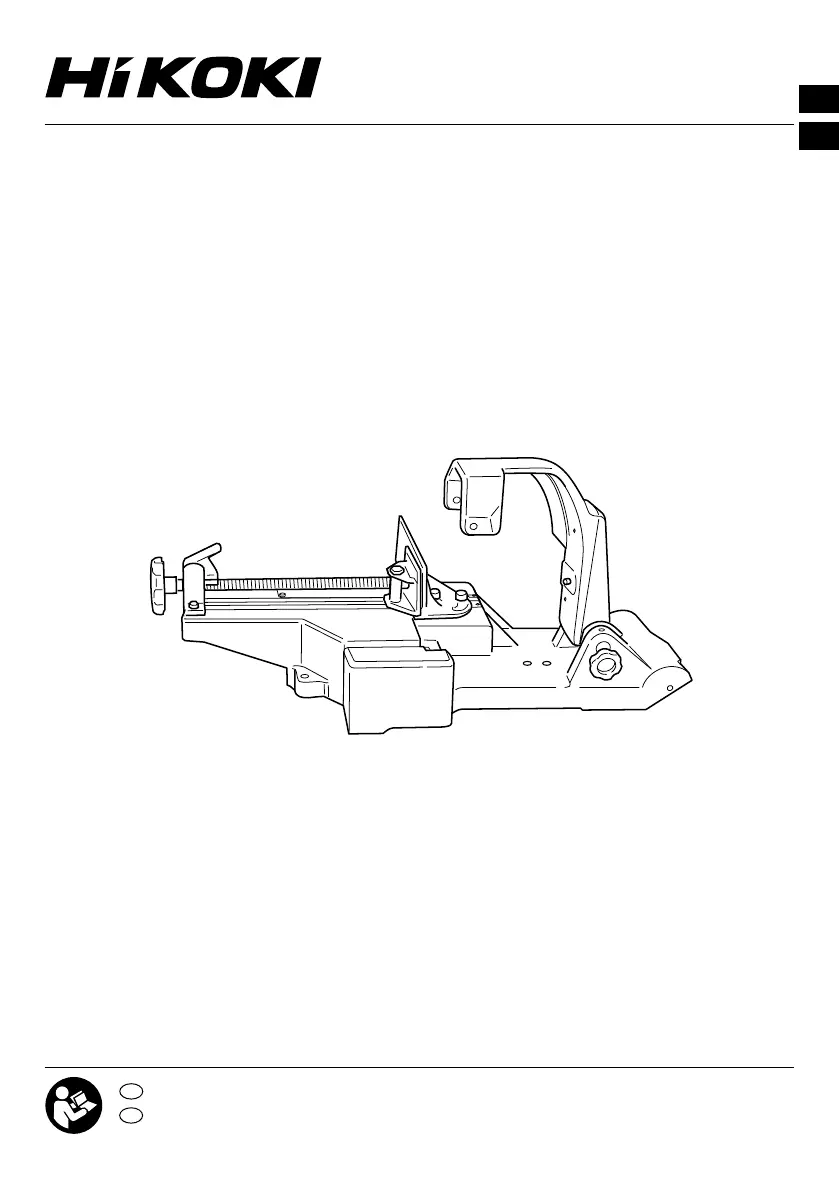

Band Saw Stand
帶鋸機台架
Handling instructions
使用說明書
en
zh
en
zh
2
English
STANDARD ACCESSORIES
Contour table Slide cover
Used when carrying out
contour cutting work.
Used to prevent the band
saw bl ade from be ing
exposed during contour
cutting work.
One One
Slide cover holder Butterfly bolt
(5 mm)
Used to install the slide
c o v e r a n d ad j u s t i t s
position during work.
Used to install the slide
cover holder on the main
unit.
One One
Vise guide Hexagonal wrench
(4 mm)
Used to adjust the angle
of the band saw blade
an d c u t thi n or s m all
diameter workpieces.
Used to adjust the lower
limit position of the band
saw blade.
One One
Hexagonal wrench (8 mm) Knob bolts
Bolt washers
Used to move vise (B)
and adjust the positions
of the hinges.
Used to install a band
saw on t h e b and saw
stand.
One Two each
BAND SAW STAND SAFETY
WARNINGS
● Correctly install the band saw stand by following the
instructions provided in the manual.
● In order to prevent accidents, when installing or removing
the band saw stand, turn the switch of the rotary band
saw off . If your band saw has a power cord, remove the
power plug from the outlet. If your band saw is a cordless
model, remove the battery from the main unit.
● After installing the band saw on the band saw stand,
follow the instructions provided in the manual of the
rotary band saw.
NAMES OF PARTS
Stopper bolt
Screw hole for keeping the stopper bolt
Knob
Clutch
Vise (A)
Vise (B)
Hinge (B)
Hinge (A)
Wheel
Base
D6 knob bolt
Bolt washer
[Opposite side]
Hexagonal wrenches
(4 mm and 8 mm)
Spring stopper
Spring
Fig. 1
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
To reduce the risk of injury, user must read
instruction manual.
Warning
3
English
APPLICATIONS
Band saw stand especially designed for stationary
implementation of right-angle cutting, angle cutting, and
contour cutting work, for use with the following HiKOKI
band saw: CB3612DA
For details regarding the latest available band saw, check
our general catalogue and other information.
SPECIFICATIONS
Model CB12-ST2
Max. cutting
capacity* 90°
Round pipe Φ115 mm
Square pipe Width 100 mm x Height
100 mm
45°
Round pipe Φ50 mm
Square pipe Width 50 mm x Height
50 mm
Weight 14.5 kg
* Maximum cutting capacity possible when a rotary band
saw is installed
HOW TO USE
1. Installing the band saw stand and switch holder
(1) Move the lever switch to the OFF position, and remove
the battery from the main tool unit.
(2) When the stopper bolt is loosened, the hinges of the
band saw stand will fall over backward (toward the
wheels) due to the force of the spring.
While loosening the stopper bolt, hold the top of the
hinges so that they do not fall over backward. ( )Fig. 2
Stopper bolt
Wheel
Fig. 2
(3) Align the hole in the side of pulley guard (A) with the D8
pin of hinge (A), and insert the D8 pin into the hole. (Fig. 3)
(4) One D6 knob bolt is provided on each of the front and
rear sides of hinge (B). Only tighten the one on the rear
side. ( )Fig. 3
Hole
D6
knob bolt
Rear side of
the band saw
D8 pin Hinge (A)
Hinge (B)
Pulley guard
(A)
Fig. 3
NOTE
The switch holder needs to be installed in order to use
the band saw installed on the stand.
(5) While pressing the switch lock, pull the switch and fi t the
switch holder into position.
This locks the switch in the ON position. ( )Fig. 4
(6) Tighten the D6 knob bolt on the front side.
When the installation procedure has been correctly
carried out, the switch lock is held in the pressed
position. ( )Fig. 4
Switch lock
Switch holder
D6 knob bolt
Switch
Fig. 4
Switch holder
(standard
accessory
of CB3612DA)
