Seite 1/12

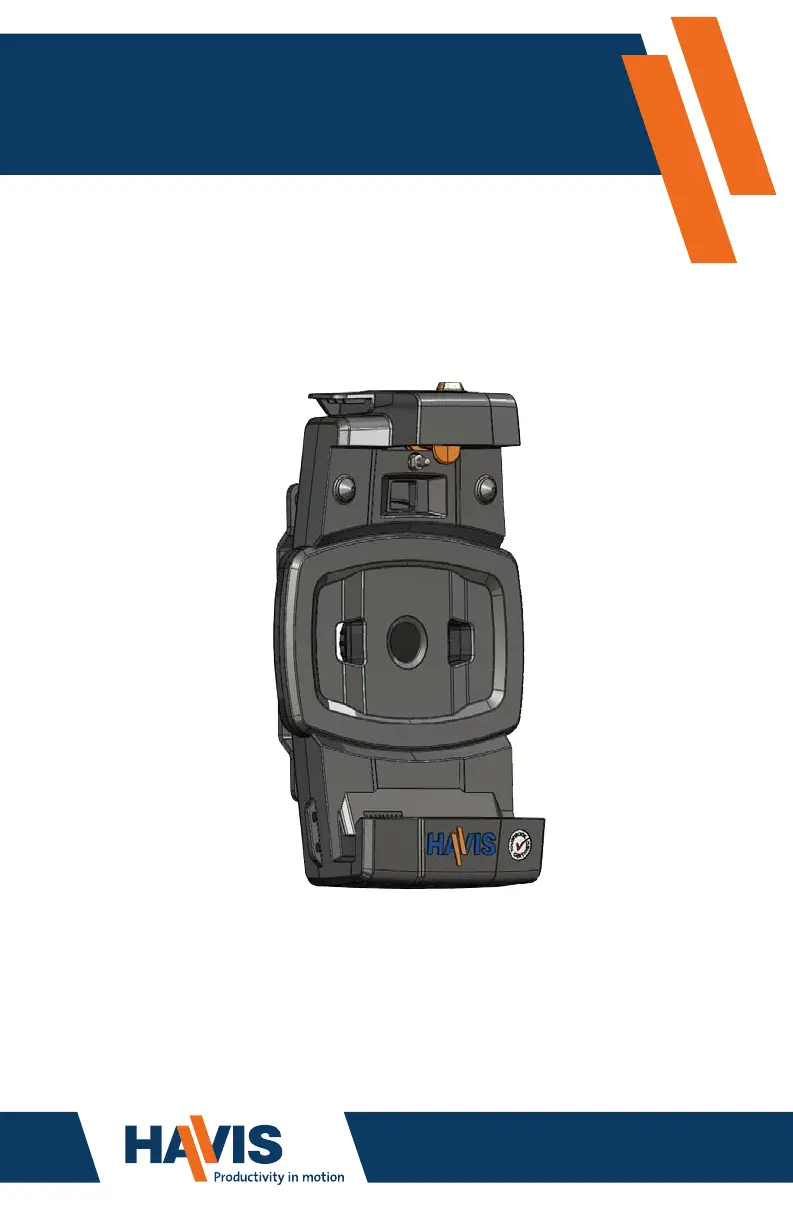

Owner’s Manual
Havis Docking Station
For Panasonic Toughpad FZ-A1
www.havis.com
1-800-524-9900
DS-PAN-504
DS-PAN-505
DS-PAN-506
DS-PAN-500 Series
DS-PAN-504
DS-PAN-505
DS-PAN-506
Before Beginning (Original Instructions)
2
Havis is pleased to provide this Owner’s Manual to aid in the proper
installation and use of the DS-PAN-500 Series Docking Station for
the Panasonic Toughpad FZ-A1.
For questions regarding the set-up of your DS-PAN-500 Series Docking Station,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED
POWER SUPPLY (DS-PAN-505), REFER TO THE SUPPLIED LIND
POWER SUPPLY REFERENCE GUIDE.
• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN
0°C to 50°C (32°F to 120°F).
PLEASE REFER TO PANASONIC TOUGHPAD FZ-A1 OWNER’S MANUAL FOR
MORE INFORMATION.
Related Products
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• FOR THE DS-PAN-504, DS-PAN-505 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product
requires a certied, automotive grade, Panasonic approved 24W power
source rated for a continuous, regulated 12VDC output (Havis Part Number
LPS-106 or equivalent). Failure to comply with this requirement will cause
product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-PAN-506 DOCKING STATION:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Panasonic
FZ-A1 tablet requires a certied, Panasonic approved power source rated
for a continuous, regulated 12VDC output. Panasonic recommends using
the power adapter included with the tablet; failure to comply with this
requirement will cause product damage that is NOT repairable and is NOT
covered under warranty.
www.havis.com • 1-800-524-9900
Table of Contents
3
Specications
Port Replication Capability
Parts Included
Installation
Cable Management
Operation - Docking
Operation - Undocking
3
4
4
6
8
9
10
Specications
Power Supply Input 12.0 V DC-In
Dimensions 10.8” ( 27.5 cm) H x 6.9” ( 17.6 cm ) W x 3.1” ( 8.0 cm ) D
Weight 1.6 lbs ( 0.68 kg )
Operating Environment -10° C to 50° C ( 14° F to 122°F )
Storage Environment -40° C to 85° C ( -40° F to 185° F )
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the tablet
• Use only the specied Power Supply (Part # LPS-106) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F)
for a long period of time
Precautions
EC DECLARATION OF CONFORMITY in accordance with EN 45014
Manufacturers Name: Havis, Inc.
Manufacturers Address: 47801 Anchor Court, Plymouth Twp, MI 48170 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For Panasonic Toughpad A1
Model: DS-PAN-50X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
EMC Directive 2004/108/EC: EN 55022:2010, Class B, Information technology equipment -
Radio disturbance characteristics - Limits and methods of measurement
EN 55024:2010, Information technology equipment - Immunity characteristics -
Limits and methods of measurement
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
BS EN 50498:2010: Section 7, after market electronic equipment in vehicles.
Supplementary Information:
The product herewith complies with the requirements of the EMC Directive 2004/108/EC. This product requires the
use of the provided e-Marked automotive power supply when used within vehicles.
Plymouth twp, MI, USA August 1, 2012 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications
to the model DS-PAN-50X not expressly approved by Havis, Inc. could void
the user's authority to operate this equipment.
