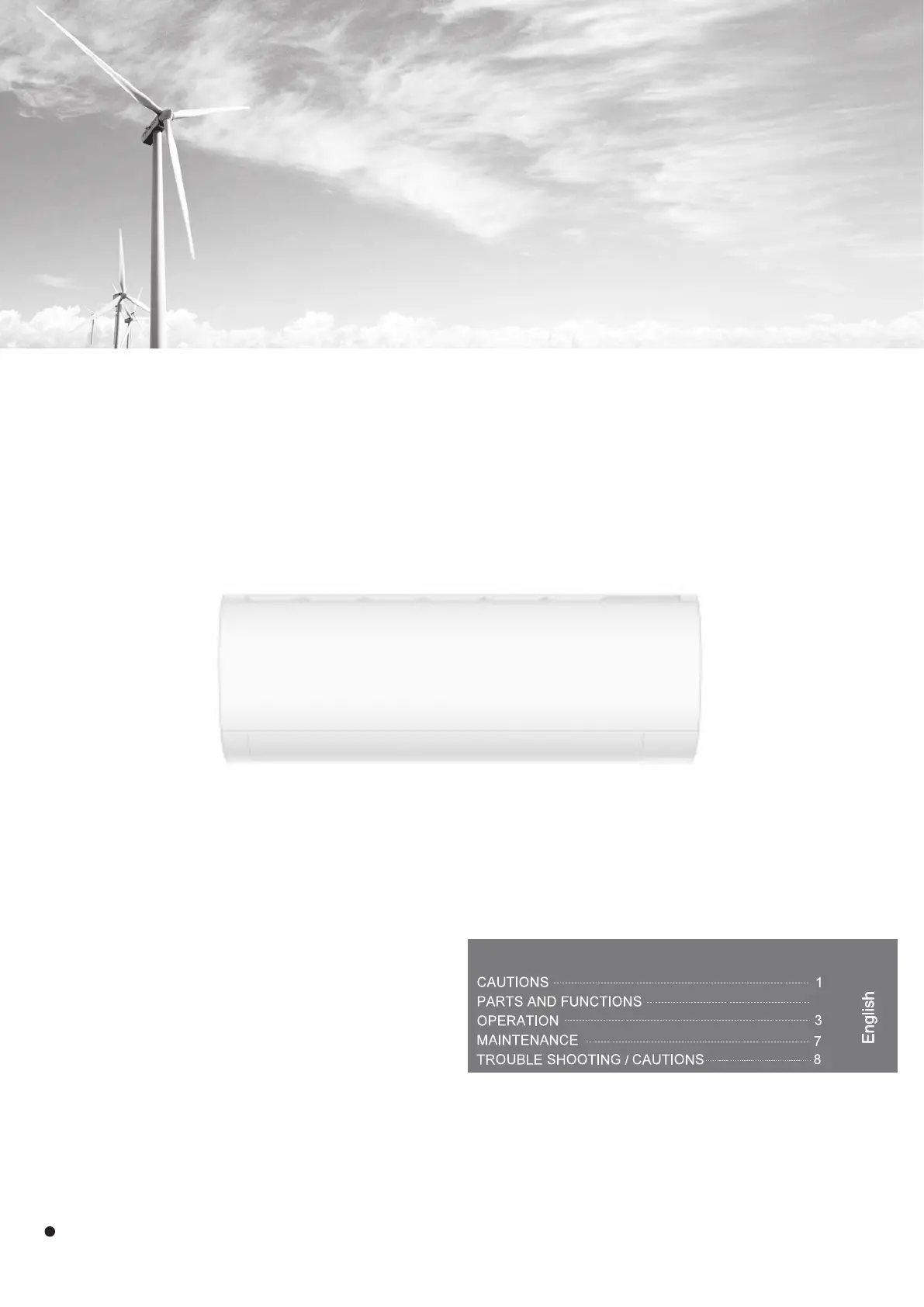

Please read this operation manual before using the air conditioner.
Keep this operation manual for future reference.
SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Contents
2
Do not start or stop the
operation by disconnecting
the power supply cord and
so on.
Do not install in the place where there is any possibility of inflammable
steam.
1
Cautions
WARNING
Please call Sales/Service Shop for the Installation.
Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire,
water leakage.
Connect the earth cable.
earthing
WARNING
When abnormality such as burnt-small
found,immediately stop the operation
button and contact sales shop.
OFF
Use an exclusive
power source with a
circuit breaker
STRICT
ENFORCEMENT
Connect power supply cord to the
outlet completely
Use the proper voltage Do not use power supply
cord in a bundle.
Take care not to damage the
power supply cord. 1.Do not use power supply cord extended or connected in halfway
STRICT
ENFORCEMENT
STRICT
ENFORCEMENT
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
Do not channel the air
flow directly at people,
especially at infants or
the aged.
Do not try to repair or
reconstruct by yourself.
Do not insert objects into
the air inlet or outlet.
PROHIBITION
STRICT
ENFORCEMENT
Check proper installation
of the drainage securely
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (inclu ding children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliances are not intended to be operated by means of an external timer or separate remote-control system.
Keep the appliance and its cord out of reach of children less than 8 years.
PROHIBITION
The appliance shall be installed in accordance with national wiring regulations.
Means for disconnection, such as circuit breaker, which can provide full disconnection in all poles, must be incorporated in the fixed wiring in accordance with the wiring rules.
Details of type and rating of fuses, or rating of circuit breakers / ELB is detailed in below part.
The method of connection of the appliance to the electrical supply and interconnection of separate components is detailed in below part. The wiring diagram with a clearindication
of the connections and wiring to external control devices and supply cord is detailed in below part. The size and type of the cord is detailed in below part.
The information of dimensions of the space necessary for correct installation of the appliance including the minimum permissible distances to adjacent structures is detailed in
below part.
Instructions on addition charging of refrigerants are detailed in below part.
If the device has UV lamp function, please read the following contents.
Read the maintenance instructions before opening the appliance.
Eye or skin irrutation may result from exposure from top air inlet and inner part. During air filter taking and putting for maintenance,please make sure that the power is cut off
before approaching the product.
UV-C barriers bearing the ultraviolet radiaation hazard symbol should not be removed.
Appliances that are obviously damaged must not be operated.
Do not operate UV-C lamps outside of the appliance.
The appliance must be disconnected from the power supply before replacing or cleaning or other maintenance of the UV-C lamp.
The type of UV-C lamp is 0011012908 or 0011012908A.
Front panels bearing the ultraviolet radiaation hazard symbol which have UV-C radiation are provided with a hall switch to interrupt the power to the UV-C lamps for your safty.
Do not over-ride hall switch by magnet and other similar material.
Before opening front panels bearing the ultraviolet radiation hazard symbol for the conducting user maintenance,it is recommended to disconnect the power.
If the UV-C lamp is damaged,it must be replaced by the manufacturer,its service agent or similarly qualifield persons in order to avoid a hazard.
Unintended use of the appliance or damaged to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may,even in small doses,cause harm to
the eyes and skin.
Display board A
Display board B
Display board C
Display board D
1
4
2
3
1
5
Operation mode indicator
(lights up when the compressor is on.)
Timer mode indicator
(Lights up whenTimer operation is selected.)
Power indicator
(Lights up when unit starts.)
Temp display
Remote signal receiver
(A beeping sound is generated when a signal from remote controller isreceived.)
2 3 4 5
2
3
Signal receiver
1
Temp.display
2
3
Operation mode indicator
1
2
Parts and Functions
Remote controller
Indoor Unit
Signal receiver hole
COOL display HEALTH display
4
2
3
1
5
DRY display
6
Temp.display
Actual inlet grille may vary from the one shown in the
manual according to the product purchased
2
35
64
HEAT display
1
(lights up when the compressor is on.)
Temp display
3
24
1
2
3
4
Operation mode indicator
1
TIMER ON/OFF display
TIMER ON OFF display
SLEEP display
Signal receiver hole
Vertical blade
(adjust left and Display board
right air flow)
Inlet Air Purifying Filter
(inside)
Emergency
Switch
Horizontal flap
(adjust up and down air flow
Don't adjust it manually)
Outlet
Inlet grille
Outdoor Unit
4
OUTLET
INLET
CONNECTING PIPING
AND ELECTRICAL WIRING
DRAIN HOSE
4
of the indoor LED display board.
TEMP button
22.TIMER/SLEEP button
23.HEALTH AIRFLOW button
Function: Healthy airflow upwarder
→Healthy airflow downwarder →
Present position.
24.CANCEL/CONFIRM button
Function:Setting and cancel to the
timer and other additional functions.
