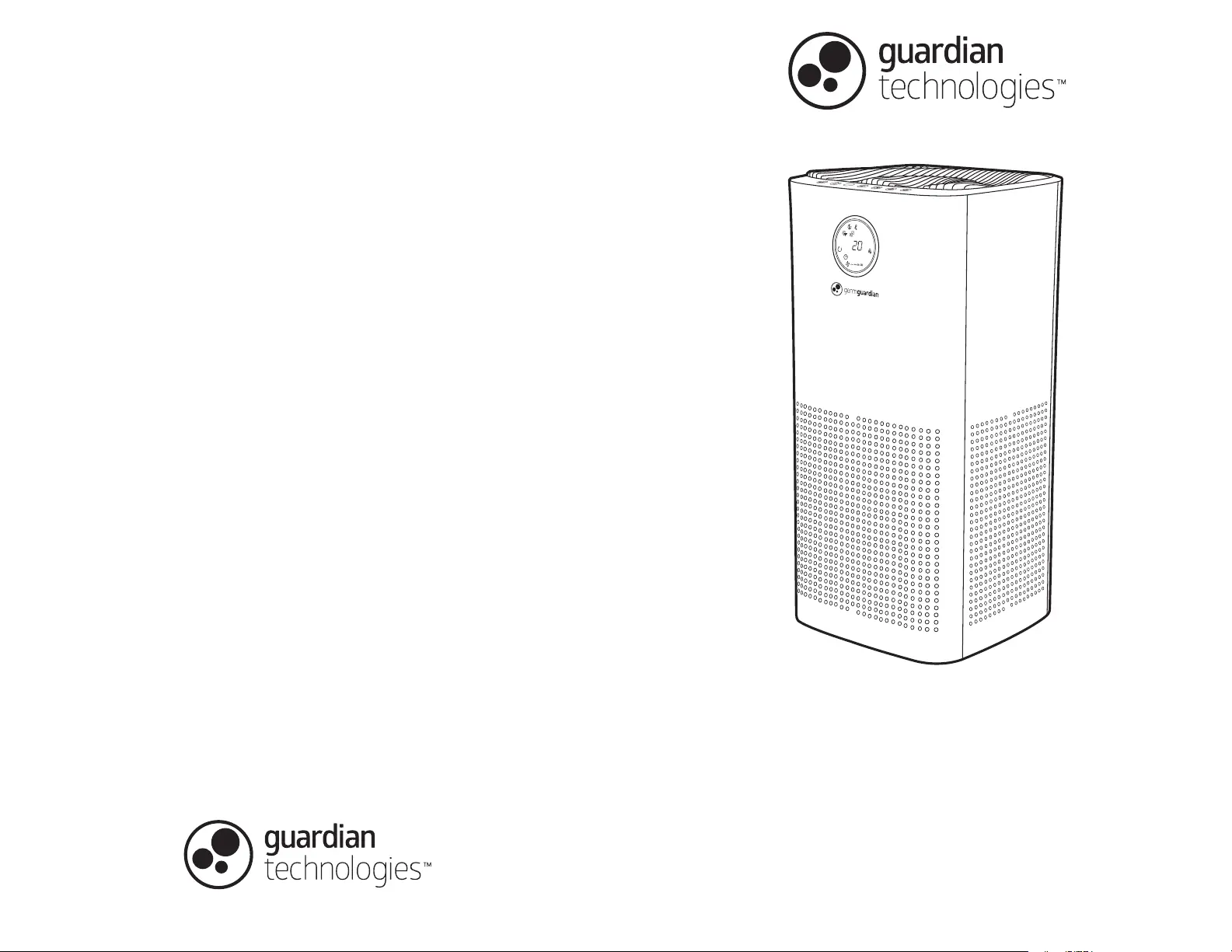

Seite 1/10

E-1

Large Room Air Purifier

Model No. AC5109

3-Year Limited Warranty

English French Spanish E - 1 F - 1 S - 1

Date Purchased month ________ year _________

USE & CARE INSTRUCTIONS

Customer Service 1.866.603.5900

www.guardiantechnologies.com

Use GENUINE Guardian Technologies replacement parts only.

REV1020

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or

workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited

Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of

original purchase is required. Refer to the original product carton or specific product/model page on

the Guardian Technologies website for warranty length for your particular model. This warranty applies

only to the original purchaser of this product from the original date of purchase. This warranty covers

product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or

workmanship. This warranty does not apply to damage resulting from unusual wear, commercial,

abusive, unreasonable use or supplemental damage. This warranty does not cover damage from

unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are

the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any

defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC.

This warranty gives you specific legal rights and you may also have other rights (other rights may

vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian

Technologies LLC. Please include complete information including: the problem, the model number of

the product, the day of purchase, and a copy of the original sales receipt along with your name,

address, and telephone (email optional). Address returns to the attention of: Customer Service, at the

address below. Additional questions or comments can be made toll free to the number listed below.

Additional copies of the instruction manual can be obtained by accessing and

printing directly from our website or calling customer service.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration

process important to ensuring superior service to our customers, however submitting the warranty

registration is optional and does not affect your rights to utilize this warranty according to the conditions

stated above.

AQI

2h 4h 6h 8h

FILTER-R ESET IONIZER U V SLEEP/LOCK TIMER SPEED /AUT O ON/OFF

E-2 E-3

READ AND SAVE THESE INSTRUCTIONS

WARNINGS

Failure to comply with the warnings listed below may

result in electric shock or serious injury.

This product should be used only in accordance with the specifications

outlined in this manual. Usage other than what has been specified here

may result in serious injury.

When using electrical appliances, basic precautions should always be followed to

reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other).

To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only

one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician. Do not attempt to defeat this safety feature.

• WARNING: To reduce the risk of fire or electric shock do not use with an extension cord.

• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.

• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord

under rugs, near heat registers, radiator, stoves or heaters.

• To protect against electrical hazards, DO NOT immerse in water or other liquids.

Do not use near water.

• Extreme caution is necessary when any appliance is used by or near children or people

with disabilities and whenever the appliance is left operating unattended.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they

do NOT play with the appliance.

• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning

or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

• NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

• DO NOT cover cord with throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area

and where it will not be tripped over.

• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate,

after the appliance malfunctions, or if it has been dropped or damaged in any manner.

Call Customer Service for assistance.

• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, service

agent or similarly qualified persons in order to avoid a hazard.

• Use appliance only for intended household use as described in this manual. Any other use

not recommended by the manufacturer may cause fire, electric shock or injury to persons.

WARNING: Cancer and Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m3 chamber.

The product complies with the maximum allowable concentration of ozone of 0.050 parts

per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010

recommends that the maximum exposure limit, based on averaging time of 8 hours,

is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m3.

This product earned the ENERGY STAR label by meeting strict energy

efficiency guidelines set by the U.S. EPA. Room air cleaners have

demonstrated the potential for improving air quality and providing health

benefits. EPA does not endorse manufacturer claims regarding the degree

to which a specific product will produce healthier indoor air. The energy

efficiency of this ENERGY STAR certified model is measured based on

a ratio between the model’s CADR for Smoke and the electrical energy

it consumes, or CADR/Watt.

• DO NOT use outdoors.

• DO NOT place anything on top of unit.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or

sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.

Doing so will void your warranty. The inside of the unit contains no user serviceable parts.

All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any

solid-state speed control device.

• WARNING: Skin or eye damage may result from directly viewing the light produced by the

lamp in this apparatus. Always disconnect power before replacing lamp or servicing.

Replace Lamp With Lamp Model No. LB5100, Manufactured by Guardian Technologies.

• Always unplug the unit before before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the

unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

CAUTION: THIS EQUIPMENT SHOULD BE INSPECTED AND CLEANED IN

ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS ON A REGULAR

BASIS TO PREVENT EXCESSIVE ACCUMULATION OF DUST PARTICLES THAT

CAN RESULT IN FLASHOVER OR A RISK OF FIRE.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case

of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

E-6 E-7

OPERATING INSTRUCTIONS

IMPORTANT: The air purifier is shipped with the filter stored in the filter compartment.

The filter is shipped in a bag to prevent degradation. Before using, remove and discard bag.

IMPORTANT: Proper filter and back panel installation is necessary for unit to turn on and run.

BEFORE OPERATING THE AIR PURIFIER

1. Select a firm, level and flat location for the air purifier.

• For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

2. Plug the power cord into a 120V AC outlet. An audible chime will sound when plugged in.

OPERATING THE AIR PURIFIER

ON/OFF

1. Turn unit power ON by pressing the ON/OFF control.

Important: The purifier will not work if the back panel is not closed or the

filter is not in place. An error code (ES) will be displayed if the panel is not

closed properly and (EO) if the filter is not in place.

Note: The first time the unit is plugged in and powered on, the air quality sensor

will take a few minutes to calibrate.

SPEED/AUTO

2. Select Fan Speed or Auto Mode

Fan Speed – press SPEED/AUTO and select speed level 1-4.

The fan speed will light on the display.

Auto Mode – press SPEED/AUTO and select AUTO, 5th level on the fan control.

An “A” will light on the display. When in AUTO the fan speed will change depending

on the air quality level in the room. See AQM below. To exit AUTO mode, press

SPEED/AUTO.

TIMER

3. Timer – Select if you prefer to run the purifier for a specific number of hours.

Press timer control and press to select 2h, 4h, 6h or 8h (hours). The hours will light

on the display. To cancel timer, toggle through the hours until the feature is turned off.

SLEEP/LOCK

4. Sleep Mode – Press Sleep/Lock control to turn display lights on/off. When selected,

the sleep light will dim, the other lights on the display will turn off and the purifier will

run in low speed. Press any control to wake up the unit, then press the Sleep/Lock

control to exit from sleep mode. Your unit will return to the speed it was on before it

went to sleep mode.

SLEEP/LOCK

5. Child Lock – Press and hold Sleep/Lock control for 3 seconds to lock control panel

so controls cannot be adjusted, except power. The lock icon will light on the display.

To unlock hold the Sleep/Lock control again for 3 seconds.

UV-C MODE

UV 6. UV Mode – Press to turn on UV-C light feature which helps kill germs.

“UV” will light on the display. Press again to turn off.

IONIZER

7. Ionizer – Press to run the ozone-safe ionizer function. The Ionizer can enhance

ability to remove particles and keep the air fresh. The Ionizer icon will light on

the display. Press again to turn off.

FILTER-RESET

8. Filter Reset Indicator flashes to indicate it is time to change the filter. Replace the

filter according to the instructions (pg. 7). Press and hold Filter-Reset control for

approximately 5 seconds, the unit will beep before flashing indicator stops.

AIR QUALITY MONITOR

Air Quality Monitor senses and detects the amount of particulate matter (PM2.5) in the air.

The light circle around the display will change colors, indicating the air quality level in the room.

The particulate matter numeric value (AQI) will be displayed. See values and status ranges

in chart below.

Also listed are the color values displayed in the circle and the fan speed “AUTO” mode will

select based on the particulate matter that is detected.

Light Color Particulate Matter Value (Range) Air Quality Status Auto Fan Speed

Green 0-100 Good 1

Yellow 101-200 Average 2

Red 201-300 Poor 3

Red 301-500 Very Poor 4

RESETTING THE AIR PURIFIER

The air purifier is equipped with a motor protection circuit. If activated, the overload warning will

initiate and cut off the power. An audible warning “chime” will sound for 60 seconds along with a

flashing “Err” warning on the display. To restart the unit, unplug the unit for 10 minutes, then plug

back in and power on.

The filter reset indicator light will flash when it is time to replace your filter. Depending on

usage and environmental conditions the filter will last approximately 6 months. The inside pleats

of the filter will turn from white to grey when it is dirty and needs replacing. It is important to

maintain and change the filter to continue to optimize the performance of the air purifier.

IMPORTANT: Do NOT wash and re-use the filter. Please contact Customer Service or visit our

website www.guardiantechnologies.com to purchase a replacement filter. Use only Genuine

Guardian Technologies replacement parts to optimize the performance of your air purifier.

REMOVE AND REPLACE FILTER

1. Turn off and unplug the unit.

2. Remove the back panel then remove and dispose of the filter.

3. Replace with new filter – pushing completely into unit.

4. Return back panel, first insert the panel hooks then close.

IMPORTANT: Make sure filter is installed and back panel is closed properly, otherwise unit

will not function.

RESET THE FILTER LIGHT by holding the Filter Reset control for 5 seconds.

FILTER REPLACEMENT

ERROR CODES

• Err: The motor is in an over-temperature protection mode.

Wait 10 minutes and restart by unplugging and plugging in again.

• FC: The filter cover is not installed and the power will not turn on.

Re-install the filter cover, and the machine can return to the original operating mode.

• FL: The filter is not installed properly and the power will not turn on.

Re-install the filter, and the machine can return to the original operating mode.

• dS: The dust sensor or its connection line is damaged, please contact customer service for repair.

Produktspezifikationen

Marke:	Guardian
Kategorie:	Luftreiniger
Modell:	AC5109

Brauchst du Hilfe?

Wenn Sie Hilfe mit Guardian AC5109 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Luftreiniger Guardian

Guardian AC4625 Bedienungsanleitung

29 August 2024

Guardian AC9200 Bedienungsanleitung

29 August 2024

Guardian AC4900 Bedienungsanleitung

29 August 2024

Guardian AC4100 Bedienungsanleitung

29 August 2024

Guardian AC5350 Bedienungsanleitung

29 August 2024

Guardian AC5900 Bedienungsanleitung

29 August 2024

Guardian AC5000 Bedienungsanleitung

29 August 2024

Guardian AC5300 Bedienungsanleitung

29 August 2024

Guardian AC4825 Bedienungsanleitung

29 August 2024

Guardian AC4250 Bedienungsanleitung

29 August 2024

Bedienungsanleitung Luftreiniger

Neueste Bedienungsanleitung für -Kategorien-

Trotec TAC 5000 Bedienungsanleitung

16 Oktober 2024

Duux DXPU07 Bright Bedienungsanleitung

16 Oktober 2024

Taurus AP2030 Bedienungsanleitung

16 Oktober 2024

TruSense Z-2000 Bedienungsanleitung

16 Oktober 2024

Ulsonix AIRCLEAN 20G Bedienungsanleitung

16 Oktober 2024

Philips AC5602 Bedienungsanleitung

15 Oktober 2024

Winix AUS-5500 Bedienungsanleitung

14 Oktober 2024

Homedics AR-35 Bedienungsanleitung

14 Oktober 2024

Vax AP02 Bedienungsanleitung

10 Oktober 2024

Whynter AFR-300 Bedienungsanleitung

10 Oktober 2024
