Seite 1/9
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/fenton/hf5w/html/bg1.png)
V1.1

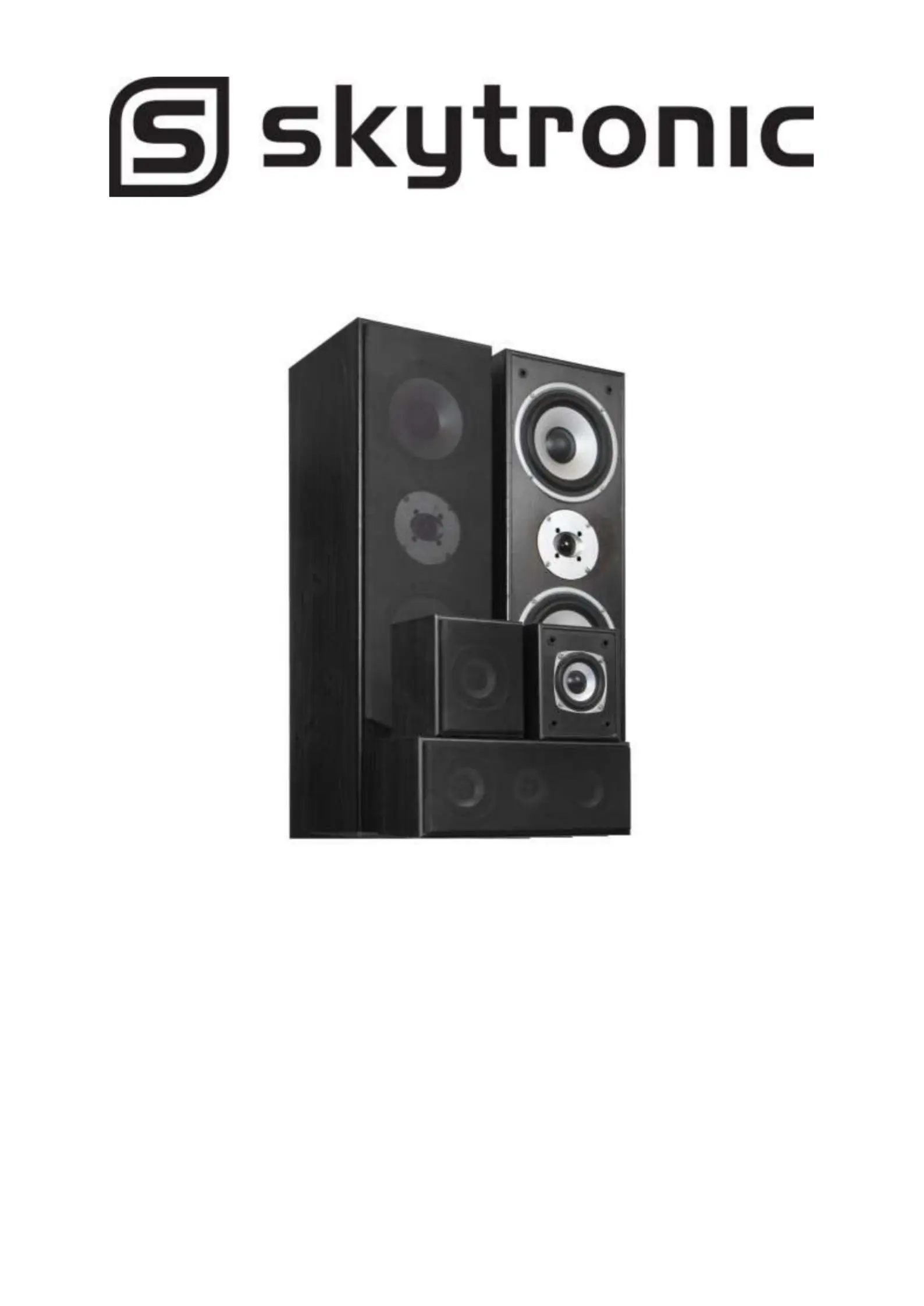

5.0 HOMETHEATRE SYSTEM
100.330
5.0 Home Theatre System black
100.333
5.0 Home Theatre System walnut
INSTRUCTION MANUAL
HANDLEIDING
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/fenton/hf5w/html/bg2.png)
BACKSIDE
SPECIFICATION
Power max.
3x 50W + 2x 180W, equivalent to 1150W
Power rms
335W
Frequency response
20Hz - 20kHz
Impedance
4 Ohm
Woofer
2x 16 cm
Tweeter
Neodymium
Dimensions
Front: 245 x 210 x 815mm - Center: 120 x 300 x
120mm - Rear: 120 x 120 x 145mm
Weight per piece
Front: 6.3kg - Center: 1.2kg - Rear: 0.6kg
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/fenton/hf5w/html/bg3.png)
Congratulations to the purchase of our SkyTec speaker box.
Read the instructions thoroughly prior to using the unit.
SAFETY INSTRUCTIONS
ď‚· Hearing damage:
SkyTec loudspeakers are easily generating high
sound pressure levels (SPL) suicient to cause
permanent hearing damage to performers,
production crew and audience members. Ca re
should be taken to avoid prolonged exposure to
SPL in excess of . 85 dB
 Make sure that the amplier is switched o
when the speaker box is connected or
disconnected.
 The box must be installed by a qualied
technician who has knowledge of the
techniques .
ď‚· Do not overload the box to avoid damage to the
speakers.
ď‚· Connect the box only to a good quality
amplier:
Direct voltage at the amplier output will
damage the speakers
“Clipping” (overdrive) of the amplifier can
damage the woofer, tweeter and horn speaker
ď‚· Do not overload the speakers to avoid damage
to the components.
ď‚· Do not place an open fire (candle, etc.) on top
or next to the box - FIRE HAZARD
ď‚· For indoor use only. If the box is used outdoors,
you need to make sure that no humidity can
enter the box.
ď‚· Make sure that the box is placed on a stable,
solid surface.
ď‚· The boxes can be stacked but do not put more
than 60kg weight on the box.
ď‚· e boxes can be hung. Use only strong and Th
approved mounting material. The installation
should only be carried out by a qualied
technician who has knowledge of the
techniques and regulations regarding the
mounting/hanging of speaker boxes. During the
mounting, make sure that nobody is standing
below the mounting area.
ď‚· Use only stands which are designed to support
the weight of the speaker. Do not attempt to
place more than one speaker on a stand
designed for a single speaker.
ď‚· Do not place liquids on the box and protect it
against humidity. Humidity can shorten the life
time considerably.
ď‚· If the unit is damaged to an extent that internal
parts are visible, DO NOT connect the unit and
DO NOT switch it on. Contact your dealer or
Tronios .
ď‚· Never try to repair the unit yourself. It does not
contain any user serviceable parts. All repairs
must be carried out by a qualied technician.
 Set the amplier to the lowest volume prior to
switching it on.
ď‚· Keep the unit out of the reach of children.
Protect your environment. Recycle packing material
whenever possible.
Do not throw a faulty unit into normal household
waste but bring it to a special collection
point. A large part of it can be recycled.
CONNECTIONS:
First of all, check the specications of the amplier if it is suitable for your speaker boxes. Pay particular
attention to the power rating and impedance.
Check if the amplier is switched o. If yes, you can connect the speakers. PLEASE NOTE! Watch the polarity
(+/-). Wires of the same colour must be connected to the same sign of every side i.e. the + of the amplier must
be connected to the + of the speaker box. If the connections are inverted, the sound quality will diminish.
Only use high quality speaker cables that are suitable for the power and distance between the amplier and the
speaker.
Connection of several speakers:
When a second speaker is connected in parallel the impedance will change from 8 Ohms to 4 Ohms. Check if
the amplier can handle this. If more that two speakers are connected in parallel, the impedance will go below 4
Ohms. Most of the amplifiers can’t handle this!
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would
also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or
disrespect of the warnings contained in this manual. Tronios cannot be held responsible for personal injuries caused by a
disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
Produktspezifikationen
Marke: | Fenton |
Kategorie: | Speaker |
Modell: | HF5W |
