OWNER’S MANUAL | MANUAL DE INSTRUCCIONES
MODE D’EMPLOI | MANUAL DO PROPRIETÁRIO
MANUALE UTENTE | BEDIENUNGSHANDBUCH
INSTRUKCJA OBSƁUGI | NÁVOD K POUĆœITÍ
NÁVOD NA POUĆœITIE | UPORABNIĆ KI PRIROČNIK
BLONDE
A. NORMAL CHANNEL INPUTS: Connect instrument here. Normal
input 1 produces full sensitivity; normal input 2 has adjusted
sensitivity (-6dB) for slightly darker tone and cleaner response
with high-gain instruments.
B. NORMAL CHANNEL VOLUME: Controls volume level of both
normal channel inputs.
C. NORMAL CHANNEL TREBLE: Controls treble response of both
normal channel inputs.
D. NORMAL CHANNEL BASS
:
Controls bass response of both
normal channel inputs.
E. VIBRATO CHANNEL INPUTS: Connect instrument here to use
built in “vibrato” (tremolo) eect. Input 1 produces full sensitivity;
input 2 has adjusted sensitivity (-6dB) for slightly darker tone and
cleaner response with high-gain instruments.
F. VIBRATO CHANNEL VOLUME: Controls volume level of both
vibrato channel inputs.
G. VIBRATO CHANNEL TREBLE: Controls treble response of both
vibrato channel inputs.
H. VIBRATO CHANNEL BASS: Controls bass response of both
vibrato channel inputs.
I. REVERB: Controls reverb eect level. No reverb is heard when
control is turned fully counterclockwise. Reverb can also be
turned on and o using included two-button footswitch.
J. SPEED: Controls “vibrato” (tremolo) eect rate.
K. INTENSITY: Controls “vibrato” (tremolo) eect depth. No eect
is heard when control is turned fully counterclockwise. Eect can
also be turned on and o using included two-button footswitch.
L. POWER JEWEL: Illuminates red when amplier is on; ashes
between red and amber during warmup. Illuminates amber in
MUTE mode (O).

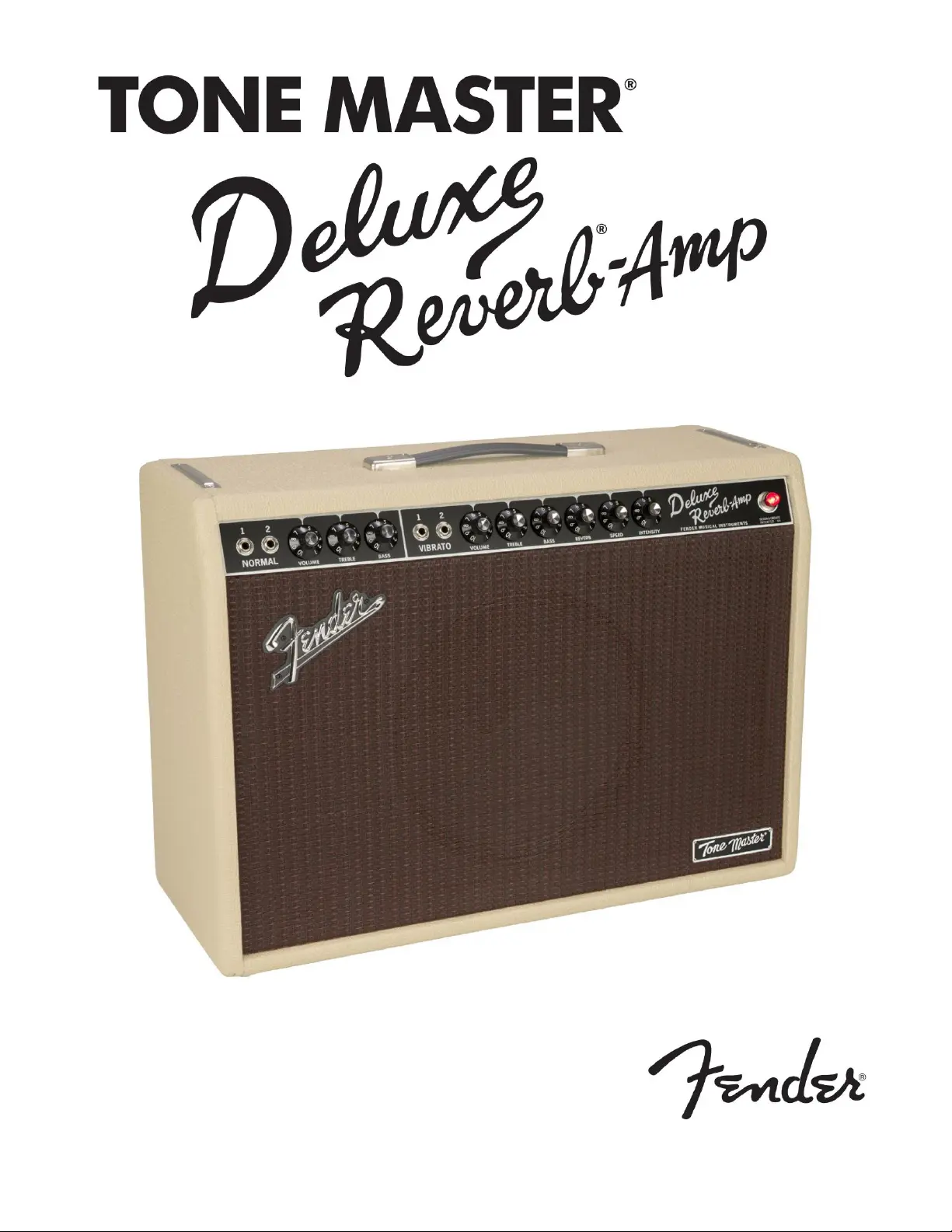

In a bold Fender rst, the Tone Master Deluxe Reverb amplier uses
massive digital processing power to achieve a single remarkable
sonic feat: faithfully modeling the circuitry and 22-watt power output
of an original Deluxe tube amp. Using a high-performance 100-watt
digital power amp to achieve the headroom and dynamic range of
a real vintage Deluxe tube amp, paired with the punch and warmth
of a single CelestionÂź G12 NEO Creamback speaker and a resonant
pine cabinet, the result is tubeless Deluxe Reverb tone, volume and
dynamics virtually indistinguishable from the all-tube original. And
with all these features, the Tone Master Deluxe Reverb is in fact about
only half the weight of an all-tube Deluxe.
Front panel features give guitarists a playing experience identical
to the tube version, including Fender’s world-standard reverb and
tremolo eects. Additional rear-panel features deliver modern
convenience and exibility—including an output power selector for
full power and ve attenuated settings, balanced XLR line output
with impulse response (IR) cabinet simulations, mute switch for silent
stage or recording use, USB port for rmware upgrades, and more.
Register your Tone Master Deluxe Reverb online at start.fender.com.
TONE MASTER
Âź
DELUXE REVERB
Âź
BLONDE
CONTROL PANEL
F E N D E R I N S T R U M E N TM U S I C A L S
VI BRATONO RMAL
1 2 1 2
V O LU ME T RE BL E B A S S V O LU ME T RE BL E B A S S RE VE RB S PE ED INT E NS IT Y
ENGLISH
1
REAR PANEL
M. IEC POWER INLET: Connect included power cord to a grounded
outlet in accordance with input power voltage and frequency
specied beside inlet. Universal 100V-240V operation.
N. POWER: Turns amplier on and o.
O. MUTE: Mutes power amp. When in MUTE mode, XLR line output
remains active for studio or “quiet stage” use, and POWER JEWEL
(L) illumination changes from red to amber.
P. OUTPUT POWER
: Selector switch oers full power (22 watts) and
ve other attenuated wattage settings that tailor room/venue
overall loudness. Set amp front-panel channel volume to personal
preference for tube-emulated response, then set OUTPUT POWER
to preferred level.
CABINET SIM: When using XLR LINE OUTPUT (T), this BALANCED
switch oers three dierent tonal options—a at, uncolored amp
signal without speaker cabinet emulation (OFF); and two impulse
response (IR) proles emulating dierent speaker/microphone-
placement combinations:
IR PROFILE 1: Dynamic microphone close-mic’ed at edge of
speaker cone center cap for pronounced attack and denition. IR
created using a ShureÂź SM57 microphone.
IR PROFILE 2: Dynamic microphone close-mic’ed at edge
of speaker cone center cap for increased bass response and
smoother midrange. IR created using a SennheiserÂź MD 421
microphone.
Q. BALANCED LINE OUTPUT LEVEL: Adjusts output level of XLR
BALANCED LINE OUTPUT (T) for external devices and systems (i.e.,
PA and recording gear), whether mic or line level.
R. GROUND LIFT: When using the XLR LINE OUTPUT (T), BALANCED
engaging this button may eliminate hum or buzz resulting from
connection to improperly grounded equipment.
S. XLR BALANCED LINE OUTPUT: For balanced connection to
external devices and systems (i.e., PA systems and recording gear).
XLR line output remains active when amp is in MUTE mode (O).
T. FOOTSWITCH: Connect included two-button footswitch for
reverb and tremolo on/o here.
U. USB PORT (NOT SHOWN): For rmware updates, a USB port is
located on the underside of the chassis beneath the OUTPUT
POWER section. Visit fender.com/rmware/support for periodic
rmware updates that improve and enhance the Tone Master
experience.
All non-FMIC product names and trademarks appearing in this
manual are the property of their respective owners and are used
solely to identify the products whose sounds were studied during
IR development for this product. The use of these products and
trademarks does not imply any aliation, connection, sponsorship,
or approval between FMIC and with or by any third party.
SPECIFICATIONS
TYPE PR 5185
POWER REQUIREMENTS 300W (max)
POWER AMP OUTPUT
100W into
8
Ω (simulates 22W tube amp performance)
INPUT IMPEDANCES Input 1 (both channels): 1M
Ω
Input 2 (both channels): 136k
Ω
XLR LINE OUT IMPEDANCE 600
Ω
SPEAKER 1 12” Celestion¼ G12 NEO Creamback, 8
Ω (PN 7713555000)
FOOTSWITCH Two-button Tone Master (included, PN 7716005000)
COVER Fitted cover (included, PN 0047483000)
DIMENSIONS AND WEIGHT Width: 24.1” (61.3 cm) Height: 17” (43.4 cm) Depth: 9.28” (23.6 cm) Weight: 23 lbs. (10.4 kg)
Product specifications subject to change without notice.
ENGLISH
2
