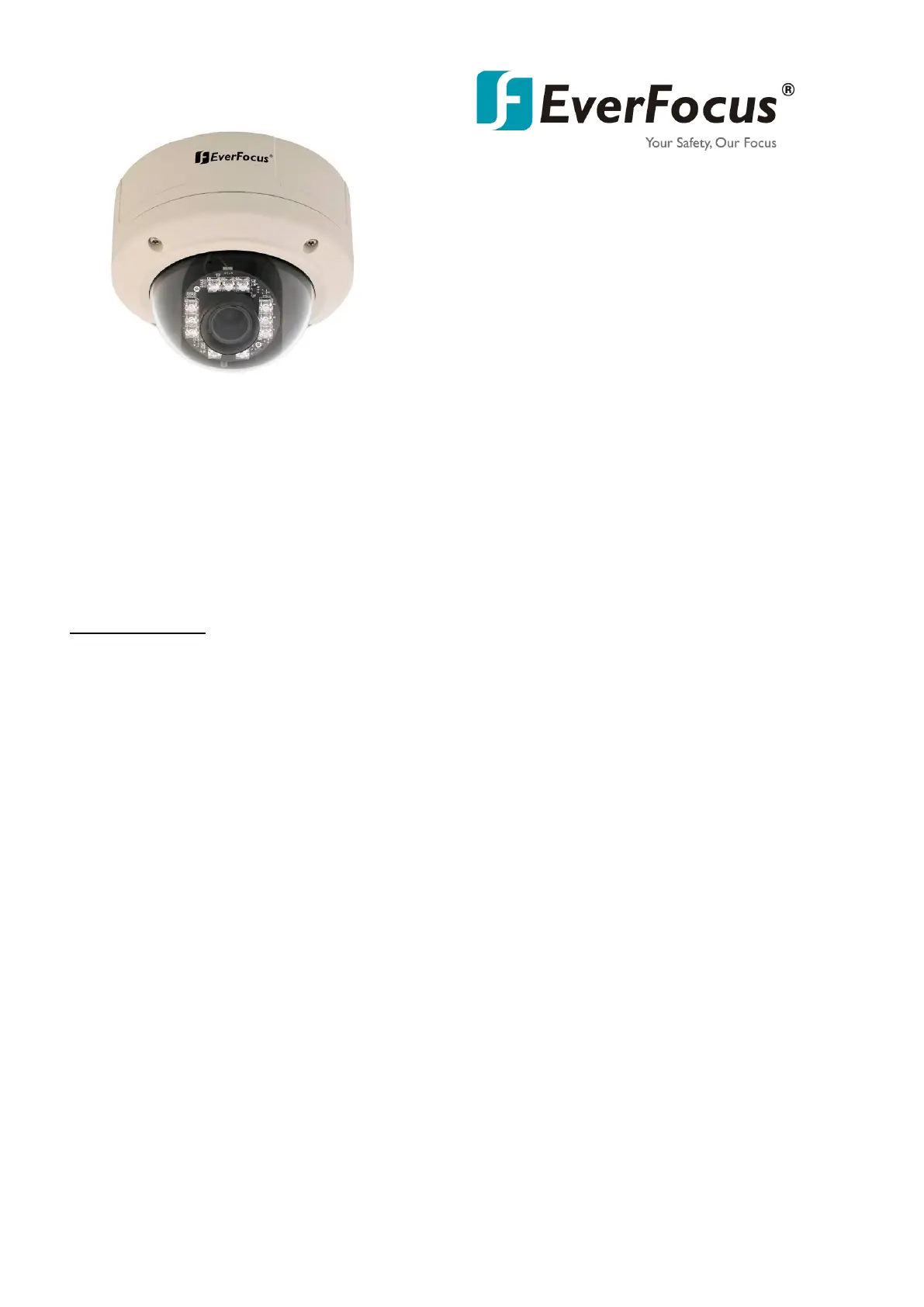

EVERFOCUS
Dual Power High Resolution Vandal Proof
Weather Resistant 3-Axis IR Dome Camera
Operation Instructions
Model No. E 3HD36
Please read this manual first for correct installation and operation. This manual should be retained for
future reference. The information in this manual was current when published. The manufacturer reserves
the right to revise and improve its products. All specifications are therefore subject to change without
notice.
PRECAUTIONS
1. Do not install the camera near electric or magnetic fields.
Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio
since the electromagnetic fields generated from these devices may distort the video image or otherwise
with camera operation.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials
other than those recommended herein.
Improper disassembly or introduction of corrosive materials may result in equipment failure or other damage.
3. Try to avoid facing the camera toward the sun.
In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal circuits, as
well as creating unbalanced illumination beyond the capability of the camera to compensate.
4. Keep the power cord away from water and other liquids and never touch the power cord with wet
hands.
Touching a wet power cord with your hands or touching the power cord with wet hands may result in electric
shock.
5. Never install the camera in areas exposed to oil, gas or solvents.
Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.
6. Cleaning
For cameras with interchangeable lenses, do not touch the surface of the sensor directly with the hands. Use
lens tissue or a cotton tipped applicator and ethanol to clean the sensor and the camera lens. Use a damp soft
cloth to remove dirt from the camera body. Please do not use complex solvents, corrosive or abrasive any
agents for cleaning of any part of the camera.
1
7. Do not operate the camera beyond the specified temperature, humidity or power source ratings. This
camera is suitable for indoor and outdoor operation.
Use the camera at temperatures within -10°C to +50°C (14°F to 122°F) and in an IP66 compliant environment;
this device is not rated as submersible. The input power source is 12VDC or AC24V. Be sure to connect the
proper voltage, as too high a voltage will likely cause the camera to fail, and such damage is not
covered by the warranty. The use of properly fused or Class 2 power limited type supplies is highly
recommended. Regulated supply is required for 12VDC operation.
8. Mounting
Use care in selecting a solid mounting surface which will support the weight of the camera plus any wind,
snow, ice or other loading, and securely attach the camera to the mounting surface using screws and anchors
which will properly support the camera. If necessary (e.g. when mounting to drop ceilings) use a safety wire to
provide additional support for the camera.
OVERVIEW
The EHD363 an outdoor, vandal resistant 3-axis IR dome camera which utilizes a 960H is Sony 1/3”
Exview HAD CCD Sensor and enhanced Effio-E DSP to provide high resolution 700TVL color video
for security surveillance applications. Advanced functions including Digital WDR/ATR (Adaptive Tone
Reproduction), 2D-NR (2D Noise Reduction) and Anti CR (Anti Color Rolling) insure optimum image
quality under low or unbalanced lighting conditions. Vandal Proof materials and an IP66 weather
resistant housing allow reliable operation in outdoor and indoor environments. True day/night operation
combined with 30m (~98ft.) range high efficiency IR LEDs makes the EHD363 suitable for a wide range
of day and night surveillance situations. Plus, dual voltage 12VDC/24VAC operation, 3-axis mechanical
design and built-in f=3.7~12mm varifocal auto iris lens bring flexibility to installation and field of view
adjustment.
FEATURES
Sony 960H EXview HAD II high resolution CCD sensor for 700TVL images 1/3”
Employs Sony Enhanced Effio-E Digital Signal Processor (DSP) chip-set for advanced image
processing.
Built-in Auto Gain Control (AGC), Auto Tracing White Balance (ATW) enhance image quality
Advanced DSP functions enhance image quality: Digital WDR/ATR (Adaptive Tone Reproduction),
2D-NR (2D Noise Reduction), Anti CR (Anti Color Rolling)
Varifocal DC iris 3.7~12mm lens and 3-Axis design for flexible field of view adjustment
Eleven high efficiency IR LEDs with 30m (~98 .) range in for low/no light applications ft
True day/night auto switching for best day time color and low light performance
Vandal proof to withstand impact of a 10 pound sledgehammer.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
2
Weather resistant, IP66 rated
Dual power: 12VDC/24VAC
PACKAGE CONTENTS
Camera Unit x 1
Mounting kit includes:
-Screws x 4
-Security wrench for housing screws x 1
-Expanding Anchors x 4
-Washers x 4
Operation Instructions (this document) x 1
Weatherproof bushing x 1
Power cable x 1
Video cable x 1
Power adapter pigtail (for NTSC model only) x 1
Mounting template x 1
SPECIFICATIONS
Pickup Device
SONY 1/3” 960H EXview HAD II CCD High Resolution
Video Format
NTSC
Picture Elements
976 x 494
Horizontal Resolution
700 TV line
Sensitivity
0.01Lux / F1.4; 0Lux / IR
S/N Ratio
More than 54 dB
Electronic Shutter
1/60s~1/100,000s
Video Output
BNC-F 1.0Vp- p 75Ω
Gamma Correction
0.45
Lens Type
Vari-Focal 3.7~12mm / F1.4 DC Drive Auto Iris Lens
Day/Night
True day/night with motorized IR cut filter
Gain Control
Automatic
White Balance
ATW (1800°K~10500°K) with Anti-CR Function
Digital WDR
ATR On (Luminance and Contrast = High)
Noise Reduction
2-D DNR (C Level 4, Y Level 4)
Sync. Mode
Internal Sync.
IR LED
11 Units High Efficiency IR LED
IR Wavelength
850nm
IR Distance
30m (~980ft.) nominal; depends on environment
Weather Resistant
IP 66
Vandal Proof
IK10
Power Source
12VDC or 24VAC
Power Consumption
283mA @12VDC, 8W @ 24VAC

Produktspezifikationen

Marke: EverFocus
Kategorie: Überwachungskamera
Modell: EHD363
