EDN Plus Series

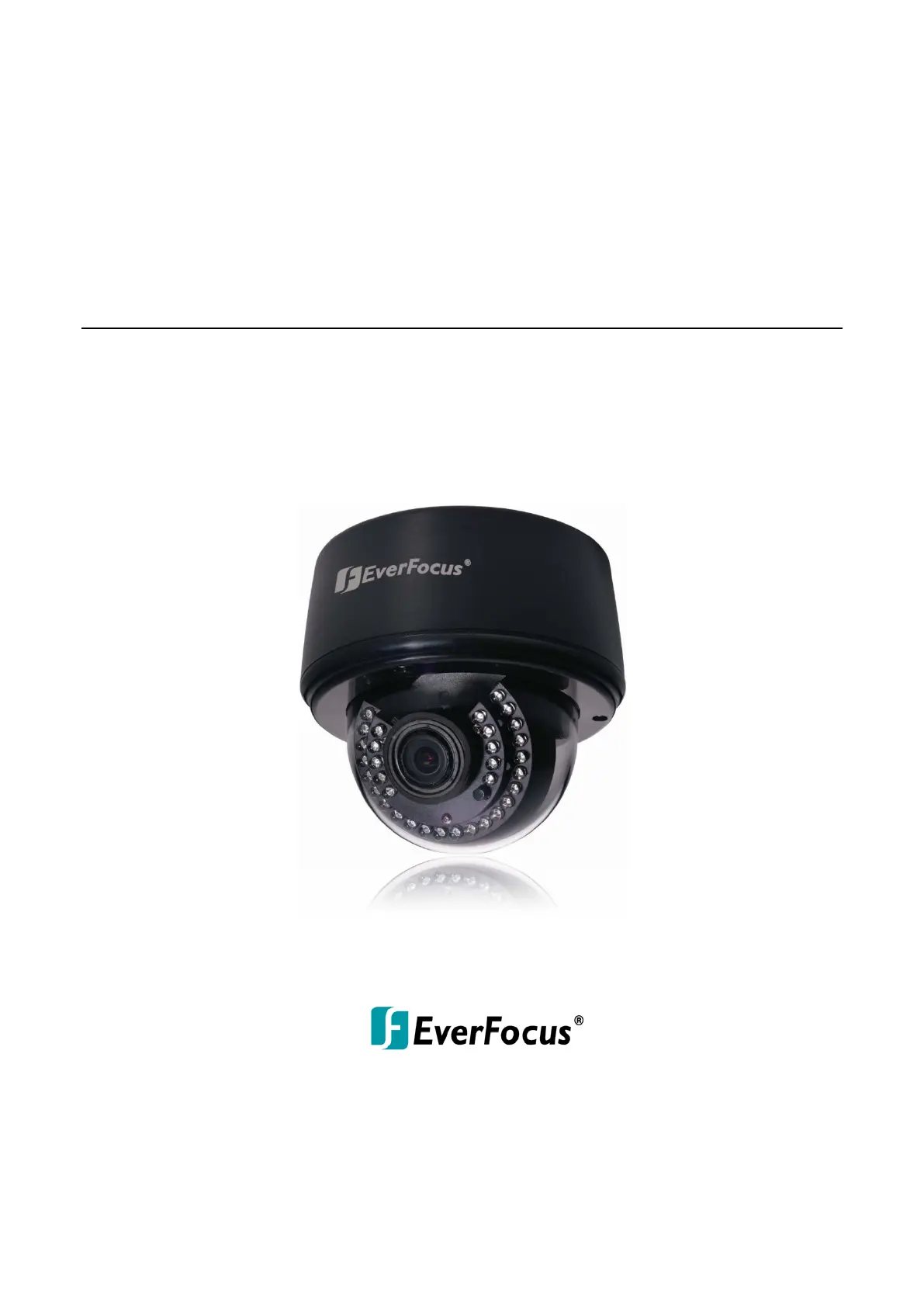

Indoor CameraIP Dome
Quick Installation Guide
Copyright © EverFocus Electronics Corp,
Release Date: October, 2012
ED s N Plus Serie
1
1. Overview
The EDN Plus series IP d ome is designed for indoor use. The series comes in three models: ED N3160
Plus / 3260 Plus / 3340 Plus.
Model Name Megapixel P- WDR Iris
ED N3160 Plus 1.3 MP Yes Yes
ED N3260 Plus 2 MP Yes Yes
ED N3340 Plus 3 MP Yes No
1
2
3
46 7
5
Camera Body
No. s Item Name Description
1 IR LEDs 33 IR LEDs for infrared illumination in night vision applications.
2 Light Sensor Detects lights.
3 Lens
Varifocal lens with P-Iris control.
4 5- Pin Data Cable
Provides connections for power, TV-out, video input / output and
alarm input / output. See later in this Quick 5-Pin Data Cable
Installation guide.
5 LAN / PoE Cable Connects to a 10/100 Ethernet or PoE.
6 Micro SD / SDHC Slot For inserting a micro SD / SDHC card.
7 Reset Button Resets all configurations to the factory default settings.
ED N Plus Series
2
System Requirement
Before installing, please check that your computer meets this system requirement.
• Operating System: Microsoft Windows XP / Vista (32- bit) / 7 (32- bit)
• Microsoft Internet Explorer 7 or above
Packing List
• EDN Plus Series Camera x 1 • Terminal Block x 1
• • Long Screw x 4 RJ- 45 Connector x 1
• Screw Anchor x 4 • Mounting Template x 1
• Hexagon Screwdriver x 1 • Software CD x 1
• Power Pigtail Cable x 1 Quick Installation Guide x 1 •
• Circle Plate x 1
Note: Contact the shipper if any items appear to have been damaged in the shipping process. If
any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer
Service Branch. Please also keep the shipping carton for possible future use.
2. 5-Pin Data Cable
The 5-Pin Data Cable provides connections for power, TV out, video input / output and alarm input -
/ output The wires are illustrated and defined below. Please note that microphones with external .
power supplies are required.
Alarm Input / Output
Audio Input (Pink)
Audio Output (Green)
TV Output (BNC)
12V DC Input
Pin Assignment for Alarm Input / Output
4 3 2 1
Pin 1: Alarm In
Pin 2: Alarm GND
Pin3: Alarm Out-
Pin4: Alarm Out+
