EVERFOCUS
1/3" CCD IR Camera
Operation Instructions
Model No. ED230/330
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1. Do not have camera immersed in water.
2. Do not disassemble it or place it on an unstable base.
3. Do not touch the surface of CCD sensor by hand directly.
4. Never face the camera toward the sun.
5. Use proper power source otherwise the camera will not function correctly.
6. Use the camera at temperatures within -10℃
℃
℃
℃℃ ~ 50℃
℃
℃
℃℃ and humidity between 20%~ 80%. The
input power source is DC 12V.
PREFACE

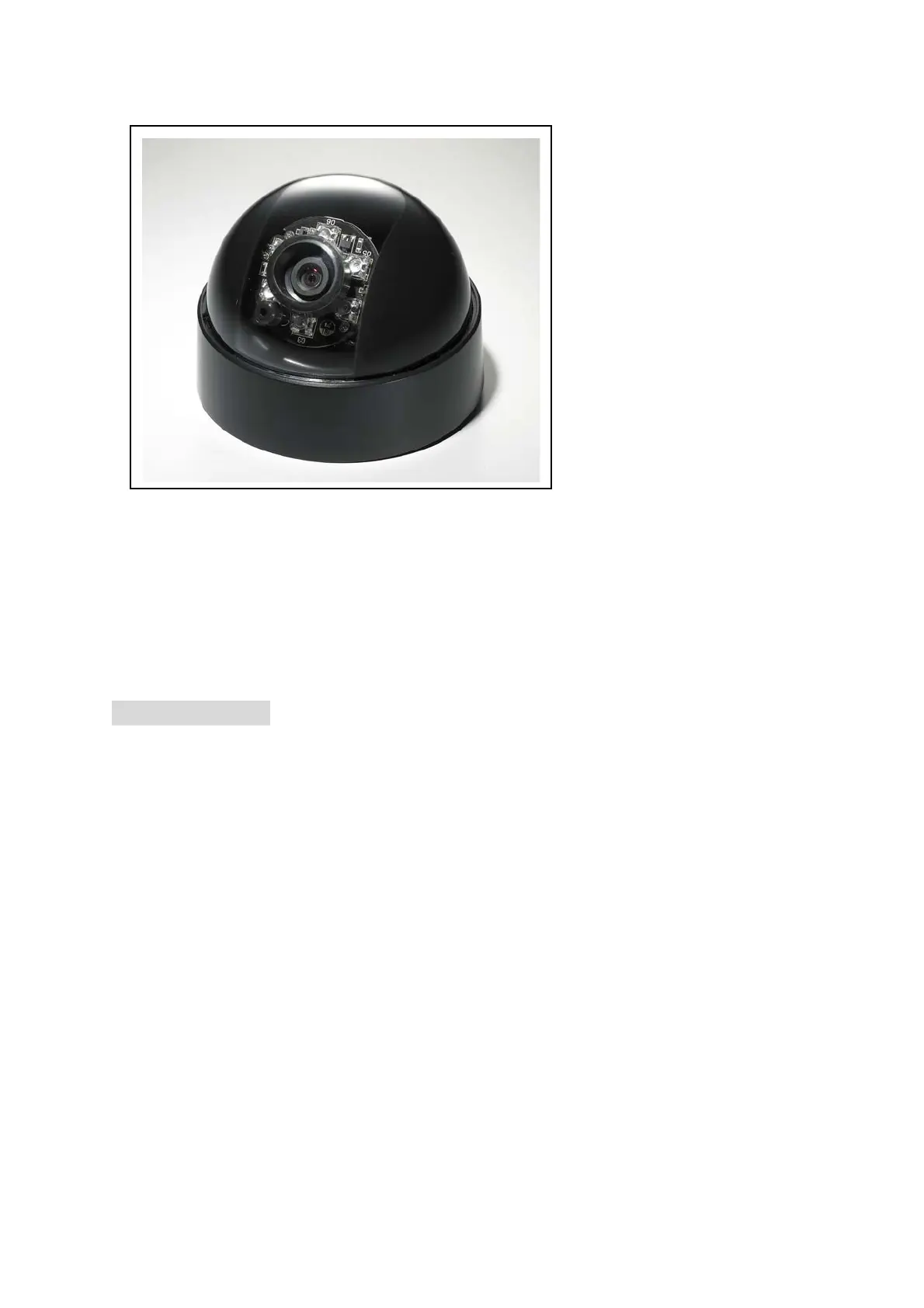

The ED230/330 Series Camera are compact, full functioned CCD IR Camera. Their stylish
appearance can be applied as per installer's ideal locations. These dome cameras can be
mounted either on the ceiling or on the wall easily. ED230/330 uses high sensitive 1/3" color
interline transfer CCD sensor, built in long life, high light & high reliability LED, sensors are
featured with Auto Electronic Shutter, Automatic Gain Control, and Auto White Balance function.
FEATURES
LED lifespan of 20,000 hours
Easy installation
Auto Electronic Shutter function
Automatic Gain Control function
Auto White Balance function
0 lux (IR ON)
Special optical low pass filter (inside) for high IR response
Automatically switches to black and white image when light levels fall below 1 lux
IR view angle: 75° range
IR distance: 10-15 M/ 33-49 feet
Available in 4.3mm with black base and shell or white base and shell
PACKAGE CONTENTS
z Camera Unit x 1
z Manual x 1
OPTIONAL ACCESSORIES
z BA-ED- Mounting L-Bracket for ED Series Mini Dome Cameras
ED230/330
Type ED230 ED330
Pickup Device 1/3”SONY Super HAD CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec.
Picture Elements 510 x 492 (NTSC) 768 x 494 (NTSC)
500 x 582 (PAL) 752 x 582 (PAL)
Horizontal Resolution 380 TV Lines 480 TV Lines
Video Output BNC 1.0Vp-p, 75 ohm
*Lens 4.3mm,6.0mm,8.0mm
*Lens models and availability vary in different regions
Sensitivity 0.3 Lux/F=1.2 (AGC ON) 0.4 Lux/F=1.2 (AGC ON)
0 Lux (IR LED on) 0 Lux (IR LED on)
Gamma Correction 0.45
S/N Ratio Over 48dB (AGC off)
Auto White Balance Yes
Electronic Shutter 1/50 (1/60) ~ 1/100000s
Black Light Comp. Yes
Auto Gain Control Yes
Sync. Mode Internal Sync.
Power Source 12VDC
Power Consumption 12VDC: 4W max.
Dimensions 108 mm (O.D.) x 80 mm (H) ; 4.3” (O.D) x 3.2” (H)
Weight 0.23 kg ; 0.5 lbs
Operating Temperature -10°C~50°C ; 14°F~122°F (20%~80% Humidity)
IR Distance 10-15 M/ 33-49 feet
IR Wavelength 850nm
Certifications FCC/CE
