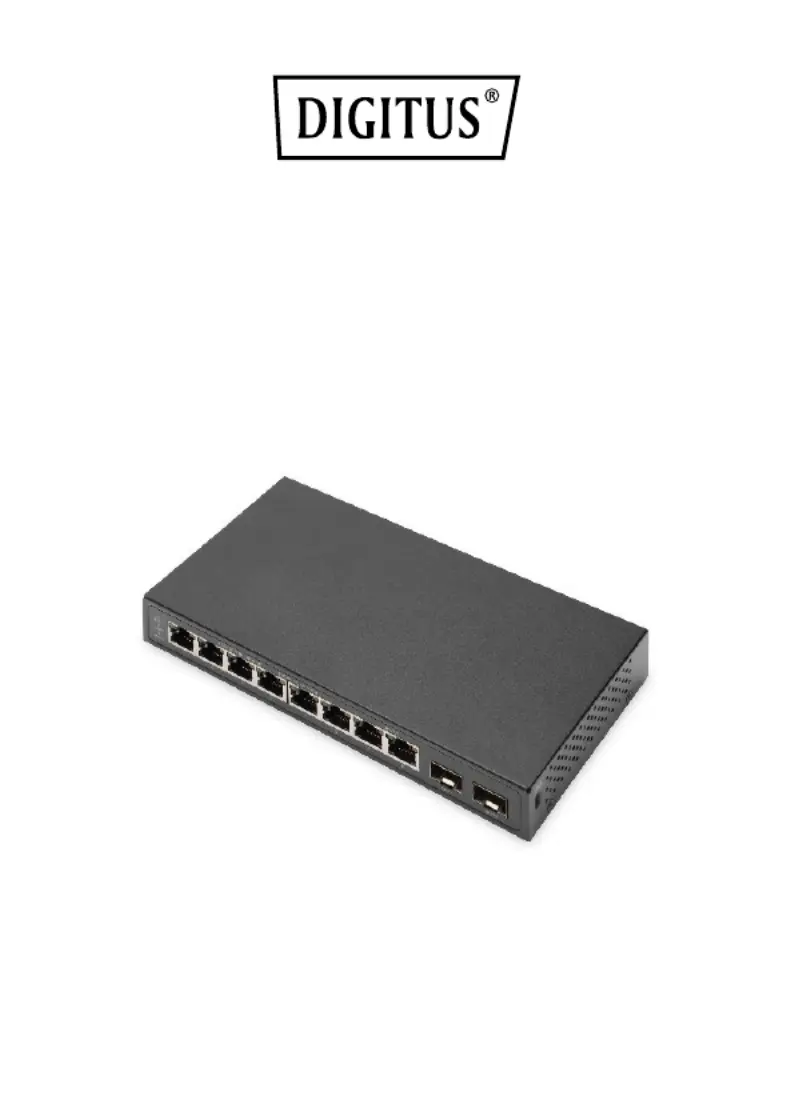

5 Port Gigabit Switch,
Unmanaged
Quick Installation Guide
DN- 80202
2
1. About he uide T G
This install guide provides instructions to the
Ethernet
Switch.
Note: The model you have purchased may appear slightly different from the
illustrations shown in the document. Refer to the Product Instruction and
Technical Specification sections for detailed information about your switch, its
components, network connections, and technical specifications.
This guide mainly divides into 3 parts:
1. Product introduction: functional overview and introduction of panel definitions
2. Hardware installation: step by step hardware installation process
3. Technical specifications
2. Product Introduction
The 5 Port Gigabit Switch from DIGITUS® is perfectly suited for the easy expansion of -
your network. Thanks to its fanless design, the switch operates completely noise-
free and does not require configuration. Each port can be used as a LAN or uplink
port, the cable and network speed are detected automatically. The switch also
supports the energy saving features IEEE802.3az & Full-Duplex Flow Control
IEE802.3x. Real Plug and Play – Just plug in the network cable and get started.
Product Features
• Automatic MDI/MDI- f - - X crossover or plug and play
• 5 port supports both 10/100/1 000 Mbps speed auto negotiation
• 5 DC 1 A external power adapter
• Supports operating temperatures from 0 °C ~ 40 °C
Front Panel
The front panel consists of LED indications.
3
LED Lamp
Power: The Power LED lights up when the switch is connected to a power source.
Link/Act LED: The Link/Act LED flashes which indicates a network link through the
corresponding port. Blinking indicates that the Switch is either sending or receiving
data to the port.
Rear Panel
The rear panel view consists of a DC power connector and network ports.
Connect the power adapter output terminal to this port. Supports input voltages 5V
1A.
3. Hardware installation
This chapter provides unpacking and installation information for the Ethernet switch.
Open the seal
Open the shipping carton and carefully unpack its contents. Please consult the
packing list located in the User Manual to make sure all items are present and
undamaged. If any item is missing or damaged, please contact the local reseller for
replacement.
• Switch 1 pcs
• Power adapter 1 pcs
• QIG 1 pcs
Connecting power supply
Using the AC power cord to connect to the power adapter, and then plug the output
terminal of the adapter into the DC IN socket on the back of the switch. (The AC
power outlet should be grounded)
Switch installation
For safe switch installation and operation, it is recommended that you:
