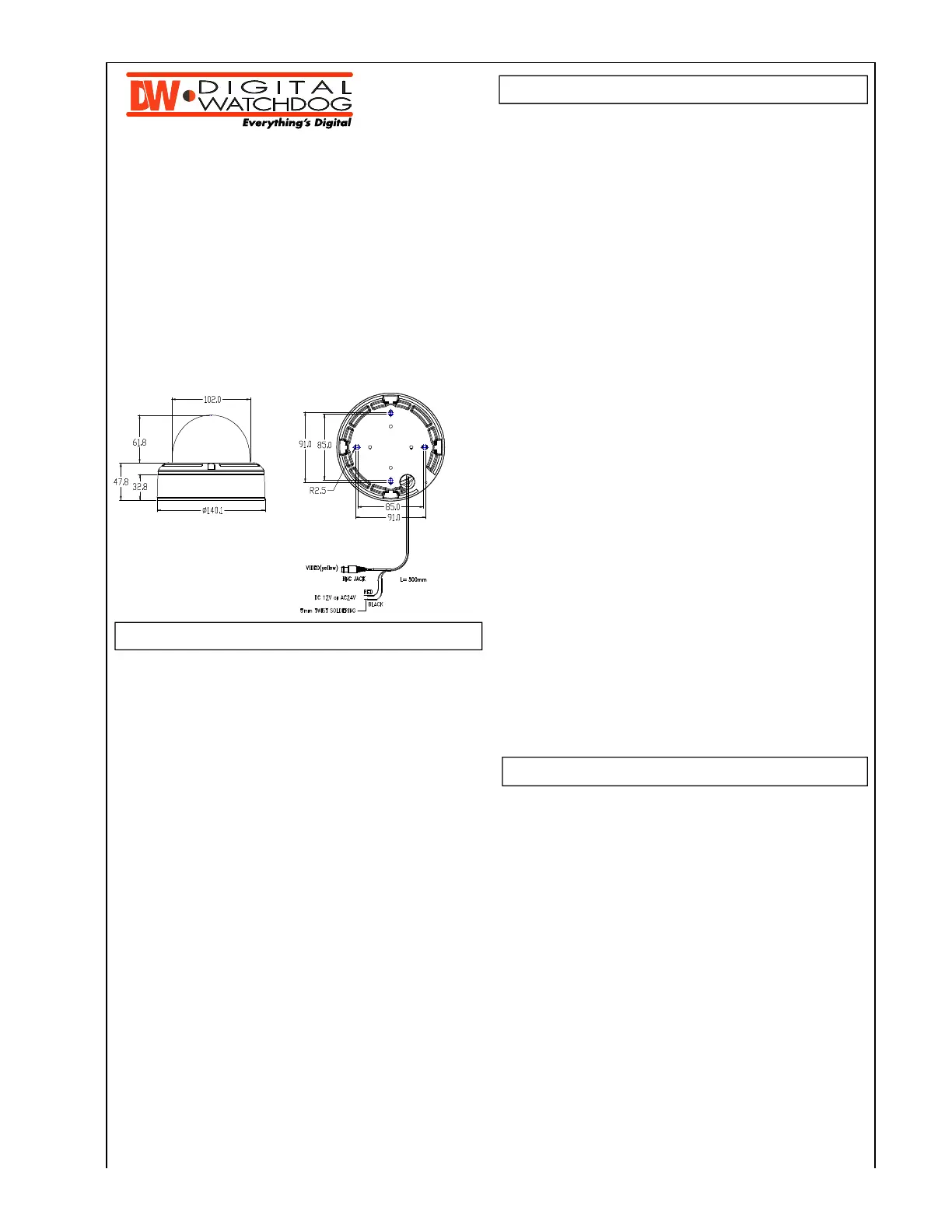

Seite 1/5
■
■
■
■■ DIMENSIONS
INSTRUCTION MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
■Do not open or modify
Do not open the case during maintenance and
installation, as it may be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances get inside
the camera. It could cause fire, short-circuits or damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject
it to strong shock or vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen or boiler
room, as the temperature may raise to high levels.
■Cleaning
Dirt can be removed from the cabinet only by wiping it
with a soft cloth moistened with a soft detergent solution.
■Mounting Surface
The mounting surface material must be strong enough to secure the
camera.
5436 W Crenshaw Street
Tampa, FL 33634
www.digital-watchdog.com
PRECAUTIONS
V3373D
About this manual
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
TROUBLESHOOTING
Before sending the camera out for repair, check the items below. If the
problem persists after checking these items, contact your service
center.
■
■
■
■■ If no image appears.
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■
■
■
■■ If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt of fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
■Do not open or modify
Do not open the case during maintenance and
installation, as it may be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances get inside
the camera. It could cause fire, short-circuits or damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject
it to strong shock or vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen or boiler
room, as the temperature may raise to high levels.
■Cleaning
Dirt can be removed from the cabinet only by wiping it
with a soft cloth moistened with a soft detergent solution.
■Mounting Surface
The mounting surface material must be strong enough to secure the
camera.
WARRANTY INFORMATION
Digital Watchdog (referred to as “the Warrantor”) warrants the
Camera Series against defects in materials or workmanship as follows:
LABOR: For the initial five (5) years from the date of original purchase,
if the camera is determined to be defective, the Warrantor will repair or
replace the unit, with
new or refurbished product at its option, at no charge.
PARTS: In addition, the Warrantor will supply replacement parts for
the initial five (5) years. To obtain warranty or out of warranty service,
please contact a Technical Support Representative at 1-866-446-3595
Monday through Friday from 9:00 AM to 5:00 PM Eastern.
A purchase receipt or other proof of the date of the original purchase is
required before warranty service is rendered. This warranty only
covers failures due to defects in materials and workmanship which
arise during normal use. This warranty does not cover damage which
occurs in shipment or failures which are caused by products not
supplied by the Warrantor or failures which result from accident,
misuse, abuse, neglect, mishandling, misapplication, alteration,
modification, faulty installation, set-up adjustments, improper antenna,
inadequate signal pickup, maladjustment of consumer controls,
improper operation, power line surge, improper voltage supply,
lightning damage, rental use of the product or service by anyone other
than an authorized repair facility or damage that is attributable to acts
of God.
5436 W Crenshaw Street
Tampa, FL 33634
www.digital-watchdog.com
This warranty gives you specific legal rights and you may also have
other rights that vary from state to state.
If the problem is not handled to your satisfaction, then write to the
Address above.
Service calls which do not involve defective materials or workmanship
as determined by the Warrantor, in its sole discretion, are not covered.
Costs of such service calls are the responsibility of the purchaser.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above. The Warrantor
will not be liable for incidental or consequential damages (including,
without limitation, damage to recording media) resulting from the use of
these products, or arising out of any breach of the warranty. All express
and implied warranties, including the warranties of merchantability and
fitness for particular purpose, are limited to the applicable warranty
period set forth above.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
PRECAUTIONS
V3373D
About this manual
■
■
■
■■ LENS ADJUSTMENTS
■
■
■
■■ CAMERA SETTINGS FOR CONTROL BOARD
CONNECTIONS AND CAMERA SETTINGS
CON
3
SW3 SW2
SW1
CON
5
1. Adjust the panning(360˚) and tilt(60˚) position.
2. Adjust the Joy stick to control TELE & WIDE.
Focus is automatically matched without any adjustment.
CONNECTIONS AND CAMERA SETTINGS
FUNCTIONAL OF CONTROL BOARD
[1]DC IRIS LEVEL control (VR1)[NOT using]
[2]Functional control of O.S.D(On Screen Display)(SW1)
The function of SW1 joystick are camera zoom in/out and OSD control.
a) Press the SW3 button for 2 seconds until red LED around the camera lens flickers 3 times.
And the function of SW1 is switched to control Omni Focus Zoom IN/OUT.
b) Press the SW3 button for 2 seconds until red LED around the camera lens flickers 3 times.
And the function of SW1 is switched to control OSD menu.
[3]. SW2
The camera ID number is set by pushing SW2 switches.
(※1,2,4,8(BCD code) means ID number, and ID contains 10 numbers from 0 to 9.) for the IR Remote only
[4]. CON2
Video Test output connector
CON
3
VR1
SW3 SW2
SW1
CON
5
1. Adjust the panning(360˚) and tilt(60˚) position.
2. Adjust the Joy stick to control TELE & WIDE.
Focus is automatically matched without any adjustment.
■
■
■
■■ CONNECTIONS
CONNECTOR AND DIMENSIONS
12VDC/24VAC
CAUTION :
Check for polarity when using a DC 12V / AC 24V.
VIDEO OUT
INSTALLATION
CONNECTOR AND DIMENSIONS
12VDC/24VAC
CAUTION :
Check for polarity when using a DC 12V / AC 24V.
A. Use the supplied L-wrench to remove the four fixing screws
from the dome cover.
B. Align the camera unit with the surface of the ceiling, make
marks on the ceiling in the places where the screw holes are to
be drilled, and then drill the four holes.
C. Cut a hole in the ceiling for routing the cables.
D. Pass the power cable and video cable from the camera unit
through the cable hole in the ceiling.
E. Align the four screw holes in the camera unit with the screw
holes in the ceiling, and then secure the camera in place by
tightening the four or more screws through the washers.
F. Carry out the settings and adjustments for the camera.
G. Secure the dome cover by tightening the screws.
A
B
C
D
E
G
F
VIDEO OUT
