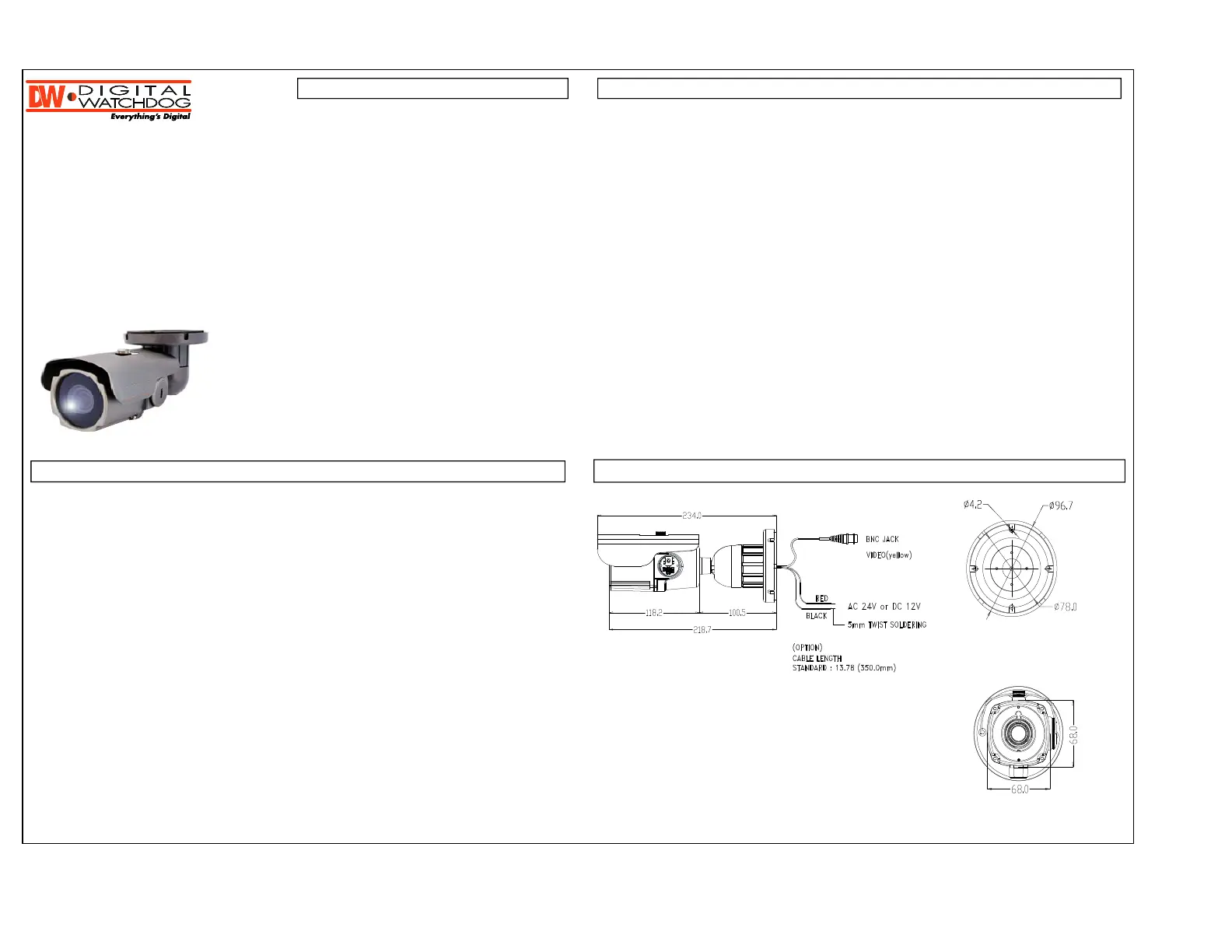

INSTRUCTION MANUAL
■Do not open or modify
Do not open the case except during maintenance and
installation, as it may be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or
damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to
strong shock or vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen
or boiler room, as the temperature may rise to high levels.
■Cleaning
Dirt can be removed from the case only by wiping it with
a soft cloth moistened with a soft detergent solution.
■Mounting Surface
The mounting surface material must be strong enough to
support the camera.
Before installing and using the camera, please read this
manual carefully.
Be sure to keep it handy for future reference.
DIMENSION (mm)
5436 W Crenshaw Street
Tampa, FL 33634
www.digital-watchdog.com
Technical Support: 1-866-446-3595 / 813-888-9555
WARRANTY INFORMATION
PRECAUTIONS
Digital Watchdog (referred to as “the Warrantor”) warrants
the Camera Series against defects in materials or
workmanship as follows:
LABOR: For the initial five (5) years from the date of original
purchase, if the camera is determined to be defective, the
Warrantor will repair or replace the unit, with
new or refurbished product at its option, at no charge.
PARTS: In addition, the Warrantor will supply replacement
parts for the initial five (5) years. To obtain warranty or out
of warranty service, please contact a Technical Support
Representative at 1-866-446-3595 Monday through Friday
from 9:00 AM to 5:00 PM Eastern.
A purchase receipt or other proof of the date of the original
purchase is required before warranty service is rendered.
This warranty only covers failures due to defects in
materials and workmanship which arise during normal use.
This warranty does not cover damage which occurs in
shipment or failures which are caused by products not
supplied by the Warrantor or failures which result from
accident, misuse, abuse, neglect, mishandling,
misapplication, alteration, modification, faulty installation,
set-up adjustments, improper antenna, inadequate signal
pickup, maladjustment of consumer controls, improper
operation, power line surge, improper voltage supply,
lightning damage, rental use of the product or service by
anyone other than an authorized repair facility or damage
that is attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
The Warrantor will not be liable for incidental or
consequential damages (including, without limitation,
damage to recording media) resulting from the use of
these products, or arising out of any breach of the
warranty. All express and implied warranties, including
the warranties of merchantability and fitness for
particular purpose, are limited to the applicable warranty
period set forth above.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you
may also have other rights that vary from state to state.
If the problem is not handled to your satisfaction, then
write to the Address above.
Service calls which do not involve defective materials or
workmanship as determined by the Warrantor, in its
sole discretion, are not covered. Costs of such service
calls are the responsibility of the purchaser.
Before sending the camera out for repair, check the
items below. If the problem persists after checking
these items, contact your service center.
■
■
■
■■ If no image appears.
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■
■
■
■■ If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt of fingerprints on the lens can adversely
affect the images.
Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
TROUBLESHOOTING
WHITE BAL. ATW, MANUAL, AWC ATW: 1,800 ~10,500 ˚K
BACKLIGHT OFF, LOW, MIDDLE, HIGH Backlight compensation
AGC NORMAL, HIGH,OFF
SPECIAL Refer to the bottom
MIRROR OFF, ON
PRIVACY OFF, ON
SHARPNESS OFF, ON(=8)
RESET
OFF, ON
CAMER ID
DAY NIGHT AUTO, B/W, EXTERN, COLOR
SYNC INT, LL
SENS-UP AUTO(=X6), OFF
EXIT
SHUTTER ESC, MANUAL, FLK, OFF
DNR MIDDLE, HIGH, OFF, LOW
LENS

.
CAMERA SETTINGS
CONTROL BOARD
CONNECTION
※
※
※
※※ ATTENTION
1. Do not rotate ①more than 360˚.
2. Do not twist ②many times unnecessarily.
SW2
SW3
SW1
CON2
SETUP FUNTION SUMMARY
when using BUILT-IN lens,
the type of the lens is able to fix
MANUAL: 1/60(50) ~
1/120,000sec, x2~ x128
WHITE BAL. ATW, MANUAL, AWC ATW: 1,800 ~10,500 ˚K
BACKLIGHT OFF, LOW, MIDDLE, HIGH Backlight compensation
AGC NORMAL, HIGH,OFF the Brightness can be adjusted(1 ~ 70)
when AGC is t urned off,
DNR does not operate.
when AGC is t urned off,
SENS-UP does not operate.
SPECIAL Refer to the bottom
Saved all the setting menu,
then exits.
uppercase or lowercase, OFF maximum length for the name
/numeral 0~9/-, null display is limited 15letters.
AUTO :
dayatime → color mode ,
night-time
→ B/W mode
B/W : Always B/W mode
COLOR: Always color mode
EXTERN
:
CDS
EXTERNAL
SIGNAL
INPUT
LL mode: you can adjust
desired phase from 0˚
~ 359˚,
auto detection
MATION ON mode: AREA(4 programmable
DETECTION zone /SIZE), the word
MOTION DETECTED" appear on the
screen when movement is detected
ON mode:AREA(4 programmable
zone) /SIZE/TONE
MIRROR OFF, ON set a horizontal image inversion.
the available range
of level is 0 ~ 31.
returns to the level which was set
by the manufacturer for shipment.
save the SPECIAL MENU and then
returns to the SETUP MENU
PRIVACY OFF, ON
SHARPNESS OFF, ON(=8)
RESET
OFF, ON
RERURN
CAMER ID
DAY NIGHT AUTO, B/W, EXTERN, COLOR
SYNC INT, LL
SENS-UP AUTO(=X6), OFF
EXIT
SHUTTER ESC, MANUAL, FLK, OFF
DNR MIDDLE, HIGH, OFF, LOW
LENS

KEYBUTTON
OSDBUTTON
ZoomFocusControl Buttons
BUTTON
IDButtons
BUTTON
CAUTION :
Check for polarity when using a DC 12V / AC 24V.
CAMERA SETING ANGLE
FUNCTIONAL OF CONTROL BOARD
1. SW1 Joystick
The function of SW1 joystick are camera zoom in/out and OSD control.
a) Press SW3 button for 2 seconds until red LED light around the camera
lens flickers 3 times. And the function of SW1 is switched to control Omni
Focus Zoom ON/OFF.
b) Press SW3 button for 2 seconds until red LED light around the camera
lens flickers 3 times. And the function of SW1 is switched to control OSD
menu.
2. SW2
The camera ID number is set by pushing SW2 switches.
(※1,2,4,8(BCD code) means ID number, and ID contains 10 numbers from
0 to 9.) for the IR remote only
3. CON2
Video Test output connector
Omni‐FocusRemoteControlInstructions
1. ChecktheDipswitch(SW4)forcameraID(Default is 0)
2. Pointthe theremotecontroltowards camera,thenpress and 
hold[0]untiltheRedLEDlightstartflashing.
3. PressandholdtheKEYbutton,untilLEDturns a solidRED.
4. PressthePlus sign (+)to toZOOMIN,Minussign ‐ ( ) ZOOMOUT
5. Pressthe to the[ENT]button enter setupMenuand press [KEY]
buttonto exit.
Vertical Frequency Internal Mode 59.94Hz
Min. Scene Illumination F1.5 0.3 Lux
OSD Controls Day & Night (B1363D only) AUTO / COLOR / B/W
Sens-up AUTO / OFF
DNR OFF / LOW / MIDDLE / HIGH
AGC OFF / LOW / MIDDLE / HIGH
AWB ATW / AWC / Manual
Motion Detection ON / OFF (Area / Sensitivity )
Mirror ON / OFF
Privacy Zone 4 Programmable Zone / Size
Lens Focal Length Pan-Focus Lens [2.9 ~ 8.5mm (3x Optical)]
Resolution Horizontal 540 TV Lines [at TDN (B/W) :570 TV Lines]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 50dB
Environmental Conditions Operating Temperature -10 ~ +55 (14 ~ 131 )℃ ℃ ℉ ℉
Humidity Less than 90%
Power Power Requirement 12VDC/24VAC
Power Consumption 12VDC: 389mA, 1A (Heater ON)
24VAC: 313mA, 500mA (Heater ON)
Physical Specification Dimensions(H x L) 75.5 x 231.5mm
Nema Type IP66
Weight 2,2 lbs
Certifications CE, FCC, RoHS Certified
