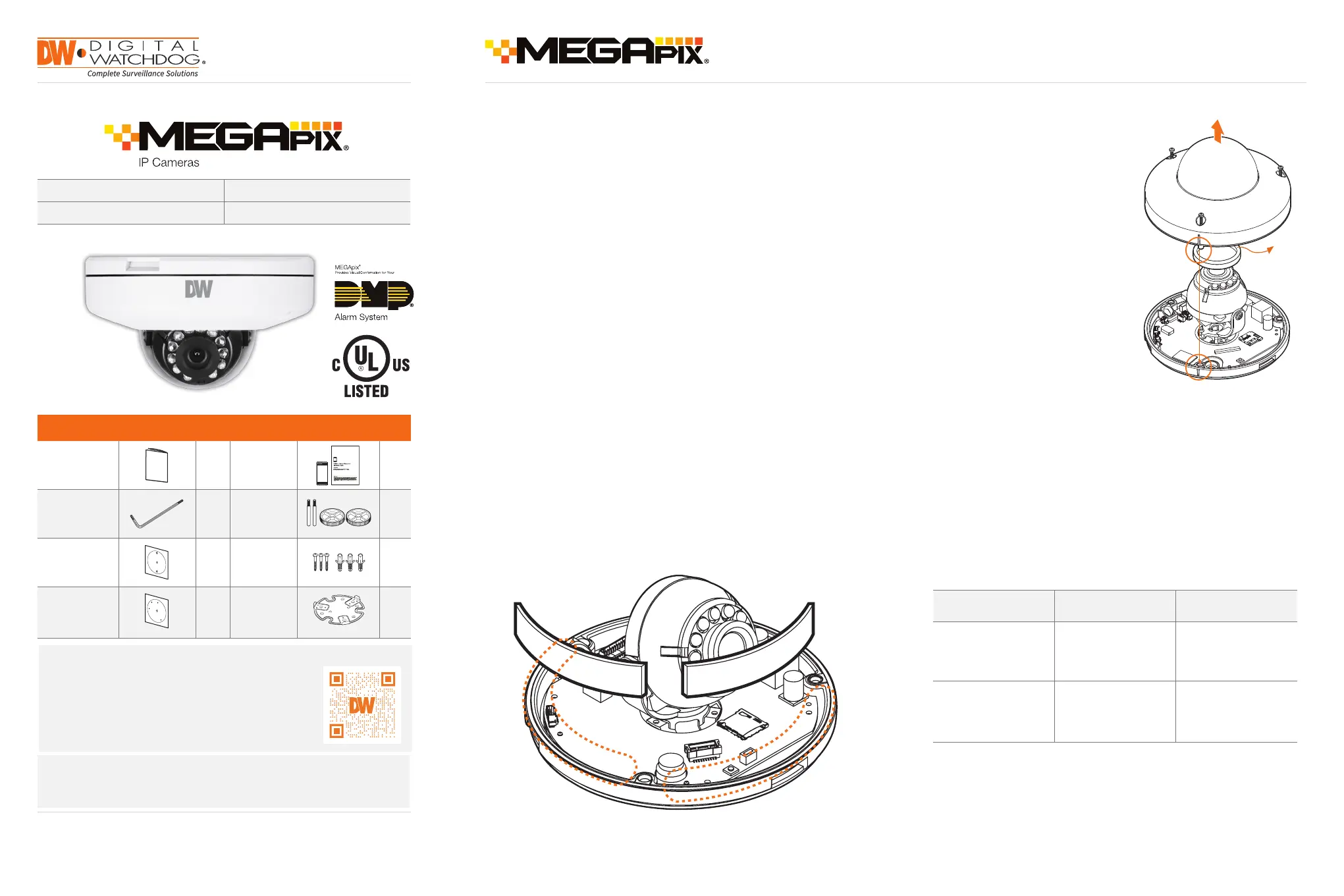

Seite 1/2

5MP model 2.1MP/1080p model

DWC-MF5Wi4TWDMP DWC-MF2Wi4TWDMP

Attention: This document is intended to serve as a quick reference page for

the initial setup. It is recommended that the user read the entire instruction

manual for complete and proper camera usage.

Tel: 866-446-3595 / 813-888-9555

Technical Support Hours:

9:00 AM – 8:00 PM EST, Monday through Friday

digital-watchdog.com

WHAT’S IN THE BOX

Quick Setup

and Download

guides

1 set Moisture

Absorber 1 set

Star Wrench 1

Mounting

Bolt and

Nuts - 2pcs

1 set

Mounting

Template for

Bolt and Nuts

Installation

Screws and

Plastic

Anchors –

3pcs

1 set

Mounting

Template for

Plate

Installation

1Mounting

Plate 1

Quick Start Guide Quick Start Guide

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the

search bar. Results for applicable ‘Search by Product’

part numbers will populate automatically based on the

part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

STEP 2 – POWERING THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections.

1. NETWORK CONNECTIONS – If you are using a PoE Switch, connect

the camera using an Ethernet cable for both data and power.

2. NETWORK CONNECTIONS – If you are using a non-PoE switch,

connect the camera to the switch using an Ethernet cable for data

transmission and use a power adapter to power the camera.

Part number Power Requirements Power Consumption

DWC-MF5Wi4TWDMP

DC 12V, PoE IEEE 802.3af

Class 3

(Adapter not included).

DC12V: max 5.9W

PoE: max 7.2W

DWC-MF2Wi4TWDMP

DC 12V, PoE IEEE 802.3af

Class 2

(Adapter not included).

DC12V: max 4.0W

PoE: max 5.5W

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line

cover can be damaged. This may cause a short or ﬁre.

3. CAUTION: These servicing instructions are for use by qualiﬁed

service personnel only. To reduce the risk of electric shock do not

perform any servicing other than that contained in the operating

instructions unless you are qualiﬁed to do so.

4. This product is intended to be supplied by a UL Listed Power Supply

Unit marked “Class 2” or “LPS” or “PS2” and rated 12 Vdc, 0.49A

(DWC-MF5Wi4TWDMP) and 0.33A (DWC-MF2Wi4TWDMP) min.

5. The wired LAN hub providing power over the Ethernet (PoE) in

accordance with IEEE 802-3af shall be a UL Listed device with the

output evaluated as a Limited Power Source as deﬁned in UL60950-

1 or PS2 as deﬁned in UL62368-1.

6. Unit is intended for installation in a Network Environment 0 as

deﬁned in IEC TR 62102. As such, associated Ethernet wiring shall

be limited to inside the building.

7. For the installation process, remove the dome cover from the

camera module by loosening the three (3) screws on the dome. Use

the wrench provided with the camera.

8. Install the moisture packet in the base of the camera’s lens.

a. Remove the moisture absorber from

the packaging.

b. Cut the card and folder along

the dotted line.

c. Place the moisture absorber

around the camera’s lens module.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Poron Ring

9. Remove the protective ﬁlm

between

the dome and the camera module.

10. Remove the Poron Ring before

placing the dome back on the

camera. When attaching the dome

back, align the line on the dome

with

the one on base of the camera.

11. Using the mounting template sheet

or the camera itself, mark and drill

the necessary holes in the wall or

ceiling.

Quick Start Guide

Rev Date: 08/20

Speciﬁcations and pricing are subject to change without notice.

NOTE: Please refer to DMP guide for additional information on integration

and camera control.

1. Attach the main body to the mount bracket by tightening the

lock screw.

2. For soft installation surfaces, use the included metal mount plate.

Fix the mount plate on the mounting surface using the included

screws. Then, press the bottom case onto the mount plate. The

three bezels on the case will align and snap lock onto the plate.

3. To use the camera’s waterproof wiring:

a. Install the LAN cable into .

b. will be assembled

to with a 1/4 turn.

c. Thread tightly to .

Resetting the camera: To reset

the camera, use the tip of a paper

clip or a pencil and press the reset

button. Pressing the button for ﬁve

(5) seconds will initiate a

camera-wide reset of all

the settings, including

network settings.

STEP 3 – INSTALLING THE CAMERA

NOTE: To ensure moisture seal, make sure the o-ring is in place

between and . In extreme environments use of an

outdoor rated sealer is recommended.

a b

NOTE: When using the waterproof cap, crimp the RJ45

connector after passing the cable through the

waterproof cap.

Reset Button

Protective Film

4. Once the installation is complete, adjust the camera’s tilt, panning

and rotation as needed. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotation: 0° ~ 360°

5. Assemble the dome cover over the camera body and detach the

protecting ﬁlm from the dome bubble.

Mounting Template STEP 3 – INSTALLING THE CAMERA (CONT.)

Installation using Mount Bolt and Screws:

1. Using the mounting template, mark and drill the holes on the

mounting surface.

2. Secure the two long mounting screws to the camera’s base.

3. Pass the wires through the mount bracket and make all

necessary connections.

4. Mount the camera to the mounting surface by using the 2 mounting

nuts. Rotate the locking discs over the screws until the camera is

held tightly from the mounting surface.
