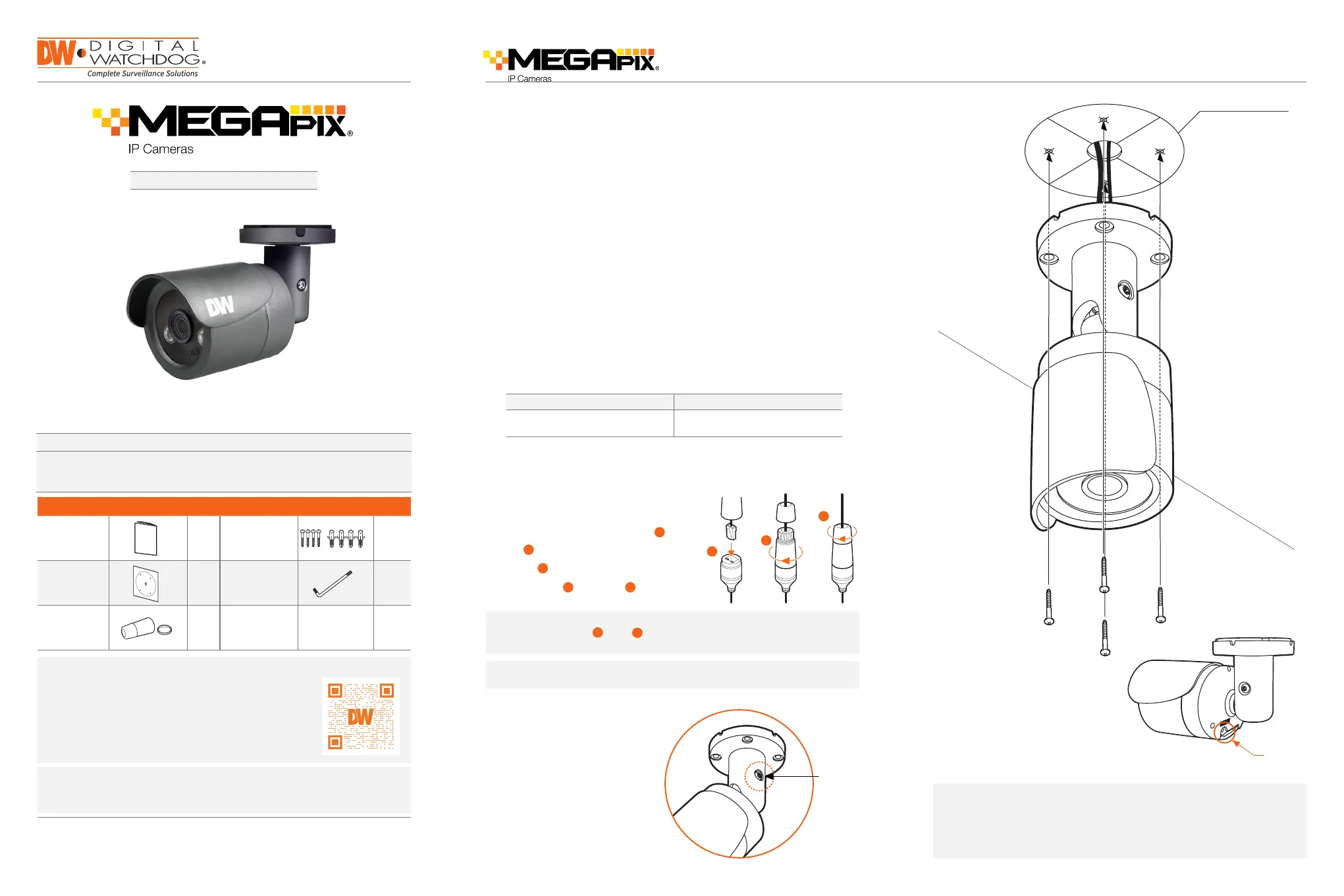

3. Loosen the pan and tilt screw
at the base of the camera’s
bracket to adjust the camera’s
view and position.
Reset
button
DWC-MB72Wi4T
Quick Start GuideQuick Start Guide
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
digital-watchdog.com
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for ve (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
WHAT’S IN THE BOX
Quick setup
and download
guides
1 set
Screws and
plastic anchors
– 4pcs
1 set
Mounting
template 1Hex Allen
wrench 1
Waterproof
cap 1 set
STEP 1 – PREPARING TO MOUNT THE CAMERA
STEP 2 – CABLING THE CAMERA TO THE POWER
1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
Pass the wires through the bracket and make all necessary connections.
1. NETWORK CONNECTIONS - If you are using a PoE switch, connect
the camera using an Ethernet cable for both data and power.
2. NETWORK CONNECTIONS - If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable for data
transmission and use a power adapter to power the camera.
Power requirements Power consumption
DC 12V, PoE (IEEE 802.3af Class 2)
Adapter not included.
DC12V: max 4.5W
PoE: max 6.0W
1. Attach the camera’s bracket to the mounting surface using the
included four (4) screws.
2. To use the camera’s waterproof wiring:
a. Install the LAN cable into .
b. will be assembled
to with a 1/4 turn.
c. Thread tightly to .
a
b
c
STEP 3 – INSTALLING THE CAMERA
a
a
b
bc
NOTE: To ensure moisture seal, make sure the o-ring is in place
between and . In extreme environments use of an
outdoor rated sealer is recommended.
ab
NOTE: When using the waterproof cap, crimp the RJ45 connector
after passing the cable through the waterproof cap.
Default Login Information: admin | admin
When logging into the camera for the first time, you will be prompted
to set up a new password. You can set the new password using the
DW® IP Finder™ software or directly from the camera’s browser menu.
Attention: This document is intended to serve as a quick reference for the initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
‘Search by Product’ search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click . All supported materials, including manuals ‘Search’
and quick start guide (QSGs) will appear in the results.
Mounting template
Pan / tilt
screw
Rev Date: 05/20
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
STEP 6 – WEB VIEWER
*
The GUI display may dier by camera models.
STEP 5 – DW® IP FINDER™
Thumbnail view
Firmware version
DHCP status
Camera’s uptime
Open IP configuration
settings
Ping camera
Port information
Gateway address
Netmask address
Camera’s MAC address
Filter results
Scan network
Select network to scan
Show/hide thumbnail view
Refresh thumbnail view
Bulk password assignment
Bulk IP assignment
Firmware upgrade
Camera’s name
Camera’s IP address
Part number
Use the DW® IP Finder™ software to scan the network and detect all MEGApix®
cameras, set the camera’s network settings or access the camera’s web client.
Network Setup
1. To install the DW IP Finder™, go to: ®
http://www.digital-watchdog.com
2. Enter “DW® IP Finder” on the search box at the
top of the page.
3. Go to the “Software” tab on the DW® IP Finder™
page to download the installation file.
4. Follow the installation to install the DW® IP
Finder™. Open the DW IP Finder™ and click ®
‘Scan Devices’. It will scan the selected network
for all supported devices and list the results in
the table. During the scan, the DW® logo will
turn gray.
Select DHCP to allow the camera to receive its IP
address automatically from the DHCP server.
Select “Static” to manually enter the camera’s
IP address, (Sub)Netmask, Gateway and DNS
information.
* The camera’s IP must be set to Static if
connecting to
Spectrum® IPVMS
Contact your network administrator for more
information.
Default TCP/IP information: DHCP
5. When connecting to the camera for the first time,
a password must be set. To set up a password for
your new camera:
a. Check the box next to your new camera from the
IP Finder’s search results. You can select multiple
cameras.
‘Port forwarding’ has to be set in your
network’s router for external access to
the camera.
b. Click “Bulk Password Assign” on
the left.
c. In the pop-up window, enter
admin/ admin in the
current username and password
fields. Enter a new username
and password to the right.
d. Press “change” to apply all
changes.
6. Select a camera from the list by
double-clicking on the camera’s
image or clicking on the ‘Click’
button under the IP Conf. column.
The pop-up window will show
the camera’s current network
settings, allowing admin users to
adjust the settings as needed.
7. To access the camera’s web page,
go to the IP Config page and click
‘View Camera Website’.
8. To save the changes made to
the camera’s setting, input the
username and password of the
camera and click Apply.
NOTE: Some menu options may not be available based on the
camera model. See the full manual for more information.
NOTE: 32bit version of VLC player must to be installed. If you are
using 64bit system, uninstall the previous 64bit version and
reinstall using the 32bit version.
Once the camera’s network settings have been setup properly, you can
access the camera’s web viewer using the DW IP Finder® ™.
To open the camera’s web viewer:
1. Find the camera using the DW® IP Finder™.
2. Double-click on the camera’s view in the results table.
3. Press the ‘View Camera Website’. The camera’s web viewer will
open up in your default web browser.
4. Enter the camera’s username and password you setup in the DW®
IP Finder™. If you did not setup a new username and password via
the DW® IP Finder™, you will not be able to view video from the
camera. A message will direct you to setup a new password for the
camera to view the video.
5. When accessing the camera for the first time, install the VLC player
for web files to view video from the camera.
Quick Start Guide
STEP 4 – MANAGING THE SD CARD
1. To install the camera’s SD Card,
locate the SD card slot in the back
of the camera.
2. Insert a class 10 SD/SDHC/
SDXC card into the SD card slot
by pressing the SD card until it
“clicks” into place.
3. To remove the SD card, press the
card inward to release it from the
card slot.
NOTE: When inserting the SD card
into the card slot, the SD card’s
contacts should be facing
upward, as shown in the diagram.
